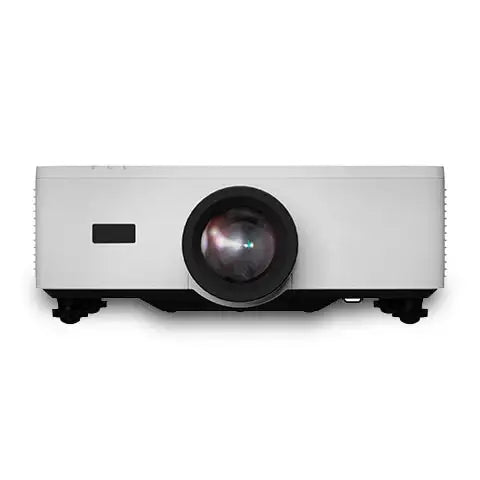

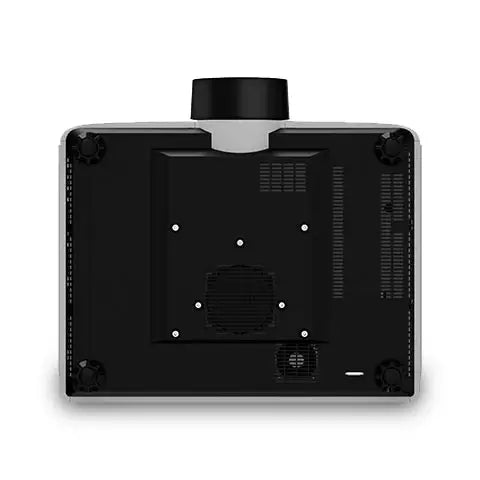

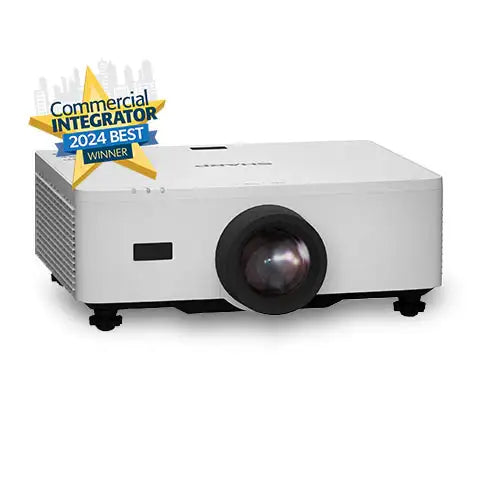

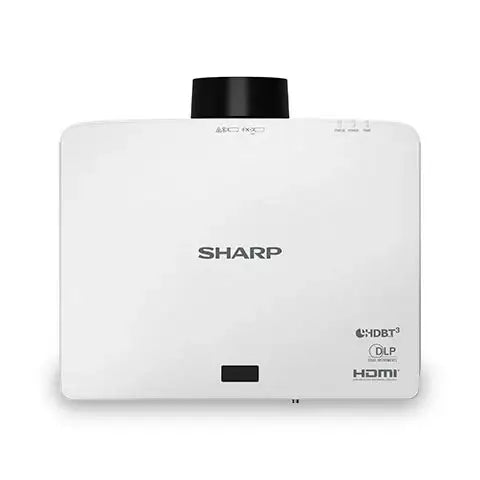

Sharp XP-P601Q-W 6000 Lumen XPR 4K Laser DLP Projector

Authorized Dealer

$5,979.00 $8,541.00

Shipping calculated at checkout.

Sharp | SKU: XP-P601Q-W

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Delivering stunning 4K UHD picture the Sharp P601Q is a commercial grade, Entry Installation Series, DLP, laser projector that is bright enough to meet the needs of higher education and corporate users. At 6,000 lumens the P601Q produces clear images in well-lit environments. DLP technology eliminates the need for a filter and combined with the maintenance free laser light source this projector provides years of worry-free operation. Enjoy time-saving installation flexibility with broad horizontal and vertical motorized lens shift, a 1.6x motorized zoom lens, motorized focus, roll free capability and HDBaseT input.

Features

Clear 4K UHD resolution creates sharp, detailed pictures that will leave a lasting impression
DLP, laser technology ensures years of reliable operation
Motorized horizontal & vertical lens shift enables flexible projector placement
Built-in HDBaseT input provides a single connection for video, audio and control
Supports 21:9 aspect ratio for more engaging meeting spaces
Eco-friendly features, minimal maintenance and a cost saving design mean these projectors are great for demanding applications in museums, higher education and corporate environments

Specs

Display

Aspect Ratio	16:9 (Supports 4:3, 16:10, 21:9)	Screen Resolution	4K UHD 3840x2160
Maximum Resolution	Up to 4K UHD (3840x2160) @ 60Hz via HDMI, HDBaseT, Up to 1080p (1920x1080) @ 24Hz for 3D	Contrast Ratio (typical)	3,000,000:1 (Dynamic)

Synchronization Range

Horizontal (Analog/Digital)	15-140kHz	Vertical	24-120Hz, 240Hz

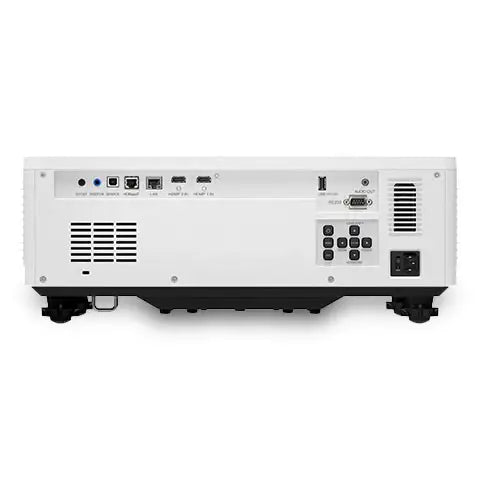

Signal Compatibility/Connectivity

SD/HD Video Signal Compatibility	720p, 1080i, 1080p, 4K UHD, 4K	PC Signal Compatibility	XGA, WXGA, SXGA, WUXGA, UWFHD
Macintosh Signal Compatibility	Yes	External Control	RS-232 (D-Sub 9pin), IR, LAN, HDBaseT, Wired Remote
Input Terminals External Control: Remote In (stereo mini jack) RGB1(digital): HDMI w/ HDCP (v1.4/2.2) RGB2(digital): HDMI w/ HDCP (v1.4/2.2) RGB3(digital): HDBaseT		Output Terminals Digital: 0 Audio: Stereo Mini Jack External Control: 12V (stereo mini jack) Audio Out: Stereo Mini Jack (variable)

Power Consumption (typical)

On	530W / 285W / 2W / 0.5W	Network Standby	2W
Power Savings Mode	0.5W	Input Current	6.5-2.6A
Power Requirements	100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD) Product: 19.1 x 7.3 x 17.0 in. / 486 x 185.5 x 432.5 mm Shipping: 25.9 x 14.7 x 22.2 in. / 657 x 373 x 563 mm		Weight Net Weight: 32.0 lbs. (14.5 kg) Shipping: 41.7 lbs. (18.9 kg)

Environmental Conditions

Operating Temperature	32-113°F / 0-45°C	Operating Humidity	10 to 85% Humidity (Non-Condensing)
Operating Altitude	0 to 2500 m (8,200 ft), 1600 m (5,200 ft	Storage Temperature	14-140°F / -10-60°C
Storage Humidity	max 90% Humidity (Non-Condensing)	Storage Altitude	0-10,000m / 0-32,808ft (above sea level)

Limited Warranty (parts & labor)

Registered owners receive a 5-year or 20,000 hours (whichever comes first) parts and labor warranty including InstaCare next business day exchange.

Additional Features

Auto power on Auto power off ECO Mode technology NaviSet Administrator2 compatible Crestron, AMX, PJLink support

Optical

Display Technology	0.65" DMD	Lamp Type	Laser/Phosphor
Light Output(Lumens)	6,000 Lumens (Eco Off, 100%)	Light Source Life	20,000 hours (until 50% brightness)
Throw Ratio	1.25-2.0:1	Projection Distance	5.2 to 42.3 ft. / 1.6 to 12.9m
Projector Angle	0 - TBD° tele / 0 - TBD° wide (at 100")	Lens Zoom: 1.6x Focus: Motorized F number, fnumber: F:2.0~2.4 /f=18.7~29.6mm
Keystone Correction	Manual (horizontal/vertical)

Mechanical

Installation Orientation	Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear	Fan Noise	36dB (ECO mode Off), 34dB (ECO mode)
Regulations	USA: cTUV (UL62368-1 3rd ed.) FCC Part15 Class B, Canada: CAN/CSA (62368-1:19 3rd ed.) ICES-003 Issue 7

Accessories

Included	Remote Control, (2) AAA Batteries Power Cord	Optional	Ceiling Mount (NP01UCM) Carrying Case (NP402CASE)

Lens Adjustment Functions

Motorized focus, zoom, shift

Supported Screen Size (maximum)

60 - 300 in. / 1.52 - 7.62m
