Sharp XP-M401H-W 4000 Lumen Full HD Laser DLP Projector

Authorized Dealer

$1,459.00 $2,085.00

Shipping calculated at checkout.

Sharp | SKU: XP-M401H-W

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

M Series laser projectors provide the essential features that you need to simply and reliably present to your audience at an affordable price. The 4000-lumen, 1080p (1920 x 1080) resolution Sharp M401H is ideal for K-12 classrooms or small meeting spaces that need a clear image that can be seen all around the room. Enjoy the convenience of quick setup with direct power on and quick power off. The M Series offers a long term, maintenance free solution and a low total cost of ownership. Now is the time to switch to M Series laser and realize a more eco-friendly, sustainable projection solution.

Features

Long lasting, maintenance-free laser light source reduces total cost of ownership compared to lamp based projectors
DLP technology provides a filter-free projection solution
Compact design improves manufacturing and logistics efficiencies for a smaller carbon footprint
Utilize ECO settings and benefit from lower power consumption for a more sustainable projection solution.

Specs

Display

Aspect Ratio	16:9 (Supports 4:3, 16:10)	Screen Resolution	1080p 1920x1080
Maximum Resolution	Up to WUXGA (1920x1200) @ 60Hz via HDMI	Contrast Ratio (typical)	50,000:1

Synchronization Range

Horizontal (Analog/Digital)	15-140kHz	Vertical	24-120Hz

Signal Compatibility/Connectivity

SD/HD Video Signal Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p	PC Signal Compatibility	VGA, SVGA, XGA, WXGA, SXGA, WUXGA
Macintosh Signal Compatibility	Yes	External Control	RS-232 (D-Sub 9pin), IR

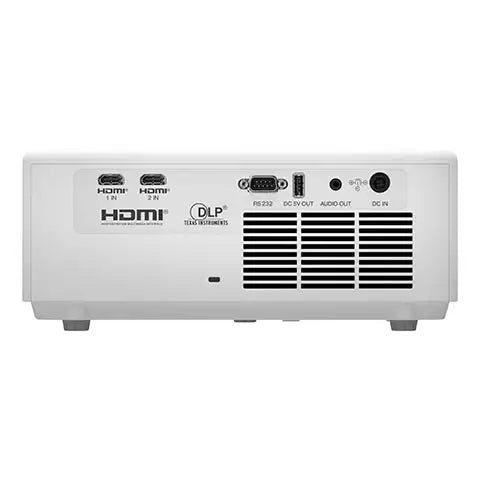

Input Terminals RGB1(digital): HDMI (v1.4b) w/ HDCP (v1.4) RGB2(digital): HDMI (v2.0) w/ HDCP (v2.2)		Output Terminals Audio: Stereo Mini Jack Audio Out: Stereo Mini Jack (variable)

Power Consumption (typical)

On	195W / 150W / 0.5W	Power Savings Mode	0.5 W
Input Current	3.5A	Power Requirements	100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD) Product: 10.9 x 4.5 x 8.5 in. / 278 x 115.5 x 216 mm Shipping: 15.8 x 6.1 x 11.0 in. / 400 x 155 x 280 mm		Weight Net Weight: 6.6 lbs. (3.0 kg) Shipping: 10.2 lbs. (4.6 kg)

Environmental Conditions

Operating Temperature	32-104°F / 0-40°C up to 2,500' \| 32-95°F / 0-35°C 2,500' to 5,000' \| 32-86°F / 0-30°C 5,000' to 10,000'	Operating Humidity	20 to 80% Humidity (Non-Condensing)
Operating Altitude	0 to 3000 m (10,000 ft), 1500 m (5,000 ft) or more need Fan Mode setting: High Altitude	Storage Temperature	14-122°F / -10-50°C
Storage Humidity	20 to 80% Humidity (Non-Condensing)	Storage Altitude	0-12,000m / 0-39,370ft (above sea level)

Limited Warranty (parts & labor)

Registered owners receive a 5-year parts and labor warranty including InstaCare next business day exchange.

Additional Features

Auto power on Auto power off ECO Mode technology Compact, portable design Dual HDMI w/ CEC Simple setup

Optical

Display Technology	0.65" DMD	Lamp Type	Laser/Phosphor
Light Output(Lumens)	4,000 Lumens	Light Source Life	Up to 20,000 hours (until 50% brightness)
Throw Ratio	1.16-1.47:1	Projection Distance	4.3 to 9.8 ft. / 1.3 to 3m
Projector Angle	0 – 14.3° tele / 0 – 17.9° wide (at 100")	Lens Zoom: 1.3x Focus: Manual F number, fnumber: F:2.45~2.78 /f=17.31~21.61mm
Keystone Correction	Manual (+/- 30° H/V (auto vertical))

Mechanical

Installation Orientation	Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear	Fan Noise	36dB (High Bright), 26dB (ECO mode)
Regulations	USA: cTUV (UL62368-1 3rd ed.) FCC Part15 Class B, Canada: CAN/CSA (62368-1:19 3rd ed.) ICES-003 Issue 7

Accessories

Included	Remote Control, (2) AAA Batteries Power Cord w/ AC Adapter HDMI Cable Lens Cap	Optional	Universal Ceiling Mount (NP01UCM) Soft Sided Carry Case (NP402CASE)
