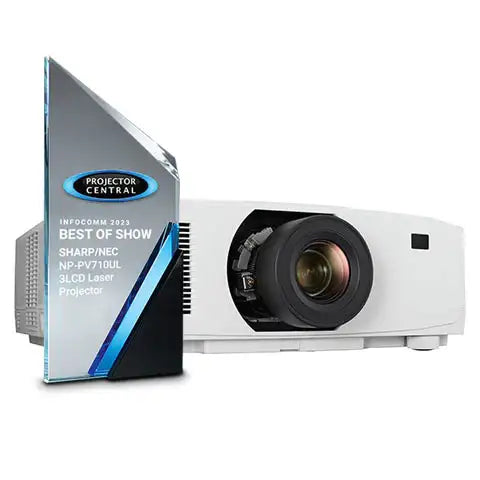

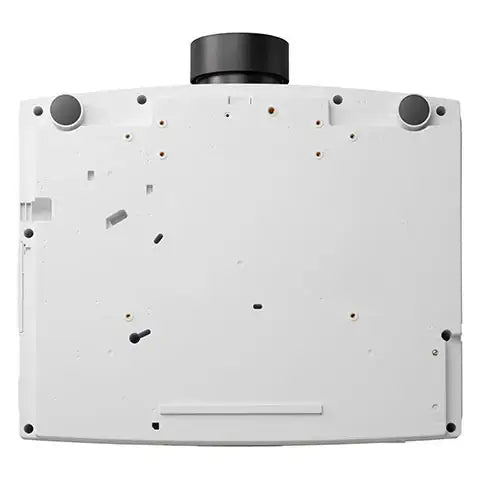

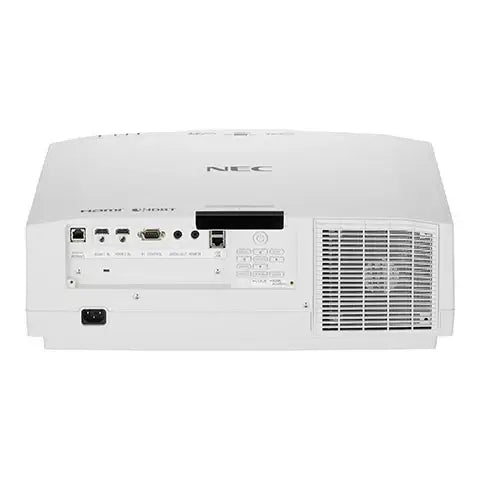

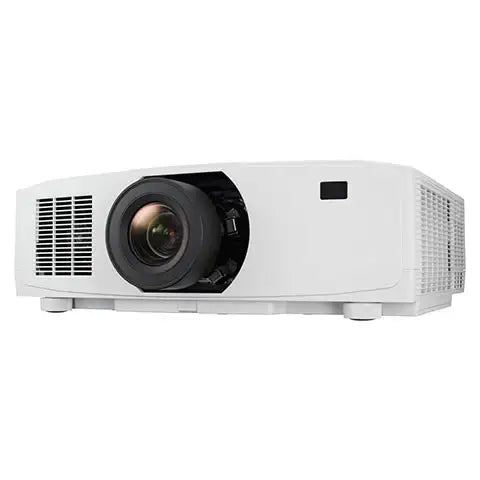

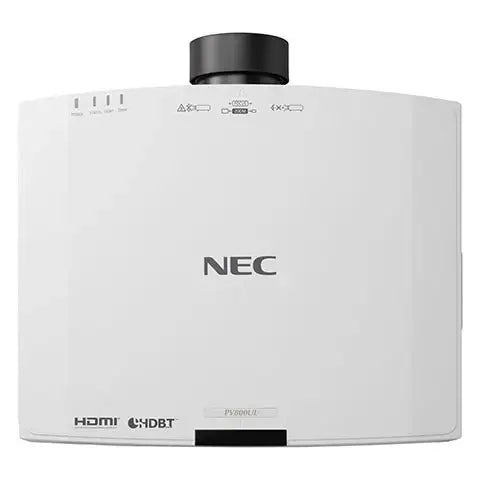

Sharp NP-PV710UL-W1-13ZL 7100-Lumen WUXGA Professional Installation 3LCD Projector with NP13ZL Lens (White)

Authorized Dealer

$6,563.00 $7,151.00

Shipping calculated at checkout.

Sharp | SKU: NP-PV710UL-W1-13ZL

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

NEC's PV710UL-W1-13 (white cabinet) is a 7100-lumen (Center: 7400lm) LCD laser projector with advanced professional installation features for higher education and corporate users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional motorized lenses (lens shift, focus and zoom), roll free installation capabilities. The HDBaseT input provides a single connection for uncompressed full HD digital video, audio, ethernet power and various control signals.

Features

4K Ready - Display stunning 4K 60P content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details. HDR10 and BT.2020 signals from “Ultra HD Blu-ray” and “4K TV broadcasting” are supported on all digital inputs
Basic control of competitors product reducing the need for reprogramming of a control system. (call Sharp for complete list)
Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP and PJ link allow for complete interactivity and control
7100-lumen (Center: 7400lm) brightness enhances images for most applications
ProAssist™ is software for controlling the projector and adjusting the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project a large screen in a classroom, meeting room, auditorium or other large space.

Specs

Display

Aspect Ratio	16X10	Screen Resolution	WUXGA 1920x1200
Maximum Resolution	4K 4096 x 2160	Brightness (typical)	7100 Lumens
Brightness (maximum)	7400 Center Lumens	Contrast Ratio (typical)	3,000,000:1 (with Dynamic Contrast)

Synchronization Range

Horizontal (Analog/Digital)	24-100kHz	Vertical	50-85Hz

Signal Compatibility/Connectivity

Supported Video Standards	NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM	SD/HD Video Signal Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K
PC Signal Compatibility	VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, Quad HD	Macintosh Signal Compatibility	Yes
Sync Compatibility	Separate Sync / Composite Sync / Sync on G	External Control	RS-232, IR, Wired Remote, HDBaseT, DDC/CI, RJ-45, USB (USB 2.0)
Input Terminals RGB2(digital): HDMI (V2.0) w/HDCP (V1.4/2.2) RGB3(digital): HDMI (V2.0) w/HDCP (V1.4/2.2) RGB5(digital): HDBaseT w/HDCP (V1.4/2.2)		Output Terminals Audio: Stereo Mini Jack Audio Out: Stereo Mini Jack

Power Consumption (typical)

On	456W / 412W / 1.7W / 0.16W	Input Current	6.1A - 2.5A
Power Requirements	100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD) Product: 19.8 x 6.6 x 16.2 in. / 503 x 168 x 411 mm External: 19.8 x 6.6 x 16.2 in. / 503 x 168 x 411 mm Shipping: 23.3 x 10.2 x 19.3 in. / 591 x 259 x 591 mm		Weight Net Weight: 24.7 lbs. / 11.2 kg Shipping: 29.5 lbs. / 13.4 kg

Environmental Conditions

Operating Temperature	32-113°F / 0-45°C	Operating Humidity	20 to 85% Humidity (Non-Condensing)
Operating Altitude	2 to 2600 m (8,500 ft)	Storage Temperature	14-122°F / -10 50°C
Storage Humidity	20% - 80% (non-condensing)	Storage Altitude	0-12,000m / 0-39,370ft (above sea level)

Limited Warranty (parts & labor)

Registered owners receive a 5-year or 20,000 hours parts and labor warranty including InstaCare next business day exchange.

Additional Features

4K Ready Manual Lenses Manual Keystone Correction Quick power on ECO Mode Technology DiCom Simulation NaViSet Administrator 2 Quick power-off Advanced AccuBlend AutoSense ProAssist Software

Optical

Display Technology	0.76" LCD w/ MLA	Light Output(Lumens)	7,100 Lumens
Light Source Life	20,000 hours	Throw Ratio	0.32:1 Ultra-Short Throw Lens / 0.60 to 0.76:1 Motorized Zoom Lens / 0.79 to 1.11:1 Motorized Zoom Lens / 1.30 to 3.02:1 Motorized Zoom Lens / 2.99 to 5.93:1 Motorized Zoom Lens
Projection Distance	2.5 to 68.5 ft. / 0.74 to 20.9m	Projector Angle	10.3 to 10.8° tele / 13.7 to 14.5° wide
Lens Zoom: Manual Focus: Manual F number, fnumber: (NP44ML-02LK) F=2.0, f= 6.27mm, (NP50ZL) F=2.0 to 2.5, f= 76.6 to 116.5mm, (NP40ZL) F=2.0 to 2.5, f= 13.3 to 18.6mm, (NP41ZL) F=1.7 to 2.0, f= 21.8 to 49.8mm, (NP43ZL) F=2.2 to 2.6, f= 49.7 to 99.8mm		Keystone Correction	+/- 30° horizontal, +/- 30° vertical

Mechanical

Installation Orientation	Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear	Fan Noise	40 dB normal / 31 dB eco
Regulations	USA UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.60950-1-07,2nd Edition,2014, ICES-003 Issue6(ANSI C63.4:2014)	Optional Lenses	Ultra-Short Throw Lens 0.32:1 (NP44ML-02LK) Motorized Zoom Lens 0.60-0.76 (NP50ZL) Motorized Zoom Lens 0.79-1.11 (NP40ZL) Motorized Zoom Lens 1.30-3.02 (NP41ZL) Motorized Zoom Lens 2.99-5.93 (NP43ZL)

Accessories

Included	Remote Control (RMT-PJ40) Quick Guide Important Info Lens Cap Security Sticker Lens Anti-Theft Screw	Optional	Adjustable Extension Column, 6" - 9" (AEC006009) Adjustable Extension Column, 12" - 18" (AEC012018) Adjustable Extension Column, 2' - 3' (AEC0203) Adjustable Extension Column, 3' - 5' (AEC0305) Power Cord (NP01PW1) Replacement Filter (NP06FT) Option Cover (NP10CV) 1.16 - 1.56:1 Zoom Lens [lens shift] (NP12ZL) 1.46 - 3.02:1 Zoom Lens [lens shift] (NP13ZL) 4.59-7.02 Zoom Lens [lens shift] (NP15ZL) 0.79 – 1.14:1 Zoom Lens [lens shift] (NP40ZL) 1.30 – 3.02:1 Zoom Lens [lens shift] (NP41ZL) 2.88 - 5.93 Optional Lens (NP43ZL) Ultra-Short Throw Lens 0.32:1 (NP44ML-01LK) 0.6 – 0.76:1 Motorized Zoom Lens [lens shift] (NP50ZL) Ceiling Mount (PA600CM) Replacement Remote (RMT-PJ40)
