Crestron SSW-102-EL Room Availability Hallway Sign, Wall Mount, Enhanced Legibility, Includes Custom Engraving

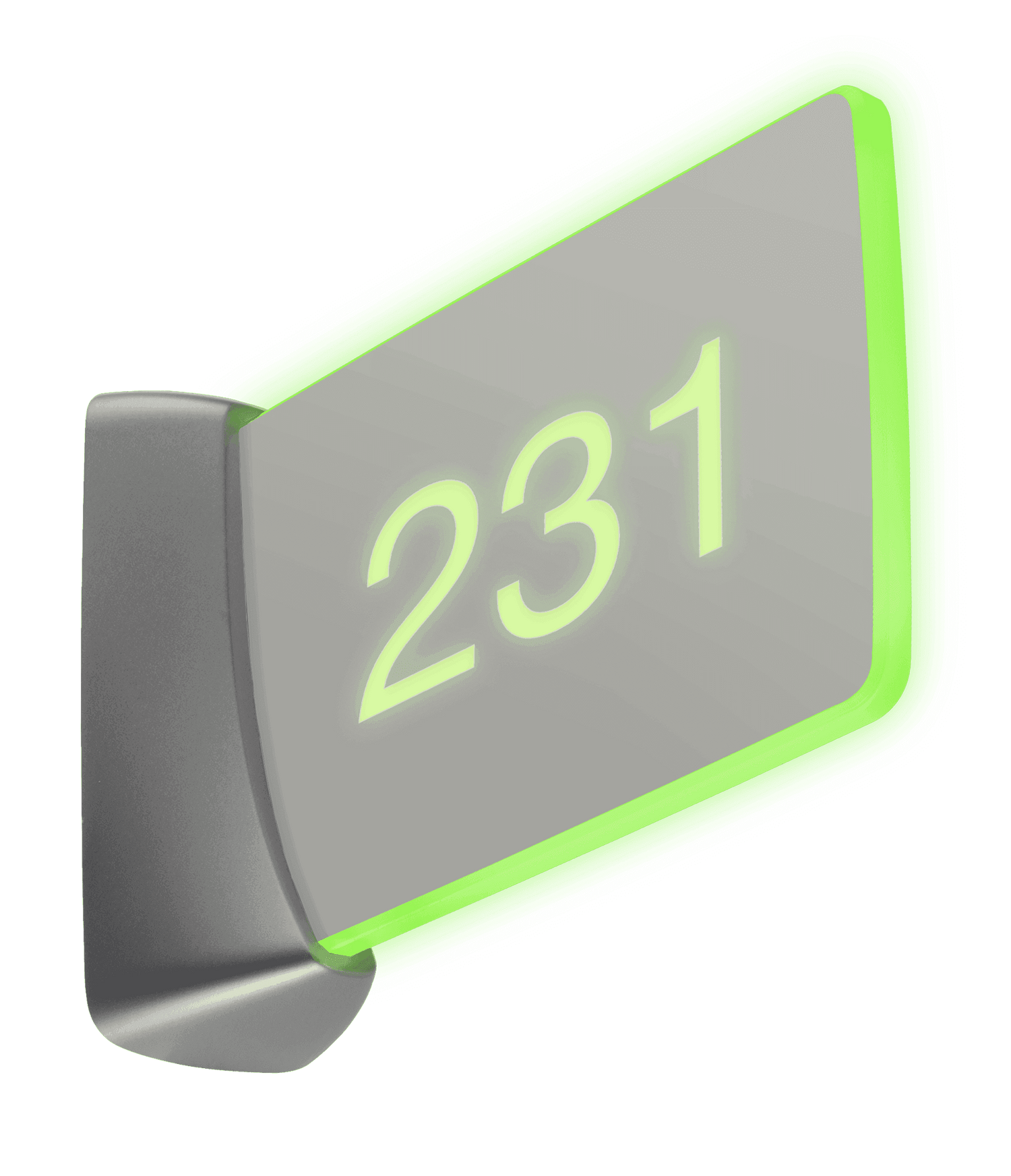

The SSW-102-EL hallway sign provides a clear indication of a room’s availability with enhanced contrast and visibility as part of a complete Crestron® enterprise room scheduling solution. The SSW-100-EL features a stylish appearance and vivid color illumination that complements any corporate office environment. The two‑sided, gray acrylic sign face illuminates bright green or red to indicate the room availability status. The sign face is custom engravable with the room number, name, icon, or other designation. The complete sign assembly mounts to the wall over a 1‑gang electrical box or plaster ring.

Room Availability Status
For room scheduling applications, the SSW-100-EL simply connects via USB to a Crestron TSS-770, TSS-1070, TSW-770, TSW-770-GV, TSW-1070, or TSW-1070-GV series touch screen. No special programming or configuration is required. The sign color is controlled by the room scheduling application, which runs on the touch screen and syncs with Crestron Fusion® software or another room scheduling service. The sign illuminates green when the room is available and red when the room is occupied.1 The gray sign face allows for increased contrast and readability from a distance, making it perfect for environments with long corridors or large, open spaces.

Custom RGB Colors
For custom applications, the SSW-100-EL can be integrated with a Crestron control system and programmed to illuminate in a wide variety of colors:

• The RGB LEDs can be controlled in 10% increments per color.
• When the sign is powered by USB, any single color LED can be used at full brightness.
• When the sign is connected to a control system via a Cresnet® network connection, two color LEDs can be used at full brightness simultaneously.
• Three color mixing is possible via Cresnet if each LED is limited to 70%.
• The control system can be programmed to support all types of functionality, enabling colors to alternate, fade in and out, or blink on and off as desired.

Control system integration can be accomplished through a USB connection to a TSW‑770 or TSW‑1070 series touch screen, or through a Cresnet connection to the control system.2

Custom Engraving
The SSW-100-EL includes a blank acrylic sign, which allows for custom engraving by a third party. The engraving appears on both sides of the acrylic sign face to identify the room by name, number, or a representative icon image. When illuminated, the engraving is clearly visible at a distance of 150 ft (46 m) if 1 in. fonts are used.

Simple Installation
The SSW-100-EL mounts to the wall over a standard 1-gang electrical box or plaster ring. Power and communications are supplied by a single USB or Cresnet cable. A 6 ft (1.83 m) USB cable is included, which connects to the touch screen mounted below the sign. Alternately, a Cresnet cable (sold separately) can be run to a control system up to 3000 ft (914 m) away. Cresnet permits multiple hallway signs to be daisy chained using a single cable.1,2

Mullion Mounting Option
When a suitable wall surface is not available, the SSW-100-EL can be mounted to the mullion of an interior glass wall, window, or partition using the optional SSW‑MUMK mullion mount kit (sold separately). The same kit may also adhere directly to the glass or any other smooth surface.
