RGBlink TAO 1mini-N 4K

RGBlink TAO 1mini-N 4K

Key Features

• Small and compact, easy to carry
• Serve as either NDI video encoder or NDI decoder
• Support multiple formats, including RTMP/RTMPS/RTSP/SRT/FULL NDI/NDI | HX3/NDI | HX2/ NDI | HX
• Stream to at least 4 platforms at the same time
• Low latency of end-to-end transmission
• Intuitive touch control, higher color and image quality
• Power from USB-C or PoE network
• Dual ¼in mounts
• LED TALLY indicators

TAO 1mini is the latest signal node to a new level for advanced use cases, not only for encoder, but also decoder.

It expands the connectivity in a single unit including HDMI 2.0 and UVC IN & OUT, but also ethernet I/O. With HDMI 2.0 and UVC inputs for a 4K encoding and multiprotocol streaming by ethernet outputs. Vise versa, as a 4K decoder from ethernet inputs to HDMI 2.0 and UVC output.

It comes with higher streaming bitrates; file recording; and much more. This device is ideal for high-quality live streaming of content including sports, education, and live events as well as IP-based production and AV-over-IP.

Multi-Input Video Processing

The single-channel TAO 1mini can encode one live input source - either HDMI or UVC - or mix video from the HDMI and UVC inputs (picture-in-picture or side-by-side) into a combined output. Up to eight user-configurable overlays - including text, images, and a clock - can be applied to the output profile.

Flexible Formats and Protocols

TAO 1mini supports multiple video encoding formats - including H.264, H.265 (HEVC), NDI®|HX 2, NDI®|HX 3 and full NDI®- and a wide array of delivery protocols including RTMP, RTMPS, SRT, RTSP, RTP, HLS. Up to eight channels of audio can be encoded in AAC format.

 Powerful Encoding & Streaming Capabilities

In Encoding mode, video can be encoded at resolutions up to 4096x2160 at 60 frames per second from HDMI sources, or up to 4096x2160 at 30 frames per second from the UVC input.

TAO 1mini can stream to up to 32 different target destinations simultaneously at bitrates up to 32Mbps per stream, with TAO APP connection.

 Leading Decoding Capabilities

In Decoding mode, TAO 1mini will automatically adapt the Full NDI®, NDI®|HX2 and NDI®|HX3 format as your end needs. TAO 1mini will take care of your 4Kp60 video transmission.

Versatile Recording and Streaming

TAO 1mini supports streaming and recording simultaneously. Inputs can be recorded as files to an external, USB-connected storage device or networked storage (NFS, CIFS or SMB).

USB Extension

TAO 1mini has both USB 3.0 Type-A and USB 3.0 Type-C interfaces for you to: Access a Web Camera via USB 3.0 Type-A as a video input source for encoding; Connect to your PC via USB 3.0 Type-C as a USB video input; With USB extensions available, you can achieve unlimited possibilities by seamlessly bringing NDI technology to your applications such as video conferencing, image processing, and more.

New NDI®|HX 3 Support (certification in progress)

For IP production workflows and AV-over-IP signal distribution architectures, TAO 1mini supports NDI®|HX 3, the latest version of the high-efficiency, low-bandwidth option in the popular NDI® IP media transport technology platform.

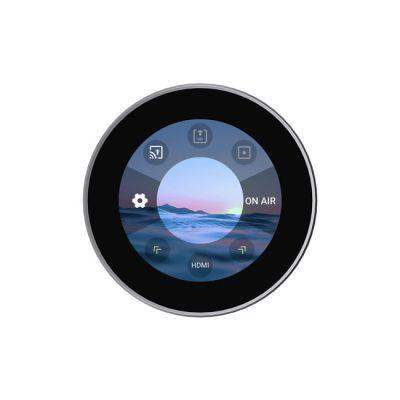

TAO 1mini also supports the earlier NDI®|HX 2 and full NDI® for broad compatibility. Large-sized colour LCD screen and finger touch A large colour LCD screen and finger touch enable you to customize settings, switch on/off, set quick shortcuts, and control all video sources with preeminent ease. LCD is also a built in preview monitor for the dedicated input selected.

TAO 1mini-HN: for full HD version signal node

TAO 1mini: for 4K version signal node

Its outputs supports up to 4 independent displays, and 8 layers with arbitrary roaming capacity and each layer can cross over each output without layer counting up.
