Renkus-Heinz TA118S-RD 18" Subwoofer, powered with RHAON & Dante Redundant, SA1250-RD Amp Module

$4,146.00
Shipping calculated at checkout.
Renkus-Heinz  |  SKU: TA118S-RD-BK
Model

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00
Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Payments Data is Encrypted
Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Checkout data is encrypted

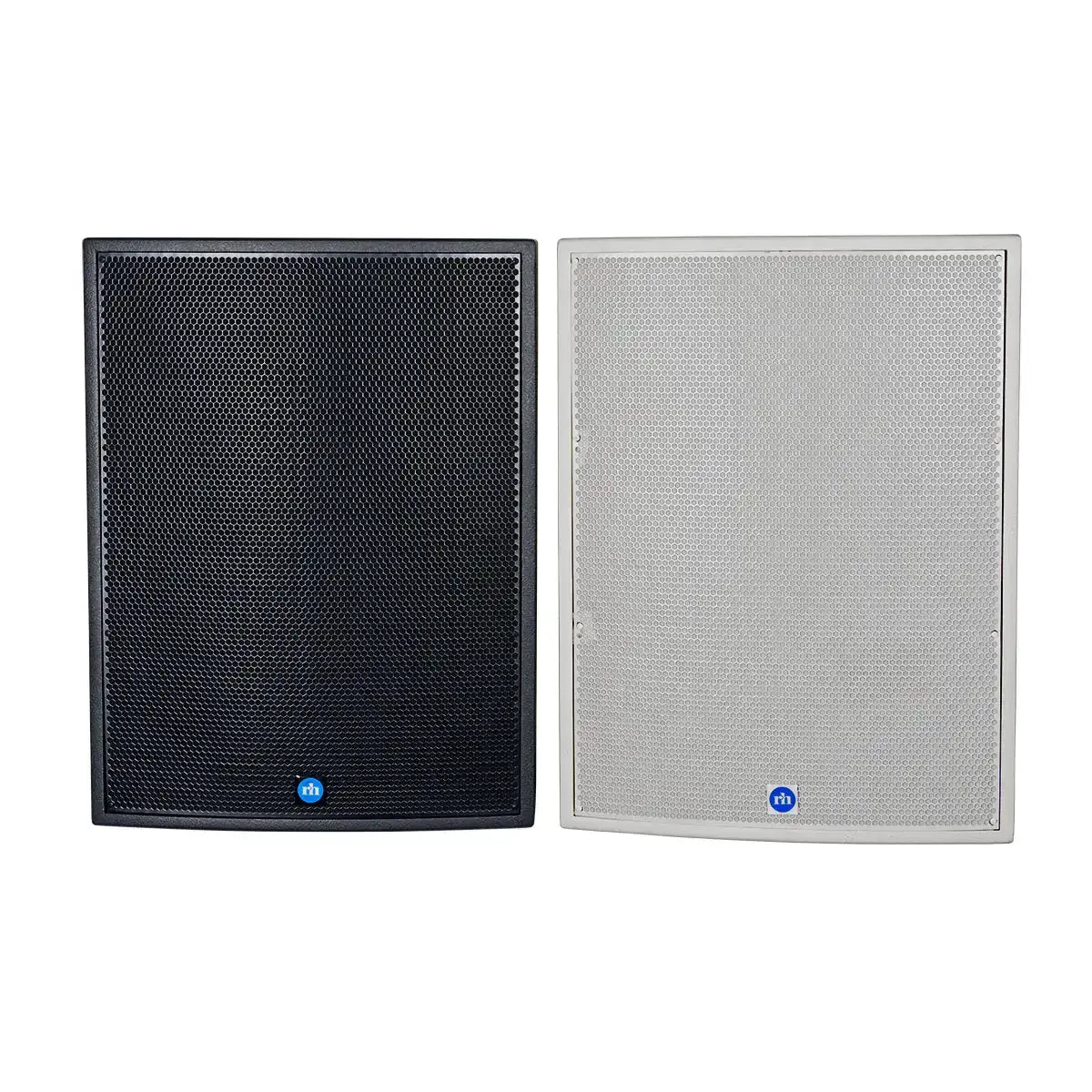

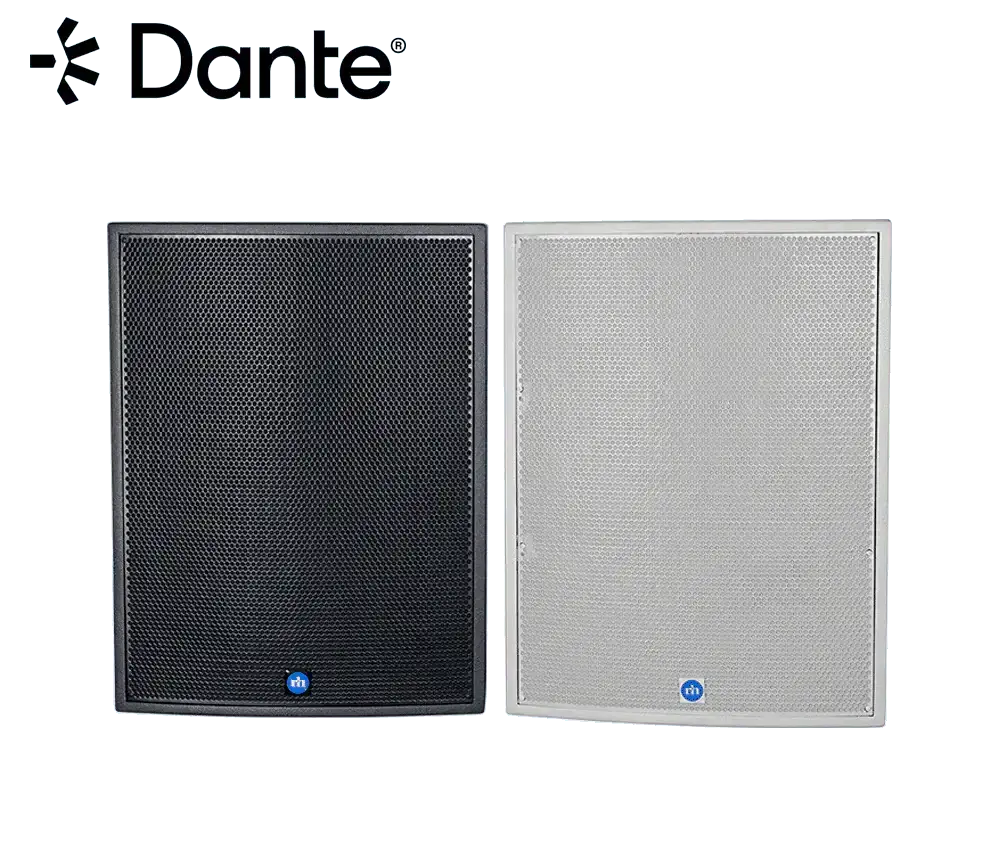

TX/TA118S

18 inch High-Performance Subwoofer

T118S subwoofers were developed as companion pieces to full range T Series loudspeakers. They provide the high impact sub bass energy needed in many venues.


T118S

18-inch High Performance Subwoofer

Sound that makes performances and audiences truly come alive doesn’t come easy. But T Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

T118S subwoofers were developed as companion pieces to full range C series loudspeakers. They provide the high impact sub bass energy needed in many venues.

TA118S Powered Loudspeakers
Equipped with SA1250 Series Amplification

TX118S Non-Powered Loudspeakers
For use with external amplification

Key Features

• Powerful 18-inch Subwoofers
Outstanding 35 Hz to 100 Hz, 137 dB peak SPL sub-bass performance.

• High Performance, High Power Woofers
With 4-inch voice coils, rigid cast-alloy frames and long throw magnetic structures easily handle 900 Watts of program power.

• Built-In Lo-Pass Filter
Eliminates the need for an external electronic crossover.

If you need an outstanding high-power 18-inch subwoofer, order the T118S.

Applications

• Virtually any application where high-output, low frequency content is required

Permanent Installations

• High quality music/speech systems and surround systems for houses of worship, schools, performing art centers, night clubs, etc.

Portable Applications

• Live music reinforcement, DJ systems, houses of worship, schools, etc.

Specification

Technical Information
Sensitivity: TX118S 98 dB (1W/1m)
Max SPL: TX118S 131 dB, peak, half space
TA118S-A
TA118S-RN
TA118S-RD		 129 dB, peak, half space
Freq. Response: TX118S
TA118S-A
TA118S-RN
TA118S-RD		 35 Hz to 100 Hz
LF Drivers: TX118S
TA118S-A
TA118S-RN
TA118S-RD		 SSL18-10, 450 W RMS @ 8 Ohms, 900 W Pgm
Power Handling: TX118S 450 W AES @ 8 Ohms
900 W Pgm @ 8 Ohms
TA118S-A
TA118S-RN
TA118S-RD		 See SA1250 Amplifier
Connectors: TX118S Screw terminals & looping Neutrik 4-pin SpeakOn style connectors
TA118S-A
TA118S-RN
TA118S-RD		 See SA1250 Amplifier
Enclosure: TX118S
TA118S-A
TA118S-RN
TA118S-RD		 19 mm Lite Ply, perforated metal grille
Hardware: TX118S
TA118S-A
TA118S-RN
TA118S-RD		 12 x M10 UMH Points, 35 mm Pole Socket
Finish: TX118S
TA118S-A
TA118S-RN
TA118S-RD		 Black or White Paint, standard.
Custom Color, Weather Resistant, optional.
Dimensions: TX118S
TA118S-A
TA118S-RN
TA118S-RD		 22-1/4″ w x 29-3/8″ h x 23-1/2″ d
565 mm w x 746 mm h x 597 mm d
Weight: TX118S
TA118S-A
TA118S-RN
TA118S-RD		 88 lbs. / 39.9 kg, net

SA1250 Amplifier Specifications
Audio Connections: TA118S-A 2 x XLR-3, In & Loop-out, Analog
TA118S-RN 2 x XLR-3, In & Loop-out, Analog and AES
TA118S-RD 2 x XLR-3, In & Loop-out, Analog and AES
2 x RJ45 Dante Primary & Secondary Ethernet
Network Connections: TA118S-RN 2 x RJ45, Looping Ethernet/RHAON
TA118S-RD 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
Maximum Input Level: TA118S-A +22 dBu, Analog
TA118S-RN
TA118S-RD		 +22 dBu, Analog; 0 dBFS digital
User DSP: TA118S-RN
TA118S-RD		 Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
Software: TA118S-RN
TA118S-RD		 RHAON II
Latency: TA118S-A
TA118S-RN		 6.25 ms
TA118S-RD 6.25 ms + Dante transport latency
Power Output: TA118S-A
TA118S-RN
TA118S-RD		 LF= 1000 watts, @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
Mains Voltage: TA118S-A
TA118S-RN
TA118S-RD		 100-240 volts, 50/60 Hz auto-switching
Power Consumption: TA118S-A
TA118S-RN
TA118S-RD		 Idle: 300 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)
Power Connector: TA118S-A
TA118S-RN
TA118S-RD		 Neutrik powerCON TRUE-1
Temprature Limits: TA118S-A
TA118S-RN
TA118S-RD		 Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
