Vivitek DK8500Z-BK UHD 7500 Lumens 20000 Laser (Black)
Regular price
$22,500.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Vivitek | SKU:
DK8500Z-BK
Vivitek DK8500Z-BK UHD 7500 Lumens 20000 Laser (Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Vivitek DK8500Z-BK UHD 7500 Lumens 20000 Laser (Black)
Regular price
$22,500.00
Unit price
/
Unavailable
The Vivitek DK8500Z gives you the performance you demand under demanding presentations. Demanding presentation require keen connections: HDMI 2.0 x 2, Display Port, DVI-D, RJ45 (HDBaseT compatible), 12V Trigger, RS-232C, Wired Remote
Features
- Ultra HD 4K (3,840 x 2,160) resolution for outstanding details and stunning visuals
- DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant colorful images
- Sold state laser phosphor light source for reliable projection and performance
- Environmentally friendly lamp-less design that is mercury-free and energy efficient
- 7,500 ANSI lumens with a dynamic 10,000:1 contrast ratio for an amazing image quality
- Almost maintenance-free with up to 20,000 hours of operating time
- Advanced video processor for fluid video streaming and 10-bit programmable RGB color adjustments
- Laser light source produces rich colors for an incredible cincematic like movie experience
- Fine tune and optimize an image with advanced calibrations, including gamma and color management settings
- Built-in hardware edge blending and warping functionality
- Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and positioning flexibility
- Lens Positioning Memory (LPS) for quick recall of user defined lens positions (focus, zoom and lens shift)
- Picture-in-Picture (PIP) for simultaneously image projection from two different active sources
- Full suite of display connectivity inputs and outputs including: HDMI v2.0, DisplayPort v1.2, 3G-SDI-In/Out, HDBaseT™
- Advanced HDMI 2.0 (x2) connectors for high resolution and quality digital video signals and quick data transfer rates
- HDBaseT™ interface with support for distribution of digital UHD video content over standard CAT5e/6 LAN cable
- Portrait mode projection allows the projector to be easily setup and installed in a 90° installation
- 360° operation and projection design for set up in all angles
- Instantaneous power-on & off, so no need for system pre-heating and postcooling
- Airtight sealed engine and filter-less design for improved performance against fighting dust and fibers
Specs
| Display Type | Single Chip 0.66" DLP Technology by TI |
| Brightness | 7,500 ANSI Lumens |
| Native Resolution | UHD (3821 x 2160) |
| Max. Resolution | UHD (3840 x 2160)@60Hz |
| Contrast Ratio | 10,000:1 |
| Laser Life/Type | Up to 20,000 hours (Laser Phosphor Light Engine) |
| Throw Ratio | 1.73 - 2.27:1 |
| Image Size (Diagonal) | 40" - 500" |
| Projection Distance | 1.45 - 24.85m (4.77ft to 81.52ft) |
| Projection Lens | F = 1.7 - 1.9, f = 26 - 34mm |
| Zoom Ratio | 1.3x |
| Aspect Ratio | 16:9 format |
| Offset | Motorized Lens Shift |
| Keystone Correction | Horizontal ±60°, Vertical ±40° |
| Horizontal Frequency | 15, 30 – 90Hz |
| Vertical Scan Rate | 50 - 85Hz |
| Edge Blending | Yes (Built-In) |
| Warping | Yes (Built-In) |
| 3D Functionality | Yes |
| Lens Shift Range | Vertical: 0-50%, Horizontal: ±10% |
| Computer Compatibility | VGA, SVGA, XGA, WXGA,SXGA, SXGA+, UXGA, 1080P, WUXGA@60hz, UHD 3840x2160@60Hz Mac |
| Video Compatibility | SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), UHD 3840x2160@60Hz, NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L) |

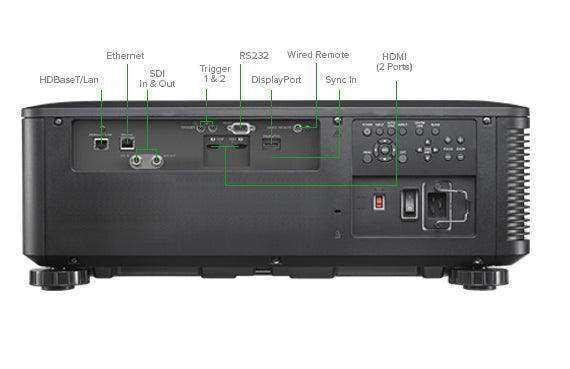

| I/O Connection Ports | HDMI v2.0 (x2), 3G-SDI-In/Out, DisplayPort v1.2, RS-232, 12v Trigger, Wired Remote, HDBaseT™, RJ45 |
| Projection Method | Table Top, Ceiling Mount (Front or Rear) |
| Security Solutions | Kensington® Security Slot, Security Bar, Keypad Lock, Anti-Theft Lens Screw |
| Dimensions (W x D x H) | 500 x 580 x 205mm (19.7” x 22.8" x 8.1") |
| Weight | 28kg (61.7lbs) (TBD) |
| Available Colors | Black (DK8500Z-BK) |
| Noise Level | 40dB (Normal Mode) |
| Power Supply | AC 100-240V, 50/60Hz |
| Power Consumption | 1,000W (Normal Mode), 800W (Eco. Mode), <6W (Network Standby), <0.5W (Eco Mode) |
| Standard Accessories | AC Power Cord, Remote Control w/Batteries, Lens Cap, Anti-Theft Lens Screw, Documentation Kit |
| Optional Accessories | Interchangeable Lens Options (x8)** |
