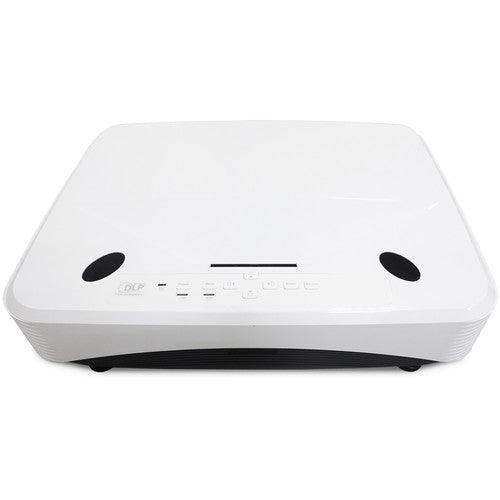

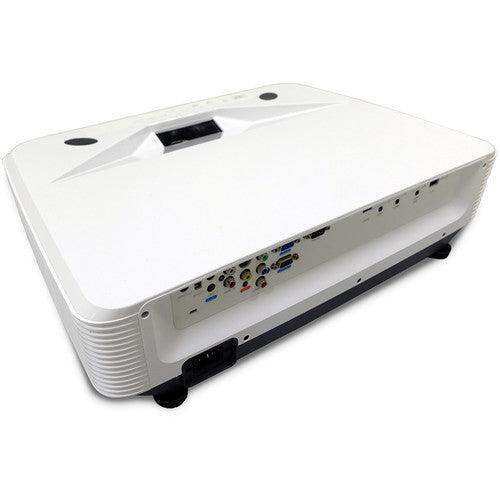

Vivitek DH765Z-UST 1080p 4000 Lumens 20000 Laser with mount (White)

Regular price $3,900.00
Shipping calculated at checkout.
Vivitek  |  SKU: DH765Z-UST

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.

The latest innovatiion from Vivitek’s game-changing series of laser engine projectors, the DH765Z-UST redefines ultra-short throw projection from performance and value perspectives by delivering large, readable images virtually shadow-free. Ideal for education, corporate collaboration, themed entertainment and digital signage, the DH765Z-UST’s low profile design, quietness, and minimal maintenance requirements ensure seamless installation and ease of operation.
Features
  • Ultra short throw lens delivers 150'' diagonal image
  • Full HD 1080p resolution
  • 4,000 ANSI lumens of brightness, and 12,000:1 contrast ratio for clear, crisp and bright projection
  • Maintenance-free laser light source, which delivers up to 20,000 hours of operational time
  • 10W speaker and multiple audio ports for external sound device
  • Image adjustment with 4 corner correction
  • Network ready for integration and system administration via RJ45
Specs
Display System
1-Chip 0.65" DLP
Native Chip Resolution
1920 x 1080 (Full HD)
Maximum Brightness
4000 Lumens
Throw Ratio
0.23:1
Projection Size
80 to 150" / 203.20 to 381.00 cm
Inputs/Outputs
1 x HDMI  with MHL Support Audio, Video
1 x HDMI Audio, Video
1 x RCA (Composite) Video Input
1 x 4-Pin DIN (S-Video) Video Input
1 x 1/8" / 3.5 mm Mini Audio Input
1 x RCA Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x RJ45 Control Input
1 x DE-9/DB-9 (RS-232) Control Input
1 x Mini-USB Service
1 x DE-15/DB-15 (VGA) Video Input
1 x DE-15/DB-15 (VGA) Video Output

Light Source
Laser Phosphor
