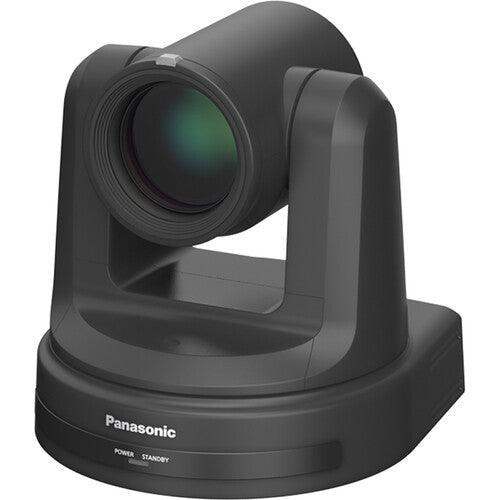

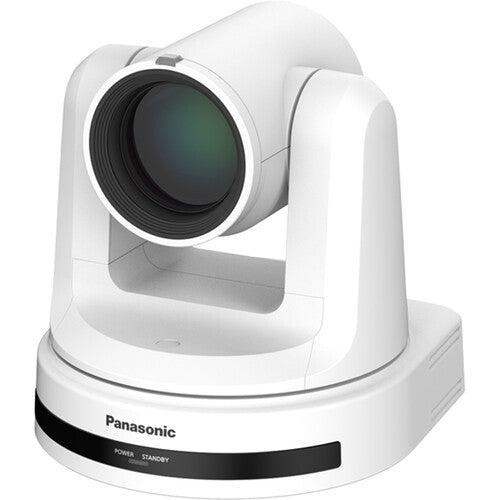

Panasonic AW-UE20W/K Pro 4K 3G-SDI/HDMI/IP/USB PTZ Camera with 12x Optical Zoom (Discontinued)
Panasonic AW-UE20W/K Pro 4K 3G-SDI/HDMI/IP/USB PTZ Camera with 12x Optical Zoom (Discontinued) - Black is backordered and will ship as soon as it is back in stock.
Panasonic AW-UE20W/K Pro 4K 3G-SDI/HDMI/IP/USB PTZ Camera with 12x ...
The AW-UE20 3G-SDI/HDMI/IP/USB PTZ Camera with 12x Optical Zoom from Panasonic provides a variety of options for your conference room, house of worship, or education locations that require high-quality 4K30 video output and recording. The camera features a 1/2.8" MOS sensor, 4K30 HDMI and IP streaming output, 1080p 3G-SDI output, USB webcam output, mic/line audio input, and serial control. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser.
Equipped with a 3.9 to 46.8mm zoom lens and 12x optical zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look. Other features include auto white balance, RS-232/RS-422 serial control, LAN control, UVC communication via USB, 170° panning range, -30 to 90° tilt range, H.265/H.264/MJPEG video compression, and RTSP/RTMP streaming. The camera also supports mic and line audio input, allowing you to capture and embed audio within the video signal. It is also PoE+ compatible, allowing you to power the unit using only the single LAN cable rather than adding additional power adapter cables.
Features
- 1/2.8" MOS sensor with 12x optical zoom
- Video output up to 4K30 via HDMI and IP and up to 1080p60 via 3G-SDI and USB for a reliable live video production workflow
- Supports PoE+ (Power-over-Ethernet+) for lower installation costs
- The camera can be used as a webcam on a computer using USB and UVC communication
- Using an IP browser, the camera can be controlled from a remote location and IP video monitoring, and remote camera control can be performed from a computer or mobile terminal such as a smartphone or tablet, enabling easy operations
- The camera also supports audio input, embedding and encoding, and audio output to IP is also supported via H.264/H.265/MJPEG
- Compatible with existing FEC-40 wall mounts
Specs
Panasonic AW-UE20 Specs
| Image Sensor | 1/2.8"-Type MOS |
| Horizontal Resolution (TV Lines) | 1400 TV Lines |
| Sensor Resolution | Effective: 8.46 Megapixel |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/16000 to 1 Second |
| Gain | 0 to 42 dB |
| Minimum Illumination | 0.4 Lux at 1/30 Shutter Speed |
| White Balance | Presets: ATW, Auto |
| Focal Length | 3.9 to 46.8mm |
| Optical Zoom Ratio | 12x |
| Max Digital Zoom | 4x |
| Field of View | Horizontal: 71 to 6° Vertical: 43 to 3° Diagonal: 79 to 7° |
| Maximum Aperture | f/1.6 to 2.8 |
| External Recording Modes | 4:4:4 8-Bit via HDMI 3840 x 2160 at 25/29.97 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps SDI/BNC / USB 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Audio Recording | 2-Channel 16-Bit 48 kHz AAC LC Audio |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264, H.265, MJPEG, RTMP, RTMPS, RTP, RTSP, TCP, UDP 3840 x 2160 at 5.00p, 10p, 14.99p, 25p, 29.97p 1920 x 1080 at 5.00p, 10p, 14.99p, 25p, 29.97p, 50p, 59.94p 1280 x 720 640 x 360 |
| Move Speed |
Pan: 0.1 to 100°/sec Tilt: 0.1 to 100°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | IP RS-232 RS-422 |
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x USB-B 2.0 Output 1 x RJ45 (NDI) Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input |
| Other I/O | 1 x RJ45 (LAN) Input 1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output 1 x RJ45 (RS-422) Output |
| PoE Support | PoE+ 802.3at |
| Power I/O | 1 x Barrel (10.8 to 13.2VDC) Input |
| Power Consumption | Device: 1.3 A PoE: 0.4 A |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Operating Humidity | 20 to 90% |
| OS Compatibility | Windows 10 to 11 (32/64-Bit) macOS 10.11 to 10.15 *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
| Certifications | FCC Part 15 Class A *as per Manufacturer |
| Sound Level | NC55 (at Full Speed) |
| Dimensions (W x H x D) | 6.5 x 6.9 x 6.9" / 165.1 x 176.2 x 176.1 mm |
| Weight | 4.2 lb / 1.9 kg |
| Package Weight | 8.965 lb |
| Box Dimensions (LxWxH) | 13.1 x 10.8 x 9.9" |
