Planar UltraRes W Series URW105 105" 5K 21:9 Ultra-Wide Commercial Monitor - 998-3424-00

Regular price $13,500.00
Shipping calculated at checkout.
Planar  |  SKU: 998-3424-00

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Payments Data is Encrypted
Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Checkout data is encrypted

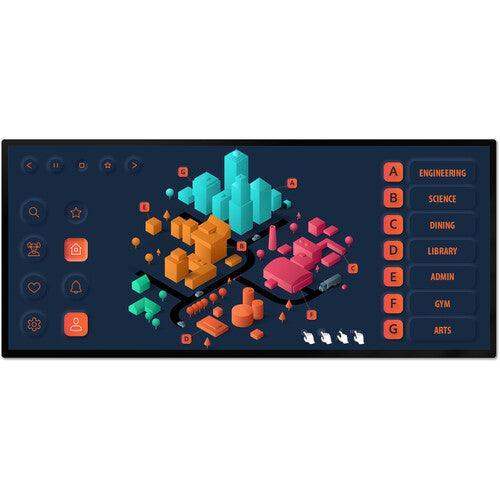

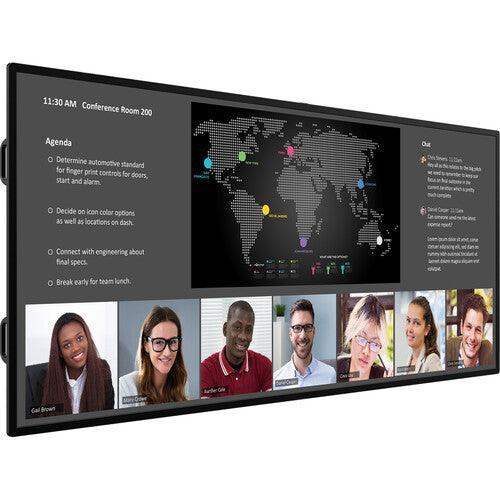

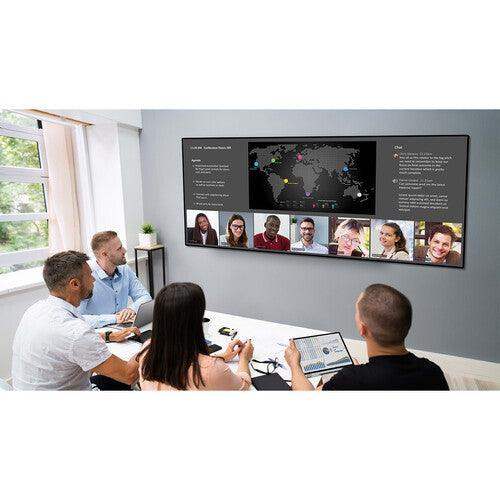

The Planar URW105 105" 5K 21:9 Ultra-Wide Touchscreen LED Display is a 500 nits bright LCD display capable of 24/7 operation and is ideally sized to suit the most popular unified communications and video collaboration platforms such as Microsoft Teams with its Front Row layout. In addition to being an ideal collaboration display, the ultra-wide 21:9 aspect ratio of the UltraRes W series is perfect for native cinematic playback. With built-in scheduling, monitoring, control system support, and the ability to display in portrait or landscape orientation, the URW105 is also a great choice for dynamic digital signage. Additionally, you can view two input sources at once with dual layout or picture-in-picture. The URW105 is TAA compliant with no wireless function or open-source OS, making it secure for government applications.

HDR Ready
The Planar UltraRes W series displays are ready for High Dynamic Range content, maximizing the image quality of each pixel for brighter whites, darker blacks, and more true-to-life colors. Displays are designed to show a larger percentage of the visible color spectrum, rendering on-screen content with the hues and shades creators intended, for a more genuine viewing experience.

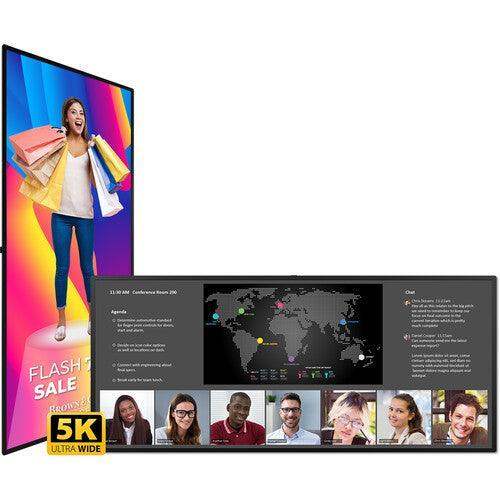

Landscape or Portrait Orientation
The URW105-ERO-T can be mounted in either landscape or portrait orientation, opening the door to a wider array of deployment environments and applications, and enabling greater creativity in content development.
24/7 Reliability
Planar displays are designed for mission-critical environments where displays need to withstand extended or continuous operation and deliver exceptional performance day and night.
Built-In Scheduling
Schedule automated events such as recalling image layout configurations, adjusting brightness and powering on and off. Scheduling events can save energy usage and administrative time.
Stay Informed
Browser-based Remote Monitoring software displays information about the display and lets users make adjustments to zones, brightness, power settings, and more. Set up e-mail notifications to be alerted about designated performance incidents, and always remain looped in.
TAA Compliant
Organizations that prefer to use products that have been manufactured in the United States or countries designated in the U.S. Trade Agreements Act (TAA) need look no further.
Crestron & Q-SYS Modules & Drivers
Control system modules, drivers, and plugins ease reseller integration and consultant recommendations. Crestron and Q-SYS drivers and plugins can save hours of programming, installation, and cost.
Additional Features
  • IR remote included
  • RS-232 control capable
  • RJ45 LAN network connection
  • HDMI-CEC
  • Optical and 3.5mm audio outputs
  • Built-in 15W stereo speakers
  • Fanless design for quiet operation
Features
  • 5K (5120 x 2160) Native Resolution
  • HDR10 Compatible
  • Direct-lit LED LCD Panel
  • Crestron & Q-SYS Compatible
  • 2 x DisplayPort | 2 x HDMI | 1 x USB-C
  • 1200:1 Static Contrast Ratio
  • 500 nits Brightness | 25% Haze Level
  • Digital Signage Support
  • 24/7 Duty Cycle | Portrait & Landscape
  • TAA Compliant
Specs

Planar Systems URW105 Specs

Display
Size 105"
Panel Type LCD
Aspect Ratio 21:9
Display Orientation Landscape, Portrait
Resolution 5120 x 2160
Maximum Brightness 500 nits / cd/m2
Lighting System Direct LED
HDR Compatibility HDR10
Contrast Ratio 1200:1
Dynamic Contrast Ratio 40,000:1
Response Time 8 ms
Refresh Rate 60 Hz
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Color Gamut 88% NTSC
Viewing Angle (H x V) 178 x 178°
Screen Area 96.4 x 40.7" / 2449.2 x 1033.6 mm
Dot Pitch 0.479 x 0.479 mm
Pixels Per Inch (ppi) 53 ppi
Finish Anti-Glare / Matte
Haze Level 25%
Video
TV Tuner No
Connectivity
Inputs 2 x DisplayPort (1.4)
2 x HDMI (2.1)
Outputs 1 x DisplayPort
1 x 1/8" / 3.5 mm (Analog Audio)
1 x TOSLINK Optical (Digital Audio)
HDCP Support Yes, Version 2.2
Wireless None
NFC No
USB I/O 1 x USB-C Unspecified Version (Audio/Video)
4 x USB-A Unspecified Version (Audio/Photo/Video/Control/Power)
2 x USB-B Unspecified Version
1 x USB-A Unspecified Version (Service)
Ethernet I/O 1 x RJ45 (Unspecified Ethernet)
Other I/O 1 x 1/8" / 3.5 mm IR Input
1 x DE-9/DB-9 Serial (RS-232C) Control Input
Number of OPS/Expansion Slots 1
Ambient Light Sensor Yes
Multi-Input Support (PIP/PBP) Picture-in-Picture (PIP), Picture-by-Picture (PBP)
Speaker
Built-In Speakers Yes, 2 x 15 W
Speaker Configuration 2-Channel
Hardware
OS Compatibility Windows 10
Windows 11
macOS
Linux
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility
Mobile App Compatible No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility
Media Card Reader None
Built-In Mic No
Supported File Formats
Supported Languages English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese
Environmental
Operating Temperature 32 to 95°F / 0 to 35°C
Operating Humidity 20 to 85% (Non-Condensing)
Operating Altitude 9842' / 3000 m
Electrical
Power Consumption Typical: 372.0 W
Standby: < 0.5 W
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Adapter Type Internal
General
Certifications FCC Class A, CE, cTUVus, RoHS
*as per Manufacturer
Mounting-Hole Pattern 1000 x 600 mm
Lighting Lifespan 30000 Hours
Material of Construction Glass, Metal
Environmental Protection None
IK Rating None
Lock Slot No
Bezel Thickness 27.5 mm
Duty Cycle 24 Hours / 7 Days
Dimensions 98.7 x 43 x 3.5" / 2507.5 x 1091.2 x 88.6 mm
Weight 158.7 lb / 72 kg
