Planar UltraRes L Series 122" All-in-One LED Displays

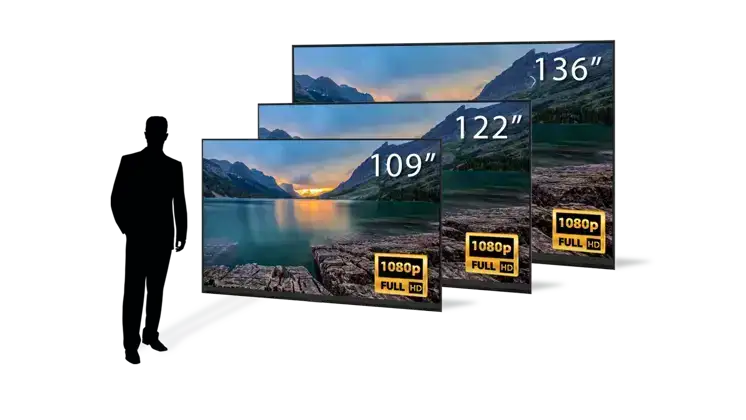

Planar® UltraRes™ L Series Full HD resolution all-in-one MicroLED and LED displays combine the ease-of-use and best-in-class processing of the Planar UltraRes family with award-winning Planar fine pixel pitch LED technology as an ideal replacement to projection in meeting rooms and classrooms. The display comes with a wall mount and can be quickly assembled with only two people. It features on-board processing, audio, power from a standard 110V outlet, native multi-point touch and multiple inputs to support simultaneous viewing of up to four content sources. Optional rolling floor stand is available.
Planar URL122-MFT All-in-One LED Display

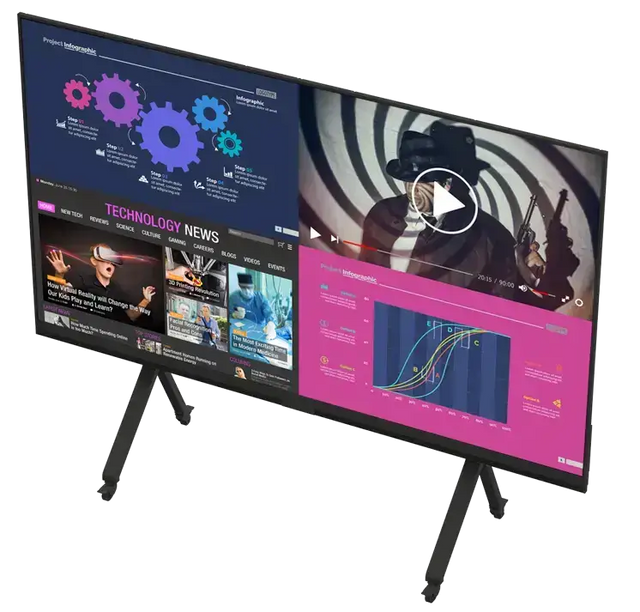

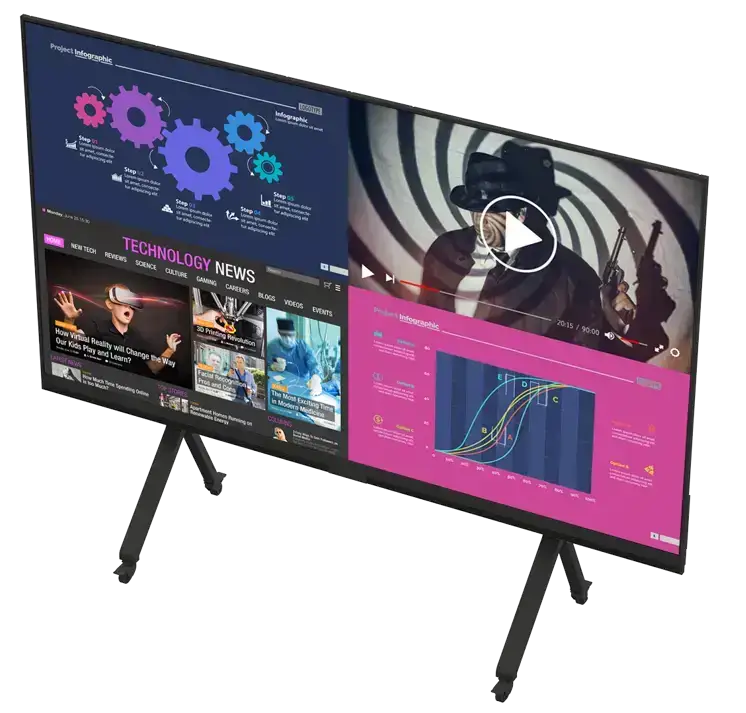

The Planar® UltraRes™ L Series URL122-MFT is an all-in-one, 122", Full HD resolution MicroLED display. Ideal size for 10’ diagonal projection screen replacements, it features best-in-class on-board processing as well as audio, native multi-point touch and five video inputs to support up to four sources viewed simultaneously. It has a narrow bezel that facilitates 10-point touch for interactive environments such as meeting rooms and classrooms. Planar UltraRes L Series can be quickly assembled with only two people and is conveniently powered from a standard 110V outlet.
Specs
| Specification: | Detail: |
|---|---|
| Planar Model | URL122-MFT |
| Planar Part Number | 998-4259-00 |
| Display Diagonal | 122in |
| Display Active Area | 106.3" x 59.8" (2700mm x 1518mm) |
| Display Resolution | Full HD (1920 x 1080) |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 1.40625 mm |
| Pixel Density | 505,679/m² | 46,979/ft² |
| Contrast Ratio | 10,000:1 |
| Brightness | 800 nits (max) |
| Response Time (typ) | <1 ms |
| Frame Rate | 60Hz |
| Color Gamut | 90% of P3 |
| HDR (High Dynamic Range) | HDR10 |
| Color Temperature, Adjustable (k) | 3,000 - 12,000; 6500, 9300, 12000 presets |
| Viewing Angle (typ) | 160° |
| External Connections | DisplayPort 1.2 in x 1, DisplayPort out, HDMI® 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, USB-B (for touch controller) |
| Display Control | IR, RS-232, LAN, HDMI-CEC, Keypad, Web Browser Interface |
| Multi-Source Views | PiP, Dual, Triple, Quad |
| Modes | 3840x2160 @ 24/25/30/60Hz, 1920x1080 @ 24/25/30/60Hz, 480p, 576p, 720p @ 60 Hz, 1080i @ 60 Hz |
| Audio Input | PC Line In |
| Audio Output | PC Line Out, S/PDIF |
| Speakers | 10W x 2 built-in |
| Mounting | Wall mount included. External device mounting: 75 x 75mm. Optional rolling floor stand available. |
| Fanless | Yes |
| Power Consumption, Maximum | 1360W (standby: <0.5W) |
| Power Consumption, Typical (watts) | 1050W (standby: <0.5W) |
| Line Voltage | 100-240V; 50/60Hz |
| Service Access | Front, Rear |
| Environment | Indoor |
| LED Type | MicroLED 6in1 |
| LED Refresh Rate | >3840 |
| LED Lifetime | 100K hours Lifetime (Half brightness) |
| Display Dimensions | 107.6" x 64.0" x 3.24" (2732mm x 1624.8mm x 82.3mm) |
| Bezel Width | 0.63" (16mm) Left, Right and Top; 3.54" (90mm) Bottom |
| Display Edge to Active Area | 0.63" (16mm) Left, Right and Top; 3.54" (90mm) Bottom |
| Installed Depth (from Wall) | 3.38" (85.6mm) |
| Dimensions including Wall Mount | 107.6" x 64.0" x 3.38" (2732mm x 1624.8mm x 85.6mm) |
| Dimensions including Optional Stand | 107.6" x 88.0" x 35.5" (2732mm x 2234.7mm x 901.2mm) or 107.6" x 85.3" x 39.5" (2732mm x 2234mm x 1001.2mm) |
| Display Weight | 111.4kg | 245.0lbs |
| Display Weight with Wall Mount | 122.3kg | 269.0lbs |
| Display Weight with Optional Stand | 175.5kg | 386.0lbs |
| Operating Temperature | 0° to 40° C | 32° to 104° F |
| Operating Humidity | 10-80% |
| Storage Temperature | -20° to 85° C | -4° to 185° F |
| Storage Humidity | 10-85% |
| Touch Technology | IR touch: 10 points |
| OS Compatibility | Windows 10, 11, Mac OSX and Linux |
| Enclosure | Metal |
| Features | MediaPlex Plus Processing, Scheduling, Presets |
| Solution Includes | URL122-MFT display, US and EU power cords, HDMI cable, USB A to B cable, IR cable, remote control, vacuum removal tool and charger, gloves, spare modules, wall mount and Quick Start Guide. |
| Approvals | FCC Class A, cTUVus, CE, RoHS |
| TAA Compliance | Yes |
| Recommended Usage | Up to 24x7 operation |
| Warranty | 5 years |
| Security | No WiFi, no Android O/S, signed and encrypted firmware |
| UPC | 8 10069 81191 8 |
| HDMI® | Planar utilizes HDMI® standards in this product. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. |
