Planar Luminate Pro Series 5.9mm Pixel Pitch Outdoor LED Video Wall Display - 998-3106-00
Planar Luminate Pro Series 5.9mm Pixel Pitch Outdoor LED Video Wall Display - 998-3106-00 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Planar Luminate Pro Series 5.9mm Pixel Pitch Outdoor LED Video Wall...

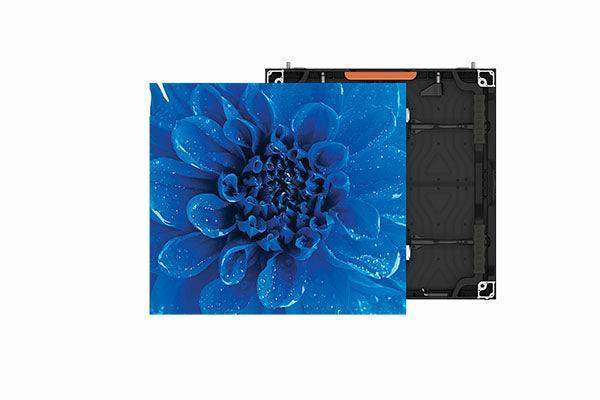

Planar® Luminate™ Pro Series LPO-5.9 is an outdoor high-brightness LED video wall display with a 5.9mm pixel pitch designed for temporary events and fixed installations even in direct sunlight. It offers easy front or rear-service access to electronics for deployment versatility and magnetically-attachable cabinets with a quick-lock system to support fast, single-person handling.
| Specification: | Detail: |
|---|---|
| Model | LPO-5.9 |
| Pixel Pitch (mm) | 5.95 |
| LED Drive Method | Constant current drive |
| Cabinet Size (W x H x D) | 19.69” x 19.69” x 3.03” (500 x 500 x 77 mm) |
| Cabinet Diagonal | 27.83" (707.10mm) |
| Cabinet Resolution | 84x84 |
| Pixel Density (/m2) | 28,224 |
| Modules/Cabinet (WxH) | 2x2 |
| Module Resolution | 42x42 |
| Module Size (W x H) | 250 x 250 mm |
| Power Consumption, Maximum (watts) | 180 |
| Line Voltage | 100~240v AC, 50/60Hz |
| Cabinet Weight (per display) | ≤ 17.64lbs |
| Brightness Max, Calibration On (cd/sq) | 5500 |
| Supported Frame rate | 50Hz/60Hz |
| Color Temperature(K) | 3000-10000 adjustable |
| Contrast Ratio | 3000:1 |
| Viewing Angle (50% of brightness) | >150° horizontal; >130° vertical |
| Front Access Install/Service | Yes |
| Refresh Rate | 1920/3000 |
| LED Lifetime (Half Brightness) | 100,000 hours |
| Operating Temperature/Humidity (degrees F/C) | -40° to 50° C | -40° to 122° F (10-80% RH, non-condensing) |
| Storage Temperature/Humidity (degrees F/C) | -40° to 60° C | -40° to 140° F (10-85% RH, non-condensing) |
| Certifications | EMC CLASS ACCC/CE /FCC/CB/cTUVus/ROHS2.0/REACH |
| IP Rating | 65 |
