Planar HB Series HB75 4K Touch Screen Collaboration Display - 998-2158-00
Planar HB Series HB75 4K Touch Screen Collaboration Display - 998-2158-00 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Planar HB Series HB75 4K Touch Screen Collaboration Display - 998-2...

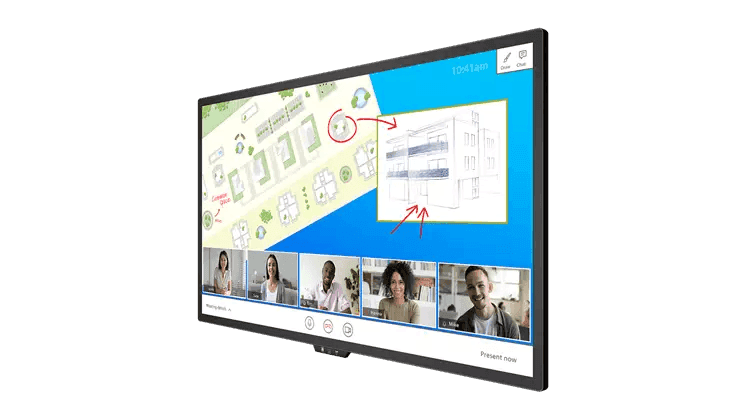

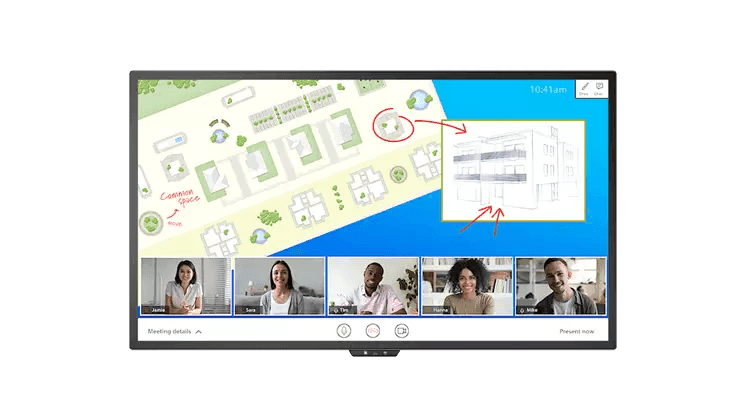

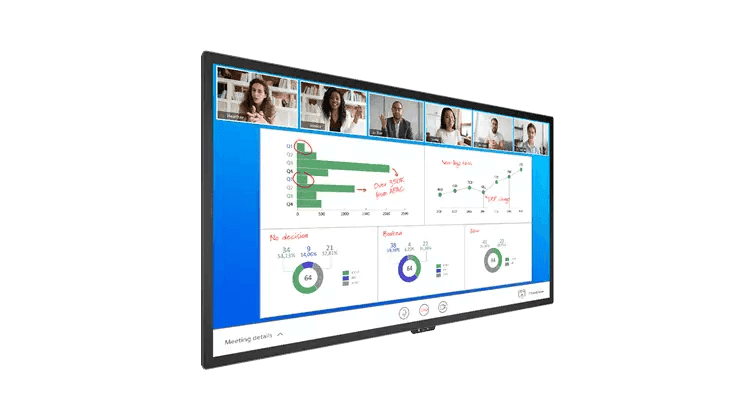

The Planar HB75 is a 75” huddle board display with 4K resolution and pinpoint-accurate, 20-point Projected Capacitive touch designed for in-room and
remote collaboration. It features an embedded Android® operating system with a built-in digital whiteboard and pre-loaded collaboration applications.
The display also has wireless connectivity and an OPS slot to support external devices such as a Window 10 PC. The display’s passive and active stylus pens help ensure efficiency. The Planar HB75 huddle board is compliant with United States Trade Agreements Act (TAA) regulations.
The Right Touch
Pinpoint-accurate Projected Capacitive, 20-point touch delivers effective interactive experiences, while Passive and Active Stylus pens help ensure efficiency and maintain cleanliness.
Teamwork Tools
The display powers on with a built-in Android® module menu. The display is a perfect option for meetings that require remote collaboration. Simply add the webcam, audio system and microphone of your choice and sync with colleagues across the globe like they’re right in the room. *Application use requires separate licenses, subscriptions, and/or hardware.
Take Note
The included digital whiteboard app enables image importing for easy annotation over maps, web pages screen shots, reports and more. Save and share notes and annotations for continued discussions later on.
Features
- 75" size
- 4K resolution (3840 x 2160)
- Android® OS with Embedded Digital Whiteboard
- 20-point Projected Capacitive Touch
Specifications
| Specification: | Detail: |
|---|---|
| Product Name | HB75 |
| Planar Part Number | 998-2158-00 |
| Protective Glass | 2mm with AG coating |
| Touch Technology | In-Cell Projected Capacitive (PCAP) 20 point touch |
| Touch Interface | USB-B |
| OS Compatibility | Internal: Android; External; Windows 8, 10, 11 and Linux |
| Display Resolution | Ultra HD (3840 x 2160) |
| Screen Size | 75 in. (diagonal) |
| Aspect Ratio | 16:9 |
| Display Technology | IPS LCD |
| Display Active Area | 64.9" x 36.5" (1649.7mm x 927.9mm) |
| Viewing Angle (typ) | 178° |
| Backlight | Direct-Lit LED |
| Backlight life (1/2 brightness) | 30,000 hrs (min) |
| Brightness | 350 nits |
| Response Time (typ) | 8 ms |
| Frame Rate | 60Hz |
| Contrast Ratio (typ) | 1000:1 |
| Pixel Pitch | 0.4296mm x 0.4296mm |
| Color Gamut | 72% NTSC |
| Display Color | >1 billion colors. Full 10 bit data path |
| External Connections | DisplayPort 1.2 x 1, HDMI 2.0 x 3 (HDCP 2.2), HDMI out, VGA x 1, USB-B (for touch controller), microSD slot, USB 2.0 for external USB camera, OPS Slot |
| Modes | 3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz |
| Display Control | LAN, WiFi (802.11 b/g/n, 2.4 GHz, 5 GHz), Bluetooth, RS232 In, IR, Keypad |
| Cabinet Dimensions (W x H x D) | 67.4" x 40.0" x 3.6" (1713mm x 1015mm x 93mm) |
| Orientation | Landscape |
| Bezel Width | 0.1" (3mm) |
| Inactive Area | 1.1” (27.5mm) |
| Weight | 106 lbs (48 kg) |
| Audio Input | PC Line In |
| Audio Output | PC Line Out, S/PDIF |
| Speakers | 15W x 2 built-in |
| Enclosure | All metal enclosure |
| Mounting | VESA: 600mm x 400mm |
| Fanless | Yes |
| Line Voltage | 100-240V; 50/60Hz |
| Power Consumption (typ) | 295W (standby: <0.5W) |
| Operating Temperature | 0° to +40°C (32° to 104°F) up to 3000m |
| Humidity | 20 - 85% RH (non-condensing) |
| Operating System | Proprietary OS based on Android 8.0. Google Play and third-party apps are not supported by Planar. |
| Video Processing | CPU: ARM A73 (x2) + ARM A53 (x2) | Frequency: 1.5 GHz | GPU: Mali-G51 | RAM: 3GB DDR4 2400MHz | Internal Storage: 32GB (22GB available) |
| Options / Features | Logo-free bezel, lockable rear keypad |
| Approvals | FCC Class A, CE, NRTL - United States and Canada |
| TAA Compliance | Yes |
| Warranty | 3 years |
| Recommended Usage | Up to 18x7 |
| In the Box | HB75 display, US power cord, HDMI cable, USB A to B cable, remote control, WiFi antenna x2, Bluetooth antenna x1, active stylus - x2, passive stylus - x2, cable clips, QuickStart Guide |
| UPC | 8 10689 00805 7 |
