Nureva HDL410 MaxHub Automated camera switching for extra-large boardrooms

The HDL410 system delivers pro audio performance without the cost and complexity of a custom pro AV system. It combines a powerful connect module with two integrated microphone and speaker bars to offer advanced processing and premium features for rooms up to 35' x 55'. No matter where people sit in the room, they’ll always be heard by remote participants. The HDL410 takes less than an hour to install, with no need for specialized skills or complicated multicomponent setups. And with continuous autocalibration, there’s never a need to make audio adjustments when a room is reconfigured.

Next-generation microphone pickup
Like all Nureva® systems, the HDL410 is powered by patented Microphone Mist™ technology, which fills a space with thousands of virtual microphones for true full-room audio coverage. Because the HDL410’s connect module has greater processing power and expanded memory, it unlocks more advanced audio capabilities within the technology. This includes processing the physical mics from two bars together instead of separately, resulting in clearer, more consistent microphone pickup

Simple wall-mounted installation
Installing the HDL410 is an easy project that takes about 60 minutes. You hang each unit on the wall with two screws, run one cable from each unit to the connect module and another to a computer or other internet-connected device. Compare that to traditional systems for large spaces that may include choosing and installing multiple mics, speakers, cables and a DSP – a process that can take days and require outside technicians.

Tools to manage at scale
The HDL410 and all your Nureva devices can be managed from anywhere with Nureva Console – our secure cloud-based platform included with each system. Use it to remotely install firmware updates, check device status, analyze room data, access developer APIs and more. With the HDL410, there’s no need for a dedicated in-room PC to manage your devices. Console Direct gives you a secure, continuous connection to your account with no need to download software.

Installing the HDL410 is a simple process that can take less than 60 minutes, with no special skills required. From where and how to mount the integrated microphone and speaker bars to running the Ethernet cable to making the final connections and accessing our management software, this video will help to get you up and running in no time.

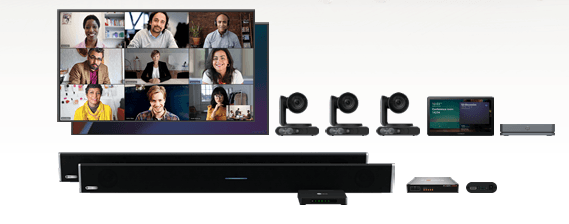

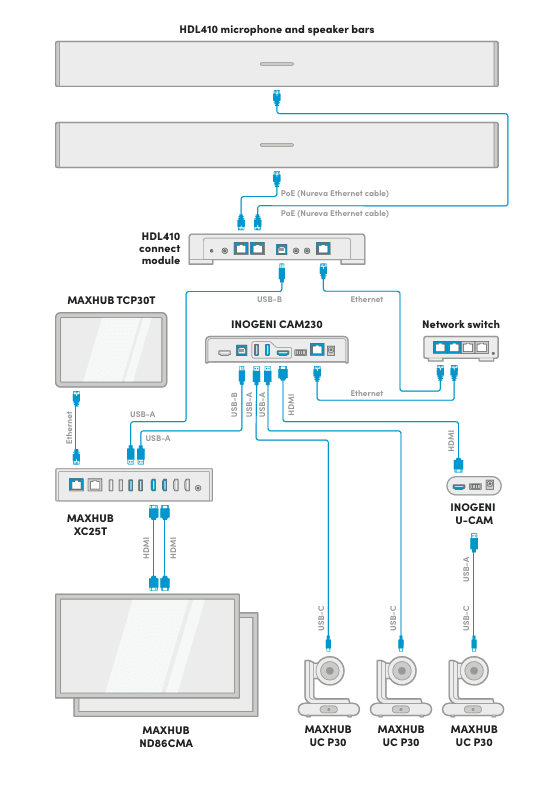

Solution components

Nureva® HDL410 audio conferencing system
 • Two microphone and speaker bars providing
full-room pickup with 16,384 virtual mics
• Next-gen Microphone Mist™ technology producing
sound location data for simplified automated
camera switching
 • Connect module with advanced processing power
and pro AV features (no DSP required)
 • Easy wall-mounted installation in under 60 minutes
with no specialized skills or tools
• Includes Nureva Console, our device management
platform that enables the setting of camera zones,
monitoring of devices and more
 • Available in black (HDL410-B) or white (HDL410-W)
 • 3-year warranty (additional 2 years available)

MAXHUB® ND86CMA displays
 • 86" display with 16:9 aspect ratio
 • Professional 4K UHD resolution and high brightness
for true-to-life detail
 • Durable conformal coating to protect against
environmental factors
 • Built-in screen sharing for effortless collaboration
through USB or wirelessly
 • Built-in OPS slots
 • 3-year warranty

MAXHUB TCP30T touch control panel
 • 11.6" capacitive touch screen with
anti-glare and anti-fingerprint design
 • 1920 x 1080 (16:9) high resolution
 • Built-in cable management
• Easy content sharing options
 • IP connection to PC
 • 3-year warranty

 MAXHUB XC25T mini PC
 • Microsoft® Teams Rooms software
• 12th generation Intel® Core™ i5
processor, 256 GB storage and
16 GB DDR4 memory
 • Small and light design with
built-in cable for easy installation
• Seamless integration with other
peripherals in your Teams Rooms
 • 3-year warranty

MAXHUB UC P30 4K USB cameras
 • Dual lens 4K camera
 • Main camera with 8 MP, 12x optical
zoom and a 90° display field of view
 • Panoramic camera with 8 MP
and a 120° field of view
 • AI-powered auto framing, speaker
tracking and presenter tracking
 • 3-year warranty

INOGENI® CAM230 multi-camera selector
 • Supports up to three cameras
(two USB 3.0/2.0 and one HDMI)
 • Compatible with all USB and
HDMI cameras
 • No drivers required
• Automatic multi-camera switching
using Nureva camera zones feature
• 2-year warranty

INOGENI U-CAM camera converter
 • Converts USB cameras
and USB audio to HDMI
• Compatible with all
USB 3.0/2.0 cameras
 • 2-year warranty
