Novastar Video Wall Controller, (10.4 Million Pixel Load Capacity) ...

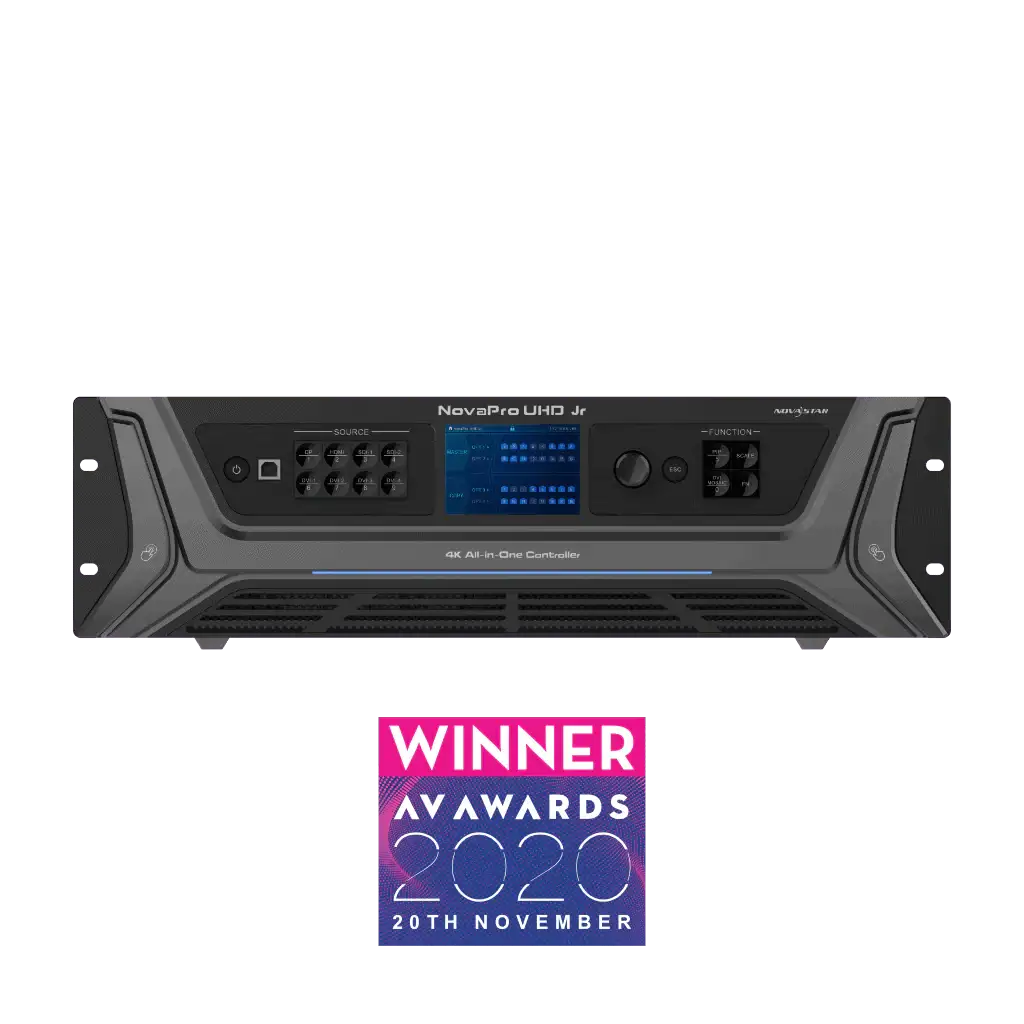

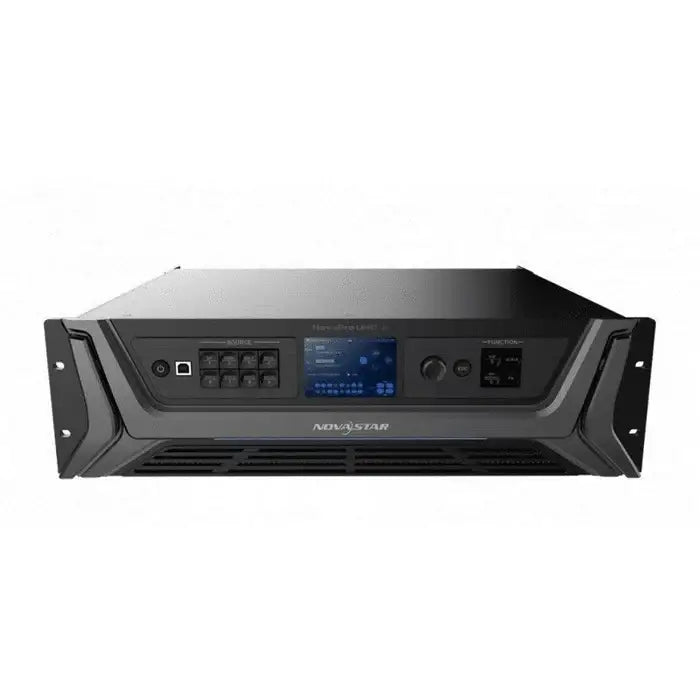

The NovaPro UHD Jr is a NovaStar’s new all-in-one controller that features excellent video processing capabilities, sending card functions and LED screen configurations.
The NovaPro UHD Jr provides a variety of video input connectors, supporting 4K×2K@60Hz image processing and sending capabilities.
With the help of smart control software V-Can from Novastar, the NovaPro UHD Jr can enable richer image mosaic effects and faster and easier operations.
The NovaPro UHD Jr can send the processed video to the LED screen via Neutrik Ethernet ports and optical fiber ports. Thanks to its powerful video processing capabilities and sending functions, the NovaPro UHD Jr is well suited for stage control systems, conference sites, activities, exhibition sites and other high-end rental applications as well as fine-pitch LED displays.
Features
-
A variety of inputs and outputs
Provides 1 × DP 1.2, 4 × DVI, 1 × HDMI 2.0 with loop output and 2 × 12G-SDI with loop output. -
More output connectors, larger loading capacity
Provides 16 × Neutrik Ethernet output and 4 × optical fiber output, with loading capacity up to 10,400,000 pixels.
The maximum width is 16K and maximum height is 8K. -
DVI mosaic
An input source can be made up of at most 4 DVI input sources. -
HDR output
-
Greatly enhances display image quality, providing more clear and vivid image.
-
Decimal frame rates
The supported frame rates are 23.98, 29.97 and 59.94. -
Low-latency output
Reduces the latency from sending card to receiving card by 2 frames when the device is used together with NovaStar Armor series receiving cards
(A8/A8s/A9s/A10s Plus). -
Customized BKG settings
Supports pure color and image BKGs. -
Personalized image scaling
Supports 3 kinds of image scaling modes: full screen, pixel to pixel, custom. -
Capture function
Captures input source image which can be used as a BKG image. -
Image mosaic
Up to 4 NovaPro UHD Jr units can be connected to load a super-large screen when used with the video distributor. -
V-Can (smart control software from NovaStar) supported
-
10 presets
At most 10 user presets can be created and saved as templates which can be used directly and conveniently. -
EDID management supported
Supports custom EDID and standard EDID.
Specs
| Input | ||
| Connector | Quantity | Description |
| DVI | 4 | Four DVIs are all single-link DVI connectors by default. − 4x DVI inputs − Each DVI: Input resolution up to 2048×1152@60Hz, downward compatible − 4 DVI input sources constitute 1 input source (DVI MOSAIC). − Max. width: 3840 pixels. Max. height: 3840 pixels In dual-link mode. − DVI 1 and DVI 3 are dual-link DVI connectors while DVI 2 and DVI 4 are unavailable. − DVI 1/DVI 3: Input resolution up to 3840×1080@60Hz, downward compatible. − 2 DVI input sources constitute 1 input source (DVI MOSAIC). − Max. width: 3840 pixels. Max. height: 3840 pixels Supports input resolution settings. HDCP 1.4 compliant Does not support interlaced signal inputs. |
| 12G-SDI | 2 | Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G) and ST-292 (HD) standard video inputs. Input resolution up to 4096×2160@60Hz, downward compatible Supports interlaced signal inputs. Does not support input resolution and bit depth settings. Maximum resolution supported: Max. width: 8192 pixels. Max. height: 8192 pixels |
| DP 1.2 | 1 | Input resolution up to 3840×2160@60Hz, downward compatible HDCP 1.3 compliant Supports input resolution settings. Maximum resolution supported: Max. width: 8192 pixels. Max. height: 8192 pixels Does not support interlaced signal inputs. |
| HDMI 2.0 | 1 | Input resolution up to 3840×2160 @60Hz, downward compatible HDCP 2.2 compliant Supports input resolution settings. Maximum resolution supported: Max. width: 8192 pixels. Max. height: 8192 pixels Does not support interlaced signal inputs. |
| Output | ||
| Connector | Quantity | Description |
| Ethernet port | 16 | 16x Neutrik Gigabit Ethernet output connectors, allowing for a loading capacity of up to 10,400,000 pixels. Maximum loading capacity: Max. width: 16384 pixels, max. height: 8192 pixels Maximum loading capacity of a single Ethernet port: − 8-bit input source: 650,000 pixels. − 10-bit/12-bit input source: 320,000 pixels. |
| OPT 1–4 | 4 | 10G optical connectors Copy and hot backup modes are available when four OPT ports are all used for output. − OPT 1 transmits data of Ethernet ports 1–8. − OPT 2 transmits data of Ethernet ports 9–16. − OPT 3 serves as the copy/hot backup for OPT 1. − OPT 4 serves as the copy/hot backup for OPT 2. |
| HDMI 2.0 LOOP | 1 | HDMI loop output Only 1 level of device cascading supported HDCP 2.2 compliant EDID management supported |
| 12G-SDI LOOP | 2 | SDI loop output |
| MONITOR | 1 | An HDMI connector dedicated for output monitoring Resolution up to 1920×1080@60Hz |
| Control | ||
| Connector | Quantity | Description |
| ETHERNET | 1 | Connect to the PC for communication, or connect to the Web for device control. |
| USB (Type-B) | 1 | Connect to the PC for device control. Used as the input connector to connect a NovaPro UHD Jr unit for image mosaic |
| USB (Type-A) | 1 | Used as the output connector to connect a NovaPro UHD Jr unit for image mosaic |
| GENLOCK IN-LOOP | 1 | Connect to a synchronization signal to synchronize all the connected NovaPro UHD Jr units. |
| RS232 | 1 | Connect to the central control device. |
