Q-SYS Signature Microsoft Teams Room Meeting Space: Spatial Audio Bundle

Meeting Room Audio: Signature Teams Room Spatial Audio Bundle

Bring Spatial audio to your Signature Microsoft Teams Room with Q-SYS.  With Spatial audio, the audio of the remote participants comes from the direction of where the specific person talking is located on the screen, creating a more immersive and natural experience for in-room participants. Furthermore, the spatial audio feature with Teams Rooms can be supported at the software level via Q-SYS Designer Software, eliminating the need for additional hardware.

Included Features:

• The Q-SYS Core 8 Flex Processor is the hub of the system. It connects to the Teams Room Compute with a single USB cable and provides the audio and video.
 • The Certified Teams Room design provides certified audio settings for Microsoft Teams Rooms including advanced configurable AEC (acoustic echo cancellation) and noise reduction, delivering echo-free audio even in the most challenging rooms.
 • Q-SYS AcousticDesign™ Surface column-mount loudspeakers offer directional audio for a more natural videoconferencing experience when mounted beside a display.
 • Q-SYS NV Series video endpoint allows multi-stream video encoding or decoding for network-based HDMI video distribution.
 • Sennheiser TeamConnect Ceiling 2 auto dynamic beamforming technology enables flexible room configurations and captures speech from anywhere in the room.

Key Features

• Full Microsoft Teams Rooms Certification: Ensures native compatibility and trusted performance in enterprise conferencing spaces.
• Q-SYS Core Processor: Offers centralized control and audio DSP with expandable AV capabilities, eliminating the need for multiple processors.
• Sennheiser Ceiling Microphones: Dual TeamConnect Ceiling 2 mics automatically detect and focus on active speakers across the room.
• Optimized Speaker Layout: Includes both column and ceiling loudspeakers for balanced, directional sound that adapts to room layouts.
• Preconfigured QSC Network Switch: Ensures fast, reliable deployment of Q-SYS peripherals.
• USB Integration: A single USB connection simplifies PC-to-processor audio routing, reducing cabling and setup time.
• Flexible, Professional Design: Engineered for commercial-grade reliability, with easy expansion into full room control via Q-SYS.

• Q-SYS Control for Microsoft Teams Rooms application: Software application runs on the Teams Compute to enable both room AV controls and Teams call control on a connected Teams Console. Allows for customization of in-room controls to deliver a intuitive user experience
• Microsoft Teams CSS Style: replicates the Teams look and feel that users are familiar with on the Q-SYS user control interface (UCI)

Download Guide

Included Hardware:

1 x Q-SYS Core 8 Flex processor

1 x Netgear GSM4230PX-100NAS network switch

1 x Sennheiser TeamConnect Ceiling 2 microphone

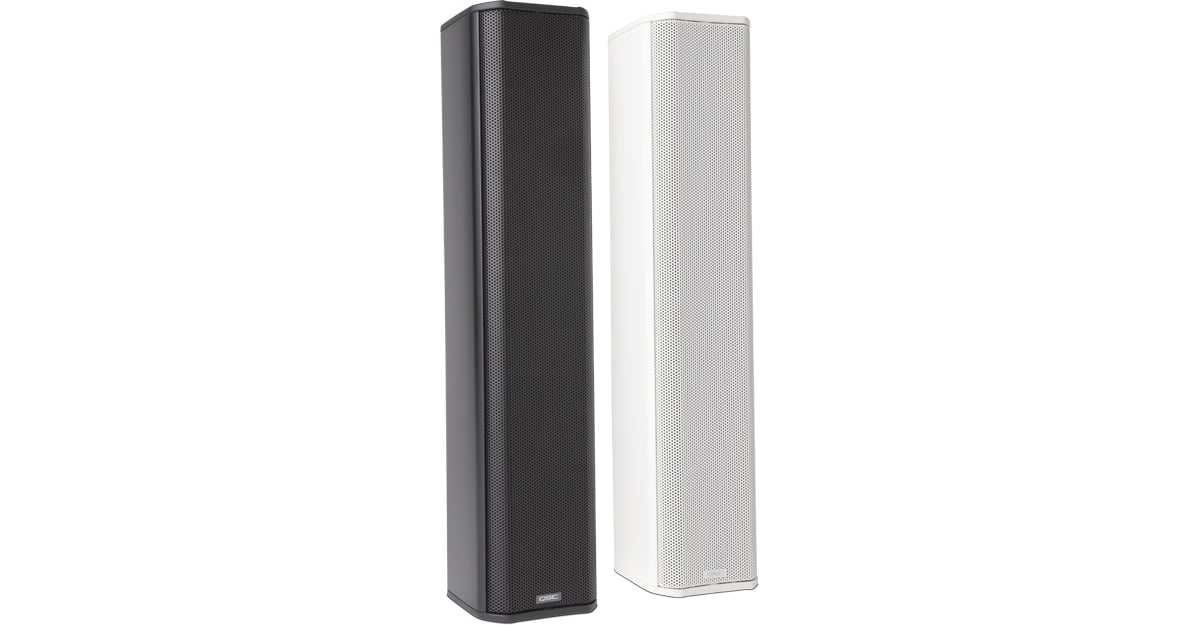

 2 x AD-S802T column surface-mount loudspeaker

1 x Q-SYS SPA2-200 network amplifier

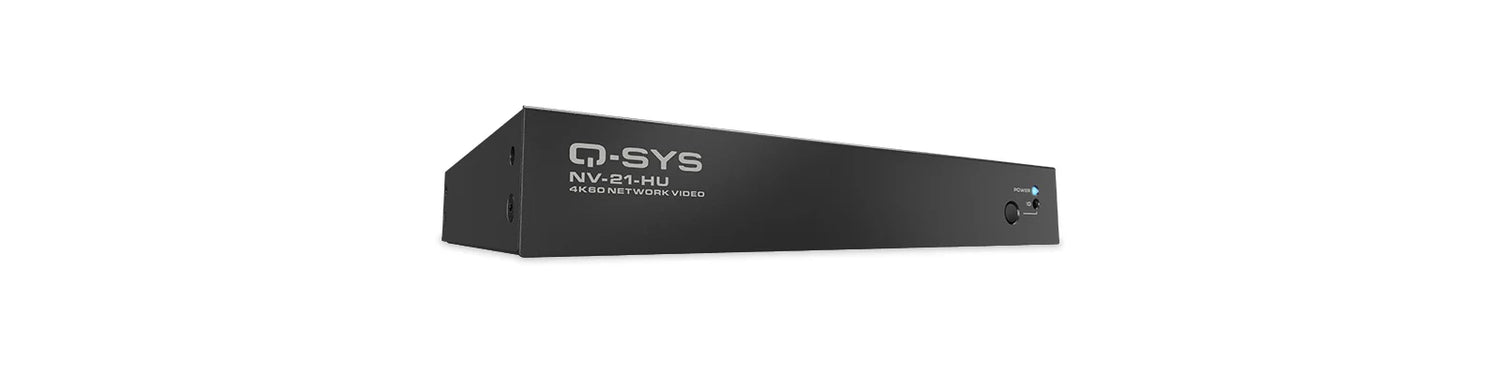

2 x Q-SYS NV-21-HU network video endpoint
