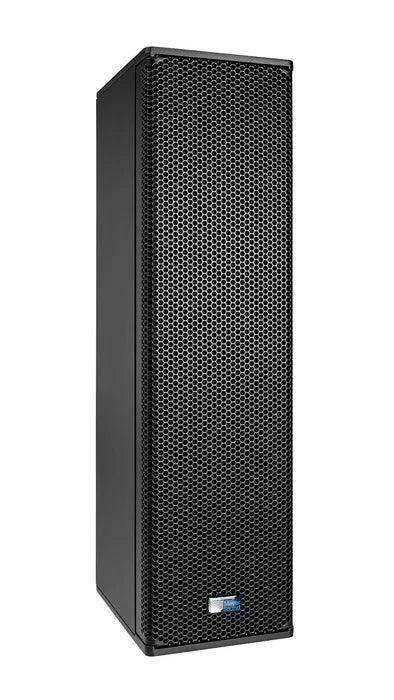

Meyer Sound UP-4Slim 2x4" 3-Way Active Speaker, M8, 5-Pin Input (Weather-Resistant) - 09.274.001.02

Authorized Dealer

Shipping calculated at checkout.

Meyer Sound | SKU: 09.274.001.02

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

For uncompromising sound in a slim, discreet design, you'll be hard pressed to top the Meyer Sound UP-4slim. This 500-watt powered loudspeaker comes loaded with dual 4-inch low-frequency drivers and a 1-inch high-frequency driver arming you with a 65Hz to 18kHz operating frequency range and a linear peak SPL of 116.5dB — all with near-imperceptible distortion. The UP-4slim's unique driver configuration safeguards against unwanted acoustic interference, supplying you with a super-wide 100-degree coverage pattern with astonishing consistency from seat to seat. The live sound experts here at Sweetwater are huge proponents of Meyer Sound's self-powered designs, which eliminate amplifier racks, cumbersome cables, and time-wasting system calibration. The Meyer Sound UP-4slim is a perfect choice for a variety of tight-fit applications, from front and under-balcony fills to installed A/V systems, theme parks, and a whole lot more.

Note: The UP-4slim requires a Meyer Sound external power supply. For more information, please contact our sale department.

Features

3-channel Class D amplifier delivers full-range sound from 65Hz–18kHz
116.5dB linear peak SPL enables high output with near-imperceptible distortion
Dual 4-inch cone low-frequency drivers; 1-inch metal dome high-frequency driver
Unique driver configuration safeguards against unwanted acoustic interference
Super-wide 100° coverage pattern ensures astonishing consistency from seat to seat
Simple self-powered design — no amp rack or long cable runs necessary
Great for front and under-balcony fills, installed A/V systems, theme parks, and a whole lot more

Specifications

ACOUSTICAL¹
Operating Frequency Range²	65 Hz – 18 kHz
Frequency Response³	70 Hz – 18 kHz ±4 dB
Phase Response	102 Hz – 18 kHz ±45°
Linear Peak SPL⁴	116.5 dB with crest factor >16.5 dB (M-noise), 109.5 dB (Pink noise), 112.5 dB (B-noise)
COVERAGE
Horizontal Coverage	100°
Vertical Coverage	100°
TRANSDUCERS
Low Frequency	Two 4-inch cone drivers; 4 Ω nominal impedance
High Frequency	One 1-inch metal dome tweeter; 8 Ω nominal impedance
AUDIO INPUT
Type	Differential, electronically balanced
Maximum Common Mode Range	±5 V DC
Connectors	Phoenix 5-pin male
Input Impedance	10 kΩ differential between Audio (+) and Audio (–)
Wiring	Pin 1: DC Power (–) Pin 2: DC Power (+) Pin 3: Audio Shield, Chassis/earth Pin 4: Audio (–) Pin 5: Audio (+)
Nominal Input Sensitivity	-2.0 dBV (0.8 V rms) continuous is typically the onset of limiting for noise and music
Input Level	Audio source must be capable of producing of +16 dBV (6.31 V rms) into 600 Ω to produce the maximum peak SPL over the operating bandwidth of the loudspeaker.
AMPLIFIER
Type	3-channel, Class-D with integral advanced digital signal processing
Total Output Power⁵	500 W peak
THD, IM, TIM	< 0.02%
Cooling	Convection
DC POWER
Connector	Phoenix 5-pin male provides power and audio connection (see Wiring above)
Safety Agency Rated Voltage Range⁶	48 V DC (Meyer Sound IntelligentDC External Power Supply Required)
DC CURRENT DRAW⁷
Idle Current	0.23 A average
Maximum Long-Term Continuous Current (>10 sec)	1.00 A average
Maximum Instantaneous Peak Current	4.5 A peak
PHYSICAL
Dimensions	W: 4.29 in (109 mm) x H: 15.90 in (404 mm) x D: 5.69 in (144 mm)
Weight	14 lb (6.35 kg)
Enclosure	Aluminum with slightly textured black finish
IP Rating	Weather-protected version rated IPx5 with properly installed rain hood. See the UP-4slim Operating Instructions available at meyersound.com/documents.
Protective Grille	Powder-coated, stamped steel with black mesh
Rigging	Top and bottom aluminum plates with M8 threads
COMPLIANCE
Safety Agency Certification	Standard for audio, video and similar electronic apparatus: UL 60065, CSA C22.2 NO. 60065-03 (AMD 2), IEC 60065, IEC 62368-1 Fire Rated to UL Standard 2043, Product and Accessories Installed in Air-Handling Spaces
EMC Certification	CE and FCC Part 15 Emission Class B emission limits applied.
