Crestron UC-ENGINE-BRKT-T-UPGRD Flex Medium Room Upgrade Solution with Microsoft Teams® Rooms
Crestron UC-ENGINE-BRKT-T-UPGRD Flex Medium Room Upgrade Solution with Microsoft Teams® Rooms is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Crestron UC-ENGINE-BRKT-T-UPGRD Flex Medium Room Upgrade Solution w...
The UC-ENGINE-BRKT-T-UPGRD solution provides all of the necessary components to upgrade a deployed Crestron Flex tabletop conference device (CCS‑UC‑1, CCS‑UC‑1‑AV, or CCS‑UC‑1‑AV‑PLUS) and camera to a complete video conference system for use with the Microsoft Teams Rooms intelligent communications platform. It supports single or dual video displays1 and features UC Bracket Assembly and cables.
Native Microsoft Teams® Rooms Experience
The UC-ENGINE-BRKT-T-UPGRD system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.
Simplified Deployment

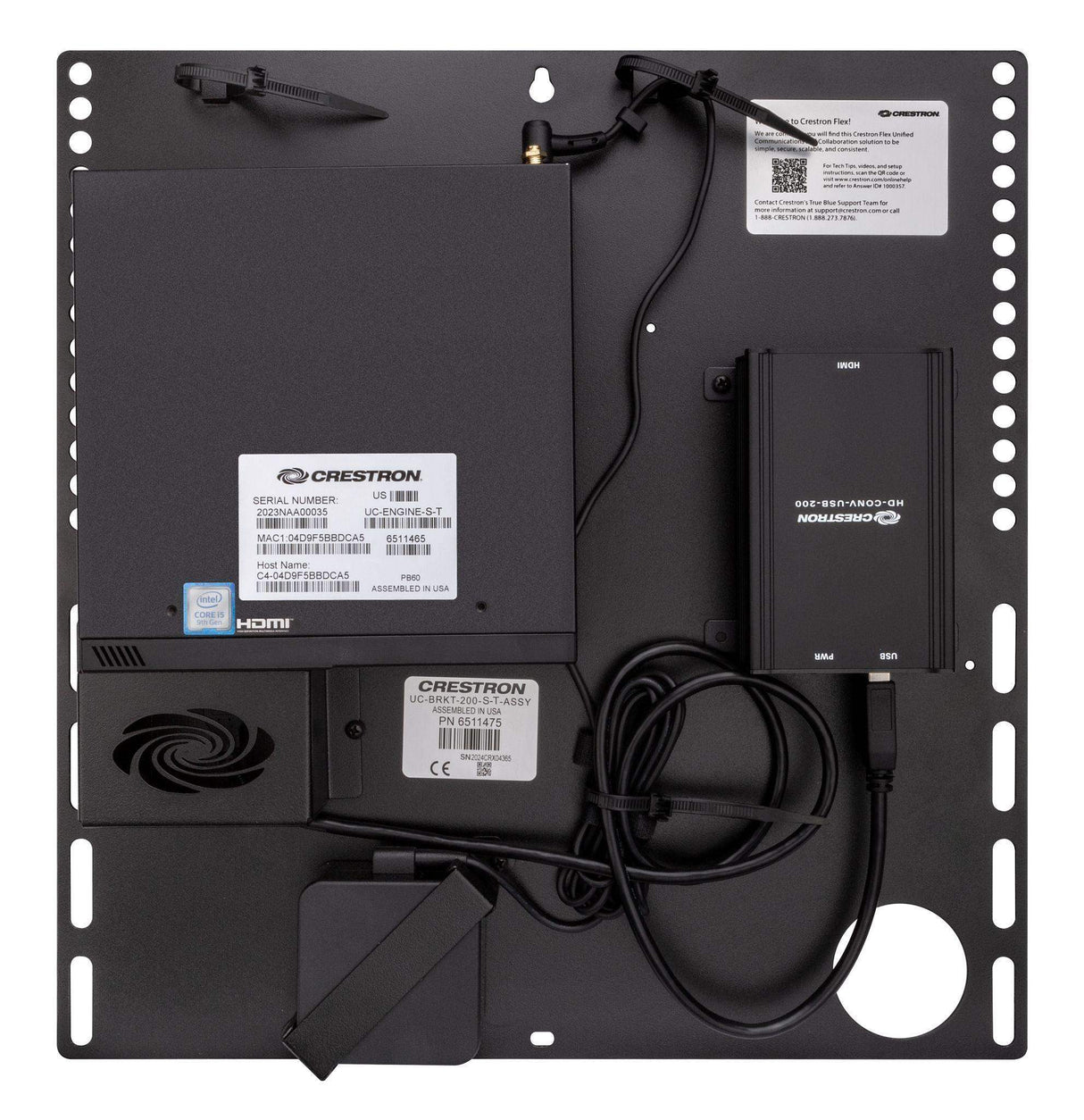

The UC Bracket Assembly (UC‑BRKT‑200‑S‑T‑ASSY) provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the to the UC Bracket Assembly.2
Crestron Control System Integration
The UC-ENGINE-BRKT-T-UPGRD can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.3
Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft® to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud service4 is an IoT cloud based provisioning service that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.
Features
- Upgrades a single Crestron Flex tabletop conference device to a complete video conference system
- Native Microsoft Teams® software provides a consistent, simple user experience with one‑touch meeting joins
- Complete kit contains a UC bracket assembly and cables
- Easy to specify and install — no custom design, programming, or software installation required
- Optional integration with Crestron® control systems
- Direct connection option between UC Engine and Crestron Flex tabletop conference device for simple installation and configuration
- Network management and provisioning, system alerts, and the pairing of the Crestron Flex tabletop conference device to the system’s UC Engine through the XiO Cloud® service
- Premium‑level support with Crestron Flex Care (optional)
- Enterprise-grade security - connects and communicates securely over any enterprise or SMB network
- Supports single or dual video displays
Specs
| Included Components | |
| UC‑BRKT‑200‑S‑T‑ASSY | UC Bracket Assembly for Microsoft Teams Rooms systems, comprised of:
|
| CBL-4K-DP-HD-6 | DisplayPort™ to HDMI Cable, 6 ft (1.8 m) |
| CBL-CAT5E-7 | Ethernet LAN cable for UC Engine, RJ45-to-RJ45, black, 7 ft (2.1 m) |
| CBL‑HD‑6 | HDMI Interface Cable, 6 ft (1.8 m) |
| CBL‑HD‑20 | HDMI Interface Cable, 20 ft (6.1 m) |
| CBL-USB-A-EXT-15 | USB Extension Cable, USB Type A Male-to-Female, 15 ft (4.6 m) |
| DM‑CBL‑ULTRA‑PC‑20 | Ethernet LAN cable, CAT6a, RJ45‑to‑RJ45, blue, 20 ft (6.1 m) |
| UC Bracket Assembly | |
| Mini PC | Intel Core® processor with Windows® 11 IOT Edition OS and 100/1000 Mbps Ethernet connectivity |
| UC Client | Microsoft Teams Rooms |
| Management Client | XiO Cloud Service |
| Content Ingest | HDMI input via HDMI to USB 3.0 converter |
| Display Output Resolution | 1080p |
| Power | 100‑240VAC, 50/60 Hz adapter (included) |
| Construction | Metal mounting bracket, black, preassembled with UC‑ENGINE‑S‑T and HDMI to USB 3.0 converter |
| Mounting | Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount; Bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate |
| Dimensions | Height: 15.00 in. (381 mm) Width: 14.50 in. (368 mm) Depth: 1.87 in. (48 mm) (UC Bracket Assembly with HD-CONV-USB-200) 1.93 in. (49 mm) (UC Bracket Assembly with HD-CONV-USB-300) |
| Maximum Weight | 7.7 lb (3.5 kg) (UC Bracket Assembly with HD-CONV-USB-200) 7.95 lb (3.6 kg) (UC Bracket Assembly with HD-CONV-USB-300) |
