Tascam MZ-123BT Multi-Zone Audio Mixer with Bluetooth

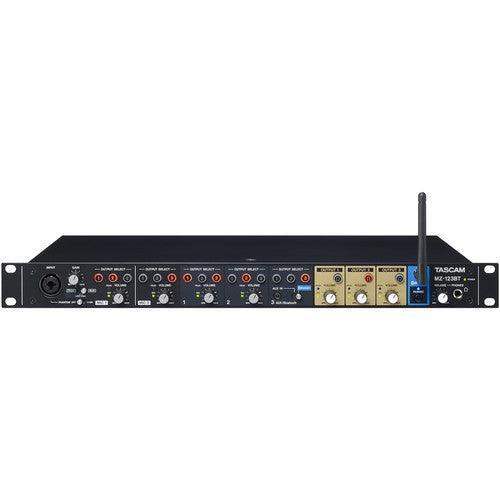

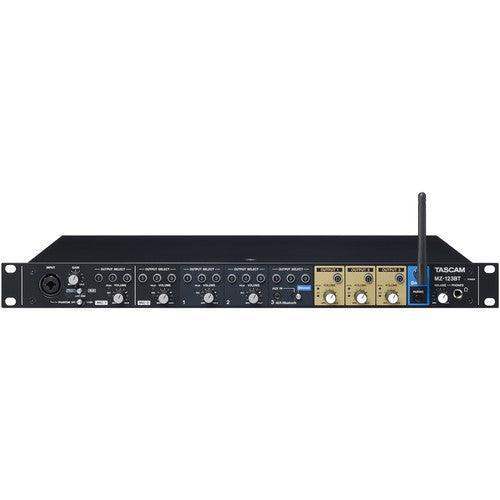

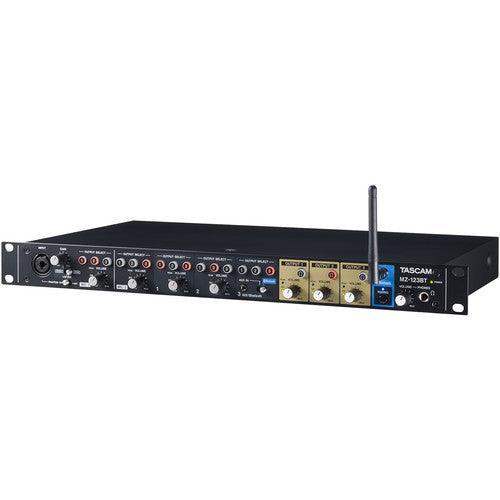

The MZ-123BT Multi-Zone Audio Mixer with Bluetooth from TASCAM is a compact 1 RU multichannel, multi-zone professional installation mixer designed for versatile routing, mixing, and distribution. It can be used for up to three zones of music and announcements in commercial applications such as retail venues, restaurants, bars, cafes, hotels, or any environment that requires independent audio routing and announcement capabilities.
The TASCAM MZ-123BT offers a simple, intuitive layout for ease of operation. The Bluetooth-enabled device comes equipped with two versatile mic inputs and automatic attenuation of background music for superior intelligibility during announcements or paging. This mixer is built with a volume control for each input and zone routing buttons. In addition, it includes a power cord, eight Euroblock plugs, a cable band kit, a rackmount screw kit, and a Bluetooth antenna.
Features
- For Commercial Retail Applications
- 3-Zone Music Distribution
- Mono or Stereo Operation
- 2 x Microphone and 2 x Line Inputs
- Bluetooth and AUX 3.5mm Inputs
- Independent Volume Controls
- 3-Band EQ, HP Filter, and Phantom Power
- 1/4" Headphone Jack
Specifications
TASCAM MZ123BT Specs
| Mic Input | Balanced Combo XLR-1/4" / 6.3mm Jack |
| Rated Input | Level: -26 dBu (0.039 Vrms, When Front High), -2 dBu (0.616 Vrms, When Front Low) |
| Maximum Input Level | -10 dBu (0.245 Vrms, When Front High), +14 dBu (3.884 Vrms, When Front Low) |
| Minimum Input Level | -65 dBu (0.0004 Vrms, When Front High), -41 dBu (0.007 Vrms, When Front Low) |
| Gain Adjustment Range | 39 dB |
| Input Impedance | 2.4 Kilohms |
| Connectors | Euroblock (Balanced 3.81 mm Pitch) |
| Rated Input | Level: 26 dBu (0.039 Vrms, When PAD Switch Off), -2 dBu (0.616 Vrms, When PAD Switch On) |
| Maximum Input Level | -10 dBu (0.245 Vrms, When PAD Switch Off), +14 dBu (3.884 Vrms, When PAD Switch On) |
| Minimum Input Level | -65 dBu (0.0004 Vrms, When PAD Switch Off), -41 dBu (0.007 Vrms, When PAD Switch On) |
| Gain Adjustment Range | 39 dB |
| Input Impedance | 2.4 Kilohms |
| Connectors | RCA |
| Nominal Input Level | -10 dBV (0.316 Vrms) |
| Maximum Input Level | +6 dBV (2.0 Vrms) |
| Gain Adjustment Range | -16 dB to +16 dB |
| Input Impedance | 10 Kilohms or Higher |
| Connectors (Front Panel) | 1/8" / 3.5mm Stereo Mini-Jack |
| Nominal Input Level | -20 dBV (0.1 Vrms) |
| Maximum Input Level | -4 dBV (0.63 Vrms) |
| Input Impedance | 10 Kilohms or Higher |
| Connector | Euroblock (Balanced) 3.81 mm Pitch |
| Output Level | Rated: +4 dBu (1.228 Vrms, When Volume Knob at 0 dB) |
| Maximum Output Level | +24 dBu (12.282 Vrms) |
| Output Impedance | 200 Ohms |
| Headphones Output | 1/4" / 6.3 mm Standard Stereo Jack Maximum Output: 80 mW + 80 mW or Higher (THD+N 0.1% or Less, into 32 Ohms Load) |
| Version | 4.2 |
| Output Class | 2 (About 32.8' / 10 m Unobstructed Transmission Distance) The Transmission Distance Is Only an Estimate and Might Vary Depending on the Surrounding Environment and Radio Wave Conditions. |
| Supported Profiles | A2DP A2DP Codecs: SBC, AAC, Qualcomm aptX audio A2DP Content Protection: SCMS-T |
| Power | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | 25 W |
| Operating Temperature Range | 32 to 104°F / 0 to 40°C |
| Dimensions | 19.02 x 1.83 x 10.82" / 48.30 x 4.65 x 27.48 cm |
| Weight | 6.6 lb / 3 kg |
| Package Weight | 10.28 lb |
| Box Dimensions (LxWxH) | 21.4 x 14.2 x 5.7" |
