Tascam MX-8A 8 in / 8 out Matrix Mixer with built-in DSP
Tascam MX-8A 8 in / 8 out Matrix Mixer with built-in DSP is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

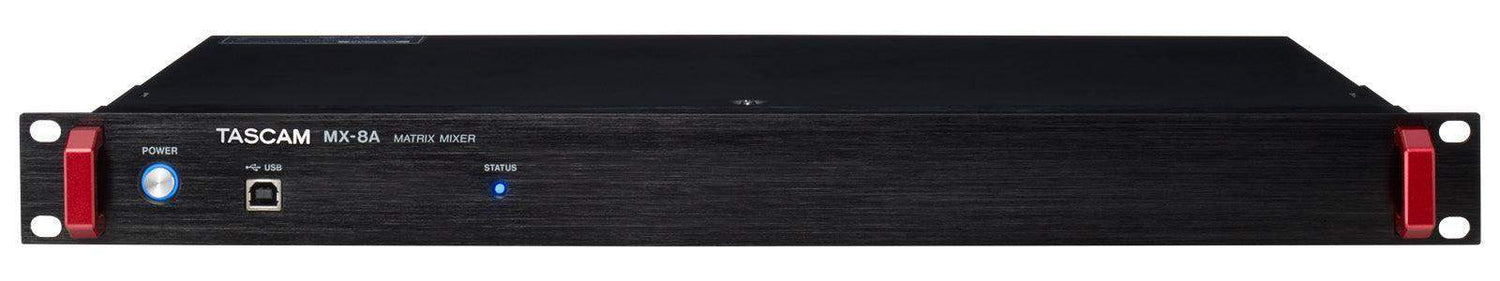

Tascam MX-8A 8 in / 8 out Matrix Mixer with built-in DSP
The TASCAM MX-8A is a Matrix Mixer equipped with 8 mic / line inputs and 8 line outputs as well as integrated DSP for audio optimization in various environments and configurations Custom control apps are also available to allow easy setup and adjustment by both system integrators and end users.
The TASCAM MX-8A is possible to mix mic and playback equipment audio signals into 8 different zones. This function can be used in installation systems for small to medium scale stores, restaurants or banquet rooms, etc.
The onboard DSP provides a full set of audio processing for mic and line inputs including Compressor, 4 parametric EQ, auto level, ducking and more. On line level outputs, the DSP delivers 10 band EQ, high pass filters, low pass filters, delay and limiter effects.
Control of the TASCAM MX-8A via either of the two available control software applications
- TASCAM MX CONNECT, designed for integrators and providing control over the configuration and settings of an entire system.
Features
Input module functions:
- Mic/line input switching
- Phantom power (+48V) ON/OFF (mic input)
- PAD (mic input)
- Mic gain (mic input)
- Compressor
- 4 band EQ2 band parametric EQ
Low shelving EQ / High pass filter
High shelving EQ - Auto level control
- Mute
- Fader
- Fader / Mute grouping
Matrix mixer functions:
- Mute
- Fader
- Fader / Mute grouping
- Ducking function
- Ambient noise compensator function
Output module functions:
- 10 band EQ
8 band parametric EQ
Low shelving EQ / high pass filter
High shelving EQ / low pass filter - Delay
- Limiter
- Phase switching
- Test tone
- Mute
- Fader
- Fader / Mute grouping
Specifications
| FORMAT | 44.1k / 48k Hz, 16bit / 24bit |
| USB | |
| Connector | 4-pin USB B-type |
| Transfer rate | USB2.0 High Speed (480Mbps) |
| ANALOG IN | |
| Connector | Euroblock (Balanced) 3.81mm pitch |
| Minimum input level | -77.5dBu |
| Maximum input level | |
| MIC | +26dBu |
| LINE | +24dBu |
| Input impedance | 2.2kΩ or higher |
| ANALOG OUT | |
| Connector | Euroblock (Balanced) 3.81mm pitch |
| Nominal output level | +4dBu (when Ref.Level set to other than -9dBFS) +6dBu (when Ref.Level set to -9dBFS) |
| Maximum output level (switchable) |
+15dBu (Ref.Level: -9dBFS) +18dBu (Ref.Level: -14dBFS) +20dBu (Ref.Level: -16dBFS) +22dBu (Ref.Level: -18dBFS) +24dBu (Ref.Level: -20dBFS) |
| Output impedance | 200Ω or lower |
| RS-232C | |
| Connector | D-sub 9-pin (female, inch-standard) |
| RS-485 | |
| Connector | RJ-45 |
| Cables | Category 5e or faster STP cables |
| ETHERNET | |
| Connector | RJ-45 |
| Transmission protocol | TCP/IP |
| Ethernet standard | 100BASE-TX |
| Cables | Category 5e or faster STP cables |
| Power | AC100-240 V, 50/60 Hz |
| Power consumption | 21W |
| Dimensions | 483(W) × 45(H) × 304.1(D)mm (including protrusions) |
| Weight | 3.0kg |
| Operating temperature range | 0～40°C |
| Included items | Power cord × 1, Euroblock plug × 16、Cable band kit × 1, Rackmount screw kit × 1, Owner's Manual (including warranty) × 1 |
Audio performance
| Mic amp EIN (equivalent input noise) | -126dBu or less (MIC IN → LINE OUT, Input impedance 150Ω, 22ｋHz LPF+A, A-weighted, JEITA) |
| Frequency response | +0.5/-0.5dB: 20Hz～20kHz (+24dBu input, MIC IN → LINE OUT, GAIN MIN, JEITA) |
| Distortion (THD+N) | 0.005% or less (+24dBu input, 1kHz, MIC IN → LINE OUT, GAIN MIN, JEITA) |
| S/N ratio | 106dB or higher (+24dBu input, 44.1 k/48 kHz sampling frequency, MIC IN → LINE OUT, GAIN MIN, JEITA) |
| Crosstalk | 106dB or higher (+24dBu input, 1kHz, MIC IN → LINE OUT, GAIN MIN, JEITA) |
| Dynamic range | 106dB or higher (MIC IN → LINE OUT, GAIN MIN, JEITA) |
Note: JEITA indicates compliance with JEITA CP-2150
Supported audio drivers
| Windows | UAC2.0, WDM |
| macOS / iOS | UAC2.0 |
| Android | UAC2.0 |
