The HDMI-TPX-RX107A-SR is a scaling receiver device based on SDVoE technology that allows users to receive HDMI 2.0 compliant video, audio, and control signals coming from a compatible SDVoE transmitter (like HDMI-TPX-TX209AK extender or the MX2M-4TPX-OB matrix board from Lightware) through a direct CAT6A copper connection.
Features
- Offers scaling for format conversion and uninterrupted output
- Allows for the transmission of HDMI 2.0 video, embedded audio, Ethernet, RS-232 and USB2.0 between an extender pair directly connected together
- Can be remote powered through CATx cable (PoE PD)
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- HDR and Low Latency Dolby Vision support
Specs
| General | |
| Compliance | UL, CE |
| Electrical safety | IEC/EN/UL/CSA 62368-1:2014, Class II |
| EMC (emission) | IEC/EN 55032:2015 |
| EMC (immunity) | IEC/EN 55035:2017 |
| RoHS | EN 63000:2018 |
| Warranty | 3 years |
| Operating temperature | 0° to +50°C (+32° to +122°F) |
| Storage temperature | -30° to +80˚C (-22° to +176˚F) |
| Operating humidity | 10% to 90%, non-condensing |
| Cooling | passive |
| Power | |
| Power supply option | Power adaptor / PoE |
| Power consumption (max) | TBD |
| Heat dissipation | TBD |
| Power over Ethernet (PoE) | via TPX input (IEEE802.3af) (can receive power) |
| Supported power source | 100-240 V AC; 50/60 Hz |
| Supplied power | 12V DC, 2A |
| AC power plug | Interchangable (EU, UK, JP/US, AUS/NZ) |
| DC power plug | Locking DC connector (2.1/5.5 mm pin) |
| Enclosure | |
| Rack mountable | No |
| Enclosure material | 1 mm steel |
| Dimensions in mm | 138 W x 151.8 D x 26 H |
| Dimensions in inch | 5.43 W x 5.98 D x 1.02 H |
| Weight | TBD kg |
| Video Inputs | |
| TPX Input | |
| Connector type | RJ45 connector |
| Power over Ethernet (PoE) | IEEE 802.3af (PD) |
| Compliance | SDVoE (point-to-point) |
| HDCP compliance | HDCP2.3 |
| Transferred signals | Video, Audio, RS-232, Infrared, Ethernet |
| Color space | RGB, YCbCr |
| Video delay | 0 frame |
| Supported resolutions at 8 bits/color * | up to 4096x2048@60Hz (4:4:4) |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| * The horizontal resolution for signals above the bandwith limit of HDMI 1.4 cannot exceed 4096 pixels. | |

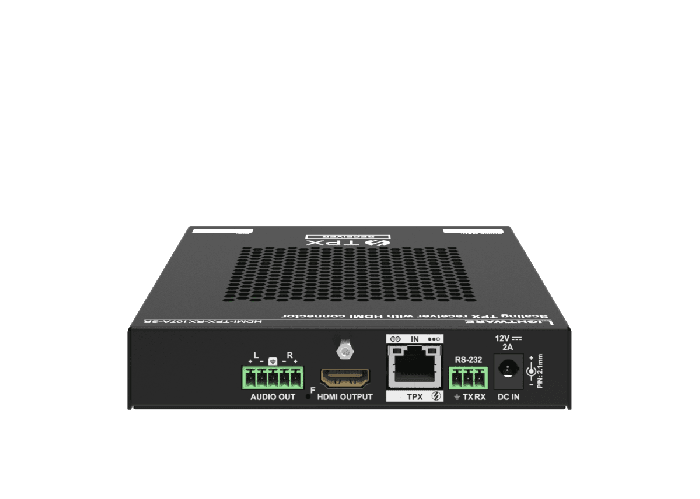

| Video Outputs | |
| HDMI Output | |
| Connector type | 19-pole HDMI Type A receptacle |
| A/V standard | DVI 1.0, HDMI 1.4, HDMI 2.0 |
| HDCP compliance | HDCP 2.3 |
| Color space | RGB, YCbCr |
| Supported resolutions at 8 bits/color * | up to 4096x2048@60Hz (4:4:4) |
| up to 3840x2160@60Hz (4:4:4) | |
| 4096x2048@60Hz (4:2:2) up to 10 bits/color | |
| Audio formats | All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio |
| Scaling | Scaling to EDID preferred resoltion or custom resolution with the following limitations: * When scaling is used, the scaler output is always RGB 8 bit/component. * A picture with resolution of 3840 x 2160 cannot be scaled down to 640 x 480, 800 x 600, 960 x 1280, 1024 x 768, 1050 x 1400, or 1200 x 1600 when the aspect ratio is kept by utilizing letterbox. * A picture with resolution of 4096 x 2160 cannot be scaled down to 640 x 480, 800 x 600, 960 x 1280, 1024 x 768, 1050 x 1400, 1200 x 1600, 1280 x 768, 1680 x 1050, or 1900x1200 when the aspect ratio is kept by utilizing letterbox. |
| * All standard VESA and CEA resolutions up to 600MHz (HDMI2.0) and other custom resolutions up to 600Mhz are supported. | |
| Audio Ports | |
| Analog Audio Output | |
| Connector type | 5-pole Phoenix connector |
| Audio formats | 2-ch PCM |
| Sampling frequency | 48 kHz |
| Volume | -78 dB - 0 dB |
| Balance | 0 - 100 (50 = center) |
| Nominal Differential Output Level @ 0 dB Gain | +4 dBu |
| Nominal Differential Output Level @ 3 dB Gain | +7 dBu |
| Control Ports | |
| RS-232 serial port | |
| Connector type | 3-pole Phoenix connector |
| Baud rates | Between 4800 and 115200 Baud |
| Data bits | 8 or 9 |
| Parity | None / Odd / Even |
| Stop bits | 1 / 1.5 / 2 |

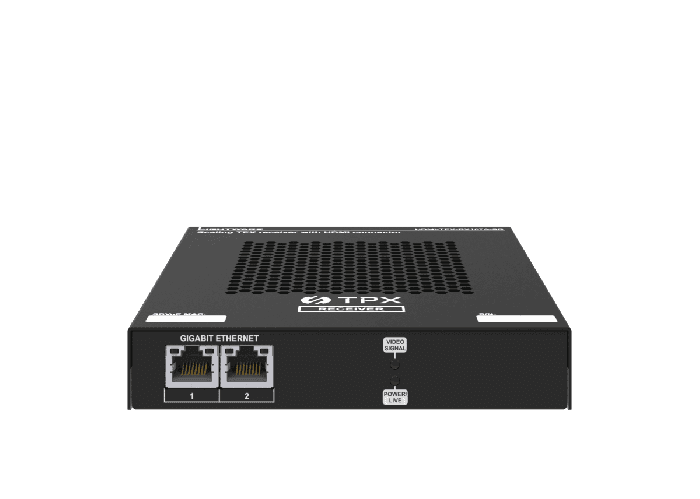

| Ethernet port | |
| Connector type | RJ45 female connector (2) |
| Ethernet data rate | 10/100/1000Base-T, full duplex with autodetect |
| Power over Ethernet (PoE) | No |
