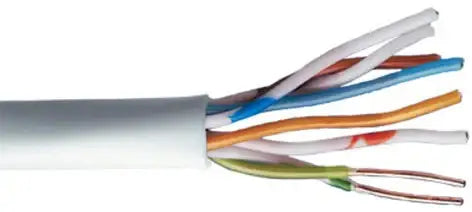

Liberty AV 24-4P-P-L6-EN-WHT 1000' White Category 6 U/UTP EN Series 23 AWG 4 Pair Unshielded Cable Reel

The 24-4P-P-L6-EN-WHT is a high-quality Category 6 U/UTP (unshielded twisted pair) cable reel designed to meet demanding networking needs. With a length of 1000 feet, this cable provides ample coverage for various installations. Its white color ensures discreet and tidy cable management in diverse environments. Built to EN Series standards, it guarantees exceptional performance and reliability, making it suitable for both residential and commercial applications. Featuring 23 AWG (American Wire Gauge) conductors and four twisted pairs, this cable reel ensures efficient data transmission with minimized crosstalk and interference. Whether used for Ethernet networking, telecommunications, or multimedia applications, this cable reel delivers consistent and stable connectivity, making it an ideal choice for modern networking infrastructures.

Liberty AV 24-4P-P-L6-EN-WHT Features:

• 23 AWG solid bare copper conductors
• HDPE, high-density polyethylene insulation
• Color striping on white conductors
• Varying lay twisted pairs cabled on a common axis
• Ripcord under the jacket
• FR-PVC, flame rated polyvinyl chloride jacket
• Tested to 550 MHz with a positive ACR spec to 550 MHz
• Third party (UL, ETL) certified to category 6 performance
• NEC rated CMR, CEC rated CMR, CMG FT4, RoHS compliant

Liberty AV Features:

• 23 AWG solid bare copper conductors
• HDPE, high-density polyethylene insulation
• Color striping on white conductors
• Varying lay twisted pairs cabled on a common axis
• Ripcord under the jacket
• FR-PVC, flame rated polyvinyl chloride jacket
• Tested to 550 MHz with a positive ACR spec to 550 MHz
• Third party (UL, ETL) certified to category 6 performance
• NEC rated CMR, CEC rated CMR, CMG FT4, RoHS compliant

Liberty AV Specifications:

• Gauge: 23 AWG
• Material: Solid annealed bare copper
• Diameter: 0.0226" | 0.574mm
• DC Resistance: ≤ 20.12 Ω / 1000’ | 65.99 Ω/KM
• DCR Unbalance: ≤ 5.0%
• Capacitance: 14.0 pF/FT | 45.9 pF/M
• Impedance: 100 ± 15 Ω
• Propagation Delay (Skew): 45ns/100m MAX
• Velocity of Propagation: 71%
• Voltage Rating: 300V
• Pair to Ground Capacitance Unbalance: ≤ 330 pF/100M
• Maximum Current: 1.4A@25°C
• Material: Fluorinated ethylene propylene
• Wall Thickness: 0.008" | 0.20mm
• Diameter: 0.0386" | 0.981mm
• ANSI/TIA-568-C Category 6
• NEC: CMP 75°C
• CEC: CMP FT6 60°C
• EU RoHS-2 2011/65/EU Compliant
• Pair 1: Orange, White/orange stripe
• Pair 2: Blue, White/blue stripe
• Pair 3: Green, White/green stripe
• Pair 4: Brown, White/brown stripe
• Pairs twisted in varying lay lengths
• Each pair in a fluoropolymer X separator interstice
• Installation Pull Tension: 25 Lbs | 111 N
• Bend Radius (Unloaded): 2.20" | 56mm
• Bend Radius (Loaded): 4.40" | 112mm
• Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0°C ambient temperature
• Plenum rated polyvinyl chloride
• Colors: Blue, White, Green, Yellow
• Wall Thickness: 0.019" | 0.483mm
• Diameter: 0.220" | 5.59mm
• Final Outside Diameter (inches): 0.22
