Liberty AV 16-2C-P-BLK-250 250' Black Commercial Grade General Purpose 16 AWG 2-Conductor Plenum
Liberty AV 16-2C-P-BLK-250 250' Black Commercial Grade General Purpose 16 AWG 2-Conductor Plenum is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Liberty AV 16-2C-P-BLK-250 250' Black Commercial Grade General ...

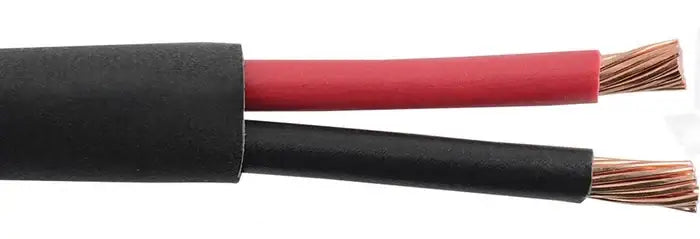

The 16-2C-P-BLK-250 is a 250' 2-conductor 16 AWG stranded, twisted, and unshielded cable, NEC type CMP and CEC type CMP FT6. Manufactured to UL444 standards, compliant with NEC articles 725 and 800 for installation and application.
Liberty AV 16-2C-P-BLK-250 Applications
- Speaker Level Audio Distribution
- 70V Speaker systems
- DC Power, Class 2 and Class 3 power, system control
Liberty AV 16-2C-P-BLK-250 Features
- Stranded Annealed Bare Copper Conductors
- Plenum rated PVC Alloy insulation
- Twisted, unshielded
- Plenum rated PVC Jacket
- NEC CMP, CEC CMP FT6, RoHS Compliant
Liberty AV 16-2C-P-BLK-250 Specifications
- Conductor:
- 16 AWG
- 19-strand annealed bare copper
- Diameter: 0.056" (1.42mm)
- Electrical Characteristics:
- DC resistance: 4.38 Ω/1000' (14.36 Ω/km)
- Mutual capacitance: 36.4 pF/ft (119.29 pF/m)
- Impedance: 57 Ω
- Inductance: 0.15 µH/ft (0.49 µH/m)
- Velocity of propagation: 55%
- Voltage rating: 300V
- Maximum current: 6.25A @ 25°C
- Insulation:
- Plenum-rated polyvinyl chloride
- Wall thickness: 0.010" (0.26mm)
- Diameter: 0.076" (1.93mm)
- Regulatory Compliance
- NEC: CMP 75°C
- CEC: CMP FT6 CMG 60°C
- EU RoHS-2 2011/65/EU compliant
- Color Code:
- Black, Red
- Packaging:
- Length: 250'
- Weight: 28 lbs/1000' (42 kg/km)
- Assembly:
- 2 conductors twisted
- Lay length: 3.0" (80mm)
- 4.0 twists per foot (12.5 twists per meter)
- Installation:
- Pull tension: 42 lbs (187 N)
- Bend radius: 1.82" (47mm) unloaded, 3.64" (94mm) loaded
- Condition at room temperature for 24 hours before installation; install above 32°F (0°C)
- Construction:
- Ripcord under jacket
- Shielding:
- N/A
- Performance:
- Speaker level audio up to 50 feet
- Jacket:
- Plenum-rated polyvinyl chloride
- Colors: Natural White, Black
- Wall thickness: 0.015" (0.38mm)
- Diameter: 0.182" (4.62mm)
- Final outside diameter: 0.182"
