LG DVLED LAP020EL6B P2.0 1,000 nits LG LED Curve Series for Indoor
Regular price
$3,855.00
Unit price
/
Unavailable
Shipping calculated at checkout.
LG Electronics | SKU:
LAP020EL6B
LG DVLED LAP020EL6B P2.0 1,000 nits LG LED Curve Series for Indoor is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
LG DVLED LAP020EL6B P2.0 1,000 nits LG LED Curve Series for Indoor
Regular price
$3,855.00
Unit price
/
Unavailable
SELECTABLE TWO PRODUCT TYPES
The LAPE Series comes in 2 product types which differ in the way the power is installed. Each has their own distinctive benefits, so customers can choose between two types based on installation environment.

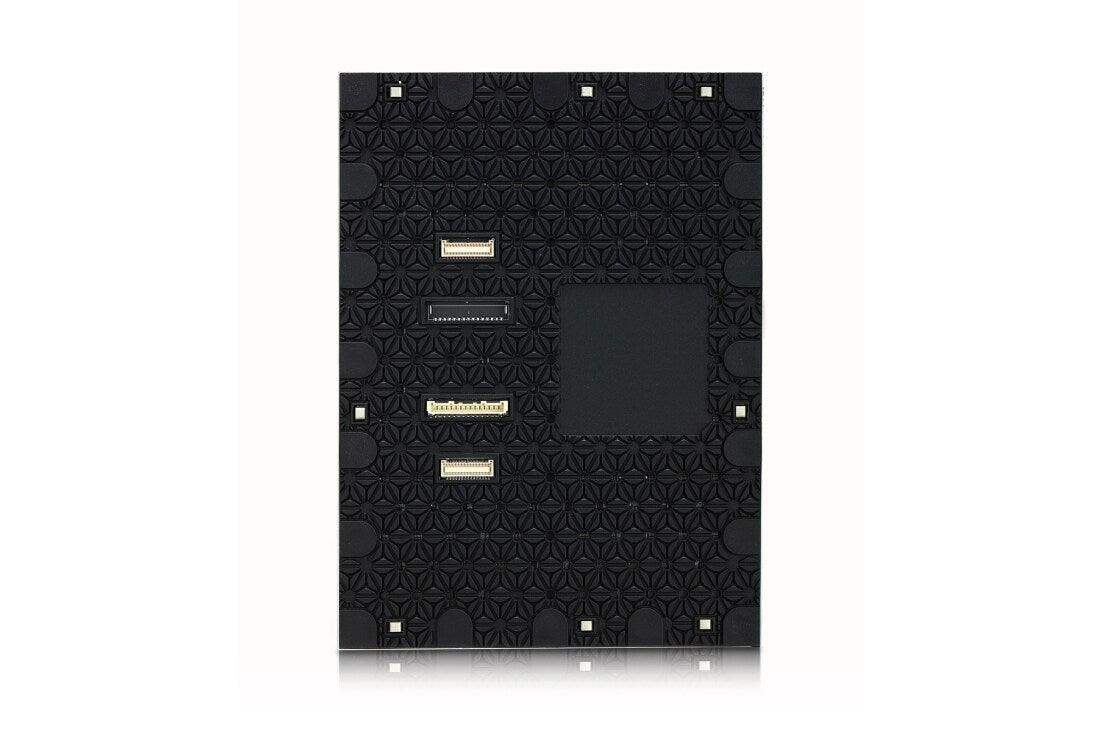

FLEXIBLE LDM
With a specially designed flexible LDM(LED Display Module), the LAPE series supports true concave and convex curvature up to 1,000R. This greatly amplifies design flexibility, providing users with the ability to create true curved screens.
* The "Conventional" shown above refers to an LED screen composed of flat LED unit cases.
REALISM THROUGH LIFELIKE COLORS
The LAPE series delivers vivid and distinctive picture quality through a wide range of color details with deep contrast thanks to LG's exclusive ‘Dynamic Contrast Algorithm'.
DETAILED EXPRESSION OF COLOR DEPTH
16-bit color processing provides a higher greyscale level, which seamlessly displays different depths and densities of colors without distortion, thereby giving a more realistic and sophisticated content.
SMOOTH PLAYBACK IN DYNAMIC MOTION
Powered by LG's display technology, a high refresh rate of 3,840Hz assures the smooth playback of content. The flicker-free image prevents the black bars that occur from video shooting, as well as eye strain and blurred vision in viewers.
FLEXIBLE POWER MANAGEMENT
Thanks to the modular power concept design, users can choose the desired brightness of the screen by customizing the number of PSUs* based on the electrical capacity of the user environment.
* The number of units required may vary depending on the installation environment.
The above description is an example of UHD screen configurantion with a 2.0 mm pitch in 'redundancy off'mode.
The above description is an example of UHD screen configurantion with a 2.0 mm pitch in 'redundancy off'mode.
POWER/SIGNAL REDUNDANCY SUPPORT
The LAPE series is designed to support signal redundancy (optional), providing users with peace of mind.
* The "Conventional" shown above refers to LED displays which do not support the power/signal redundancy mode.
PRECISE FHD/UHD SCEEN CONFIGURATION
It has often been difficult to configure a perfect FHD/UHD resolution screen prohibiting native resolution image display. With the LAPE series, this is possible for all model options.
SMART HIGH PERFORMANCE SYSTEM CONTROLLER
The LAPE series comes with a versatile 4K system controller, providing simplified system configuration in a high-resolution canvas platform. The controller also has a built-in high performance media player as well as scaler.
* The "Conventional" shown above refers to LED displays that don't have an all-in-one system controller
INTUITIVE MANAGEMENT SOFTWARE
LG's new management control software platform ‘LED Assistant' provides easy screen management.
REAL-TIME 365 CARE SERVICE
The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of LED displays in client workplaces for fault diagnosis and remote-control services.
* The availability of "Signage 365 Care" service can differ by region, so please contact the LG sales representative in your region for further details.
EASY TO HANDLE & INSTALL
Conventional large-sized and heavy cabinet-based installation often results in LED dot defects during installation. The LAPE series breaks free from conventional norms by introducing much smaller and light weight LDM(LED Display Module)-based installation, providing incomparable ease of handling.
EASY SCREEN ALIGNMENT
The unit frame of the LAPE series has been carefully designed for easy screen flatness alignment. Each LDM has 20 Z-axis alignment points for ultra-fine flatness alignment.

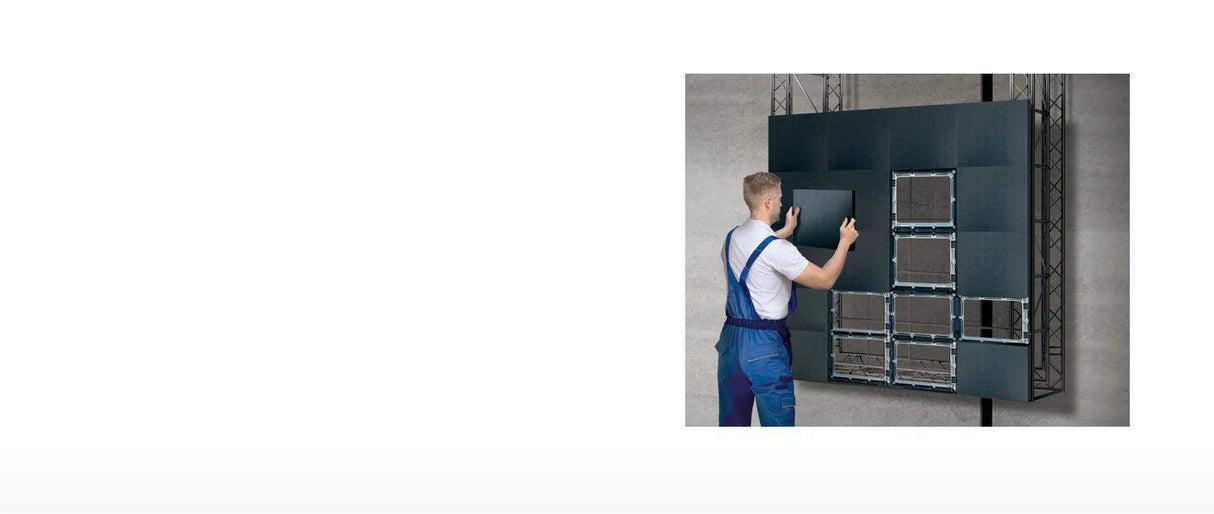

FRONT INSTALLATION & SERVICE
The LAPE series comes with front installation and front service access, freeing users from needing rear access space, as well as a sleek screen design for maximum space optimization
Specs
PHYSICAL PARAMETERS
-
- Pitch Name
- P2.0
- Pixel Configuration
- 3 in 1 SMD
-
- Pixel Pitch(mm)
- 2.00
- Module Resolution (WxH)
- 120x90
-
- Module Dimensions(WxH,mm)
- 240x180
- Weight per Module (kg)
- 0.36
-
- No. of Modules per Unit Case (WxH)
- 2x3
- Unit Case Resolution (WxH)
- 240x270
-
- Unit Case Dimensions (W x H x D, mm)
- 480x540x40
- Unit Case Surface Area (㎡)
- 0.260
-
- Weight per Unit Case (kg/unit)
- 5.0
- Weight per Square Meter (kg/㎡)
- 19.8
-
- Physical Pixel Density (pixels/㎡)
- 250,000
- Flatness of Unit Case (mm)
- ±0.2
-
- Unit Case material
- Die casting alluminum
- Service access
- Front or Rear
OPTICAL SPECIFICATIONS
-
- Min. Brightness (After Calibration)
- 300 ~ 1,000
- Color Temperature
- 3,200 - 9,300
-
- Visual Viewing Angle (Horizontal)
- 160
- Visual Viewing Angle (Vertical)
- 140
-
- Brightness Uniformity
- ≥97%
- Color Uniformity
- ±0.015Cx,Cy
-
- Contrast Ratio
- 6,000
- Processing Depth (bit)
- 16
ELECTRICAL SPECIFICATIONS
-
- Power Consumption (W/Unit, Avg.)
- 170
- Power Consumption (W/Unit, Max.)
- 330
-
- Power Consumption (W/㎡, Max.)
- 1270(@1,000nit)
- Power Supply (V)
- 100 to 240
-
- Frame Rate (Hz)
- 50 / 60
- Refresh Rate (Hz)
- 3,840
OPERATION SPECIFICATIONS
-
- Lifetime (Half brightness)*
* The Lifetime(Half brightness) spec is subject to LED package spec. - 100,000
- Operating Temperature(℃)
- 0∘to +40∘
- Lifetime (Half brightness)*
-
- Operating Humidity
- 10-80%RH(TBD)
- IP rating Front
- -
-
- IP rating Rear
- -
CONTROLLER
-
- Controller
- LCLG003
