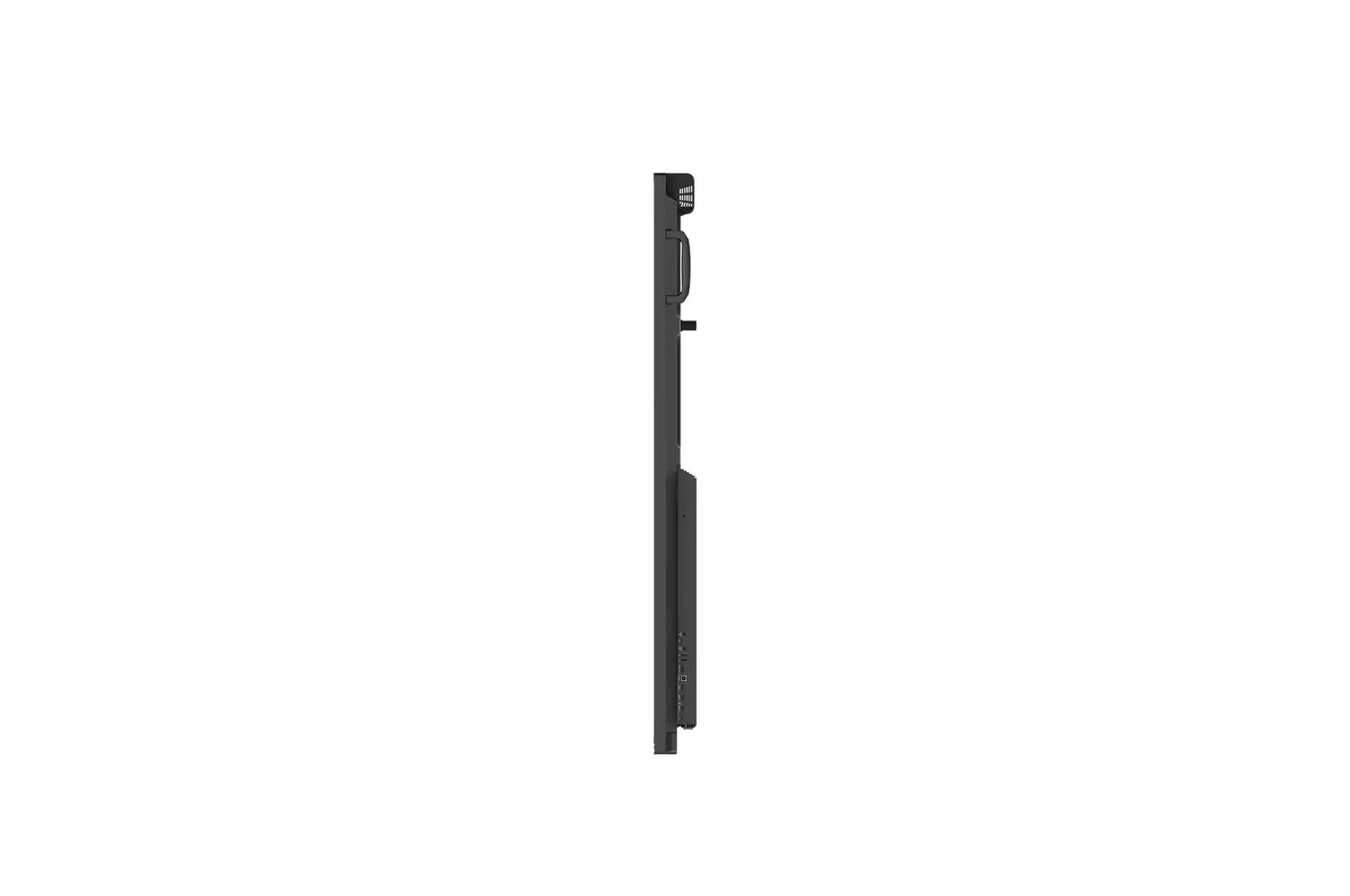

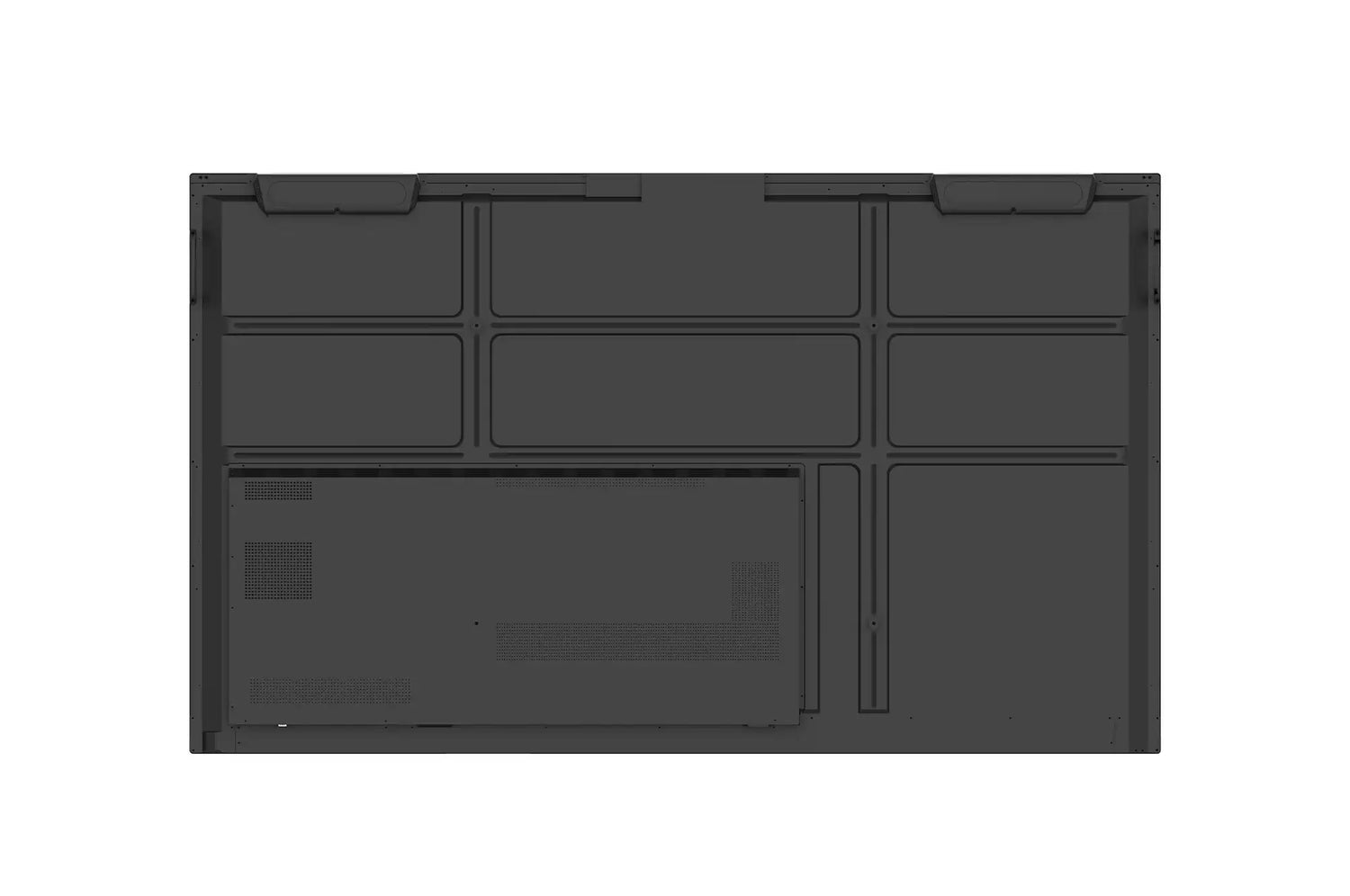

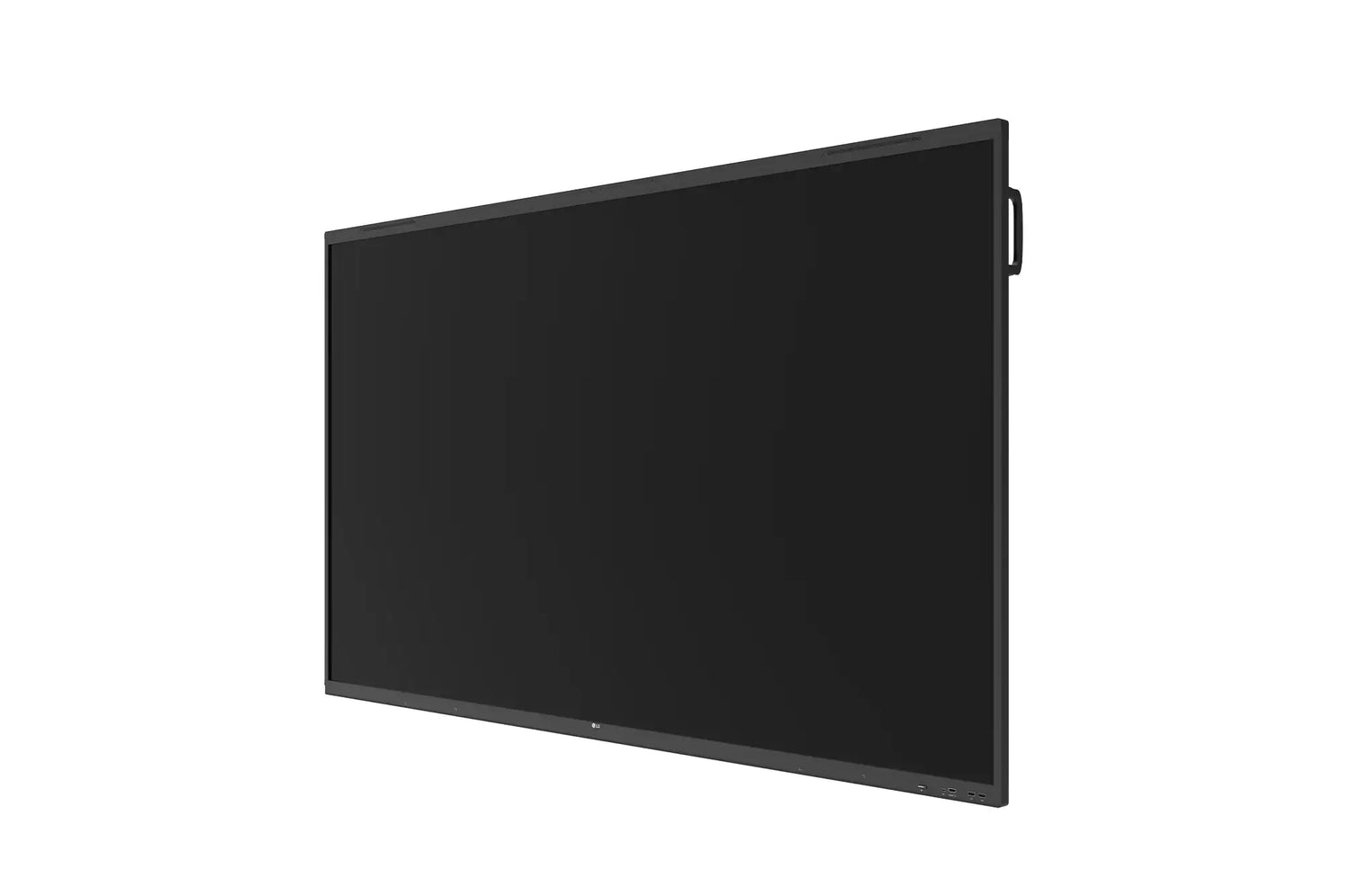

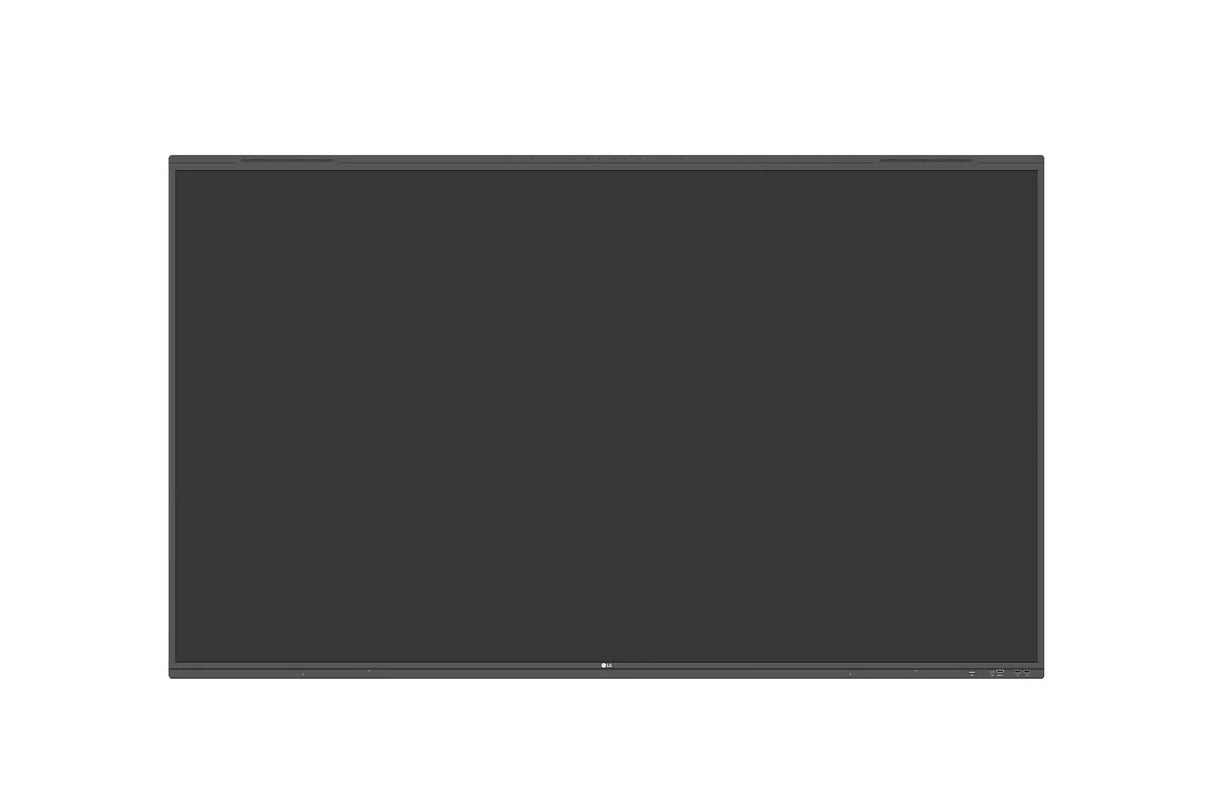

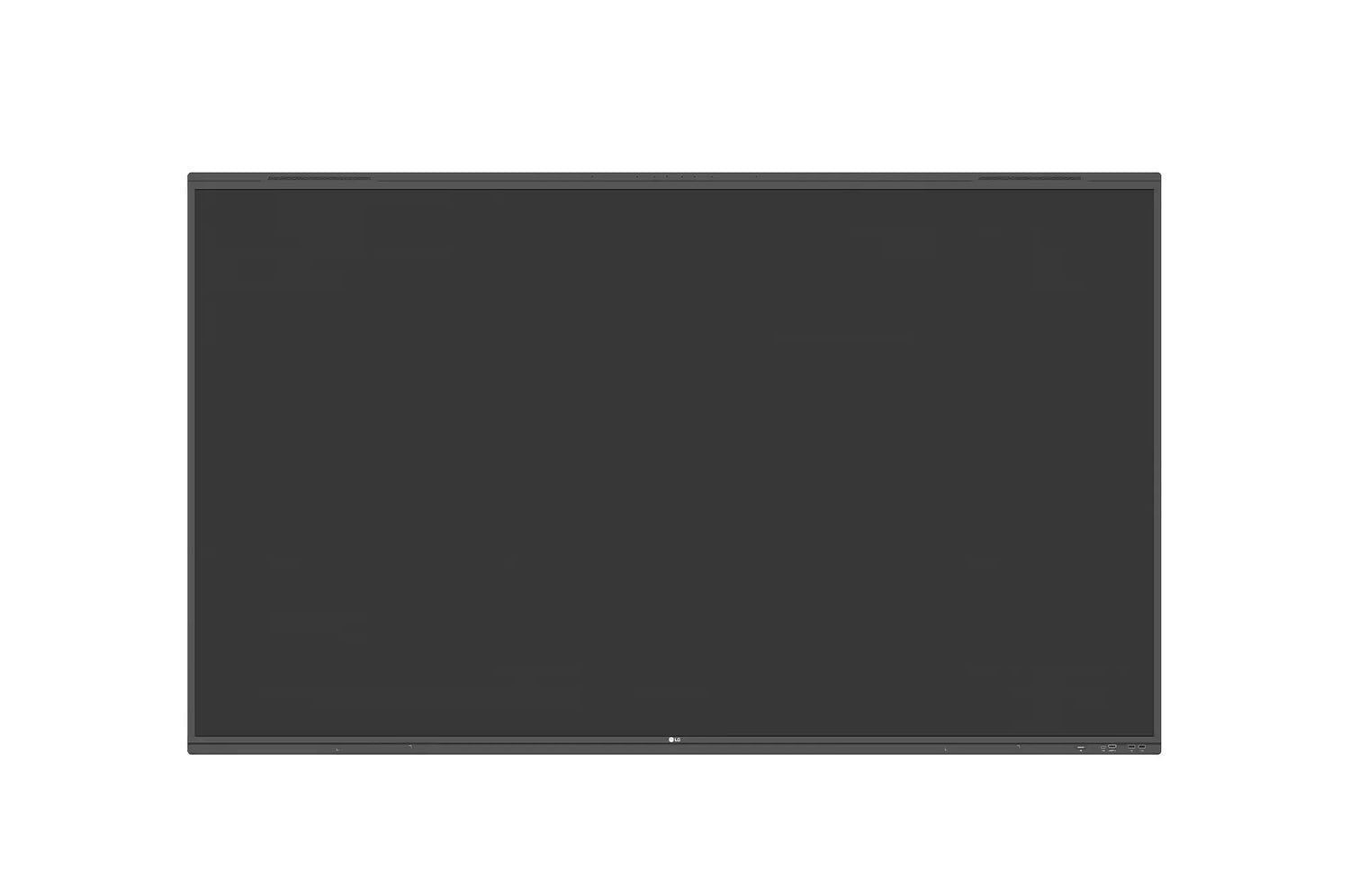

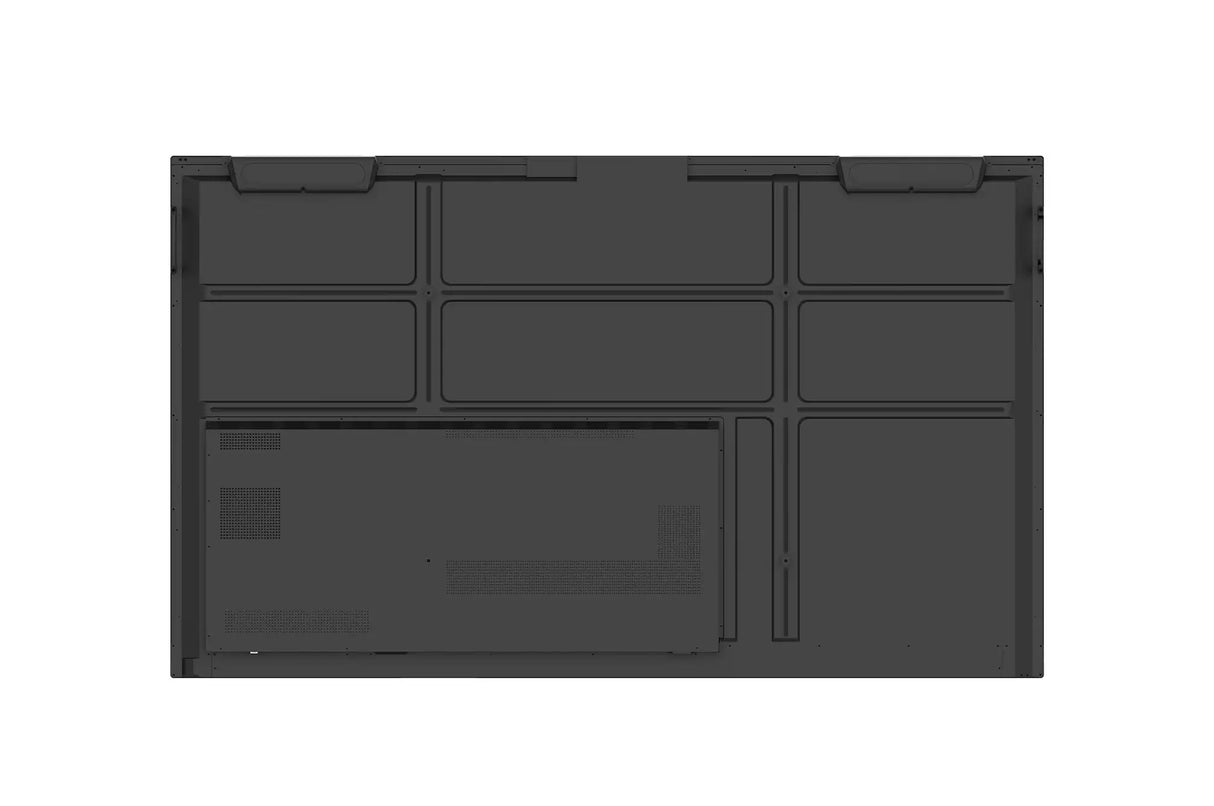

LG CreateBoard Pro 86TR3PN-B 86" UHD 4K Touchscreen Commercial Monitor

Sale price $4,733.00 Regular price $5,917.00
Shipping calculated at checkout.
LG Electronics  |  SKU: 86TR3PN-B

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Payments Data is Encrypted
Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Checkout data is encrypted
LG CreateBoard offers a lifelike touch experience, allowing users to interact with content directly on the board. You can write, draw, zoom, and rotate using just your fingers, making it an effective tool for creative projects or presentations. Additionally, LG CreateBoard enables screen and content sharing, making it an excellent tool for seamless collaboration even with remote team members. LG CreateBoard offers a variety of educational templates and tools such as a ruler, table, and sticky note, fostering active student participation and facilitating intuitive lessons. LG CreateBoard incorporates straightforward import and export features. Resources can be saved and directly imported to and from Google Drive or OneDrive. After meetings, you can directly send emails to share materials, or scan a QR code to transfer them to your personal device. LG’s proprietary whiteboarding software A variety of tools such as a calculator, clock, and sticky note are available to facilitate smooth discussions and ensure seamless idea sharing and communication. Also, users can personalize the menu bar with their most frequently used tools, thereby improving their work efficiency When you need a reference during a discussion, you can access various information in real time with the simple click of a web browser. The necessary information found on the internet can be easily dragged and dropped into the material you’re creating, enhancing the productivity of your meetings. By simply double-tapping the LG CreateBoard screen with 4-5 fingers, an attention sign will pop up with a sound. This feature makes it easy to capture the participants’ attention during moments when you need them to focus. LG CreateBoard Share offers a wireless screen sharing feature, providing users with a flexible discussion environment. Users can share their screen from their own devices, simplifying the process of sharing and collaborating on team projects or presentation materials.
Features
  • Genuine Touch & Writing Experience
  • Easy Connection & Sharing
  • Google Certified
  • Security & Compatibility
  • Remote-control Services
  • User Friendly Experience

Specs

Panel

Screen Size 86"
Panel Technology IPS
Back Light Type Direct
Aspect Ratio 16 : 9
Native Resolution 3,840 X 2,160 (4K UHD)
Refresh Rate 60 Hz
Brightness 400 nit (w/o Glass Typ.)
Contrast Ratio 4,000 : 1
Dynamic CR 5,000 : 1
Color gamut NTSC 72%
Viewing Angle (H x V) 178 × 178
Color Depth 10 bit (8 bit + FRC)
Response Time 6.5 ms (Typ.)
Surface Treatment (Haze) 25%
Lifetime 50,000 Hrs (Min.)
Operation Hours (Hours / Days) 16 / 7
Portrait / Landscape No / Yes

Mechanical
Specification

Bezel Color Black
Bezel Width (T / R / L / B) 34.3 / 15.6 / 15.6 / 37 mm
Weight (Head) 63.5 kg
Packed Weight 80.1 kg
Monitor Dimensions (W × H × D) 1,957 × 1,171 × 86 mm
Carton Dimensions (W × H × D) (Box Outer Size) 2,110 × 1,291 × 225 mm
Handle Yes (2)
VESA™ Standard Mount Interface 800 × 600
Protection Glass (Degree of Protection) Safety Glass
Protection Glass (Thickness) 3.2 mm
Protection Glass (Tempered / Chemical Strengthening) Tempered Strengthening

Feature

Key Feature Internal Memory (64 GB), Built-In Wi-Fi (Slot Type), Temperature Sensor, Auto Brightness Sensor, Power Indicator, Built-in MIC (8), webOS ver. (Android 13 (EDLA)), Booting Logo Image, PIP (External Source), Screen Share (LG CreateBoard Share), Smart Energy Saving (Energy Saving), Wake on LAN, Network Ready (Fast Power On), HDMI-CEC

Environment Conditions

Operation Temperature 0°C to 40°C
Operation Humidity 10% to 90%

Power

Power Supply 100-240 V ~, 50/60 Hz
Power Type Built-In Power

Power Consumption

Typ./Max. 280 / 530 W
Smart Energy Saving (70%) TBD
DPM 0.5 W↓
Power off 0.5 W↓
BTU (British Thermal Unit) 1,280 BTU/Hr (Typ.), 1,945 BTU/Hr (Max.)

Certification

Safety IEC62368, EN62368, GB4943, UL62368
EMC FCC Class "A"
ErP / Energy Star Yes / Yes

OPS Compatibility

OPS Type Compatible Yes
OPS Power Built In Yes

Software Compatibility

LG ConnectedCare Yes

Connectivity

Input HDMI (4, HDCP 2.3), DP (1, HDCP 1.3 / 2.3), Audio In, RS-232C In, RJ45 (LAN), USB (2, Type C), USB 3.0 (4, Type A), USB 2.0 (3, Type A)
Output HDMI Out, Audio Out, Touch USB 2.0 (2, Type A), RJ45 (LAN)

Sound

Speaker Yes (18 W × 2, 8 W × 2)

Language

English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Portugues (Europe), Dutch, Czech, Greek, Arabic, Polski, Hungary, Romania, Thai, Turkiye, Ukraine, Basque, Catalan, Kazakhstan, Indonesia

Accessory

Basic Power Cord (3 M × 1), USB Cable (Type A-Type B) 5 M × 1, USB Type-C Cable (C to C) 1.8 M × 1, HDMI Cable (3 M × 1), Writing Pen × 2 Pcs, User Manual, QSG, Carton Box, Remote Controller, Wi-Fi Module
Optional Wall Mount (WM-L000S), Floor Stand (ST-000F / ST-860F)

Touch

Available Object Size for Touch Ø2 mm↑
Writing Height ≤1 mm
Response Time ≤2.5 ms
Accuracy ±1 mm (Typ.)
Interface USB 2.0
Protection Glass Thickness 3.2 mm
Protection Glass Transmission 88%
Operating System Support Windows 10 / 8 / 7 / Android
Multi Touch Point 50 Points (Max.)

Android System

CPU Octa-core A76 × 4 + A55 × 4
GPU Mali G52MP2
RAM 8 GB
Storage 64 GB
Wi-Fi 802.11 a/b/g/n/ac/ax
LAN Gigabit LAN
Bluetooth Bluetooth 5.0
OS ver. Android 13 (EDLA)
