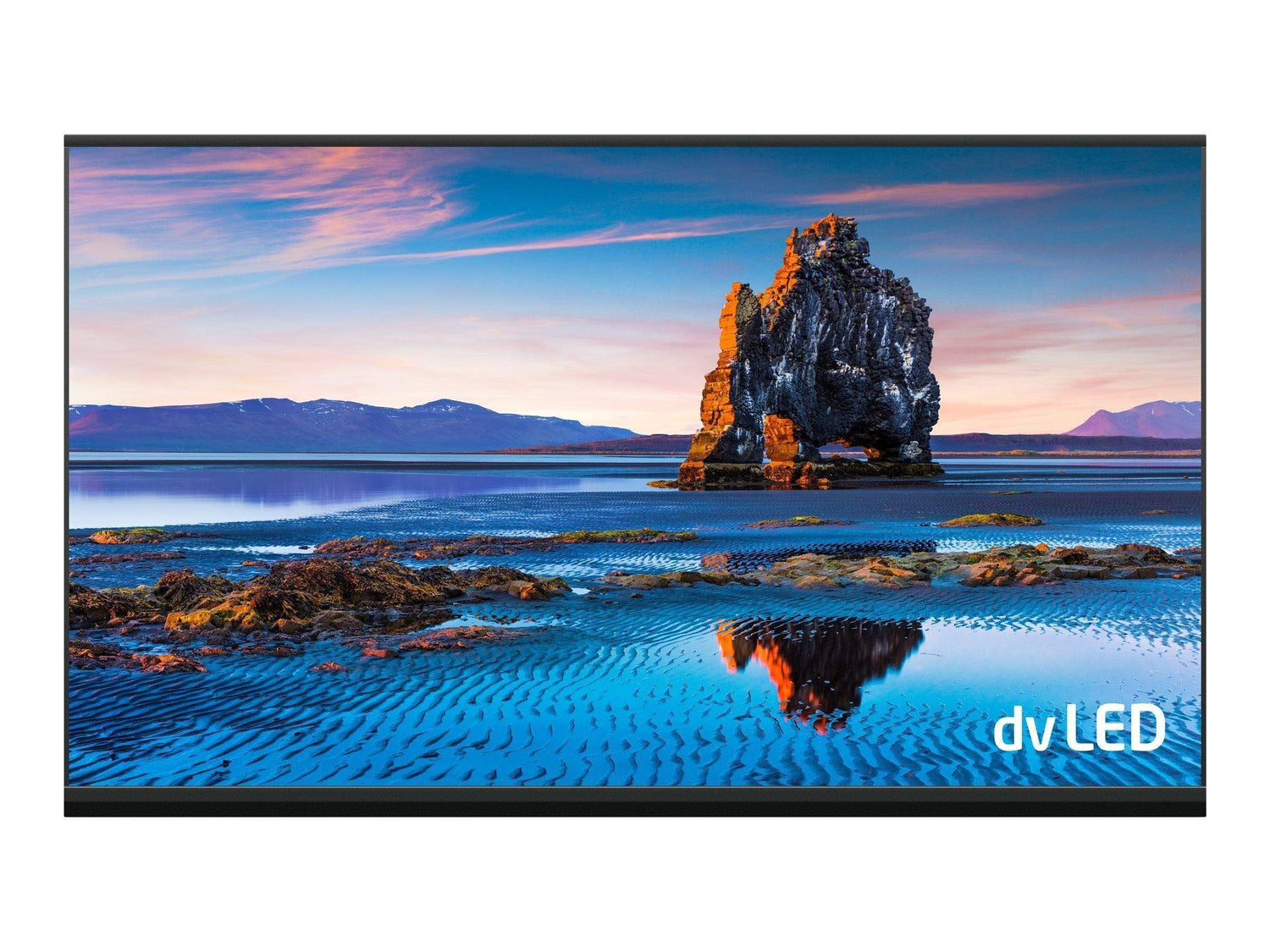

Sharp 165" FE Series UHD 0.95 mm LED Video Wall Kit

Name: Sharp 165" FE Series UHD 0.95 mm LED Video Wall Kit
Brand: Sharp
SKU: LED-FE009i2-165
Price: 216199.00 USD
Availability: InStock

Authorized Dealer

$216,199.00 $237,820.00

Shipping calculated at checkout.

Sharp | SKU: LED-FE009i2-165

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

The NEC direct view indoor LED FE Series provides vibrant LED imaging in a cost effective package and are the ideal solutions for today’s demanding applications. This 165" UHD kit is built with NEC’s 0.95mm LED-FE009i2 module designed for vibrant and colorful content visualization and is ideal for viewing from 3 to 6 feet away. The FE Series delivers unmatched brightness among fine-pitch DvLEDs. Boardrooms, auditoriums, retail, airport signage, and situational awareness are just some of the applications where the NEC FE Series is designed to be integrated. The FE Series is engineered with Multi-Color LEDs that deliver excellent imaging at a low cost and have no external cables required for installation. The front serviceable design allows for easy access and quick maintenance when needed. NEC offers full planning and design, installation and post installation maintenance support, ensuring you get a custom tailored solution allowing you to focus on what’s most important – your business.

165” diagonal screen size
UHD (3840x2160) resolution with a refresh rate of >= 3840 Hz
Kit includes everything needed for an LED installation including the LED modules, power bar, LED controller, mounting structure, overframe kit as well as spare parts and a pixel card removal tool
Front serviceable modules allowing for installation in difficult to access areas
Pixel cards are hot-swappable and can be replaced without turning the display off
Shallow depth (3.2” installed) and reduced weight allow for greater installation flexibility and also meet ADA requirements
Improved LED performance with better contrast, viewing angles, brightness uniformity and color uniformity
To learn more about NEC’s FE Series, click here

Product Specifications

Display

Panel Technology	Direct View LED	Viewable Image Size	165 in.
Aspect Ratio	16:9	Native Resolution	3840x2160
Module Resolution	640 x 360	Pixel Configuration	4-1 IMD (Black)
Pixel Pitch	0.95 mm	Brightness (typical)	600 cd/m2
Brightness (maximum)	660 cd/m2	Contrast Ratio (typical)	5000:1
Viewing Angle (typical)	70/70 horizontal / 70/70 vertical	Refresh Rate	Up to 3840 Hz
Active Screen Area	143.4 x 81 in. / 3648 x 2052 mm	Orientation	Landscape
Dimming Capability	256 levels	Color Processing	Up to 16 bit
Displayable Colors	281 Trillion	Color Temperature (Max) (°K)	3000
Color Temperature (Typical) (°K)	6500	Color Temperature (Min) (°K)	9500
Gamma (Max)	4.0	Gamma (Typical)	2.8
Gamma (Min)	1.0	Lifetime	100,000 hours

Signal Compatibility/Connectivity

External Control	1 x GenLock; 1 x LAN	Input Terminals Digital: 1 x 3G SDI; 1 x DVI-D; 1 x HDMI

Power Consumption (typical)

On	2880Watts	Power Consumption (max)	5400 Watts
Power Consumption (min)	1620 Watts

Physical Specifications

Dimensions (WxHxD) Without stand: 143.4 x 85.5 x 3.2 in. / 3648 x 2172 x 81 mm		Weight Net Weight (without stand): 860.6 lbs. / 390.8 kg. Shipping: 974.5 lbs / 442 kg Servicability: Front Service IP Level: IP20 Certifications: CCC CE ETL FCC Class A RoHS

Environmental Conditions

Operating Temperature	-4° to 104°F / -20° to 40°C	Operating Humidity	10% to 80%
Storage Temperature	-4° to 113°F / -20° to 45°C	Storage Humidity	10% to 85%
Environment	Indoor

Limited Warranty (parts & labor)

3 years

Accessories

Included	LED Controller > Overframe Kit (6x6) Pixel Card Removal Tool Power Bar Spare Parts Kit Wall mount (6x6)	Optional	See NEC Representative for additional accessories
