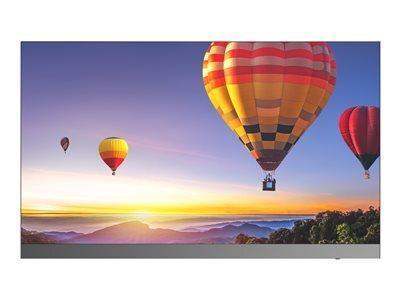

Sharp 110" FE-Series HD LED 1.26 mm Video Wall Kit - LED-FE012I2-110
Sharp 110" FE-Series HD LED 1.26 mm Video Wall Kit - LED-FE012I2-110 is backordered and will ship as soon as it is back in stock.
Shipping Now*
Shipping Now*
Free Ground Shipping on Most Orders Over $250.00
Sharp 110" FE-Series HD LED 1.26 mm Video Wall Kit - LED-FE012...
The NEC direct view indoor LED FE Series provides vibrant LED imaging in a cost effective package and are the ideal solutions for today's demanding applications. This 110" Full HD kit is built with NEC's 1.26mm LED-FE012i2 module designed to deliver impressive content visualization and is ideal for viewing from 3 to 7 feet away. Boardrooms, auditoriums, retail and airport signage, situational awareness, broadcast and museums are just some of the applications where the NEC FE Series is designed to be integrated. The FE Series is engineered with Multi-Color LEDs that deliver excellent imaging at a low cost and have no external cables required for installation. The front serviceable design allows easy access and quick maintenance when needed. NEC offers full planning and design, installation and post installation maintenance support, ensuring you get a custom tailored solution allowing you to focus on what's most important – your business.

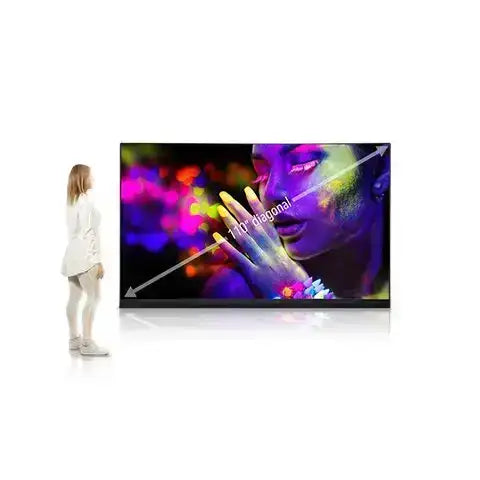

- 110” diagonal screen size
- Full HD (1920x1080) resolution with a refresh rate of >= 3840 Hz
- Kit includes everything needed for an LED installation including the LED modules, power bar, LED controller, mounting structure, overframe kit as well as spare parts and a pixel card removal tool

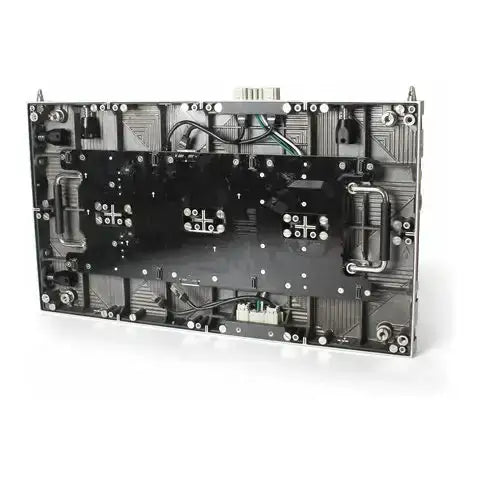

- Front serviceable modules allowing for installation in difficult to access areas
- Pixel cards are hot-swappable and can be replaced without turning the display off
- Shallow depth (3.2” installed) and reduced weight allow for greater installation flexibility and also meet ADA requirements
- Improved LED performance with better contrast, viewing angles, brightness uniformity and color uniformity
- To learn more about NEC’s FE Series, click here
- Standard installation included.
Product Specifications
Display
| Panel Technology | Direct View LED | Viewable Image Size | 110 in. |
| Aspect Ratio | 16:9 | Native Resolution | 1920x1080 |
| Module Resolution | 480 x 270 | Pixel Configuration | 3-1 SMD (Black) |
| Pixel Pitch | 1.26 mm | Brightness (typical) | 700 cd/m2 |
| Brightness (maximum) | 770 cd/m2 | Contrast Ratio (typical) | 4000:1 |
| Viewing Angle (typical) | 80/80 horizontal / 80/80 vertical | Refresh Rate | Up to 3840 Hz |
| Active Screen Area | 95.6 x 54 in. / 2432 x 1368 mm | Orientation | Landscape |
| Dimming Capability | 256 levels | Color Processing | Up to 16 bit |
| Displayable Colors | 281 Trillion | Color Temperature (Max) (°K) | 3000 |
| Color Temperature (Typical) (°K) | 6500 | Color Temperature (Min) (°K) | 9500 |
| Gamma (Max) | 4.0 | Gamma (Typical) | 2.8 |
| Gamma (Min) | 1.0 | Lifetime | 100,000 hours |
Signal Compatibility/Connectivity
| External Control | 1 x GenLock; 1 x LAN |
Input Terminals
Digital:
1 x 3G SDI; 1 x DVI-D; 1 x HDMI
External Control:
RS232 / USB
|
|
Power Consumption (typical)
| On | 912Watts | Power Consumption (max) | 2000 Watts |
| Power Consumption (min) | 448 Watts | ||
Physical Specifications
|
Dimensions (WxHxD)
Without stand:
95.6 x 58.6 x 3.2 in. / 2432 x 1488 x 81 mm
|
Weight
Net Weight (without stand):
401.3 lbs. / 182 kg.
Shipping:
802 lbs / 364 kg
Servicability:
Front Service
IP Level:
IP20
Certifications:
|
Environmental Conditions
| Operating Temperature | -4° to 104°F / -20° to 40°C | Operating Humidity | 10% to 80% |
| Storage Temperature | -4° to 113°F / -20° to 45°C | Storage Humidity | 10% to 85% |
| Environment | Indoor | ||
Limited Warranty (parts & labor)
| 3 years |
Accessories
| Included |
|
Optional | See NEC Representative for additional accessories |
