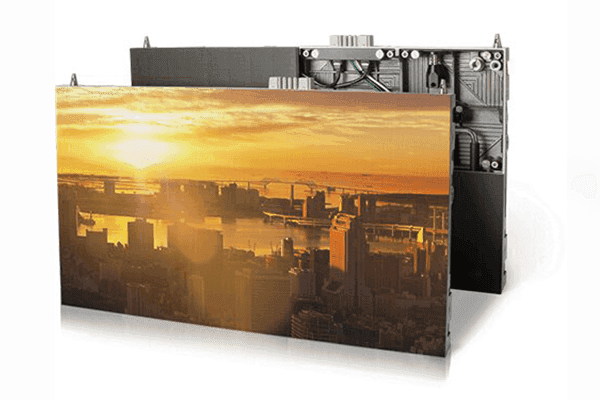

Sharp 110" FA-Series Full HD LED kit - LED-FA012i2-110

Description

Spec Sheet

NEC  LED-FA012i2-110 HD Video Wall

Overview

For premium large surface visualization, NEC’s fine pitch LED FA Series Bundles provide standard resolution, direct view LED screens for applications in meeting spaces and exclusive signage. With a depth of just 5cm, plus complete internal cabling, the FA series presents a sleek profile for a bezel-free viewing experience. With excellent viewing angles, consistent vibrant colors and superb brightness; the FA Series delivers content that gets noticed. Native HD, FHD and UHD resolutions are achieved through configuration of multiple 16:9 cabinets which are bundled with a power bar, framing, mounting and controller. Designed with high quality components and maintenance access from the front, the FA Series provides a display solution with longevity and good return on investment. The prime solution for boardrooms, auditoria, luxury retail environments and control rooms.

Key Features

• Care-free installation – with bundled solutions that deliver all you need to get your LED video wall up and running.
• Large scale for perfectly detailed imagery – completely bezel-less design with high contrast rates deliver an unhindered viewing experience.
• Secure performance for demanding applications – with high-end components and redundant module design with additional power supply and data cards to ensure ongoing operations with a minimal loss of brightness levels.
• Superb readability in bright light environments – high brightness levels of up to 800 cd/m², along with wide viewing angles deliver clear messages to your audience even under varying and demanding ambient conditions.
• Slim design – with a flush rear profile, LED modules can be integrated very close to the wall with minimal gap necessary due to very low heat emission.

DISPLAY

• Pixel Configuration 3-in-1 SMD (Black)
• LED type SMD (1010)
• Screen Size [inch/cm] 110 / 279
• Aspect Ratio 16:9
• Pixel Pitch [mm] 1.9
• Brightness (max.) [cd/m²] 800
• Lifetime 100000 hrs (50% brightness)
• Contrast Ratio (typ.) 5000:1
• Viewing Angle [°] 170 horizontal / 170 vertical
• Dimming Capability 256 levels
• Color Processing 16 bit
• Colors 281 trillion
• LED Driving Method 1/30 dynamic scan
• Frame Rate [Hz] 50/60
• Refresh Rate [Hz] ≤ 3840
• Color Temperature [K] 3000 - 9500

SCREEN RESOLUTION

• Resolution
• 1280 x 720
• Resolution per m² 277008
• Number of Pixel per module [dot] 320 x 180
• Number of Pixel per card [dot] 80 x 90

CONNECTIVITY

• Input Video Digital 1 x 3G SDI; 1 x DVI-D; 1 x HDMI
• Input Control 1 x GenLock; 1 x LAN

Warranty Length: 3 years

Ships With

• 2x LED Controller
• LED Modules (16 Cabinets, 128 Pixel Cards)
• Overframe Kit (4x4)
• Pixel Card Removal Tool
• Power Bar; Spare Parts Kit
• Wall Mount (4x4)
• Control PC
• Monitor
• Keyboard
• Mouse
