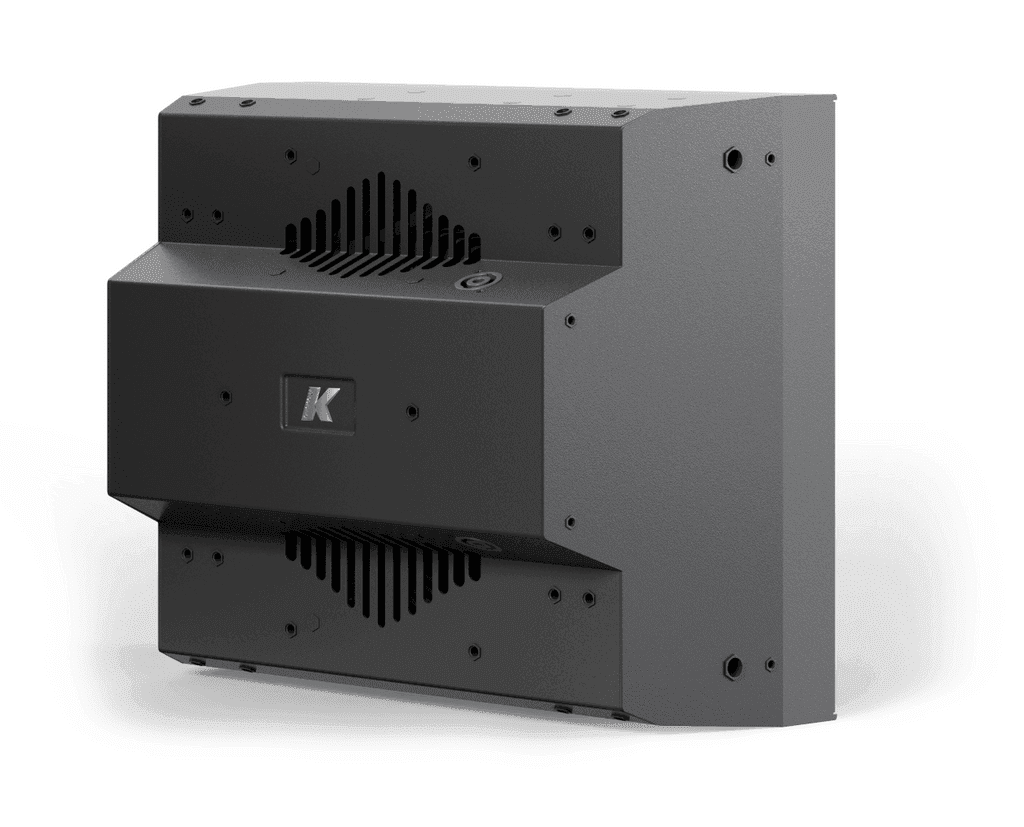

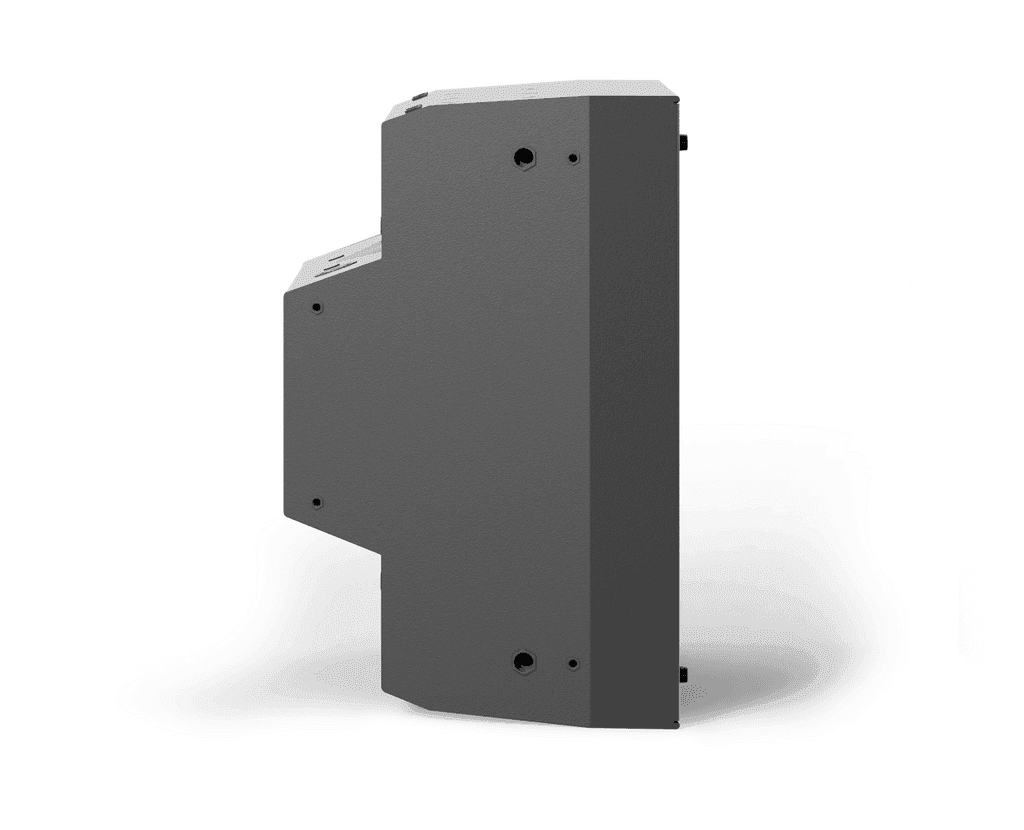

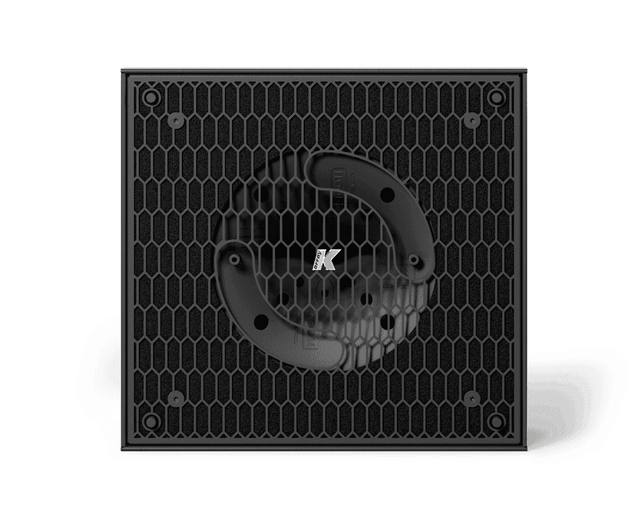

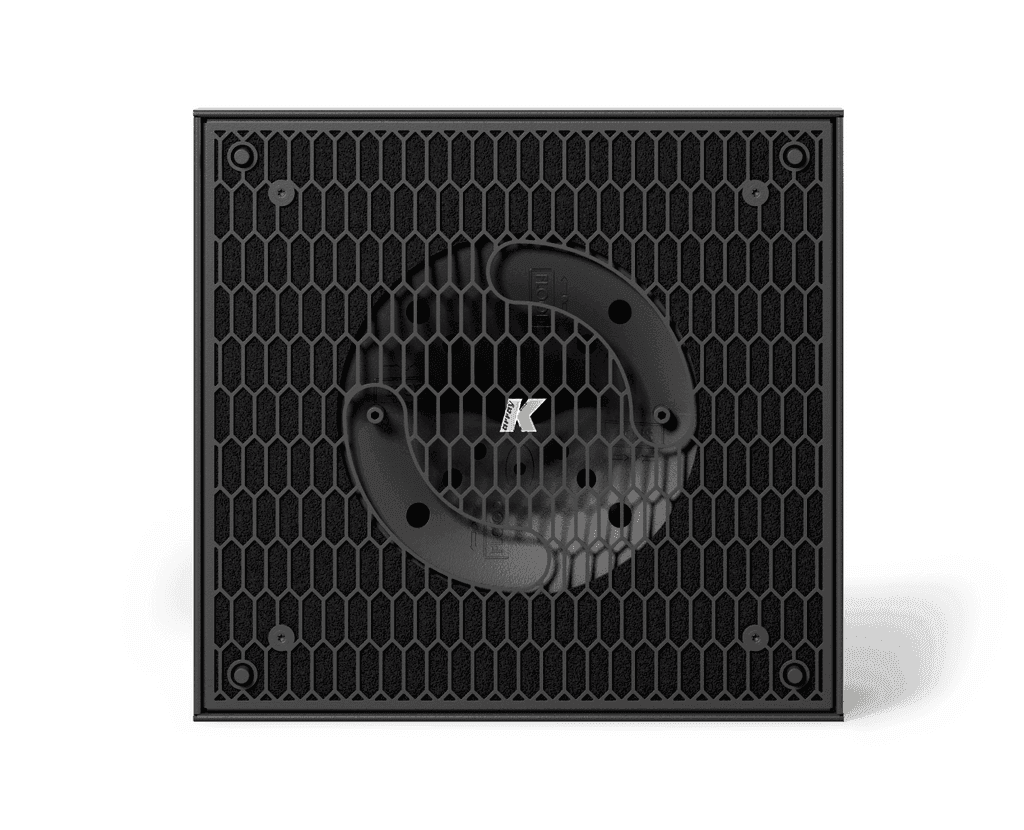

K-Array Dragon KX12 Compact 12" coaxial, variable beam with adjustable horn, passive line array element

Shipping calculated at checkout.

K-Array | SKU: KX12 I

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

The Dragon-KX12 is a radical reinterpretation of a traditional coaxial 12” speaker. Its compact shape and different accessories allow the KX12 to perform as a powerful audio point source or as part of a line array. The speaker delivers a peak SPL of 132 dB and has a frequency range of 120 Hz to 19 kHz. Additionally, dedicated accessories assist in the set up of joining, flying and stacking the speaker. The Dragon-KX12 is compatible with all K-array Thunder subwoofers.

Specs

General

Type:

Point source
Transducers:

Coaxial 12" woofer + 2.4" compression driver
Frequency Response:

120 Hz - 19 kHz (-6 dB)

⁽¹⁾
Max SPL:

133 dB (peak)

⁽²⁾
Rated Power:

1200 W
Coverage:

User sel. V./H. 30°/100° | 100°/30°
Connectors:

2 x SpeakOn NL4 1+ 1- (signal); 2+ 2- (through)
Nominal Impedance:

8 Ω

Handling and Finishes

Dimensions (W x H x D):

340 x 320 x 201 mm (13.4 x 12.6 x 7.9 in)
Weight:

12.2 kg (26.89 lb)
Material:

Stainless Steel
Colors:

Black, Custom RAL
