JBL VMA260 Commercial Series 60W Bluetooth-Enabled Mixer/Amplifier (8-In/2-Out)
JBL VMA260 Commercial Series 60W Bluetooth-Enabled Mixer/Amplifier (8-In/2-Out) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
JBL VMA260 Commercial Series 60W Bluetooth-Enabled Mixer/Amplifier ...

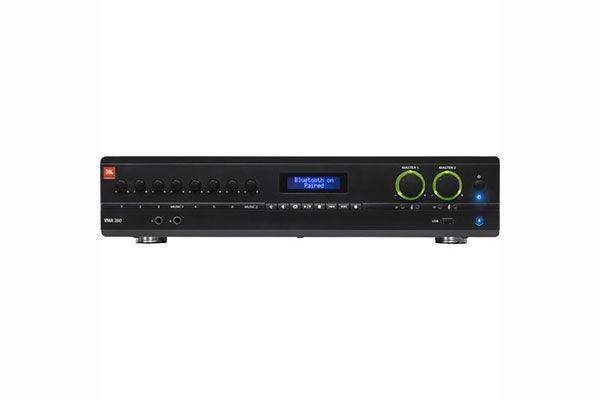

The JBL VMA260 is a Commercial Series Bluetooth-enabled mixer/amplifier designed to provide flexible multi-source mixing and amplification for installation in restaurants, educational institutions, fitness centers, and retail stores. It features an 8-in/2-out mixer and 60W of output power. It can be installed in a standard 19” equipment rack with the supplied rackmount kit or set on a surface such as a desk or ledge.
Stream music wirelessly via Bluetooth or connect a USB drive to the front-panel USB Type-A port. Route other sources via Euroblock, RCA, and 1/4" input jacks. The integrated mixer offers level controls as well as bass and treble for each channel. Routing to the Euroblock outputs is configurable. The VMA260 supports voice-activated ducking and priority muting. The front-panel controls and display make operation easy, and remote volume control is possible via a JBL CSR-V module and a standard Ethernet cable (both available separately).
Features
- Suitable for commercial and industrial use

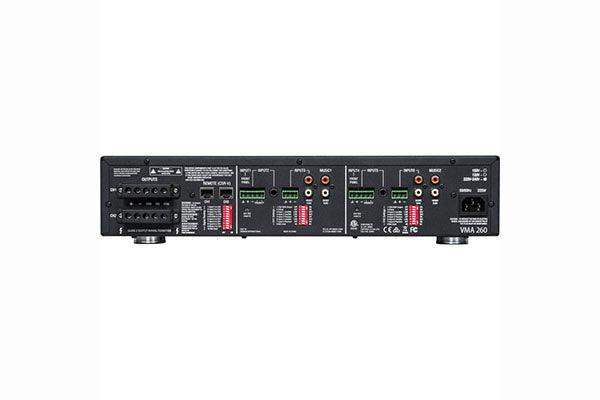

- Euroblock, RCA, and 1/4" TRS input connectors
- Independent bass and treble controls for each output channel
- Voice-activated ducking during announcements
- Remote volume control capability using optional JBL CSR-V module and Cat5e cable with RJ45 connectors
- Priority muting using PTT switch closure
- Configurable output routing
- Barrier block output connections to drive 8 Ohms, 70V or 100V speaker systems
- Media player capable of playing MP3 files from a Bluetooth device or USB drive
Specs
JBL VMA260 Specs
| Form Factor/Type | Tabletop |
| Number of Channels | 8 Input / 2 Output |
| Power Rating | 4 Ohms / 8 Ohms: 60 W per Channel (1 kHz, 0.5% THD) |
| Load Impedance / Voltage | 4 Ohms (Minimum) 70 V (80 Ohms Minimum) 100 V (160 Ohms Minimum) |
| Frequency Response | 20 Hz to 20 kHz ±2 dB (Low-Z) 80 Hz to 15 kHz ±3 dB (70/100 V) |
| Input Sensitivity | Mic: 5.5 mVrms Line: 1.3 Vrms Stereo RCA: 130 mVrms |
| I/O Impedance | Mic Input: 400 Ohms Line Input: 20 Kilohms (Balanced) RCA Input: 50 Kilohms |
| Insertion Loss | 1 dB Maximum |
| SNR | > 76 dB (at Rated Power, A-Weighted) |
| THD | < 0.5% (20 Hz to 20 kHz) |
| Crosstalk | -70 dB (at Rated Power, Mid Gain, 1 kHz) |
| EQ | 2-Band per Channel: Bass: ±14 dB at 50 Hz Treble: ±14 dB at 10 kHz |
| Phantom Power | 27 VDC |
| AC Input Power | 100 VAC, 50 / 60 Hz 120 VAC, 50 / 60 Hz 220 VAC, 50 / 60 Hz 220 to 240 VAC, 50 / 60 Hz |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Storage Temperature | -4 to 185°F / -20 to 85°C |
| Operating Humidity | 0 to 95% (Non-Condensing) |
| Dimensions | 17.0 x 3.5 x 16.3" / 432.0 x 88.0 x 415.0 mm |
| Weight | 25.5 / 11.6 kg |
| Package Weight | 30 lb |
| Box Dimensions (LxWxH) | 21 x 20.5 x 7" |
