JBL NCSA280Z-U-US CSA 280Z Audio Amplifier (2 x 80W)

Regular price $610.00
Shipping calculated at checkout.
JBL Professional  |  SKU: NCSA280Z-U-US

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Payments Data is Encrypted
Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Checkout data is encrypted

The JBL CSA 280Z Audio Amplifier (2x 80W) provides a compact and powerful amplification solution for installed applications. The unit utilizes a universal switch-mode power supply and Crown's DriveCore technology to deliver reliable and efficient sound amplification.

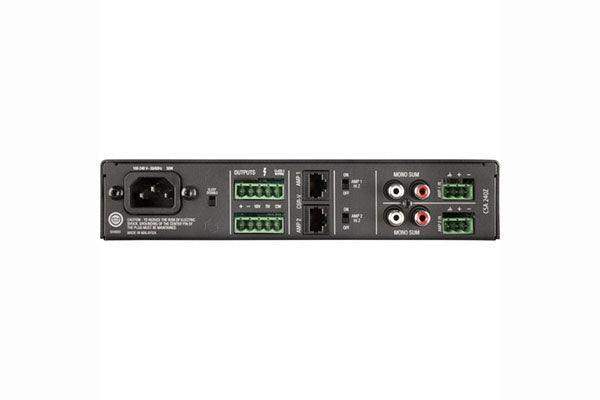

The unit supports both 70 and 100V installations out of the box. It includes 2 x RJ45 connectors for use with the company's CSR-V in-wall volume controls. Inputs are provided by mono sum RCA connectors and Euroblock. Outputs are provided by Euroblock connectors. Illuminated knobs provide visual feedback, and the universal power supply allows the amplifier to accept AC voltages from 100 to 240 VAC, 50/60 Hz. The amp also fulfills HARMAN's GreenEdge environmental initiative.

Number of Channels 2
Power Rating 4 Ohms / 8 Ohms:
80 W (1 kHz, 0.5% THD)
Load Impedance / Voltage 4 Ohms (Minimum)
70 / 100 V
Performance
Frequency Response 20 Hz to 20 kHz ±0.5 dB (8 Ohms)
Input Sensitivity 1.4 Vrms
Input Impedance Block:
20 Kilohms (Balanced)
RCA:
50 Kilohms
SNR > 100 dB
THD < 0.5%
Crosstalk > 70 dB
Signal Processing
DSP Yes
Crossover Yes
EQ 2-Band
Compressor Yes
Limiting Yes
Connectivity
I/O 1 x 2RCA TS Summed-Mono Input
2 x Block 3-Pin Input
2 x Block 5-Pin 70/100 V Output
Digital I/O 2 x RJ45 (Control)
Phantom Power Yes
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC Power Connector 1 x IEC 15 A / NEMA 5-15
Physical
Certifications ENERGY STAR
*as per Manufacturer
Operating Temperature 32 to 95°F / 0 to 35°C
Storage Temperature -4 to 185°F / -20 to 85°C
Dimensions 8.6 x 11.9 x 1.7" / 218.5 x 303.4 x 43.3 mm
Weight 8.8 lb / 4 kg
