JBL NCSA2300Z-0-US CSA 2300Z Dual-Channel 300W Amplifier

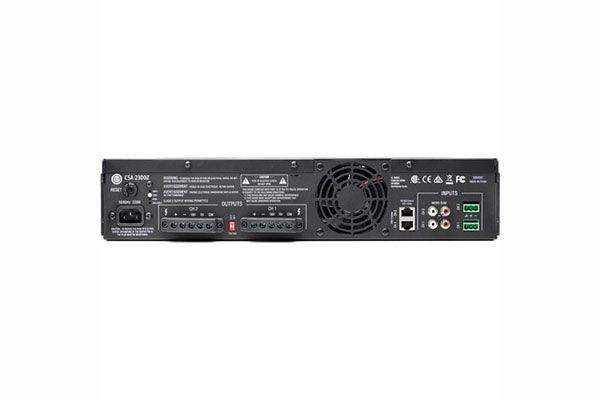

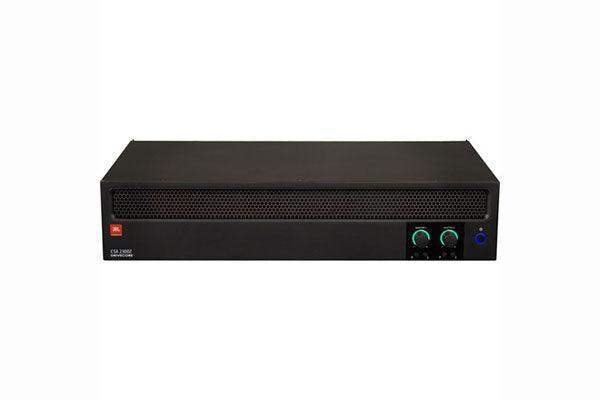

Built for installed sound applications, the CSA 2300Z Dual-Channel 300W Amplifier from JBL delivers powerful sound and efficient performance using the Crown’s DriveCore commercial power amplifier technology. Simple to configure, this amplifier provides a DriveCore-based sound solution, which utilizes one small chip that significantly reduces the part count and increases reliability while still maintaining high performance. It provides amplification with a choice of low impedance, 70V or 100V outputs. The amp includes a rack mounting kit for installations to a cabinet, and a RJ45 connector for an optional remote volume control using JBL's CSR-V control module.
| Number of Channels | 2 |
| Power Rating | 4 Ohms / 8 Ohms: 300 W (1 kHz, 0.5% THD) |
| Load Impedance / Voltage | 4 Ohms (Minimum) 70 / 100 V |
| Frequency Response | 20 Hz to 20 kHz ±1 dB (8 Ohms) |
| Input Sensitivity | Line: 775 mVrms (Balanced, at 8 Ohms) RCA: 300 mV (at 8 Ohms) |
| Input Impedance | Block: 20 Kilohms (Balanced) RCA: 10 Kilohms |
| SNR | > 97 dBA |
| THD | < 0.5% (Full Range, at Rated Power) |
| Crosstalk | < -70 dBA (1 kHz) |
| DSP | Yes |
| Crossover | Yes |
| EQ | 2-Band |
| Compressor | Yes |
| Limiting | Yes |
| I/O | 2 x Block 3-Pin Balanced/Unbalanced Input 2 x 2RCA TS Unbalanced Summed-Mono Input 2 x Barrier Strip 5-Pin Output |
| Phantom Power | Yes |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Storage Temperature | -4 to 185°F / -20 to 85°C |
| Dimensions | 17.0 x 11.0 x 3.5" / 43.0 x 27.0 x 8.9 cm |
| Weight | 17.8 lb / 8.1 kg |
