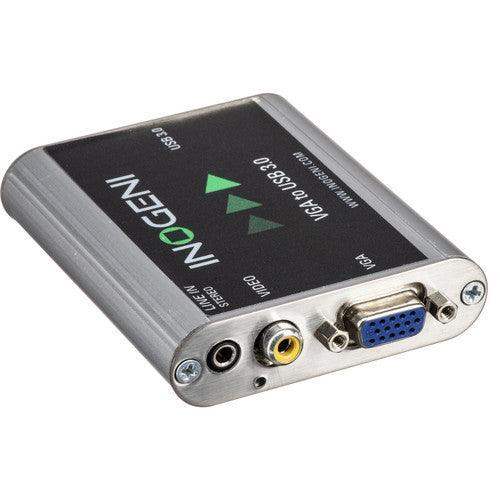

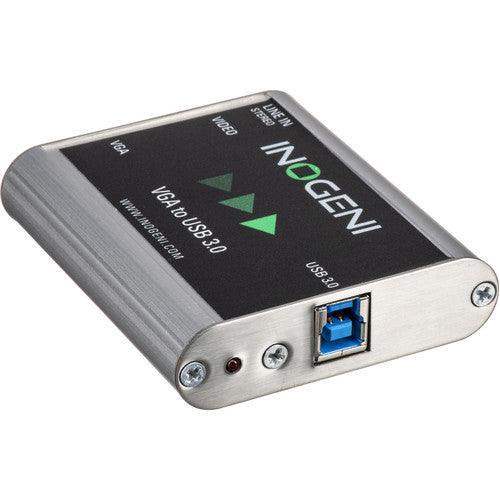

INOGENI VGA2USB3 VGA to USB 3.0 Video Capture Card
VGA/CVBS/Audio to USB 3.0 Video Converter - VGA2USB3
INOGENI’s VGA2USB3 video converter easily captures uncompressed video with audio from your VGA, Component (analog) or CVBS output into your PC for recording, editing, videoconferencing and streaming. The INOGENI VGA2USB3 converter accepts SD and HDTV video formats up to 1200p60 and most computer graphic formats.
- VGA capture video into a single USB 3.0 interface
- Easy and versatile for countless applications
- Cost-effective professional camera converter solution that is reliable and simple to install and connect (no driver required)
- Compact and robust design with its aluminium enclosure
- Designed and manufactured in Canada
- TAA-compliant
How it works
The VGA2USB3 professional video converter enables that all SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0. The line level stereo analog audio input is output as two-channel LPCM.
UVC-compliant, it will work with all DirectShow compatible software. The VGA2USB3 supports 1200p resolution up to 60 fps.
Features
Discover the features of the VGA2USB3 video converter for any type of application:
- VGA/Component/CVBS and audio capture to USB3.0
- Supports 1080p, 720p, 480p, 576p, 1600×1200, 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480, NTSC, PAL and more at up to 60 fps
- Digital Fluid technology: Internal frame buffers maximize frame rate with any PC
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion
- Customizable video processing functions
- Image controls: Brightness, contrast, saturation and hue settings
- Supports multiple devices on the same PC
Specs
INOGENI VGA2USB3 Specs
| System Connection | USB-B 3.0 / 3.1/3.2 Gen 1 |
| Video Inputs | 1 x DE-15/DB-15 (VGA) Female 1 x RCA (Composite) Female |
| Input Video Format | Component / Composite / VGA (8-Bit 4:2:2 RGB) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 23.98/24/25/29.97/30/50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps WUXGA (1920 x 1200) 23.98/24/25/29.97/30/50/59.94/60 fps 480p 23.98/24/25/29.97/30/50/59.94/60 fps 576p 23.98/24/25/29.97/30/50/59.94/60 fps |
| Audio Inputs | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| OS Compatibility | Windows 7 or Later macOS 10.10 or Later Linux Android *As of June, 2020: Check with manufacturer for the most up-to-date compatibility |
| Power I/O | 1 x USB-B (5 VDC) Input |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Storage Temperature | -40 to 105°F / -40 to 40°C |
| Operating Humidity | 0 to 90% |
| Dimensions | 3.2 x 2.9 x 0.75" / 8.13 x 7.37 x 1.91 cm |
| Weight | 4.44 oz / 126 g |
| Package Weight | 0.68 lb |
| Box Dimensions (LxWxH) | 6.2 x 5.1 x 1.9" |
