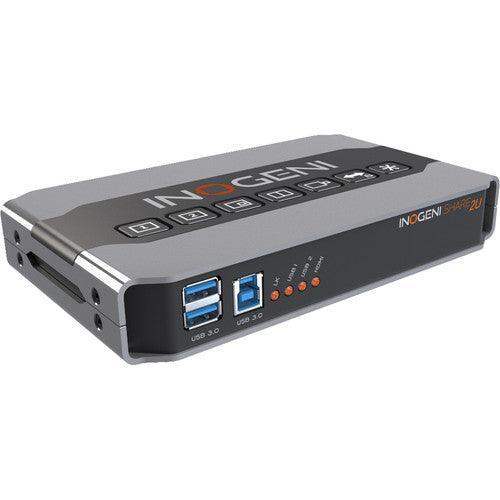

INOGENI SHARE2U USB/HDMI Mixer and Capture Device
Mix 2 USB or HDMI cameras to USB 3.0 - SHARE2U
This easy Plug-And-Go mixer capturing 2 Picture-In-Picture or side-by-side video sources in one video flow is equally perfect to enhance the experience of your HyFlex classes and collaborative meetings.
- Mix 2 cameras from 3 sources (2 USB 2.0 and 1 HDMI)
- Engage a dynamic presentation and easily switch up to 14 mix setup videos
- Change camera and video configuration without cutting the flow of your presentation
- Ideal for remote education, collaborative meetings, webinars or live streaming
- Output: Uncompressed video on USB 3.0 or MJPEG on USB 2.0
- Audio I/O and mixer via the INOGENI Control App
- Controllable by LAN & RS-232
- Cost-effective solution that is reliable and simple to install and connect (no driver required)
- Compact and robust design with its aluminium enclosure
- Designed and manufactured in Canada
- TAA-compliant
How it works

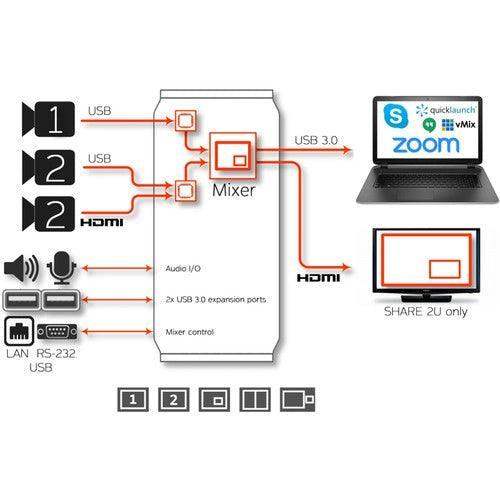

The SHARE2U Dual USB Camera to USB 3.0 Pro AV camera mixer can be controlled by an application on the host side using our USB HID, RS-232 or LAN interfaces. You can also use the keypad on the top of the device to control it manually.
You can use the camera mixer feature of the SHARE2U to embed your two video sources into one single stream. This feature can be an important asset for you if your application only supports one video interface, like Teams®, Zoom®, Webex®, GoToMeeting® and all video conferencing applications.
With the push of a button, you can easily switch up to 14 mix setup videos.
Features
The SHARE2U Dual USB Camera to USB 3.0 professional camera mixer offers an array of features for a smooth and seamless BYOD or BYOM experience:
- Control interface: LAN, RS-232, USB (Get the software upgrade: Crestron Serial & IP modules)
- Local and remote keypad: REMOTE User Guide
- USB 2.0 cameras and HDMI capture
- Output: Uncompressed video on USB 3.0 or MJPEG on USB 2.0
- Audio mixer: Unbalanced, line level stereo audio support
- PTZ control of USB cameras over USB 3.0 interface
- Device configuration via the INOGENI Control App
- Firmware upgrade available via the INOGENI Control App
- Supports multiple devices on the same host
- Compatible with Windows, macOS and Linux
- Compatible with Barco ClickShare Conference
Specs
INOGENI SHARE 2U Specs

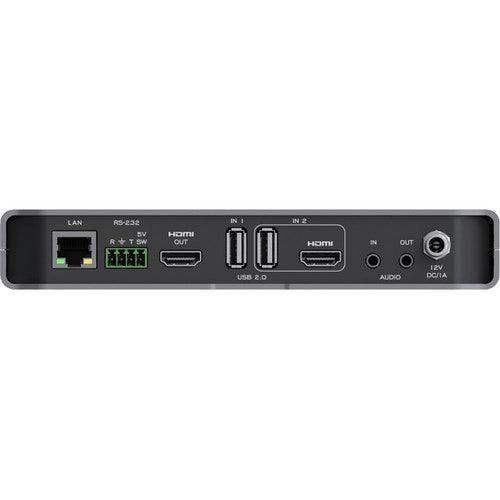

| Video Inputs |
2 x USB 2.0 Type-A 1 x HDMI Type A |
| Frame Rates | Up to 60 fps, All Formats |
| Color Space | RGB, YCbCr, 4:4:4, and 4:2:2 (USB Only Supports RGB) |
| Sampling Rate | 165 MHz |
| Analog Audio Input | Analog Stereo, Line Level, 3.5 mm Jack |
| Analog Audio Output | Analog Stereo, Line Level, 3.5 mm Jack |
| Remote Control |
1 x Phoenix, RS-232 1 x RJ45, Ethernet |

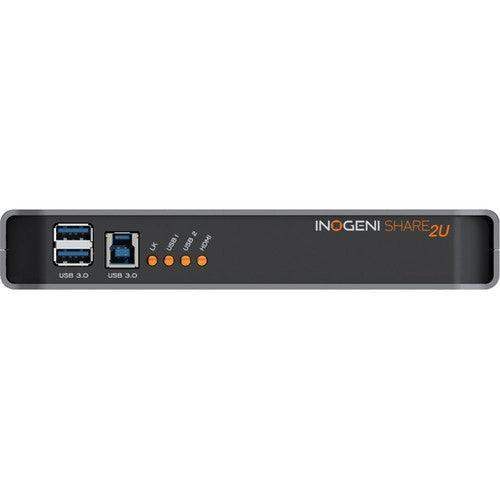

| Connector | 1 x USB 3.0 Type-B 1 x HDMI Type A |
| Color Space | YCbCr (YUY2) 4:2:2 8-Bit |
| Video Scaler | Automatic Hardware-Based |
| Color Space Conversion | Automatic Hardware-Based |
| Sampling Conversion | Automatic Hardware-Based |
| Frame Rate Conversion | Automatic Hardware-Based |
| Audio Input | 2-Channel LPCM 48 kHz, Line Level Input or Embedded in USB or HDMI |
| Audio Output | 2-Channel LPCM 48 kHz, Line Level Input |
| USB Expansion | 2 x USB 3.0 |
| USB Bandwidth | No USB Bandwidth Limitation |
| Operating Systems | No Driver Installation Required Windows 7 and Above (32-/64-bit) OS X 10.10 and Above Linux (kernel v2.6.38) and Above Android |
| Host Requirements | USB 3.0 Port Minimum 4 GB RAM Intel Core i5 Graphic Card with Dedicated Memory |
| Motherboard | Compatible with all Motherboards Intel, Renesas, ASMedia, and Fresco Logic |
| Software Compatibility | UVC-Compliant Compatible with DirectShow, AVFoundation, and V4L2 |
| Power | 12 V, 700 mA |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Storage Temperature | -40 to 221°F / -40 to 105°C |
| Relative Humidity | 0 to 90% Non-Condensing |
| Dimensions | 7.3 x 4.4 x 1.2" / 18.5 x 11.2 x 3 cm |
| Weight | 1 lb / 466 g |
| Package Weight | 2.5 lb |
| Box Dimensions (LxWxH) | 11 x 6.2 x 2.8" |
