INOGENI SDI to USB3 SDI to USB 3.0 Video Capture Card
INOGENI SDI to USB3 SDI to USB 3.0 Video Capture Card is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
INOGENI SDI to USB3 SDI to USB 3.0 Video Capture Card

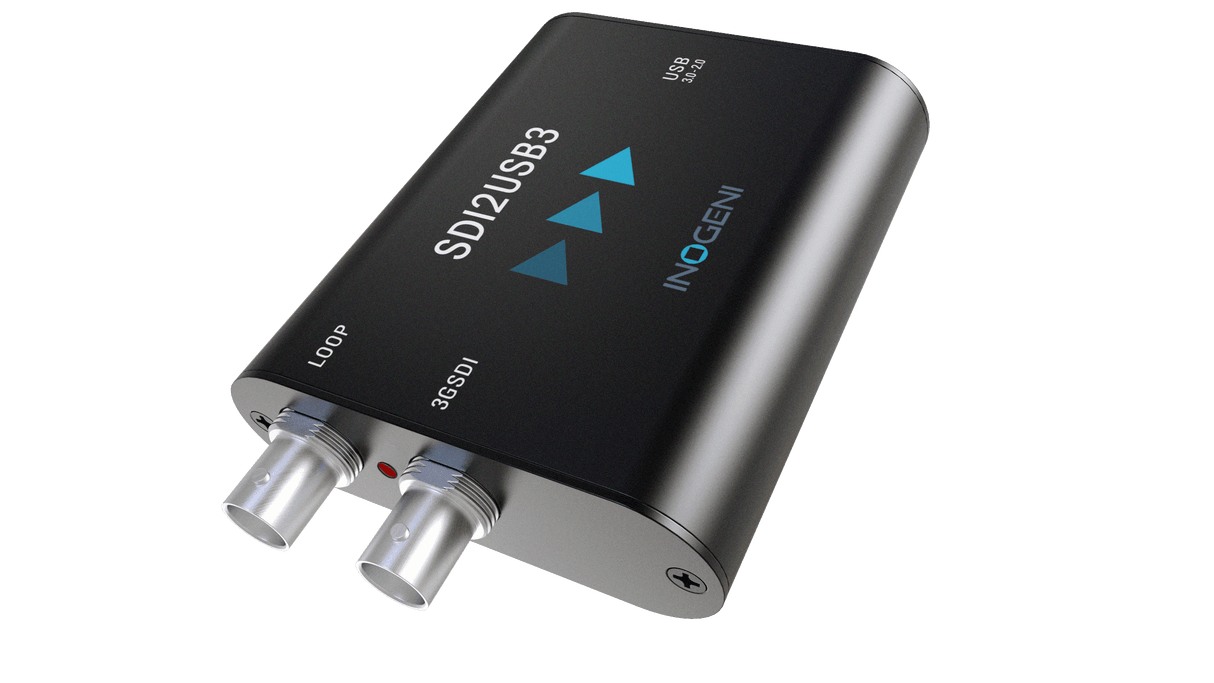

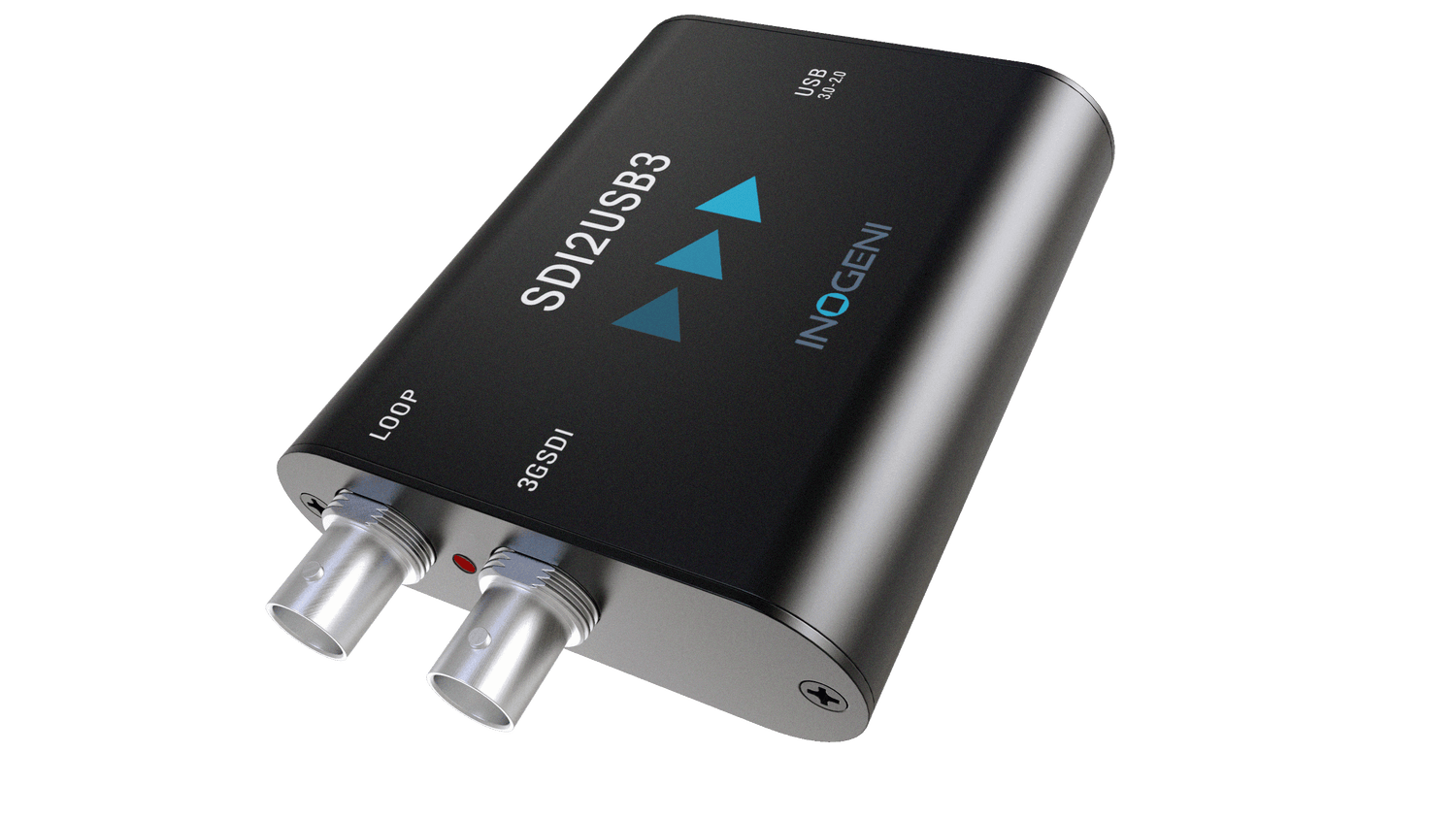

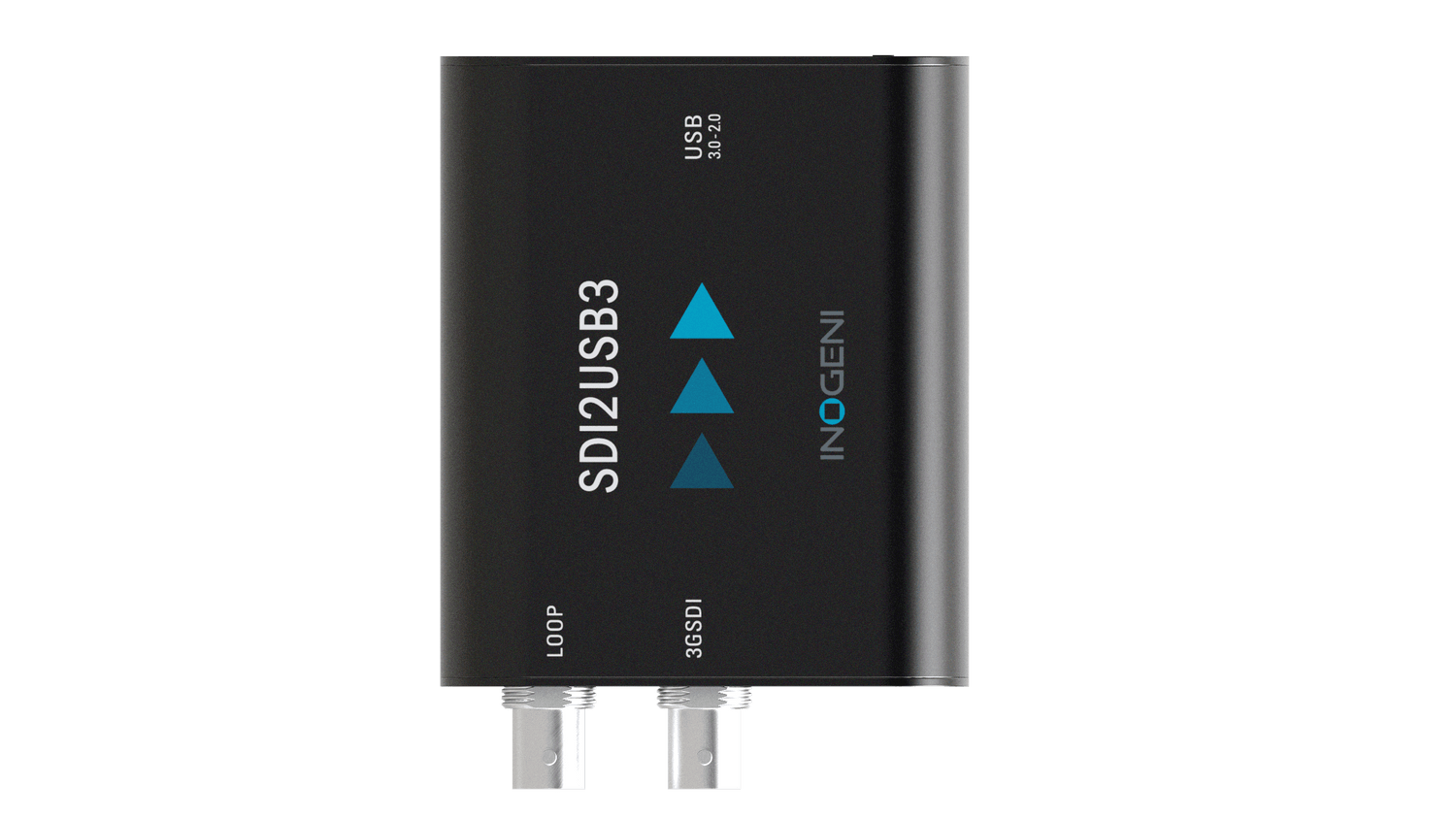

3G-SDI to USB 3.0 video converter (+ loop) - SDI2USB3
INOGENI’s SDI2USB3 video converter enables 3GSDI cameras to connect with computers, laptops or CODECs—without glitches or complicated setups.
- 3GSDI professional video capture to USB 3.0
- Highly stable signal
- Active loop output connector
- Cost-effective professional camera converter solution that is reliable and simple to install and connect (no driver required)
- Compact and robust design with its aluminium enclosure
- Designed and manufactured in Canada
- TAA-compliant
How it works
The SDI2USB3 professional video converter features a 3GSDI input with active loop output and supports SD and HDTV video formats. Compact and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution.
UVC-compliant, it works with all DirectShow compatible software. The SDI2USB3 video converter supports 1080p resolution up to 60 fps.
Features
Discover the features of the SDI2USB3 professional video converter that offers a hassle-free user experience:
- 3GSDI video capture to USB 3.0

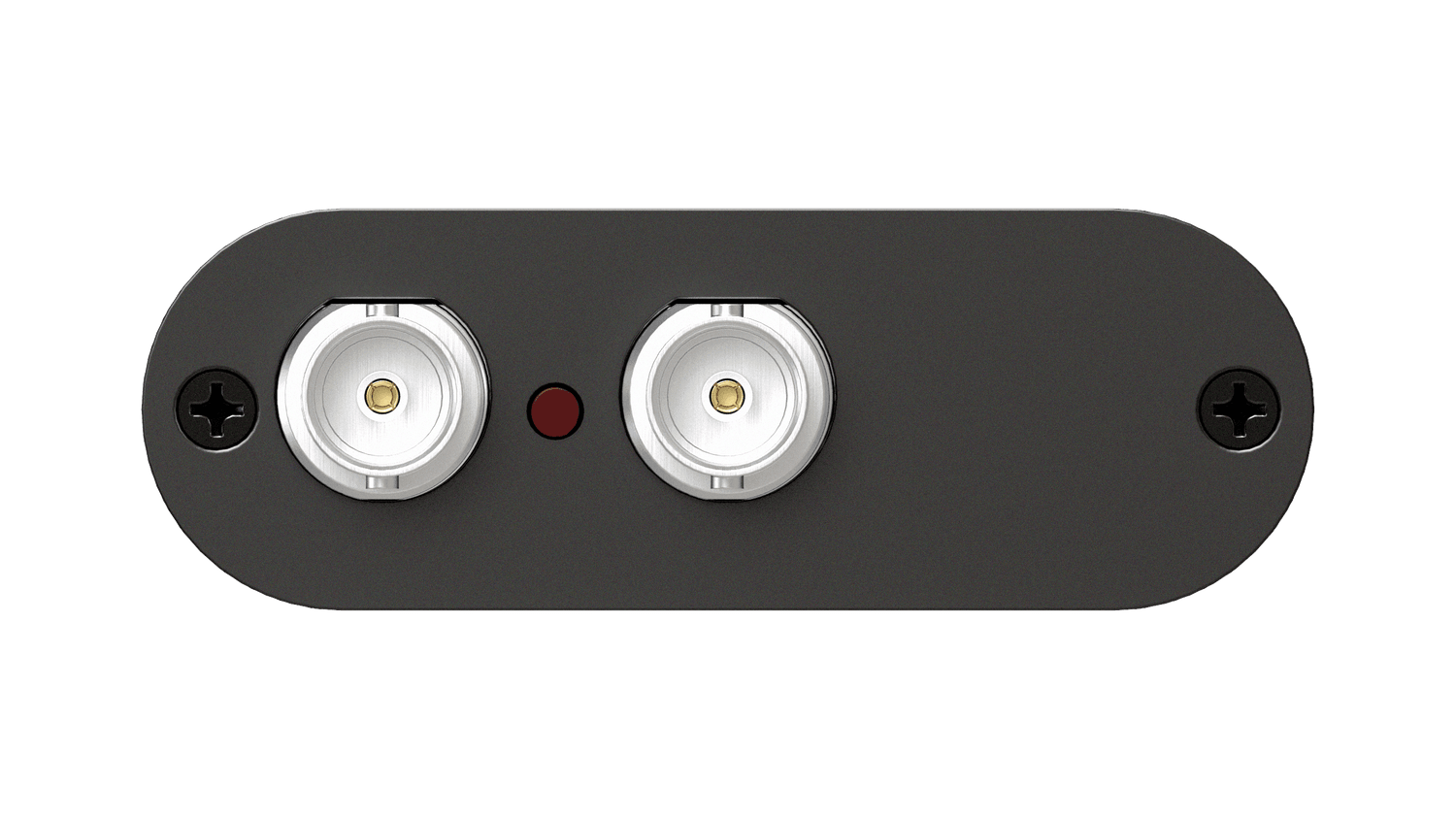

- Active loop output connector
- Supports 1080p, 1080i, 720p, 480p, 576p, NTSC and PAL at up to 60 fps
- All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0
- Embedded audio extraction and output as two-channel LPCM
- Digital Fluid technology: Internal frame buffers maximize frame rate with any PC
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion
- Customizable video processing functions
- Supports multiple devices on the same PC
- Compatible with Barco ClickShare Conference
Specs
INOGENI SDI2USB3 Specs

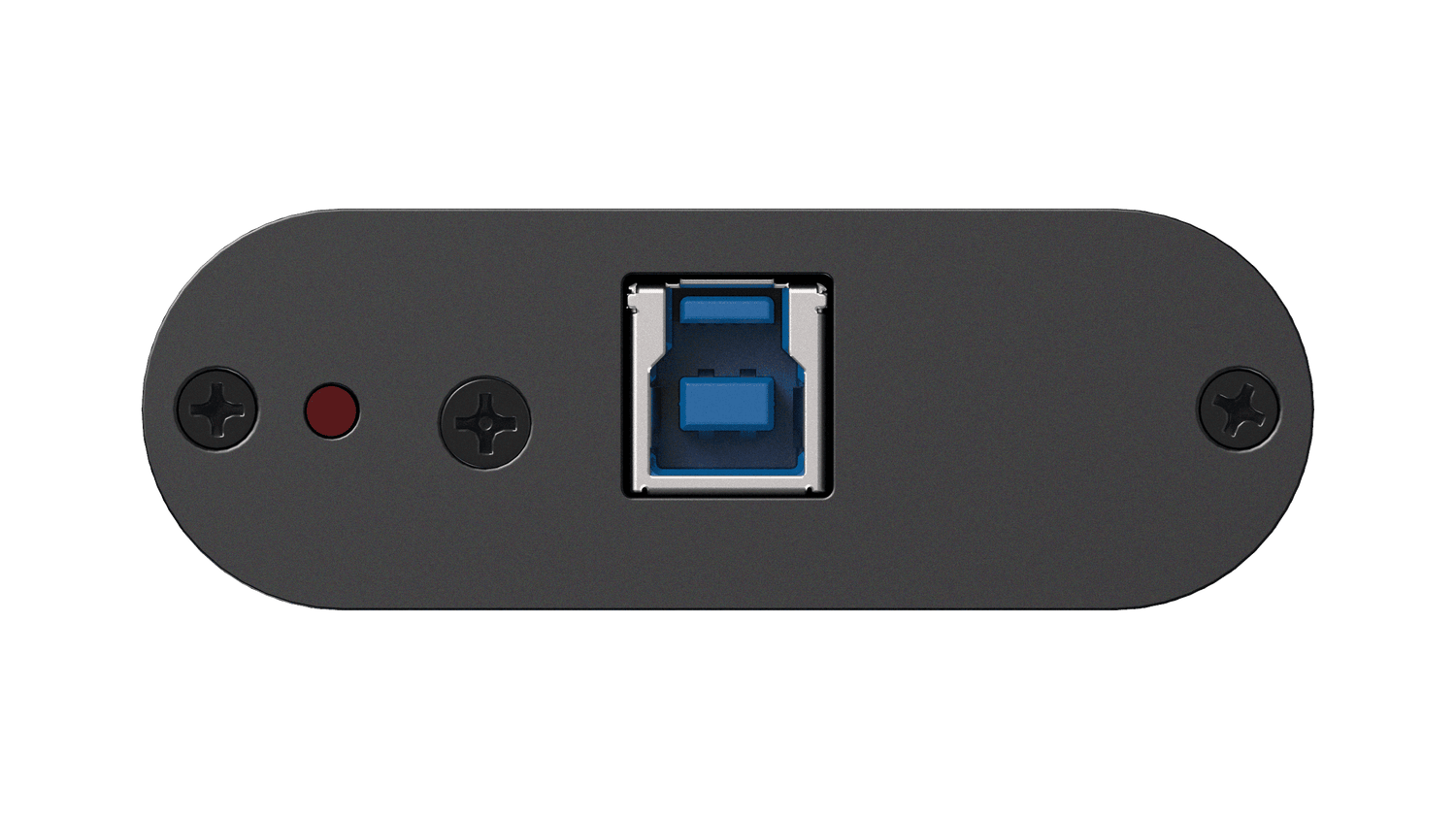

| System Connection | USB-B 3.0 / 3.1/3.2 Gen 1 |
| Video Inputs | 1 x BNC (3G-SDI) |
| Audio Inputs | None |
| Input Video Format | SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 23.98/24/25/29.97/30/50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps 576i / 625 lines 480i / 525 lines |
| Output Video Format | USB-B 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps 576i / 625 lines 480i / 525 lines |
| Embedded Audio | SDI: 2-Channel |
| HDR Compatibility | Yes |
| OS Compatibility | Windows 7 or Later macOS 10.10 or Later Linux *As of June, 2020: Check with manufacturer for the most up-to-date compatibility |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Storage Temperature | -40 to 221°F / -40 to 105°C |
| Operating Humidity | 0 to 90% |
| Dimensions | 3.2 x 2.9 x 0.75" / 8.13 x 7.37 x 1.91 cm |
| Weight | 4.23 oz / 120 g |
| Package Weight | 0.65 lb |
| Box Dimensions (LxWxH) | 6.2 x 5.1 x 1.9" |
