INOGENI CAM230 HDMI/USB 3.0 Camera Switcher

Authorized Dealer

$945.00

Shipping calculated at checkout.

INOGENI | SKU: CAM230

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

Switch 1 of 3 USB/HDMI cameras to USB or HDMI - CAM230

The INOGENI CAM230 is a USB and HDMI multi-camera switcher that helps improve meeting equity in virtual meetings. With its easy-to-use camera switching capabilities and support for bidirectional audio with videobars, facilitators can ensure that all participants have equal opportunities to speak and contribute.

The CAM230 also supports whiteboard and document cameras for added collaboration and productivity.

3 video sources (2x USB 3.0/2.0 and 1x HDMI) clean switcher into a single video flow
Video output for CODECs, matrixes, monitors or laptops for BYOM settings
- HDMI 2.0
- USB 2.0 MJPEG – 1080p30
Instantly change camera and video configurations without interrupting the presentation
Ideal for remote education, collaborative meetings, webinars, and live-streaming
Controllable by RS-232 and IP
- Switch the camera via your videoconferencing pad or with the push button
Audio I/O via the INOGENI Control App
Cost-effective, reliable, and easy to install and connect (no drivers required)
Compact and robust design with an aluminum enclosure
Designed and manufactured in Canada
TAA-compliant

Features

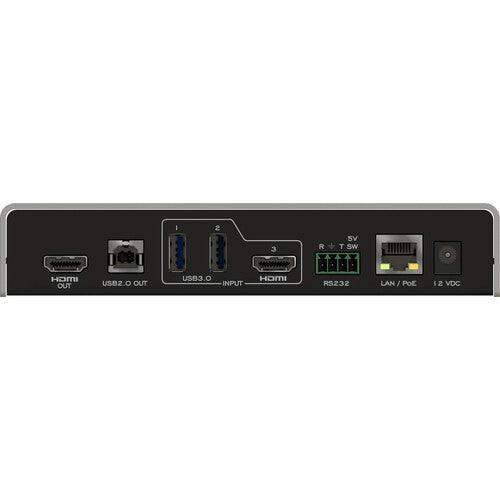

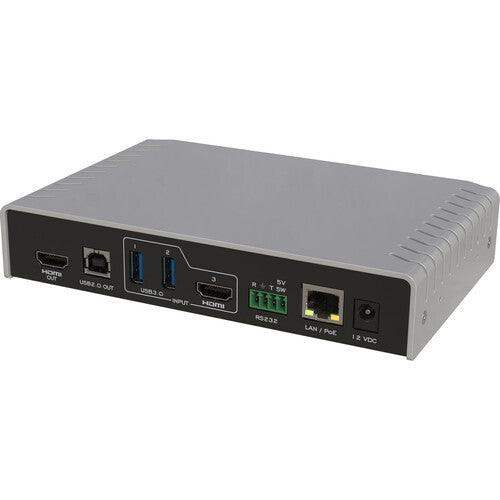

1 x HDMI, 2 x USB-A Inputs
1 x HDMI, 1 x USB-B Outputs
Supports up to UHD 4K Input Video
Ethernet and RS-232 Control

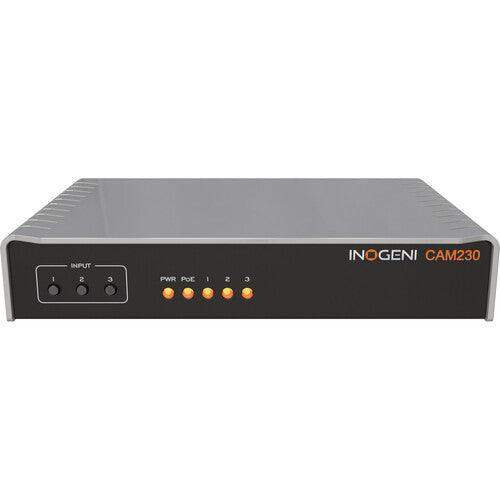

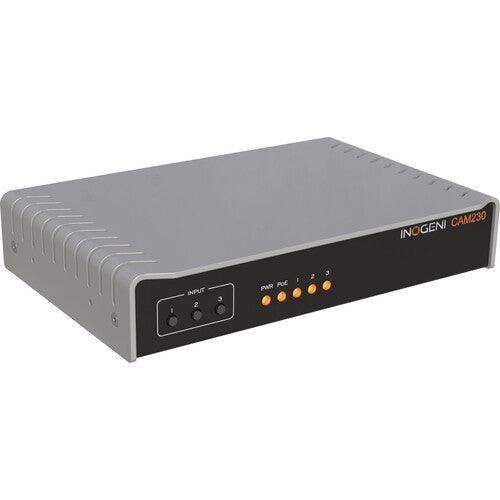

Front-Panel Button Controls
LED Indicators

Specs

Processing

Switching Type

Pushbutton, Software

Input

Video Inputs	2 x USB-A Female 1 x HDMI Female
Input Video Format	USB-A UHD 4K 30 fps 1080p 30/50/60 fps HDMI (4:4:4/4:2:2 RGB, YCC) 1080p 50/60 fps
Embedded Audio Input	HDMI USB-A

Output

Video Outputs	1 x HDMI (HDMI 2.0) Female 1 x USB-B (USB Video) Female
Output Video Format	HDMI UHD 4K 60 fps USB-B 1080p 30 fps
Embedded Audio Output	HDMI USB-B

Connectivity

Other I/O	1 x Block 4-Pin RS-232 Input 1 x RJ45 LAN Input
HDCP Support	Yes

Hardware

OS Compatibility	Windows 7 or Later (32/64-Bit) macOS 10.10 or Later Linux 2.6.38 *As of February, 2023: Check with manufacturer for the most up-to-date compatibility
Processor	Intel Core i5
Wi-Fi	Yes
Bluetooth	None

Power

Power I/O

1 x Barrel (12 VDC at 1.2 A) Input

Environmental

Operating Temperature	32 to 113°F / 0 to 45°C
Storage Temperature	-40 to 221°F / -40 to 105°C
Operating Humidity	0 to 90% (Non-Condensing)

General

Dimensions

6.82 x 4.56 x 1.28" / 17.33 x 11.57 x 3.26 cm
