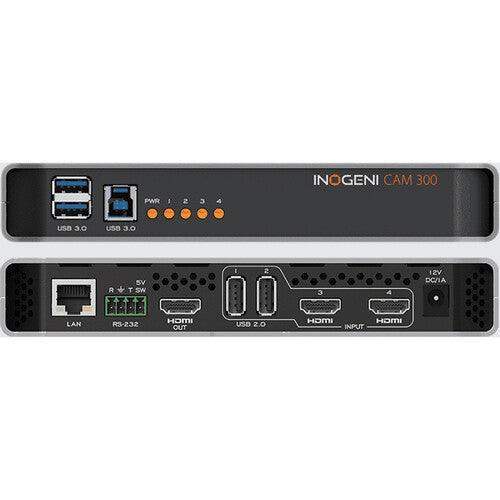

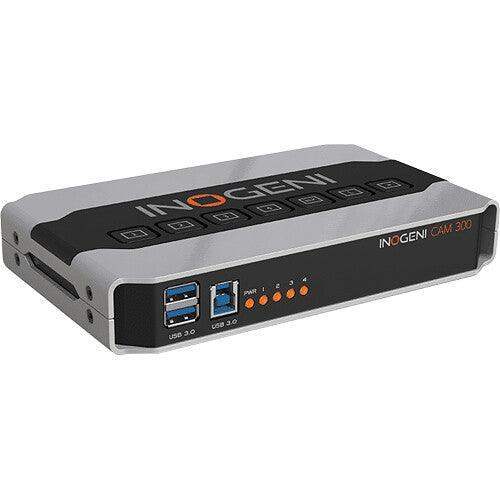

INOGENI CAM 300 4x1 HDMI/USB 2.0 Camera Switcher
Switch 1 of 4 USB/HDMI cameras to USB 3.0 - CAM300
Ideal for classrooms, with this 4 video sources selector (switcher), benefit from instant seamless switching and automatic connection to any app—without drivers.
- 4 video cameras sources (2 USB and 2 HDMI) clean switcher into a single USB 3.0 interface
- Engage a dynamic presentation and switch easily the camera with a push button
- Change camera and video configuration without cutting the flow of your presentation
- Ideal for remote education, collaborative meetings, webinars or live streaming
- Output: Uncompressed video on USB 3.0, MJPEG on USB 2.0 and HDMI 1080p60
- Audio I/O and mixer via the INOGENI Control App
- Controllable by LAN & RS-232
- Cost-effective solution that is reliable and simple to install and connect (no driver required)
- Compact and robust design with its aluminium enclosure
- Designed and manufactured in Canada
- TAA-compliant
How it works
The CAM300 4-in-1 pro AV camera selector offers maximum versatility for both local and remote control. It is the best choice for standalone applications because it includes an HDMI output to monitor the selection. You can also use it with INOGENI’s SHARE2 or SHARE2U camera mixers.
Easy push-button to switch easily up to 4 video cameras
Features
The CAM300 camera selector offers an array of features for a smooth and seamless experience:
- Switch between 2 USB and 2 HDMI sources
- 2x USB camera, MJPEG or H264
- 2x HDMI 1080p60
- Outputs to an uncompressed 1080p60 USB 3.0 and HDMI connection
- Control interface: LAN, RS-232, USB (Get the software upgrade: Crestron Serial & IP modules)
- Local and remote keypad: REMOTE User Guide
- Embedded audio in USB and HDMI and line level stereo audio support
- Digital Fluid technology: Internal frame buffers maximize frame rate with any host
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion
- Customizable video processing functions
- Supports multiple devices on the same host
- Device configuration via the INOGENI Control App
- Firmware upgrade available via the INOGENI Control App
- Compatible with Barco ClickShare Conference
Specs
INOGENI CAM 300 Specs
| Inputs | 2 x USB 2.0 Type-A 2 x HDMI type A |
| Outputs | 1 x HDMI type A 1 x USB 3.0 Type-B |
| Other I/O | 1 x Ethernet 1 x 4-pin Phoenix, RS-232 2 x USB 3.0 Type-A, host |
| Video Input Format | USB: MJPEG H.264 HDMI: 1080p 30 720p 60 480p 60 |
| Audio Input Format | USB: USB camera audio HDMI: Embedded PCM |
| Video Output Format | Up to 1080p 60 |
| Audio Output Format | Embedded PCM (audio output follows selected video input) |
| Power Supply | 12 VDC, 500 mA |
| Environmental | Operating Temperature: 32 to 113°F / 0 to 45°C Storage Temperature: -40 to 221°F / -40 to 105°C Humidity: 0-90%, non-condensing |
| Dimensions | 7.3 x 4.4 x 1.2" / 18.5 x 11.2 x 3 cm |
| Weight | 1 lb / 469 g |
| Package Weight | 2.5 lb |
| Box Dimensions (LxWxH) | 9.8 x 6.9 x 3.4" |
