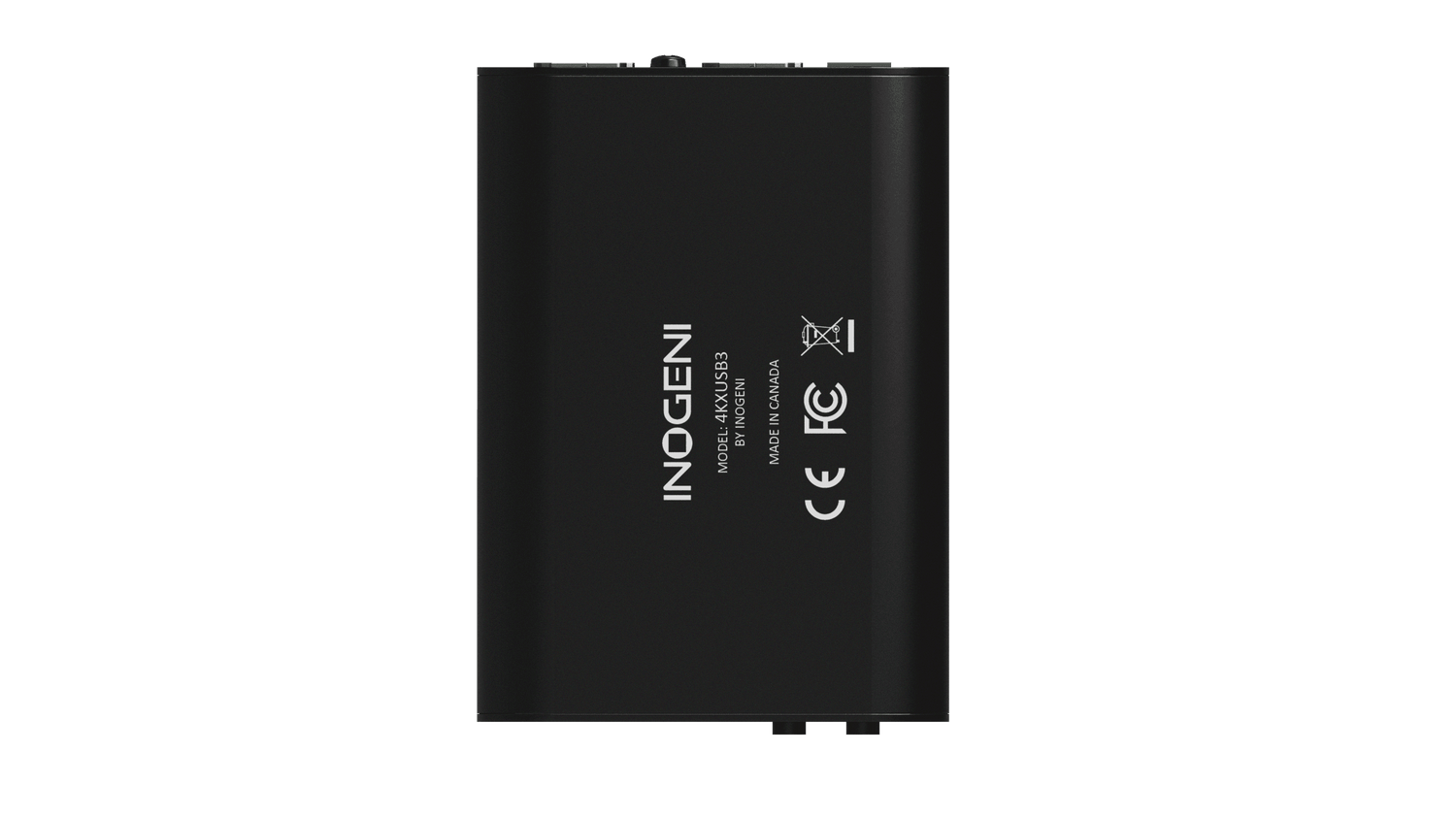

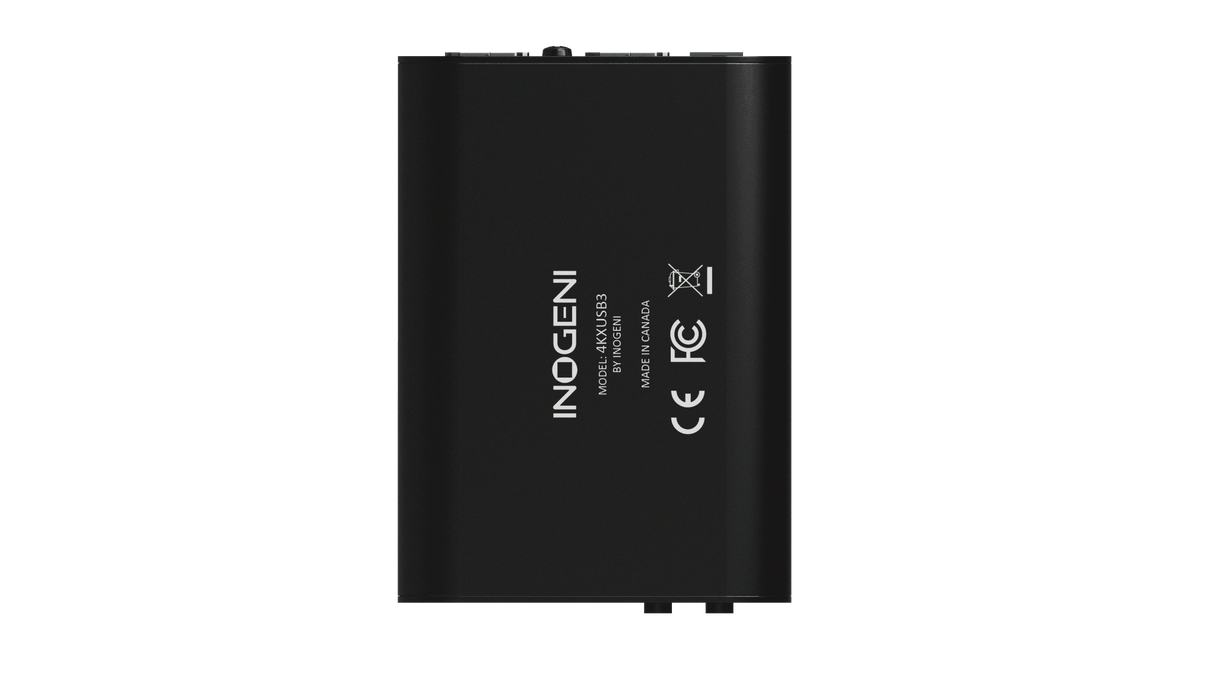

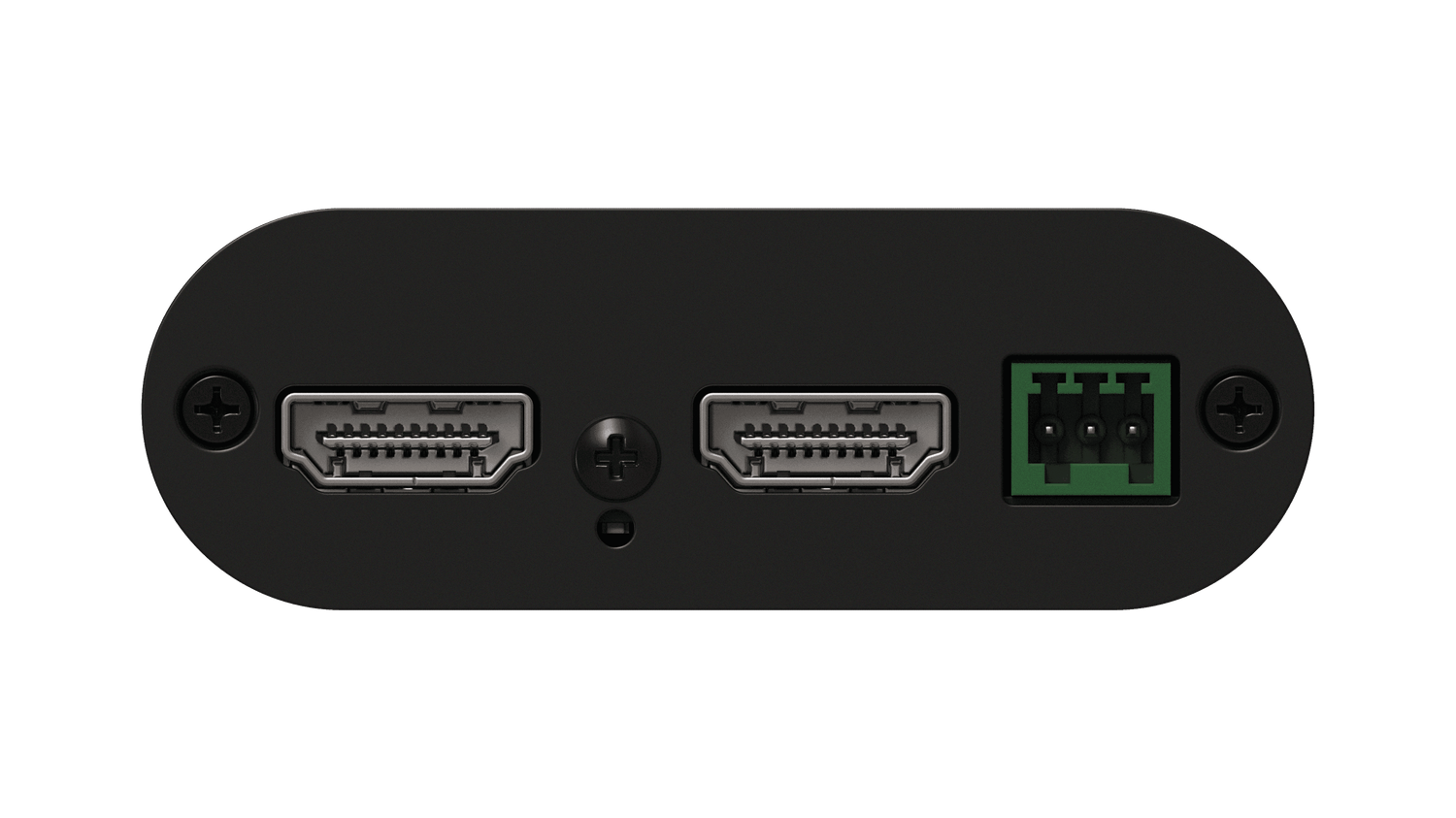

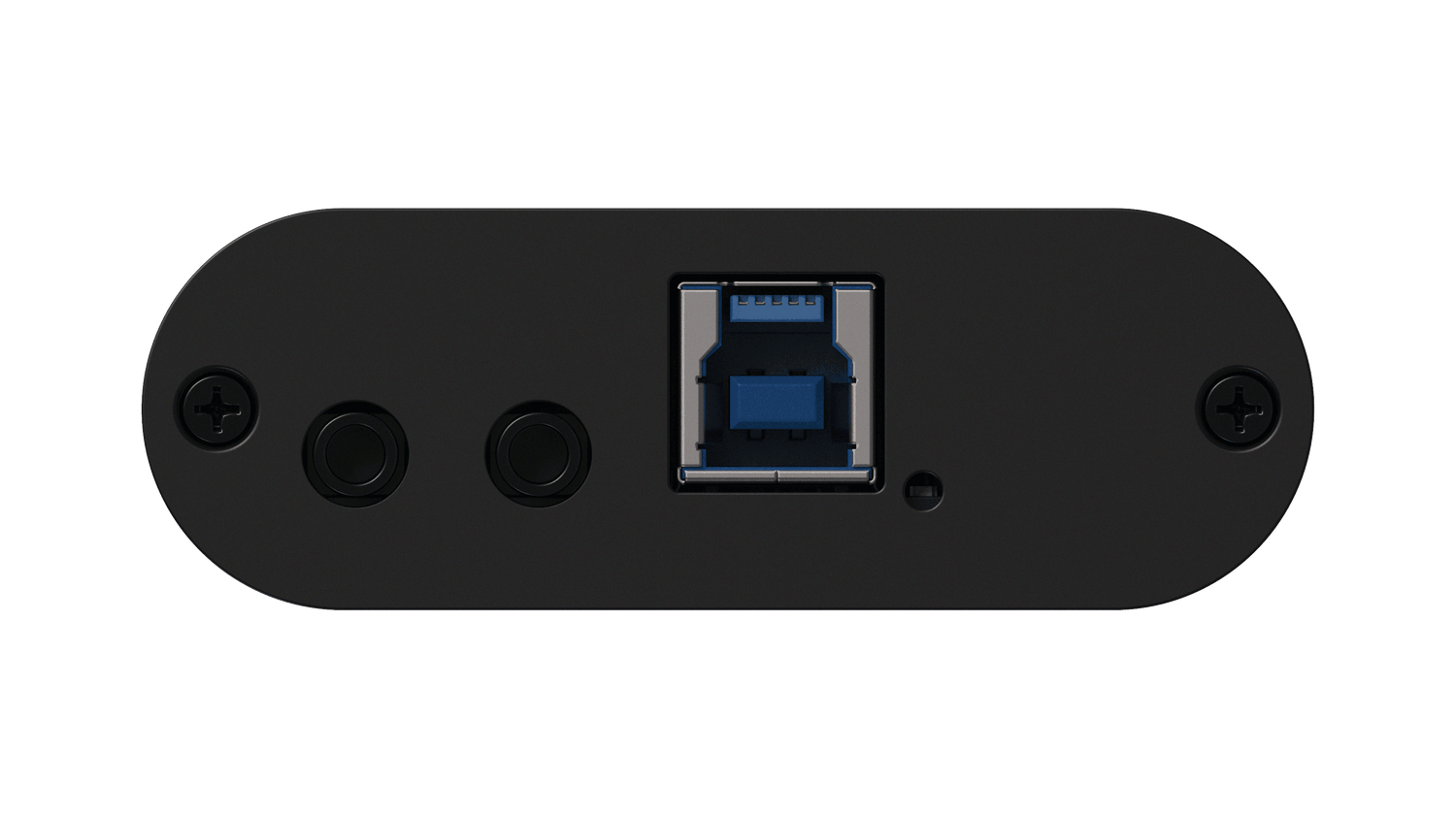

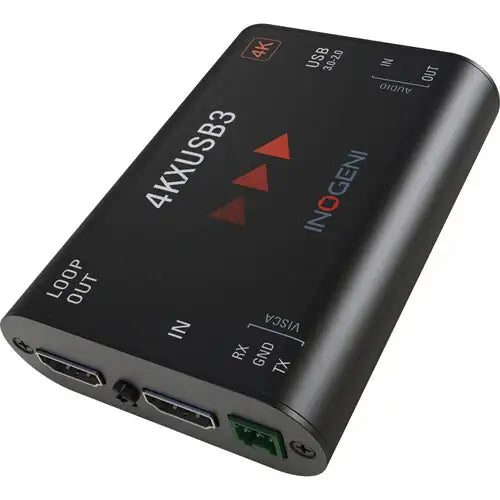

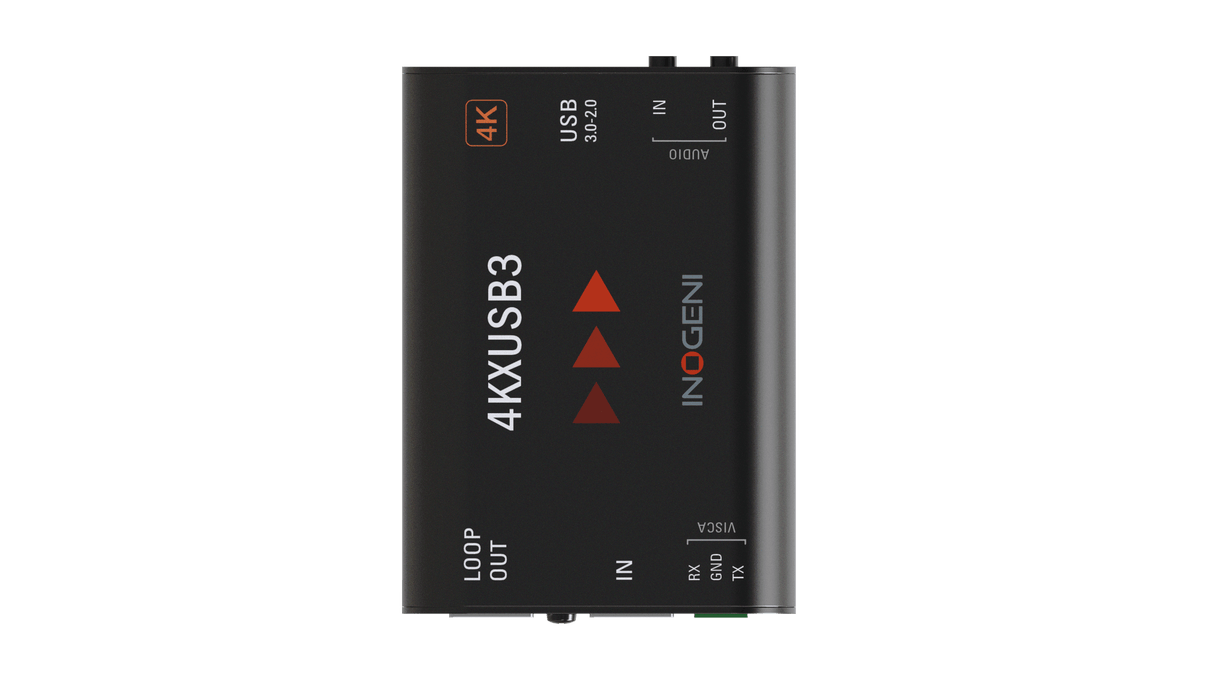

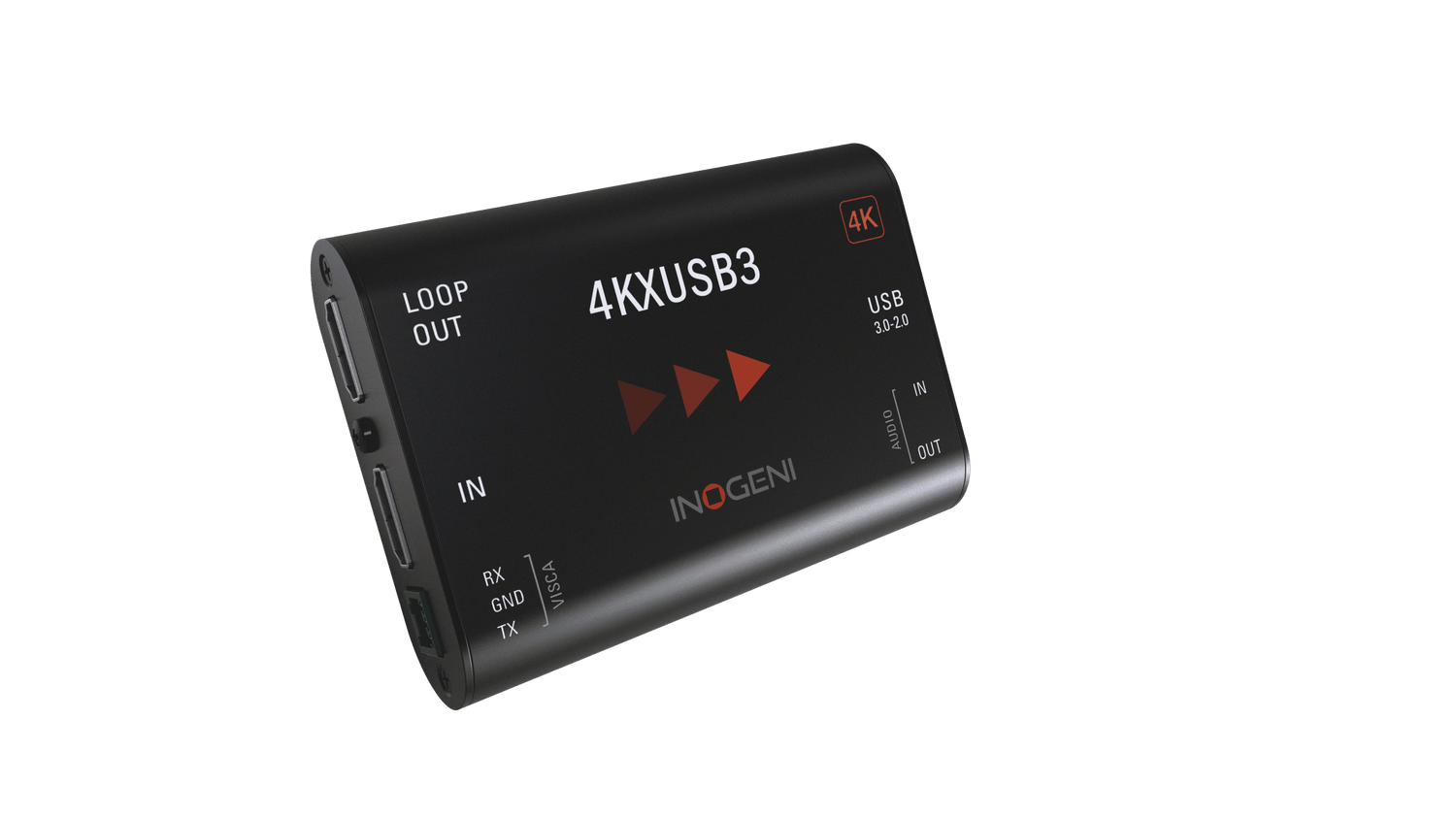

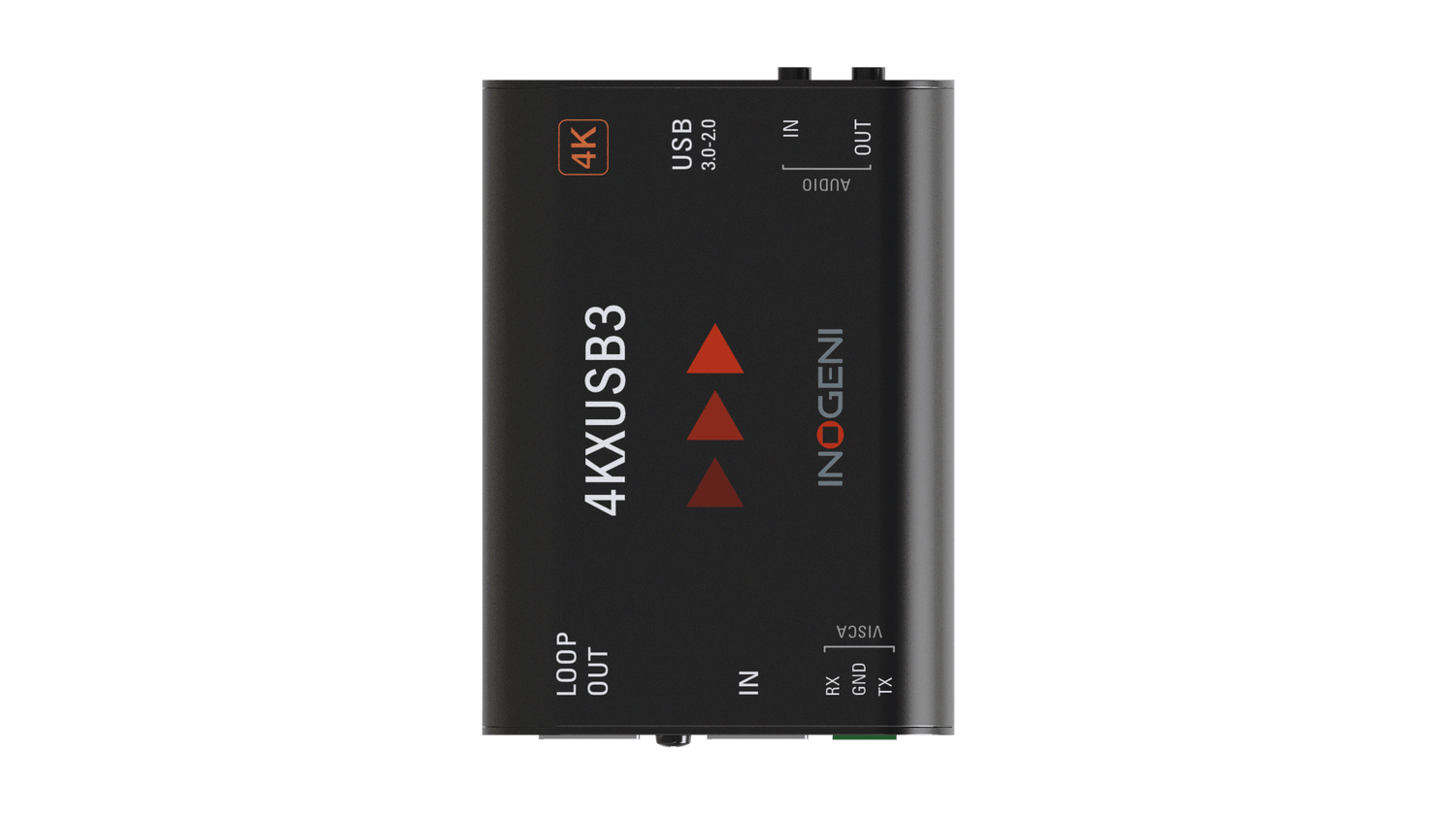

INOGENI 4K Ultra HDMI to USB 3.0 Video Capture Card
INOGENI 4K Ultra HDMI to USB 3.0 Video Capture Card is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
INOGENI 4K Ultra HDMI to USB 3.0 Video Capture Card
4K Ultra HD to USB 3.0 (+ HDMI loop, analog audio & VISCA) - 4KXUSB3
INOGENI’s 4KXUSB3 is an affordable and easy-to-use Ultra HD to USB 3.0 camera converter with an HDMI loop and VISCA port. It can even support multiple devices on the same laptop.
- Easy and versatile camera converter for countless applications
- Cost-effective professional camera converter solution that is reliable and simple to install and connect
- Compact and robust technology
- Designed and manufactured in Canada
- TAA-compliant
How it works
The 4KXUSB3 Ultra HD to USB 3.0 professional camera converter with an HDMI loop and VISCA port works with any virtual meeting room software that enables USB cameras and microphones, such as Microsoft Teams, Zoom, Google Meet or BlueJeans.
Requiring no drivers and compatible with Windows, macOS and Linux laptops, the converter resolves all interoperability issues.
Features
The 4KXUSB3 Ultra HD to USB 3.0 professional camera converter with an HDMI loop and VISCA port offers a wide range of capabilities, including:
- Compatible with Direct Show
- Supports Ultra HD 4K, 1440p, 1080p, 1080i, 720p, 480p, and 576p video formats
- Supports 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480 graphic formats
- Up to Ultra HD 4K (3840/4096×2160) at 30 fps and 1080p at 60 fps
- HDMI audio support: Embedded audio in the HDMI signals is extracted and output as two-channel LPCM
- Digital Fluid technology: Internal frame buffers maximize frame rate with any PC
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion (UHD up-scaling not supported)
- Customizable video processing functions
- Image controls: Brightness, contrast, saturation and hue settings; these controls work on all formats below 4K, but not 4K
- Compatible with Barco ClickShare Conference
Specs
INOGENI 4K Ultra Specs
| System Connection | USB-B 3.0 / 3.1/3.2 Gen 1 |
| Video Inputs | 1 x HDMI (HDMI 1.4a) |
| Input Video Format | HDMI 480p at 23.98/24/25/29.97/30/50/59.94/60 fps 576p 23.98/24/25/29.97/30/50/59.94/60 fps 720p 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 23.98/24/25/29.97/30/50/59.94/60 fps WUXGA (1920 x 1200) 23.98/24/25/29.97/30/50/59.94/60 fps |
| Embedded Audio | HDMI: 2-Channel |
| OS Compatibility | Windows 7 or Later macOS 10.10 or Later Linux *As of June, 2020: Check with manufacturer for the most up-to-date compatibility |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Storage Temperature | -40 to 221°F / -40 to 105°C |
| Operating Humidity | 0 to 90% |
| Dimensions | 3.2 x 2.9 x 0.75" / 8.13 x 7.37 x 1.91 cm |
| Weight | 4.23 oz / 120 g |
| Package Weight | 0.685 lb |
| Box Dimensions (LxWxH) | 6 x 4.5 x 1.9" |
