Icron Four-Port USB 3-2-1 Raven 3104 Point-to-Point Extender System (328')
Icron Four-Port USB 3-2-1 Raven 3104 Point-to-Point Extender System (328') is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Icron Four-Port USB 3-2-1 Raven 3104 Point-to-Point Extender System...

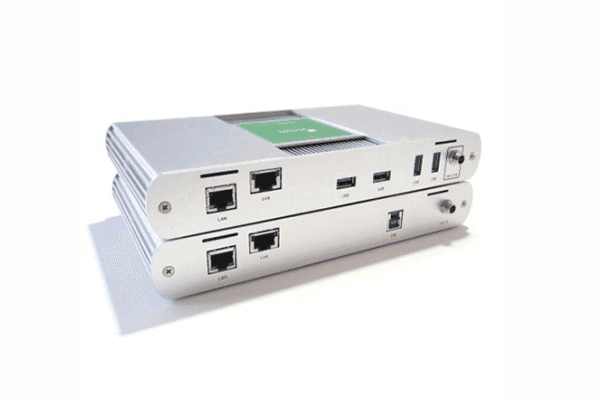

With the Icron Four-Port USB 3-2-1 Raven 3104 Point-to-Point Extender System, you'll be able to connect USB 3.2 Gen 1 (5 Gb/s) devices across a point-to-point connection, up to 328' over Cat 6a/7. This system is also backward compatible with USB 2.0 and 1.1 devices. LEX (local extender) and REX (remote extender) units are included. The Raven 3104 also includes an Ethernet pass-through so you can connect network-enabled devices or use an existing infrastructure without losing LAN connectivity. The Raven 3104 system is plug-and-play as well as compatible with most operating systems, such as Windows, macOS, Linux, and Chrome OS.
Features
- USB 3.2 Gen 1 Interface (5 Gb/s)
- Up to 328' over Cat 6a/7
- 4 x USB Type-A Ports
- 1 x Gigabit Ethernet RJ45 Jack (Each)
- LEX (Local Extender)
- REX (Remote Extender)
- Windows, macOS, Linux, Chrome OS Support
Specs
Icron 3104 Specs
| Maximum Range | 328.1' / 100 m over Cat 6a Cable 328.1' / 100 m over Cat 7 Cable |
| Receiver I/O | 4 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) Input 1 x RJ45 (Gigabit Ethernet) Output 1 x RJ45 (Ethernet) Input |
| Transmitter I/O | 1 x USB Type-B (USB 3.1 / USB 3.2 Gen 1) Output 1 x RJ45 (Gigabit Ethernet) Output 1 x RJ45 (Ethernet) Input |
| Maximum Number of Devices | 30 |
| Power Source | Transmitter: Power Adapter Receiver: Power Adapter |
| DC Input Power | 24 VDC |
| USB Output Current | 1.2 A per Port |
| Operating Humidity | 20 to 80% |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Humidity | 10 to 90% |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Certifications | CE, FCC *as per Manufacturer |
| Dimensions | 5.4 x 9.1 x 1.3" / 137.3 x 232.1 x 33.0 mm Each |
| Weight | Transmitter: 2 lb / 920 g Receiver: 2.2 lb / 990 g |
| Package Weight | 7.03 lb |
| Box Dimensions (LxWxH) | 10.2 x 8.4 x 7" |
