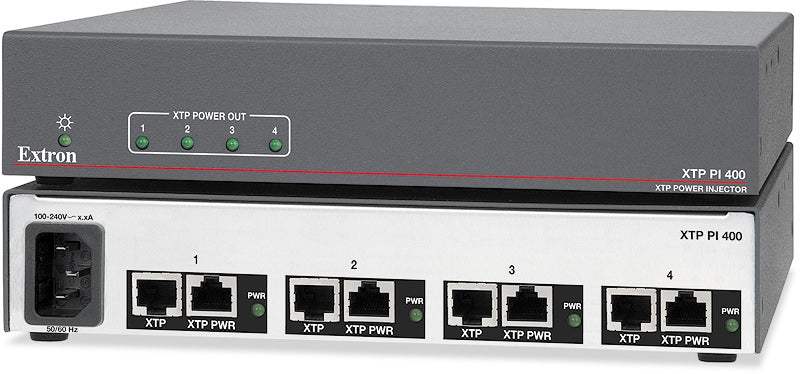

Extron XTP PI 400 Four Port Power Injector for XTP and Pro Series Control Systems

The Extron XTP PI 400 is a four port power injector that provides power for up to four remote XTP^® transmitters or receivers or Pro Series control systems, eliminating the need for local power supplies. Designed specifically for the high data rates of XTP Systems^®, signal quality is unaffected when using the power injector. It can be installed anywhere within the XTP signal path, providing design flexibility for remote devices with limited space. To ensure quick and dependable installation, the 1U, half rack width enclosure can be securely mounted using Extron rack shelves. The XTP PI 400 power injector provides integration flexibility in XTP Systems with fully populated matrix switchers.

Extron XTP Systems

Extron XTP Systems provide a completely integrated switching and distribution solution for multiple digital and analog formats. They support local connectivity as well as extended transmission capability for sending high resolution video, audio, RS‑232, and Ethernet up to 330 feet (100 meters) over a shielded CATx cable and even greater distances over fiber optic cabling. Each system is HDCP compliant and delivers ultra‑fast, highly reliable digital switching with Extron's SpeedSwitch^® Technology.

At the heart of a system is an XTP CrossPoint matrix switcher. The modular matrix switchers are expandable from 4x4 to 64x64, depending on frame size, and can be populated with a wide variety of XTP I/O matrix boards. Input and output boards provide direct HDMI, DVI, VGA, video, and audio connections to local sources and displays, and signal extension to remote endpoints when using XTP transmitters and receivers. The matrix switcher can also provide power to a remote XTP device over CATx cabling.

The online XTP System Builder gives convenient access for complete system design. The tool also features a printable bill of materials, pricing, and quote submittal. Once the order is confirmed and received, the included XTP System Configuration Software enables easy setup and configuration right out of the box.

To configure, operate, and monitor the system in real time, user-friendly control software offers a complete view of all XTP devices from a computer. With hot‑swappable modular components, a wide selection of XTP transmitters and receivers, and advanced 24/7 system monitoring, XTP Systems are designed to provide continuous, trouble‑free operation in the most critical applications.

Features

• Supplies 13 watts of power for up to four remote XTP twisted pair extenders, IPL Pro control processors, or TouchLink Pro touchpanels — The product provides power for XTP transmitters, XTP receivers, and Pro Series control systems, eliminating the need for a local power supply.
• Designed specifically for the high data rates of XTP Systems
• No impact on signal quality — Utilization of the power injector does not impact video, audio, bidirectional RS-232 and IR, and Ethernet signal quality.
• Real-time status LEDs for troubleshooting and monitoring — Front and rear indicators provide status for each port that is supplying power to an XTP extender, IPL Pro control processor, or TouchLink Pro touchpanel.
• UL/c-UL listed and CE compliant
• 1U, half rack width enclosure
• Internal Extron Everlast™ power supply — Provides worldwide power compatibility, with high‑demonstrated reliability and low power consumption for reduced operating cost
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
