Extron TouchLink Adapter Mounts Retrofit Kits for TLP Pro 725M and TLP Pro 1025M
Extron TouchLink Adapter Mounts Retrofit Kits for TLP Pro 725M and TLP Pro 1025M - Adapter Kit TLP Pro 725M/1025M - Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron TouchLink Adapter Mounts Retrofit Kits for TLP Pro 725M and ...

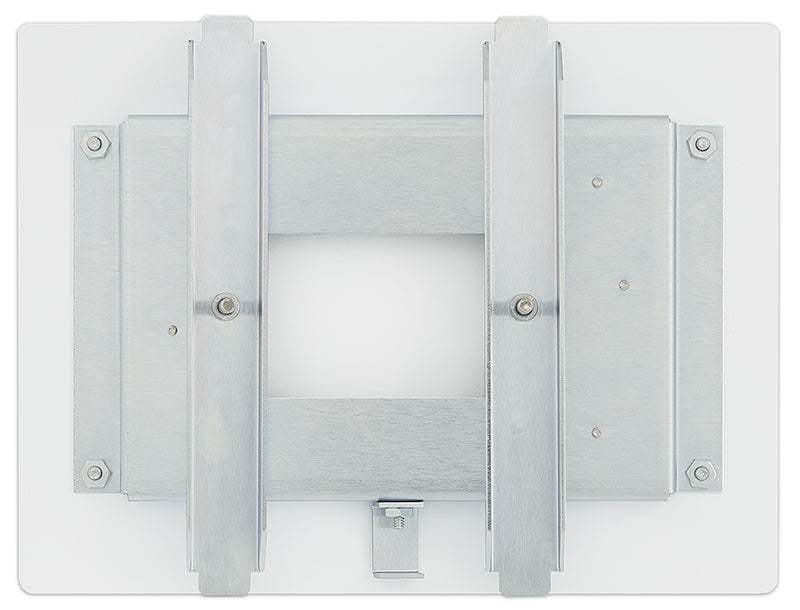

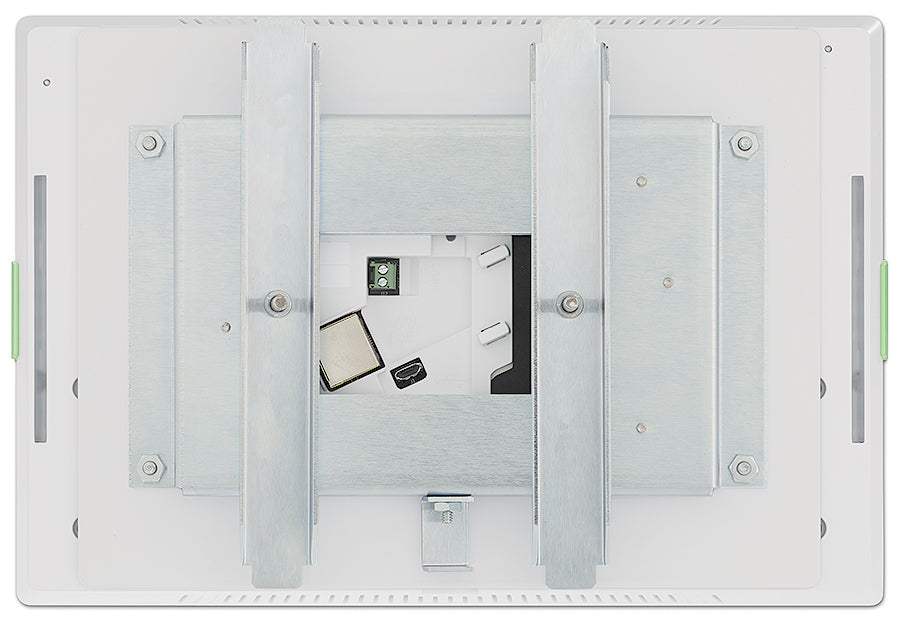

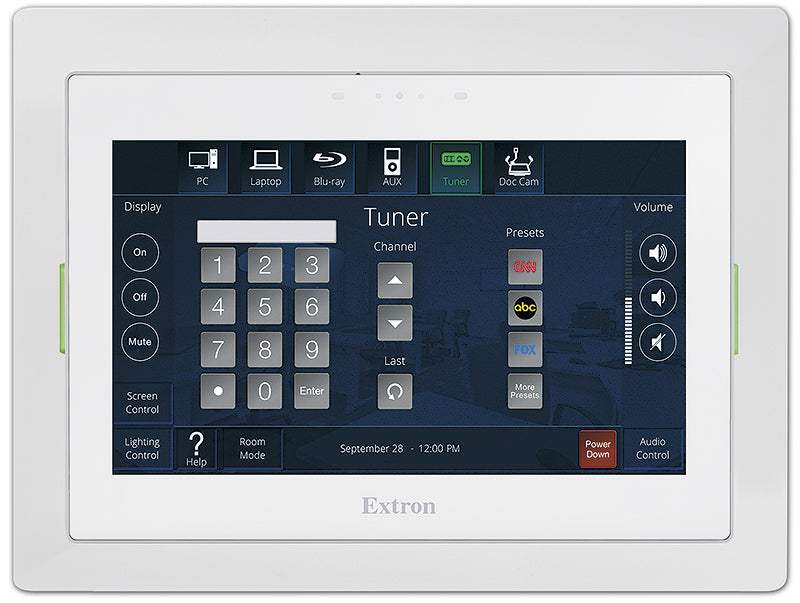

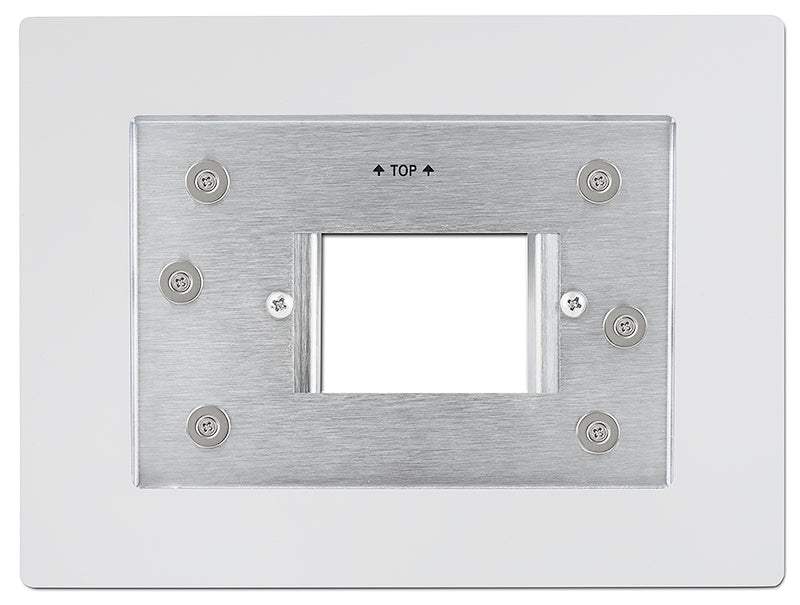

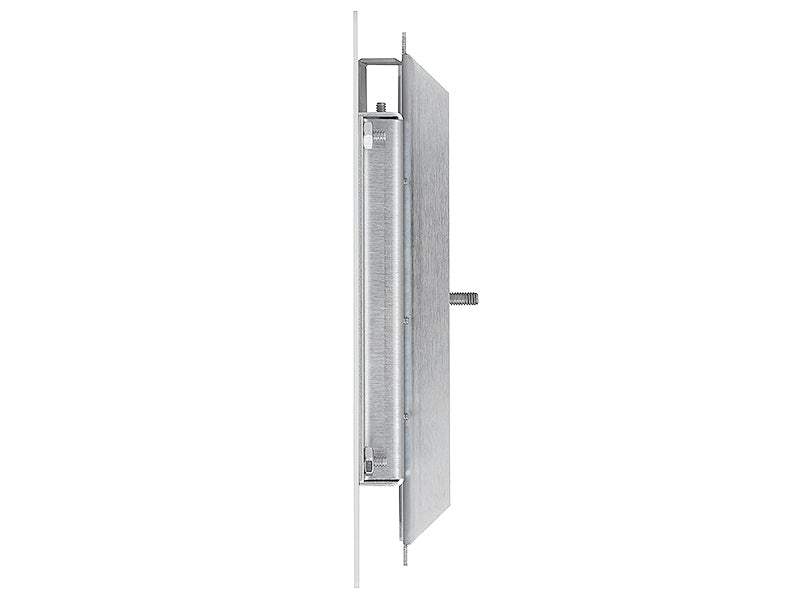

TouchLink Adapter Mounts enable users to upgrade existing 7" or 10" wall mount touchpanels to a TLP Pro 725M or TLP Pro 1025M. These mounts allow easy retrofitting of our latest TouchLink Pro touchpanels into drywall openings that were created for previously released touchpanels and accessories. An alignment guide ensures the adapter mount will be centered in the cutout. When finished, the adapter mount provides a clean appearance with no visible screws.
Features
- Upgrade to a TLP Pro 725M or TLP Pro 1025M in drywall or furniture openings previously cut for earlier released touchpanels
- TLA 2 - Compatible with TLP 710MV, TLP Pro 720M, TLP Pro 1022M, and BB 710M openings for use with a TLP Pro 725M or TLP Pro 1025M
- TLA 3 – Compatible with TLP 1000MV, TLP Pro 1020M, and BB 1000M openings for use with a TLP Pro 1025M
- Includes an alignment guide to assist with centering the new adapter mount to the existing cutout or back box
- Durable all metal construction
- Available in black or white
Specs
Also see our Specs in PDF format
| TouchLink Adapter Mounts | |||
| General | |||
|---|---|---|---|
| |
Drywall or backbox | ||
| |
|||
| |
6.39" H x 8.46" W x 1.52" D 162 mm H x 215 mm W x 38 mm D) | ||
| |
 |
||
| |
|||
| |
7.95" H x 11.12" W x 1.52" D (202 mm H x 282 mm W x 38 mm D) | ||
| |
 |
||
| |
|||
| |
1.50 lbs (0.68 kg) | ||
| |
2.50 lbs (1.13 kg) | ||
| |
Metal | ||
| |
CE, RoHS, WEEE | ||
| |
3 years parts and labor | ||
|
|||
| (5218-D2) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 70-1254-22 | 2.5" (6.4 cm) | 11.5" (29.2 cm) | 9.5" (24.1 cm) | 1.85 lbs (0.84 kg) |
| 70-1254-23 | 2.5" (6.4 cm) | 11.5" (29.2 cm) | 9.5" (24.1 cm) | 1.85 lbs (0.84 kg) |
| 70-1254-32 | 3.25" (8.3 cm) | 15.75" (40.0 cm) | 10.0" (25.4 cm) | 2.85 lbs (1.29 kg) |
| 70-1254-33 | 3.25" (8.3 cm) | 15.75" (40.0 cm) | 10.0" (25.4 cm) | 2.84 lbs (1.29 kg) |
