Extron TLS 1025M 10" White, Wall Mount TouchLink Scheduling Panel

The Extron TLS 1025M White is a 10” Wall Mount TouchLink® Scheduling panel designed for Extron Room Scheduling Systems. This stylish, stand-alone room scheduling panel connects directly to a variety of popular calendar services, and requires no additional scheduling software or external processors. It features a vibrant 1280x800 capacitive edge-to-edge Gorilla Glass® touchscreen that is especially scratch and smudge-resistant. The TLS 1025M also features the convenience of PoE - Power over Ethernet, which allows it to receive power and communication over a single Ethernet cable. Two bright red and green LEDs make it easy to see if a room is occupied or available even from down the hall. The integration-friendly TLS 1025M is an ideal solution for any environment requiring a stylish and convenient room scheduling panel.

Room Agent software

All TLS panels are configured with Extron Room Agent™ software. Simply connect the touchpanel to your computer, open the free Room Agent software, fill in the required fields to compose the user interface, and you’re done. Customization options include custom colors and background images, interface text fields to be shown or hidden, depending on user preference.

Room Scheduling Analytics

Room scheduling touchpanels provide the information you need to closely analyze room usage, activity patterns, and occupancy trends across the organization. A Scheduling Activity file with room usage and meeting data can be downloaded concurrently from multiple touchpanels. You can transform this readily-available information with data analytics tools to create powerful reports.

Automatically Release Inactive Rooms

TLS panels equipped with a digital input will work with Extron OCS 100 series occupancy sensors, which monitor room occupancy and, after a user-defined time, release the room back to available status. These sensors provide exceptional coverage using ultrasonic and passive infrared detection technologies. Integrated smart, adaptive software automatically and continuously monitors the environment and adjusts timer settings and sensitivity, providing a lifetime of dependable detection and maintenance-free operation.

Features

• 10" capacitive edge-to-edge glass touchscreen with 1280x800 resolution
• Gorilla Glass® screen is tough, scratch, and smudge-resistant — Corning Gorilla Glass is stronger and more scratch-resistant than standard glass, while maintaining touch sensitivity, color saturation, and brightness.
• Make on-demand reservations from the touchpanel, computer, or any smartphone or tablet that connects to Microsoft® Exchange, Office 365™, Google Calendar™, 25Live®, EMS, NFS, and Ad Astra®

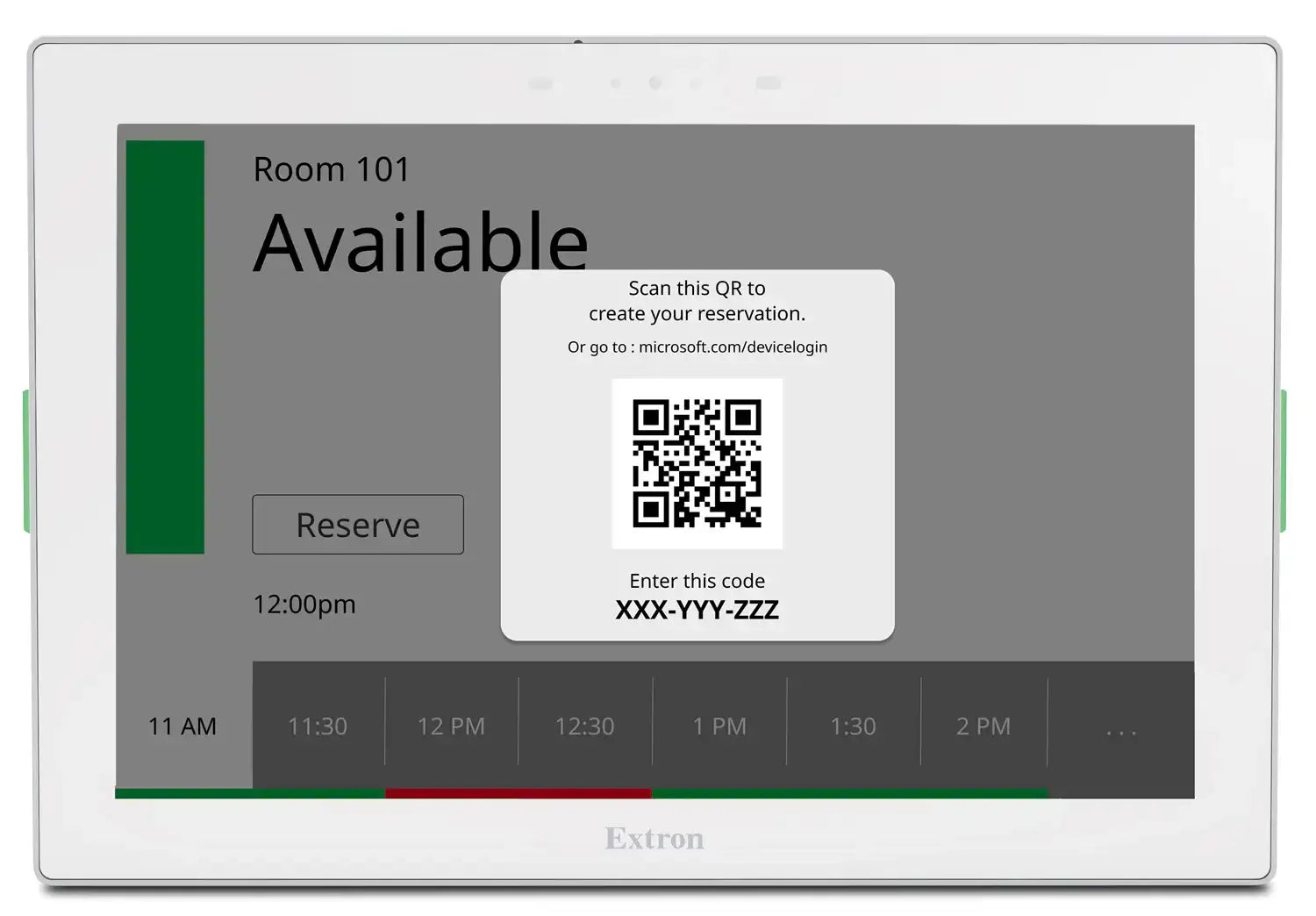

• New QR Code Booking Support for Microsoft 365 and Google Calendars — Users can leverage this feature to authenticate themselves to a TLS panel, then reserve, extend, check-in, and release meetings at the TLS panel by scanning a QR code for Microsoft 365 or Google calendars. Meeting organizers will have editing permissions exclusively for their own meetings.
• Supports two factor authentication (OAuth) required for Microsoft 365 — Refer to the Room Agent page for more software feature details.
• Alternative Microsoft 365 authentication options — Administrators now have new Microsoft 365 authentication options using either Client Secret or Certificate Upload methods in Room Agent for extended TLS Panel - Server connection. These new workflows are supported for the TLS x25 and TLS 300 devices and require MSGraph Application permissions in Microsoft Azure.
• New Perform specific commands using the GC Plus TLS Driver Demo — From a touchpanel or user interface connected to the control processor, perform commands such as reserve or check in, extend, and release a scheduled meeting. For a complete list of commands, please refer to the System Templates section for the communications sheet.
• New Microsoft 365 GCC High support — TLS panels now support Microsoft’s Government Community Cloud High (GCC High) calendaring functionality.
• New NTLMv2 Authentication Support — NTLMv2 Authentication Support – TLS panels now include support for NTLMv2 with extended protection.
• No annual subscription or maintenance fees
• PIN access for TLS panels configured with Microsoft 365, Exchange, Google, and 25Live, enabling users to reserve, book, check-in and extend a meeting via a PIN (English Only)
• Deploy a single touchpanel, or multiple touchpanels with similar settings very easily
• Ability to set/view room capacity via TLS panel — Users can now view the room capacity via the TLS panel user interface.
• All communication between the touchpanel and calendar server is encrypted and secure
• Digital input allows connection to an occupancy sensor, such as the Extron OCS 100
• Room usage data provides insight into trends and activity — Each touchpanel includes a downloadable Scheduling Activity file that enables you to generate analytics on usage, activity patterns, and trends using data from across the enterprise or organization.
• Provides service account and impersonation support — TLS panels can be configured using a service account with Exchange or Office 365, simplifying administrative tasks.
• Support for 802.1X certification on TLS panels, which can be managed via Extron’s Toolbelt software
• Two bright LED lights make it easy to see if a room is occupied or available even from down the hall

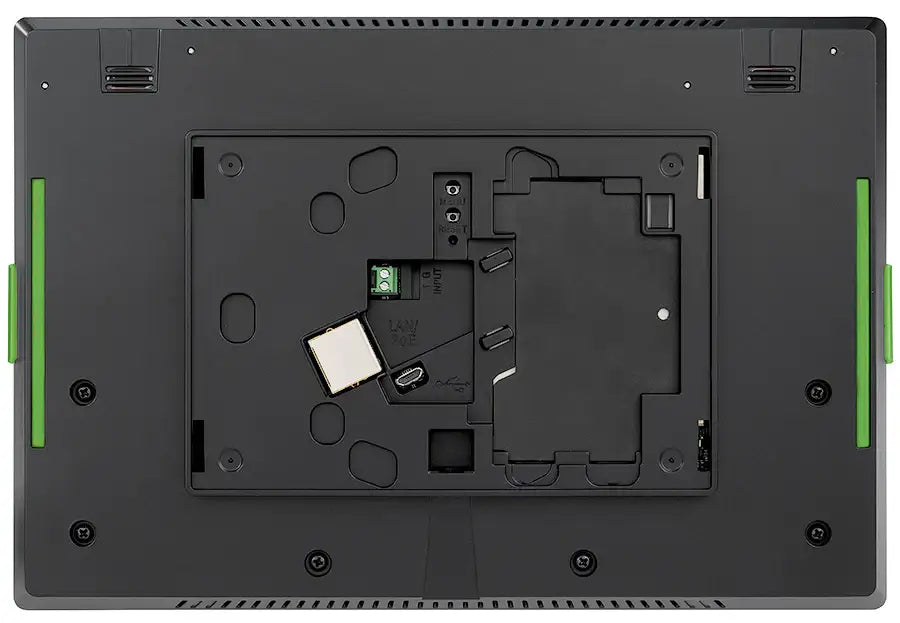

• Rear-facing light bars reflect off the mounting surface providing enhanced visibility of room status
• Supports 27 languages — For a complete list of supported languages, refer to Room Agent page.
• Check-In Button confirms attendance for the scheduled meeting and retains the reserved status of the room, even if the start of the meeting is delayed
• Make meeting rooms available as soon as a scheduled meeting ends
• Two color themes, custom loaded background images, and transparency controls provide personalized branding options
• Customizable date and time formats with a preview showing how the UI will look on the touchpanel
• Customizable room availability hours — Allows one to select the start and end times for the availability of a room.

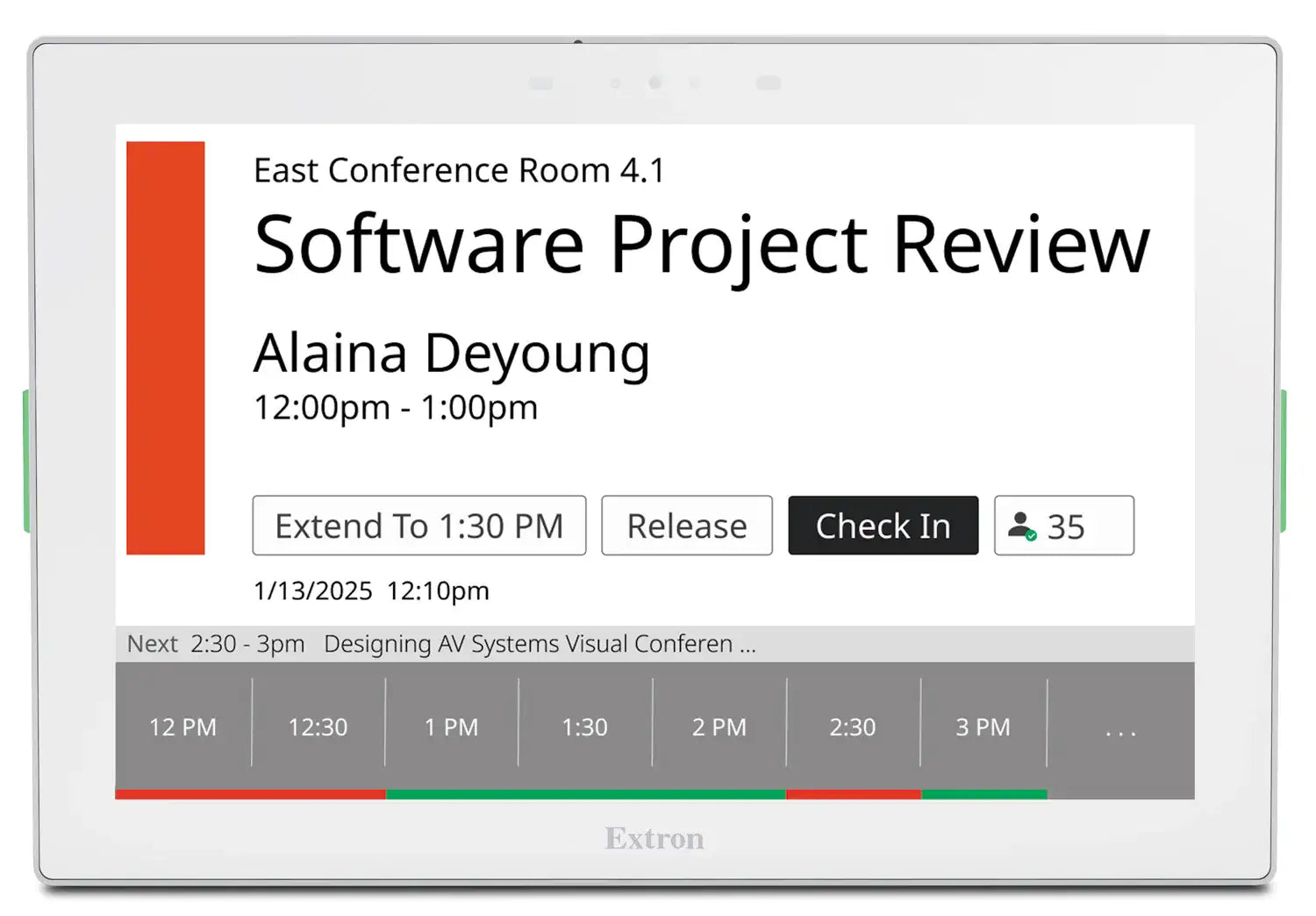

• View details of the meetings scheduled for the day directly from the TLS panel
• Ability to view meeting attendees for panels configured with Microsoft 365, Exchange, and Google
• Meetings scheduled as private will by default have the meeting details hidden for meetings scheduled with Microsoft® Exchange, Office 365™, and Google Calendar™
• Display up to 50 characters from the meeting body details for panels configured with Office 365™ and Microsoft® Exchange — The TLS can display up to 50 characters from the meeting body for any selected custom dropdown.
• Meeting Subject Line accommodates up to 2 lines of text
• Exchange auto-discovery streamlines system setup
• Power over Ethernet — PoE allows the TLS panel to receive power and communication over a single Ethernet cable, eliminating the need for a local power supply.
• All panel updates are conveniently handled through Room Agent
• Can be mounted in a two-gang junction box, or on a wall, lectern, or any flat surface, including glass

Specs

Also see our  Specs in PDF format

TLP Pro 1025M Series and TLS 1025M
Display
Screen type	TFT Active matrix Color LCD
Size	10.1" (25.7 cm), measured diagonally
Resolution	1280x800 (WXGA)
Pixel density	149 PPI
Aspect ratio	16:10
Color depth	24 bit, 16.7 million colors
Transparency	8 bit
Brightness	420 nits (cd/m2)
Contrast	800:1
Backlight	LED
Viewing angle	±85° horizontal, ±85° vertical
Touch screen	Capacitive
Memory
RAM	2 GB
Storage	8 GB
Ethernet
Connectors	1 female RJ-45 connector
Data rate	10/100/1000Base-T, half/full duplex with autodetect
Protocols	DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1x, SFTP, SSH, TCP/IP, UDP/IP
Default settings	Link speed and duplex level: autodetected IP address = 192.168.254.251 Subnet mask = 255.255.255.0 Default gateway = 0.0.0.0 DHCP = off DNS = 127.0.0.1
Software
TLP Pro 1025M
Configuration software	Global Configurator Plus and Professional, GUI Designer
Programming software	ControlScript Programming
Control apps	Extron Control
Resource management software	GlobalViewer Enterprise
Utilities	Toolbelt, Embedded web page
TLS 1025M
Configuration software	Room Agent
Sensors
Motion sensor	On/off
Light sensor	Auto/manual
USB
Quantity/type	1 high-speed USB 2.0 device
Connectors	1 micro-B receptacle
Standards	USB 2.0, USB 1.1, USB 1.0 compatible
Max. data rates	Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)
Digital input
Quantity/type	1 digital input (configurable)
Connectors	(1) 3.5 mm captive screw connector, 2 pole
Digital inputs
Input voltage range	0 to 24 VDC, clamped at +30 VDC
Input impedance	≥10k ohms
Programmable pullup	1k ohms to +5 VDC
Threshold low to high	2.8 VDC
Threshold high to low	2.0 VDC
Pin configuration	1 = Digital input, 1 = Gnd
Audio output
Speaker output	2 mono, 89 dB Max. SPL @ 0.1 m
Frequency response	750 Hz to 20 kHz, ±5 dB
Playback format(s)
Container format	WAV (Microsoft RIFF)
Encoding	LPCM (uncompressed)
Bit depth	Unsigned 8-bit Signed 16-bit Signed 24-bit Signed 32-bit
Sampling rate	Up to 192 kHz
Audio channels	Mono or stereo
General
Power supply	Not included
Power input requirements	Power over Ethernet (PoE 802.3af, class 3)
Power consumption — Power injector (XTP PI 100)
Device	12.9 watts
Device and power injector	14.7 watts
Auxiliary power output
USB	5 VDC, 275 mA
Ambient temperature/humidity	Storage: -4 to +140 °F (-20 to +60 °C) / 10% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing
Cooling	Convection, vents on back
Thermal dissipation — Power injector (XTP PI 100)
Device	39.3 BTU/hr
Device and power injector	45.3 BTU/hr
Mounting	Wall, furniture, glass, or rack
Enclosure type	Plastic
Enclosure dimensions	6.84" H x 10.13" W x 1.26" D (174 mm H x 257 mm W x 32 mm D) Touchpanel projects 0.65" (17 mm) from the mounting surface
Product weight	2.05 lbs (0.92 kg)
Regulatory compliance	BIS, CE, c-UL, UL, C-Tick, FCC Class A, ICES, KC, VCCI, RoHS, and WEEE.
Product warranty	3 years parts and labor; touchpanel display and overlay components are covered for 1 year
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
