Extron TLP Pro 725C 7″ Cable Cubby TouchLink Pro Touchpanel

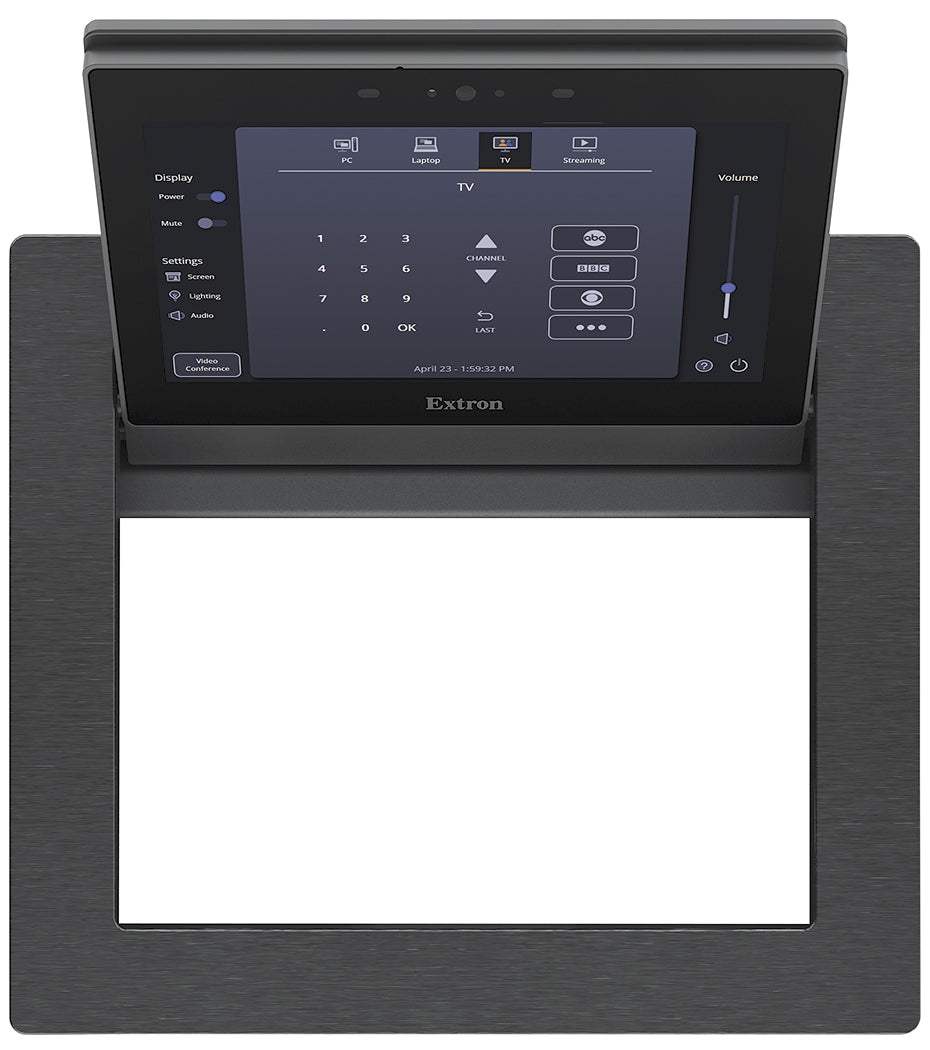

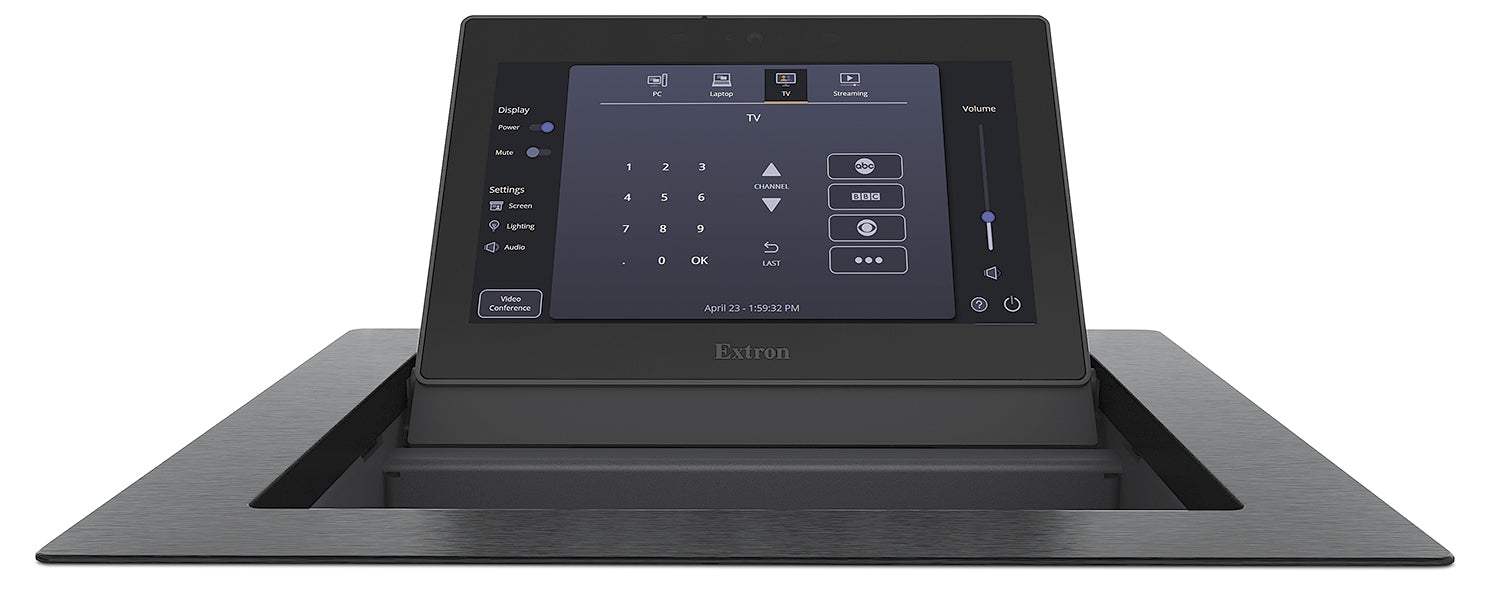

The TLP Pro 725C is a 7" Cable Cubby TouchLink^® Pro Touchpanel with a flip-up touchscreen in a Cable Access Enclosure. We redesigned this latest TouchLink Pro touchpanel inside and out with a high-performance quad-core processor, eight times more memory, and a high resolution, 1024x600 capacitive touchscreen built with scratch and smudge-resistant Corning^® Gorilla Glass^®. The TLP Pro 725C accommodates AC 100 Series and AC+USB AC power modules and Retractor cable retraction modules, AV cables, or AAP™ Connectivity Modules. For fast installation a simple, integrated clamp system quickly secures the enclosure to a furniture surface without the need for additional parts or tools.The TLP Pro 725C is ideal for AV applications requiring both AV connectivity and a customizable touchpanel interface.

The TLP Pro 725Cworks with any Extron control processor and HC 400 Series system and is designed for use in AV system applications that require complete, interactive control of a broad range of source devices. TouchLink Pro touchpanels operate using standard network infrastructure and are easy to install with reliable and cost effective Ethernet cable.

All TouchLink Pro touchpanels can be customized using Extron GUI Designer software. This powerful interface design software offers ready-to-use templates for a wide variety of rooms and presentation environments. These designs may be used as is, or customized for the application by simply changing individual graphic elements.

Transform this Touchpanel into an All-in-One Pro xi Series Control System

Extron LinkLicense for TLP Control Processor is a powerful, easy way to turn your TouchLink Pro touchpanel into a full-featured, standalone Pro xi Series control system. With this LinkLicense, you can control your AV devices via Ethernet directly from the Ethernet port on the touchpanel. And, by adding the optional TLCA 1 TouchLink Control Port Expansion Adapter, you can control a broad range of system devices directly from the touchpanel using the variety of ports on the control adapter.

The Extron TLCA 1 is a TouchLink Control Port Expansion Adapter designed to add traditional control ports to your touchpanel installed with a LinkLicense for TLP Control Processor. It features two bidirectional serial ports, one digital input, one IR port, and two relays for control of sources, directly at the touchpanel.

Features

• 7" capacitive flip-up touchscreen with 1024x600 resolution and 24-bit color depth — Vibrant edge-to-edge glass display with a more responsive control surface.
• Gorilla Glass® screen is tough, scratch, and smudge-resistant — Corning Gorilla Glass is stronger and more scratch-resistant than standard glass, while maintaining touch sensitivity, color saturation, and brightness.
• Faster, quad-core processing and eight times more memory — Drastically-enhanced response and overall user experience.
• Works with any Extron control processor and HC 400 Series system
• Transform your touchpanel into an all-in-one Pro xi Series control system using LinkLicense for TLP Control Processor and the TLCA 1 TouchLink Control Port Expansion Adapter — Supports up to four Ethernet-controllable devices using GC Plus and eight using GC Pro.
• Power over Ethernet provides power and communication over a single Ethernet cable
• Built-in speaker — Provides audible feedback from button presses.
• Light sensor adjusts screen brightness as the ambient room lighting changes

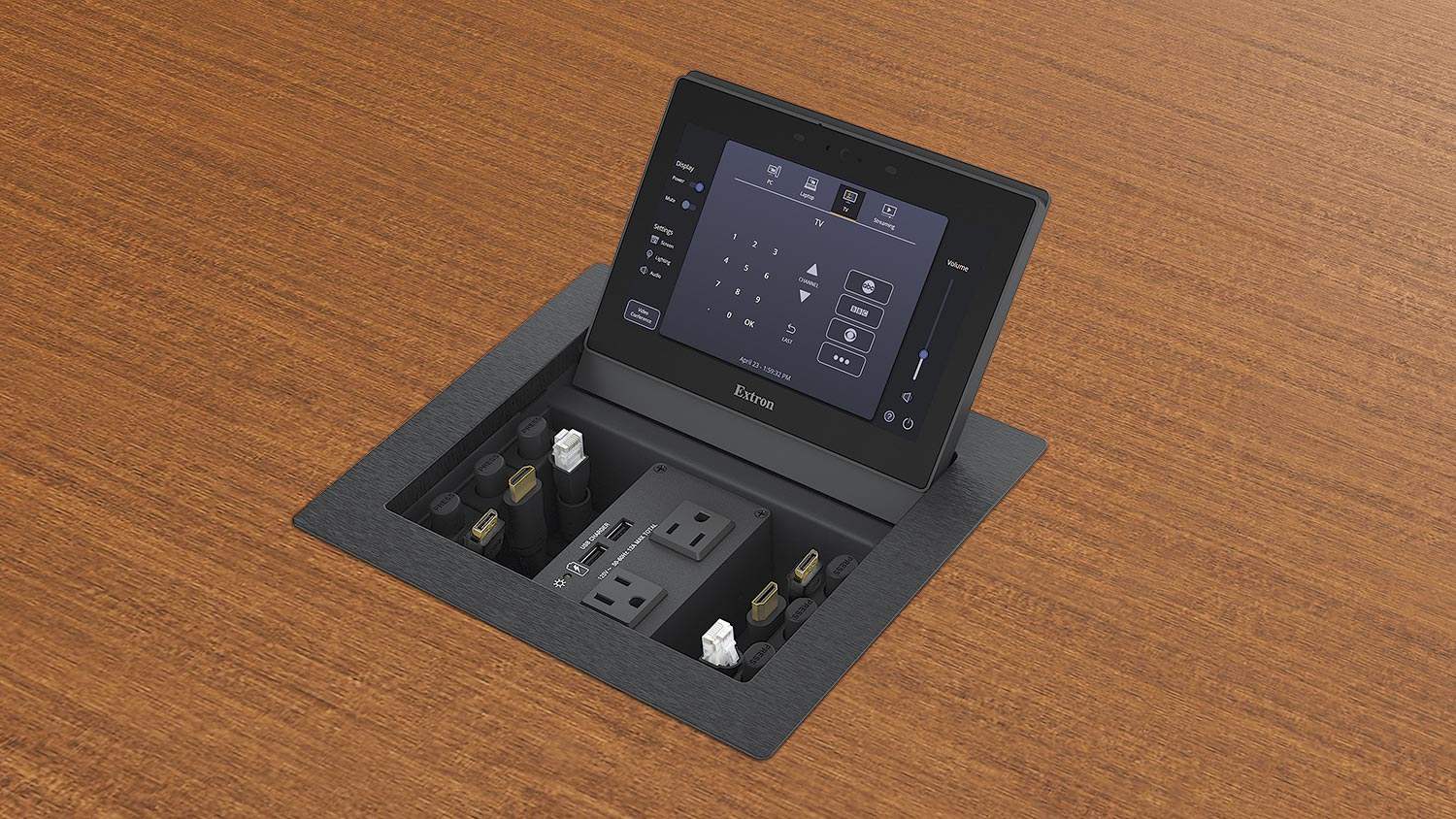

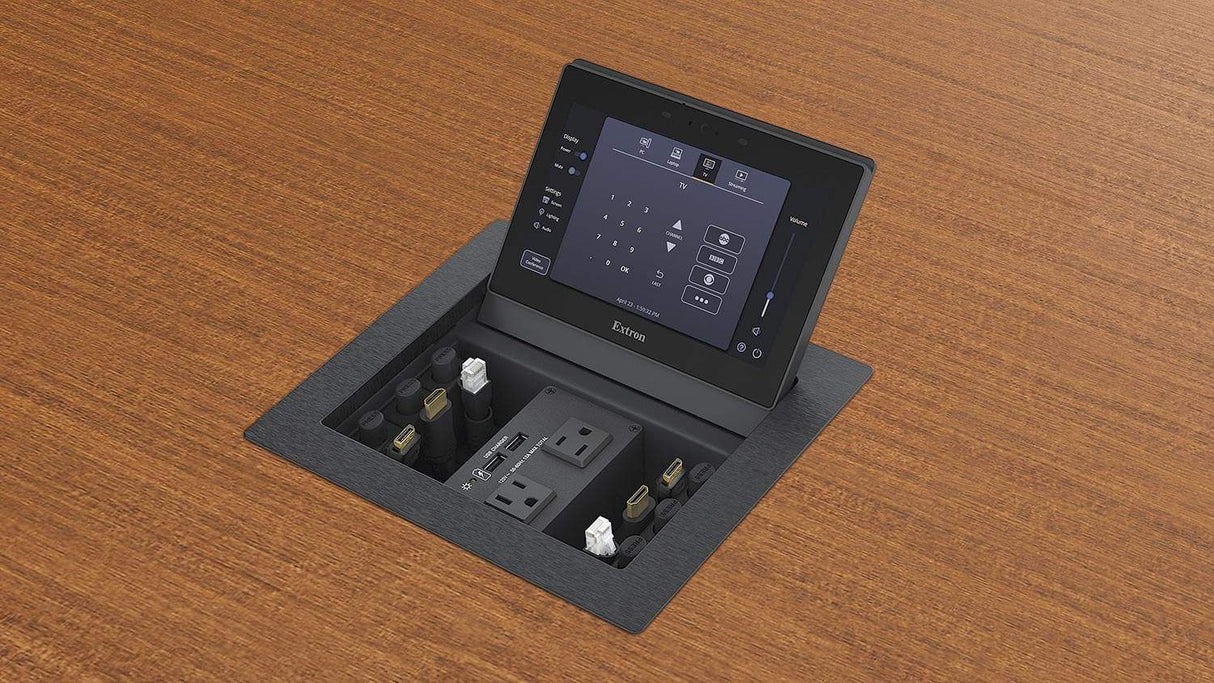

• Cable Cubby cable access enclosure design offers easy access to AV, data, and power connections —

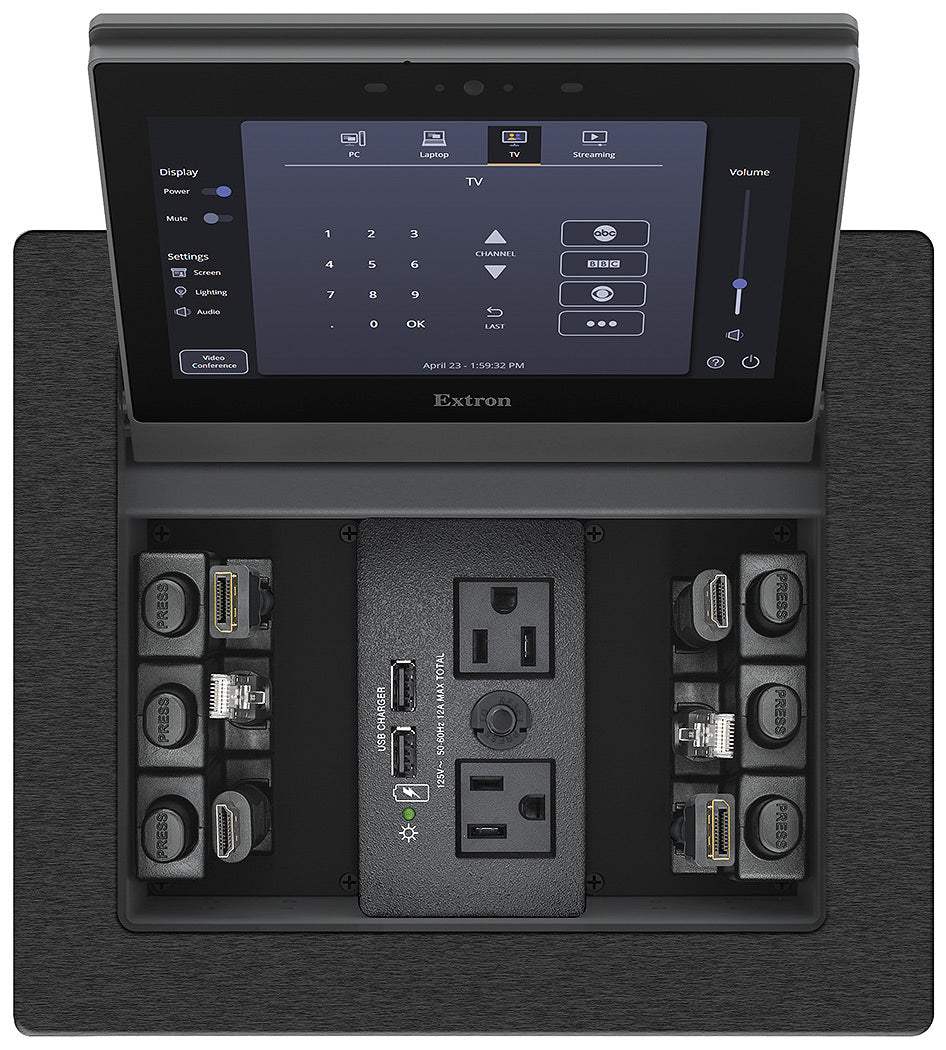

  • Accommodates Cable Cubby AC+USB power module, plus three Retractors, eight AV cables, and/or three AAP™ AV Connectivity Modules per bracket
  • AC Power and AC+USB power modules are available for US, Europe, and other major world markets
  • Optional Retractor cable retraction system supports most AV, data, and power
  • Included Cable Cubby Connectivity Bracket Kits provide additional flexibility when configuring Cable Cubby cable access enclosures
• Patented modular design for fast assembly and serviceability — AV connectivity can be installed or serviced from the top of the enclosure after it is installed.
• Compatible with Show Me^® Cables — Show Me cables provide convenient connectivity and user input selection and control for Collaboration Systems.
• System connection status indicator provides visual feedback if the touchpanel is not communicating with a control processor
• High speed USB 2.0 port — For future expansion.
• Automatic clock synchronization allows touchpanel to display the accurate time and date
• Integrated lid switch automatically wakes the touchpanel when opened and can trigger any other system function
• Adjustable sleep timer puts touchpanel into sleep mode
• TLP Pro 725C enclosure is UL/c-UL listed and CE compliant

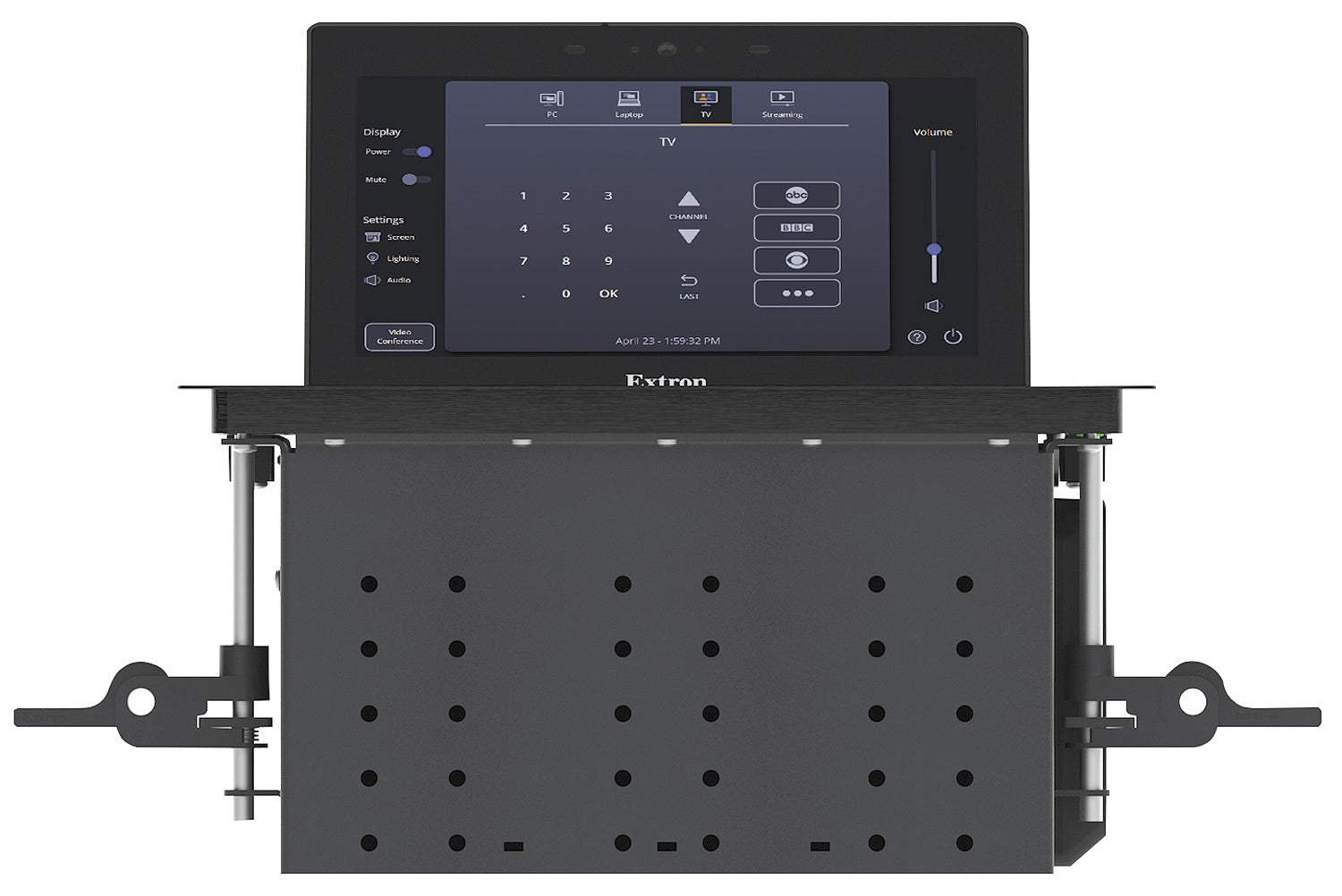

• Integrated side clamps secure enclosure to the furniture surface — Cable Cubby can be secured in place without additional parts or tools.
• Top surface is available in a black anodized finish
• Installation routing template available
• Cable Cubby Builder is available at www.extron.com/cablecubbybuilder — Intuitive online tool for enclosure selection, pricing, and cable and connectivity selection.
• Manage, monitor, and control this device remotely using GVE - GlobalViewer Enterprise Resource Management software
• Fully customizable using Extron control system software — GUI Designer combined with Global Configurator Plus, Global Configurator Professional, or ControlScript programming.
• Contemporary design that complements the aesthetics of any environment
• JITC Certified — Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.

Specs

Also see our   Specs in PDF format

TLP Pro 725C Series
Display
Screen type	TFT Active matrix color LCD
Size	7" (17.8 cm), measured diagonally
Resolution	1024x600 (WSVGA)
Pixel density	170 PPI
Aspect ratio	17:10
Color depth	24 bit, 16.7 million colors
Transparency	8 bit
Brightness	420 nits (cd/m2)
Contrast	700:1
Backlight	LED
Viewing angle	±75° horizontal, +70°/-75° vertical
Touch screen	Capacitive
Memory
RAM	2 GB
Storage	8 GB
Ethernet
Connectors	1 female RJ-45 connector
Data rate	10/100/1000Base-T, half/full duplex with autodetect
Protocols	DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1x, SFTP, SSH, TCP/IP, UDP/IP
Default settings	Link speed and duplex level: autodetected IP address = 192.168.254.251 Subnet mask = 255.255.255.0 Default gateway = 0.0.0.0 DHCP = off DNS = 127.0.0.1
Software
Configuration software	Global Configurator Plus and Professional, GUI Designer
Programming software	ControlScript Programming
Control apps	Extron Control
Resource management software	GlobalViewer Enterprise
Utilities	Toolbelt, Embedded web page
Sensors
Motion sensor	On/off
Light sensor	Auto/manual
Lid switch	Open/closed
USB
Quantity/type	1 high-speed USB 2.0 device
Connectors	1 USB type A connector
USB standards	USB 2.0, USB 1.1, USB 1.0 compatible
USB data rates	Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)
Audio output
Speaker output	1 mono, 89 dB Max. SPL @ 0.1 m
Frequency response	750 Hz to 20 kHz, ±5 dB
Playback format(s)
Container format	WAV (Microsoft RIFF)
Encoding	LPCM (uncompressed)
Bit depth	Unsigned 8-bit Signed 16-bit Signed 24-bit Signed 32-bit
Sampling rate	up to 192 kHz
Audio channels	mono or stereo
General
Power supply	Not included
Power input requirements	Power over Ethernet (PoE 802.3af, class 3)
Power consumption — Power injector (XTP PI 100)
Device	8.6 watts
Device and power injector	11.4 watts
Auxiliary power output
USB	5 VDC, 275 mA
Ambient temperature/humidity	Storage: -4 to +140 °F (-20 to +60°C) / 5% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 20% to 90%, noncondensing
Cooling	Convection
Thermal dissipation — Power injector (XTP PI 100)
Device	24.5 BTU/hr
Device and power injector	34.0 BTU/hr
Mounting	Table mount
Enclosure type	Metal
Enclosure dimensions
ATTENTION     Use the appropriate metal Extron routing template or refer to the surface cutout dimensions here before cutting a hole in the furniture or other surface. Pay special attention to the direction the unit will face; the unit's connector access side is underlined. Extron is not responsible for miscut mounting holes.
Top plate (outer rim)	9.44" W x 8.29" D  (240 mm W x 211 mm D)
Surface cutout (inside rim)	8.90" W x 7.10" D (226 mm W x 180 mm D)
Box (under surface)	4.68" H x 12.71" W (front/rear of unit) x 7.00" D with clamps (119 mm H x 323 mm W x 178 mm D with clamps)
Product weight	5.85 lbs (2.65 kg)
Regulatory compliance	BIS, CE, C-Tick, c-UL,FCC Class B, ICES, NOM, RoHS, UL, VCCI, WEEE
Product warranty	3 years parts and labor; touchpanel display and overlay components are covered for 1 year
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(6240-D5)
