Extron TLP Pro 1230WTG 12” Ultra-wide Tabletop TouchLink Pro Touchpanel

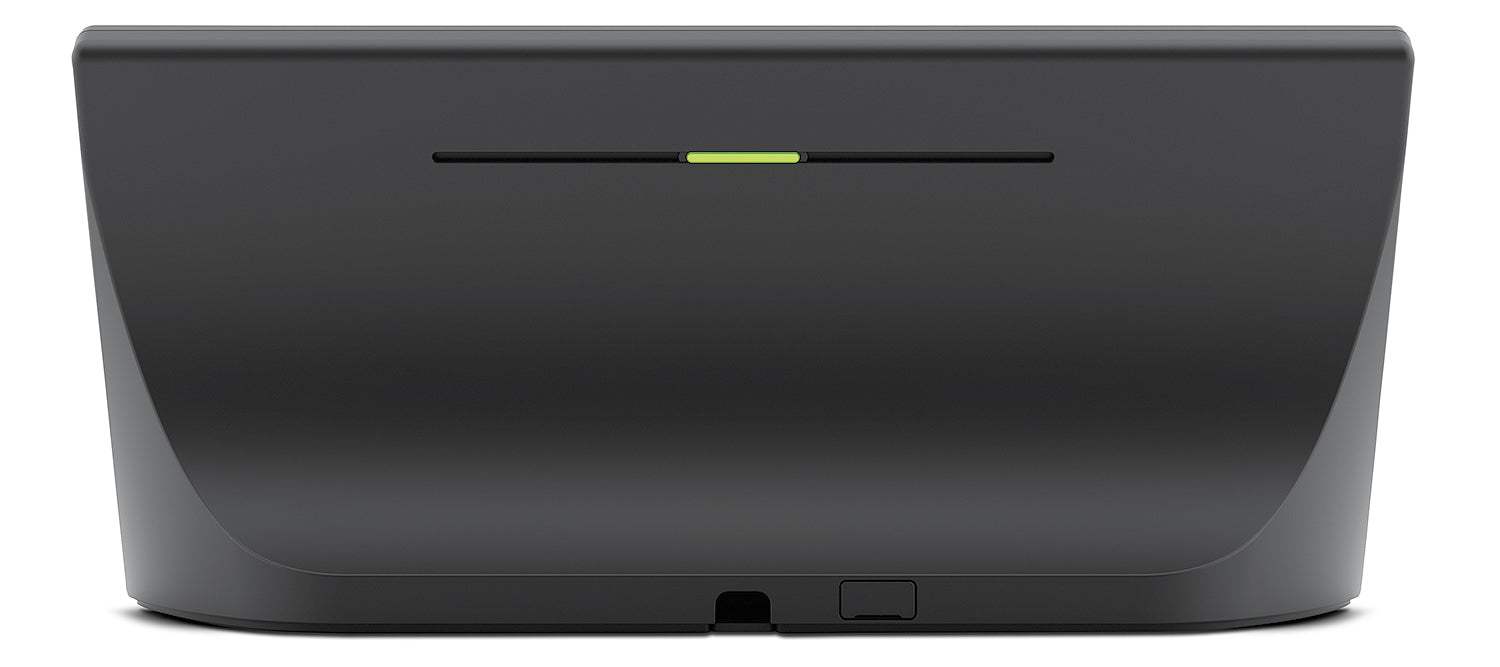

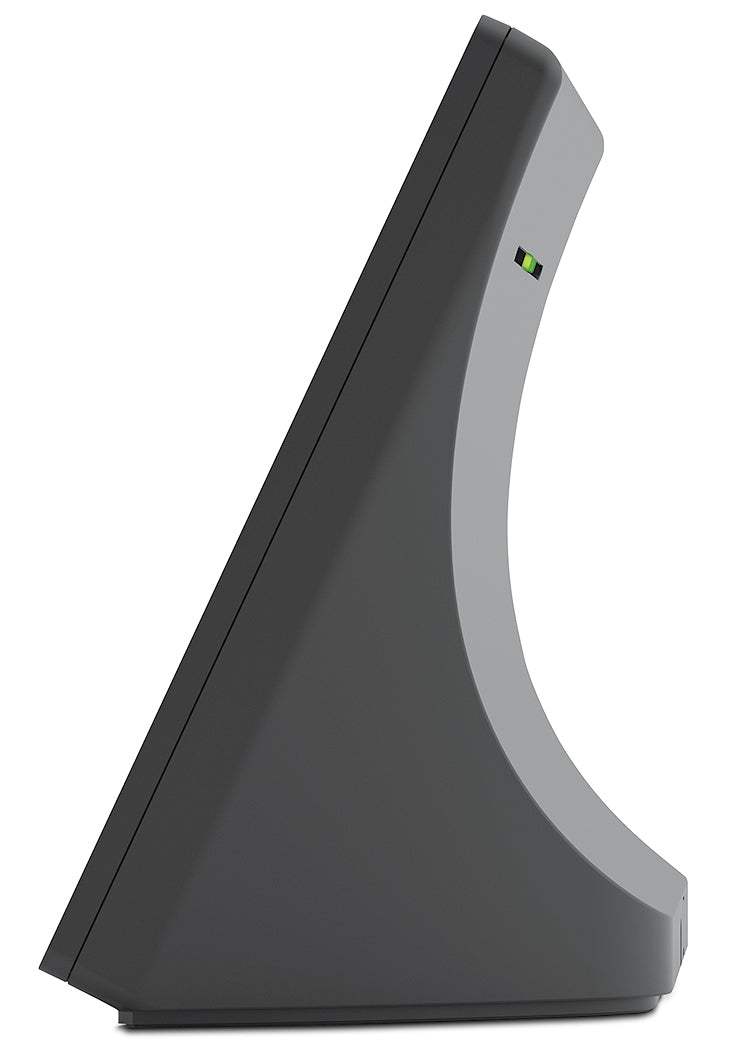

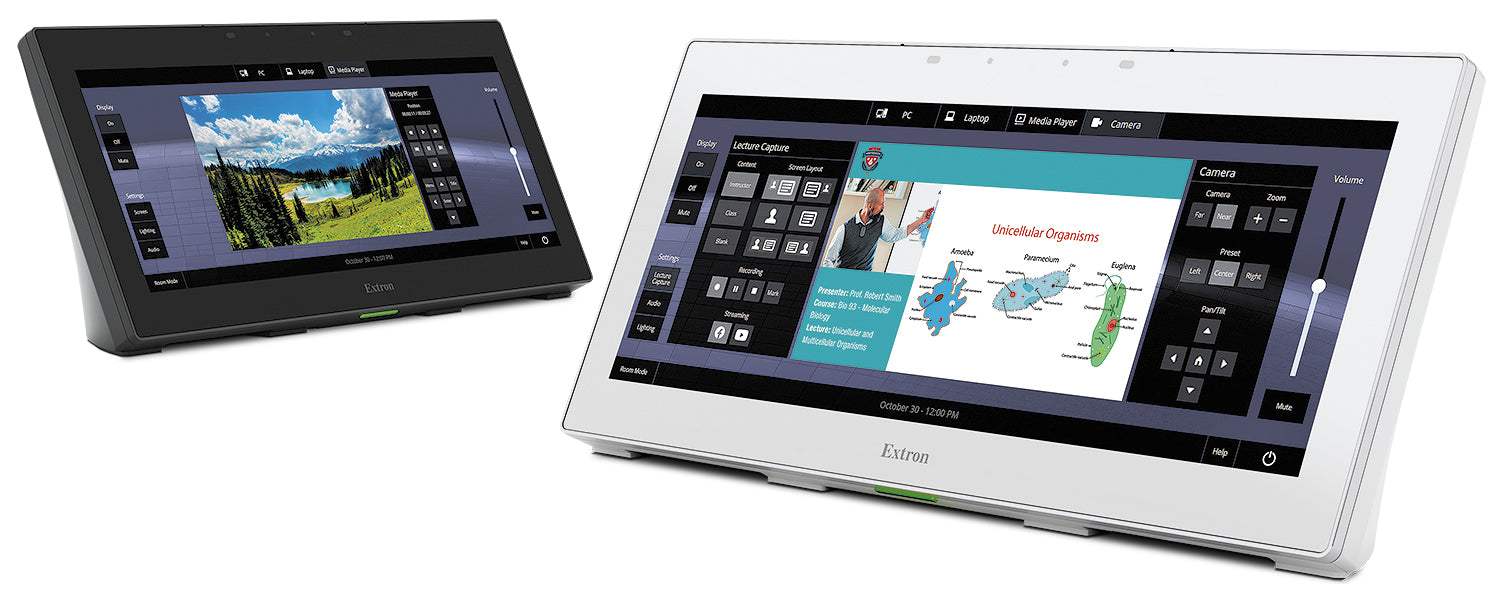

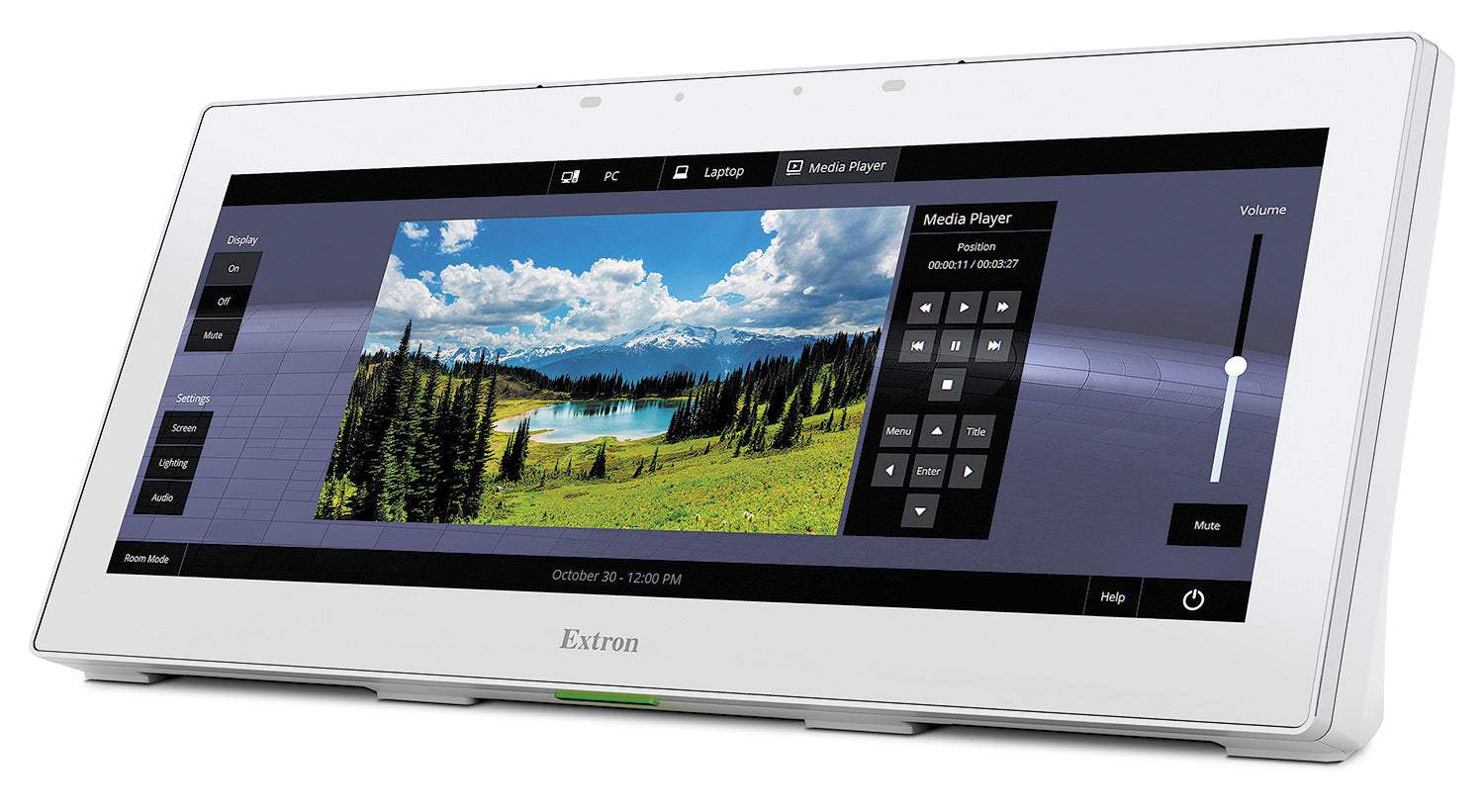

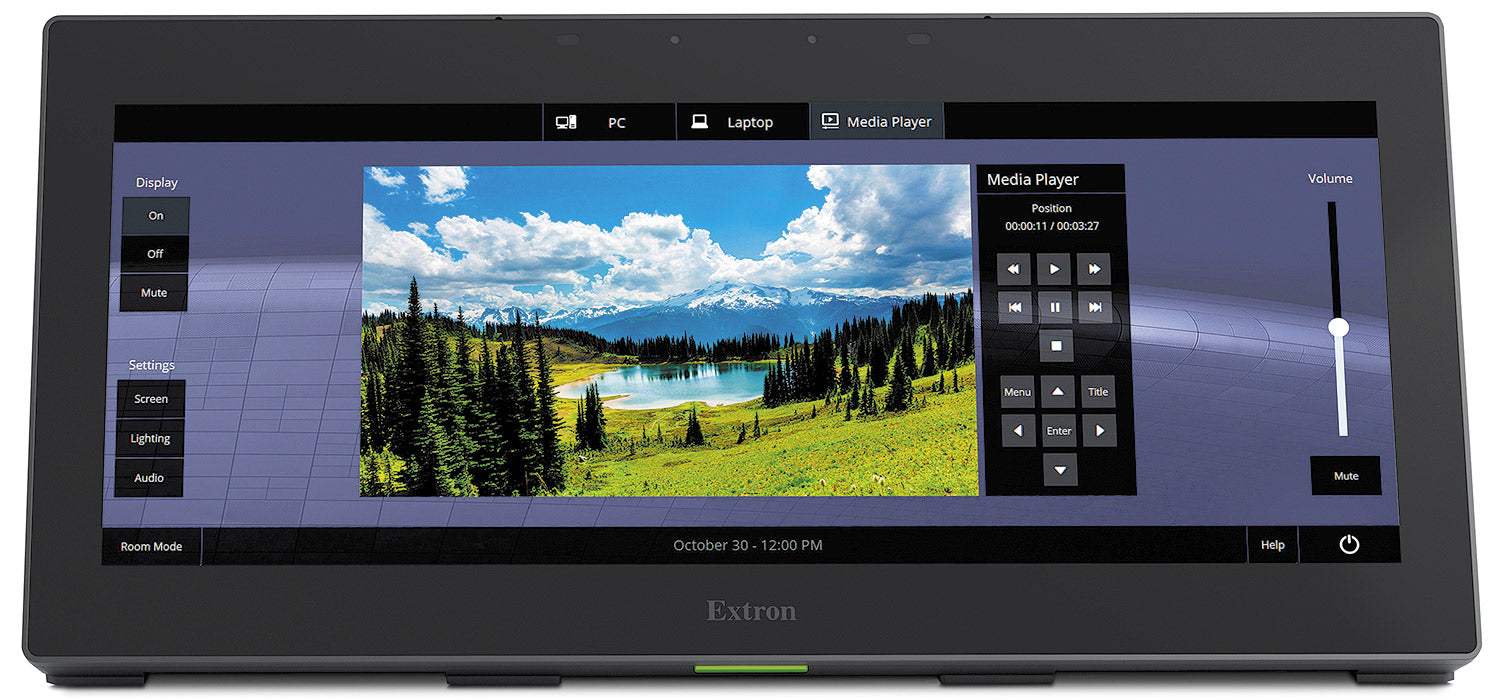

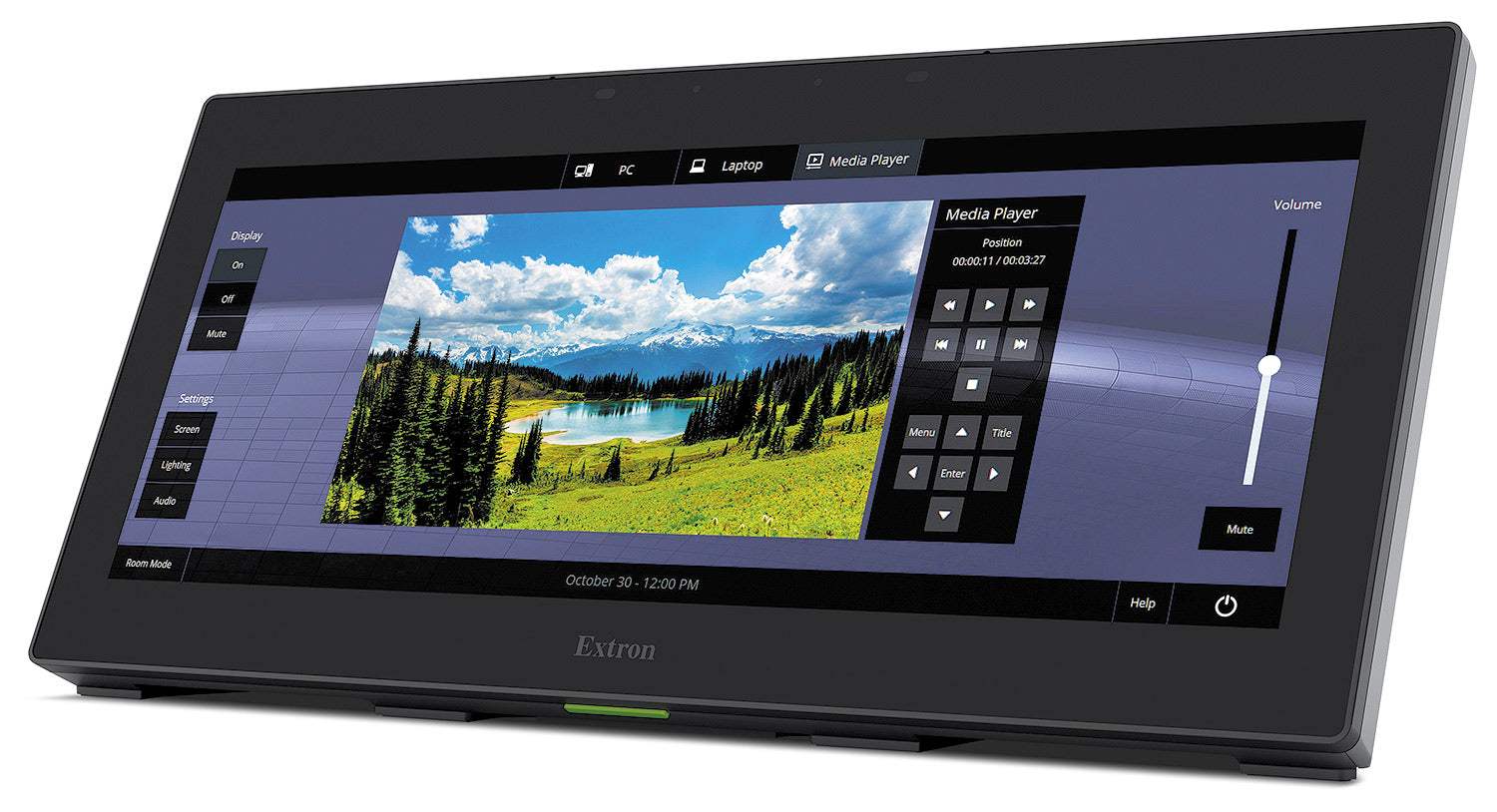

The Extron TLP Pro 1230WTG is a 12" ultra-wide tabletop touchpanel with a capacitive, edge-to-edge glass touchscreen. The ultra-wide screen improves user experiences by allowing multiple tasks to be seen and managed on a single screen. The 1920x720 resolution touchscreen is built with scratch and smudge-resistant Corning® Gorilla Glass®. This touchpanel offers complete control of video, audio, lighting, shades, HVAC, security, and other systems within virtually any environment. The TLP Pro 1230WTG features HDMI video preview input that supports high resolution HDCP-compliant video from an HDMI source. Its sleek, low-profile design minimizes visual obstructions and improves collaboration engagement in a wide variety of applications.

The TLP Pro 1230WTG works with any Extron control processor and HC 400 Series system and is designed for use in AV system applications that require complete, interactive control of a broad range of source devices. TouchLink Pro touchpanels operate using standard network infrastructure and are easy to install with reliable and cost-effective Ethernet cable.

Features

• 12” ultra-wide capacitive touchscreen with 1920x720 resolution and 24-bit color
• Gorilla Glass® screen is tough, scratch and smudge-resistant — Optically-bonded Corning Gorilla Glass is stronger and more scratch-resistant than standard glass, while maintaining touch sensitivity, color saturation, and brightness.
• PoE+ compatible — Product is powered directly by a PoE+ switch or injector, eliminating the need for bulky local power supplies.
• Ultra-fast quad-core processor — Faster processing power enables faster graphics rendering, quicker page loads, and overall runtime performance improvement.
• Full-motion video preview with a direct HDMI input — Eliminates the need for a separate preview monitor.
• Auto Brightness — Adjusts screen brightness as the ambient room lighting changes.
• Configurable red and green status light indicate a room's availability or call status
• 2GB RAM — Allows larger, more complex projects to run on the panel
• Built-in speakers provide stereo audio — For video preview and audible feedback from button presses.
• Works with any Extron control processor and HC 400 Series system
• System connection status indicator provides visual feedback if the touchpanel is not communicating with a control processor
• USB 2.0 port — For future expansion.
• Automatic clock synchronization allows touchpanel to display the accurate time and date
• Energy-saving features:
  - Adjustable sleep timer puts touchpanel into sleep mode
  - Motion detector wakes touchpanel
• Manage, monitor, and control this device remotely using GVE - GlobalViewer Enterprise Resource Management software
• Fully customizable using Extron control system software — GUI Designer combined with Global Configurator Plus, Global Configurator Professional, or ControlScript programming.
• Supports the optional SMA-2 Swivel Mount Adapter — Provides access to multiple users from a single location while securing the panel to the table.

Specs

Also see our  Specs in PDF format

TLP Pro 1230WTG
Display
Screen type	TFT Active matrix color LCD
Size	12.3" (312 mm), measured diagonally
Resolution	1920x720
Pixel density	166 PPI
Aspect ratio	Ultrawide (8:3)
Color depth	24-bit, 16.7 million colors
Transparency	8 bit alpha channel
Brightness	720 nits (cd/m2)
Contrast	1100:1
Backlight	LED
Viewing angle	±85° horizontal, ±85° vertical
Touch screen	Capacitive
Memory
RAM	2 GB
Storage	8 GB
Video input
Quantity/type	1 HDMI (HDCP compliant)
Connectors	1 female HDMI type A
Maximum pixel clock	165 MHz
Horizontal frequency	15 kHz to 135 kHz
Vertical frequency	24 Hz to 75 Hz
Resolution range	640x480 @ 60 Hz through 1920x1200 @ 60 Hz includes 480p, 576p, 720p, 1080p, and 2K
NOTE     Interlaced sources are not supported.
Standards	DVI 1.0, HDMI 2.0, HDCP 1.4
Video processing
HDMI pixel data bit depth	8, 10, or 12 bits per channel; 165 MHz pixel clock
Colors	1.07 billion (10 bit processing with full 4:4:4 sampling)
Ethernet
Connectors	1 female RJ-45 connector
Data rate	10/100/1000Base-T, half/full duplex with autodetect
Protocols	DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, SFTP, SSH, TCP/IP, UDP/IP
Default settings	Link speed and duplex level: autodetected IP address = 192.168.254.251 Subnet mask = 255.255.255.0 Default gateway = 0.0.0.0 DHCP = off DNS = 127.0.0.1
Software
Configuration software	Global Configurator Plus and Professional, GUI Designer
Programming software	ControlScript Programming
Control apps	Extron Control
Resource management software	GlobalViewer Enterprise
Utilities	Toolbelt, Embedded Web page
Sensors
Motion sensor	On/off
Light sensor	Auto/manual
USB
Quantity/type	1 high-speed USB 2.0
Connectors	1 USB type A receptacle
USB standards	USB 2.0, USB 1.1, USB 1.0 compatible
USB data rates	Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)
Audio output
Speaker output	2 Stereo, 90 dB Max. SPL @ 0.1m
Frequency response	300 Hz to 20 kHz, ±5 dB
Playback format(s)
Container format	WAV (Microsoft RIFF)
Encoding	LPCM (uncompressed)
Bit depth	Unsigned 8-bit, Signed 16-bit, Signed 24-bit, Signed 32-bit
Sampling rate	Up to 192 kHz
Audio channels	Mono or stereo
General
Power supply	Not included
Power input requirements	Power over Ethernet (PoE+ 802.3at)
Power consumption — Power injector (PI 140)
Device	17.4 watts
Device and power injector	20.7 watts
Auxiliary power output
USB	5 VDC, 275 mA
Ambient temperature/humidity	Storage: -4 to +158 °F (-20 to +70 °C) / 5% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing
Cooling	Convection, vents on back
Thermal dissipation — Power injector (PI 140)
Device	58.5 BTU/hr
Device and power injector	69.5 BTU/hr
Mounting	Set on tabletop
Enclosure type	Plastic
Enclosure dimensions	5.8" (147 mm) H x 12.91" (328 mm) x 3.60 (92 mm)
Product weight	4.50 lbs (2.04 kg)
Regulatory compliance	CE, C-Tick, FCC Class B, ICES, VCCI, c-UL, UL, RoHS, and WEEE
Product warranty	3 years parts and labor; touchpanel display and overlay components are covered for 1 year
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(6311-D4)
