Extron SMK 3 Surface Mount Kit for TLP Pro 1025M and TLS 1025M

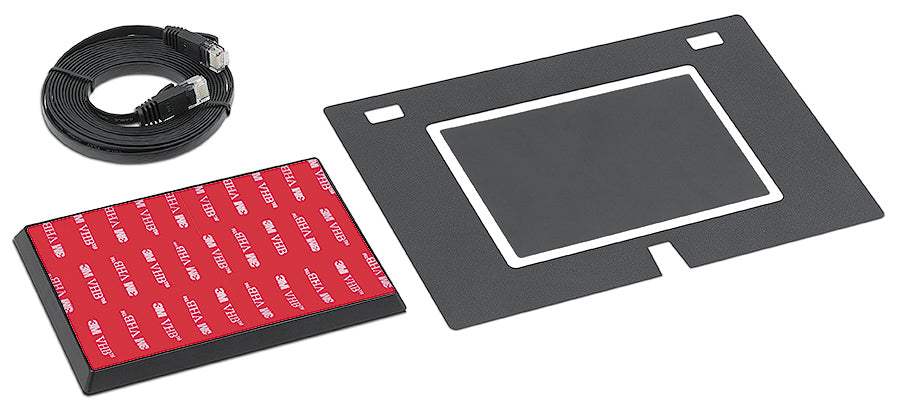

The Extron SMK 3 is a surface mount kit specifically designed for the TLP Pro 1025M and TLS 1025M. It allows either touchpanel to be mounted securely on a wall or other flat surface, including glass. From outside the room, the low-profile design of the SMK 3 maintains the sleek, stylish appearance of the touchpanel; while inside, the included glass overlay provides a clean discreet look. The SMK 3 includes a number of mounting accessories that aid in installation.
Features
- Used to securely mount a TLP Pro 1025M or TLS 1025M on a wall or other flat surface, including glass
- Kit includes black, pre-adhered adhesive and paper template to simplify alignment and installation
- Special design allows the LED lights on either side of touchpanel to still be visible after mounting
- Includes a glass-adhered overlay that provides a clean, inconspicuous appearance from inside the room
- Includes four knock-outs for convenient and discreet Ethernet cable pass-thru
- Flat Ethernet cable included, 10.0’ x 0.29” x 0.10” (3.1m x 7.4mm x 2.6mm)
Specs
Also see our Specs in PDF format
| SMK 3 | |||
| General | |||
|---|---|---|---|
| |
Mounts to glass, masonry, and other flat surfaces | ||
| |
 |
||
| |
4.08" H x 5.93" W x 0.34" D (104 mm H x 151 mm W x 8.6 mm D) |
||
| |
0.09 lbs (0.04 kg) | ||
| |
High impact plastic | ||
| |
CE, RoHS, WEEE | ||
| |
3 years parts and labor | ||
|
|||
| (4286-D1) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 70-1140-32 | 1.0" (2.5 cm) | 8.0" (20.3 cm) | 10.0" (25.4 cm) | 0.44 lbs (0.2 kg) |
| 70-1140-33 | 1.0" (2.5 cm) | 8.0" (20.3 cm) | 10.0" (25.4 cm) | 0.44 lbs (0.2 kg) |
