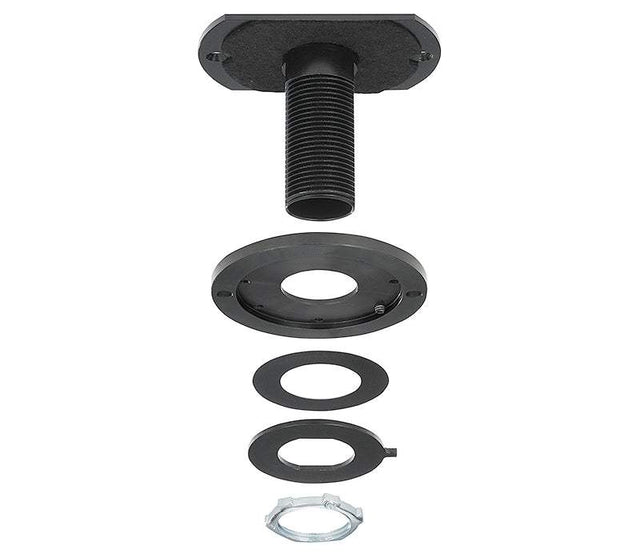

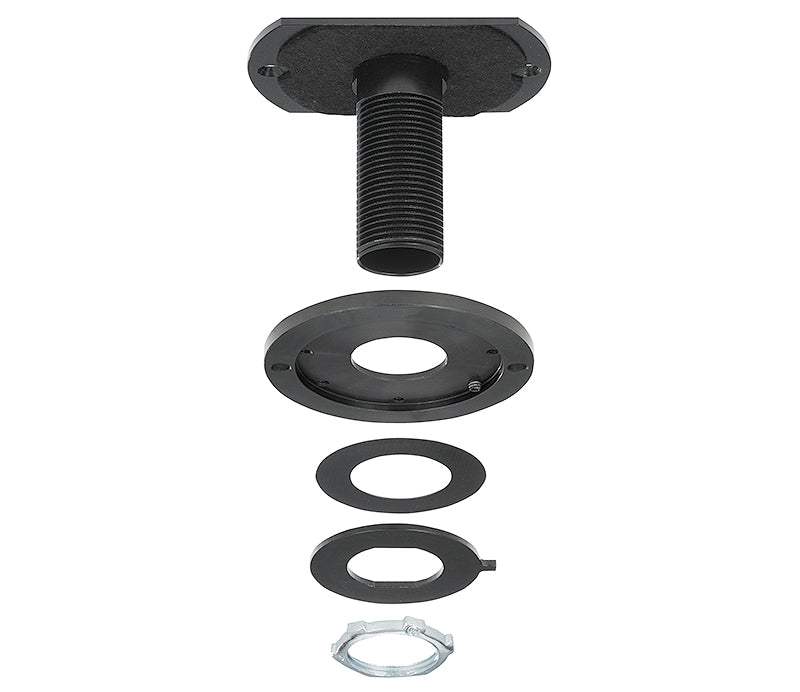

Extron SMA-2 Swivel Mount Adapter
The SMA-2 Swivel Mount Adapter is designed for use with the TLP Pro 525T, TLP Pro 725T, and TLP Pro 1025T. When mounted on the SMA-2, a TouchLink touchpanel easily rotates for easy viewing and access for multiple users. The SMA-2 provides multiple stop points so the installer can precisely determine the degree of rotation for easy access and prevention of cable strain and tangling. The SMA-2 elevates the tabletop touchpanel slightly to prevent wear and damage to the surface on which it is mounted.
Features
- Provides swivel capability for the TLP Pro 525T, TLP Pro 725T, and TLP Pro 1025T TouchLink Pro touchpanels
- Multiple stopping points allow the installer to determine the amount of rotation
- Provides access to multiple users from a single location
- Elevates the tabletop touchpanel to prevent wear and damage to the surface on which it is mounted
Specs
Also see our Specs in PDF format
| SMA-2 | |||
| General | |||
|---|---|---|---|
| |
|||
| |
Flat surface mountable | ||
| |
The SMA-2 can be rotated horizontally ±180° from the installed position | ||
| |
Metal | ||
| |
Minimum: 0.75" (1.91 cm) Maximum: 1.5" (3.81 cm) |
||
| |
2.40" H x 3.40" diameter (6.09 cm H x 8.64 cm diameter) |
||
| |
 |
||
| |
0.63 lb (0.28 kg) | ||
| |
ISTA 1A in carton (International Safe Transit Association) | ||
| |
|||
| |
Complies wih the appropriate requirements of RoHS, WEEE | ||
| |
3 years parts and labor | ||
|
|||
|
|||
| (8.1-020717-D1) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 70-1138-02 | 2.88" (7.3 cm) | 6.5" (16.5 cm) | 4.0" (10.2 cm) | 0.8 lbs (0.36 kg) |
