Extron SF 26PT 6.5" Two-Way Pendant Speaker, Pair - Black

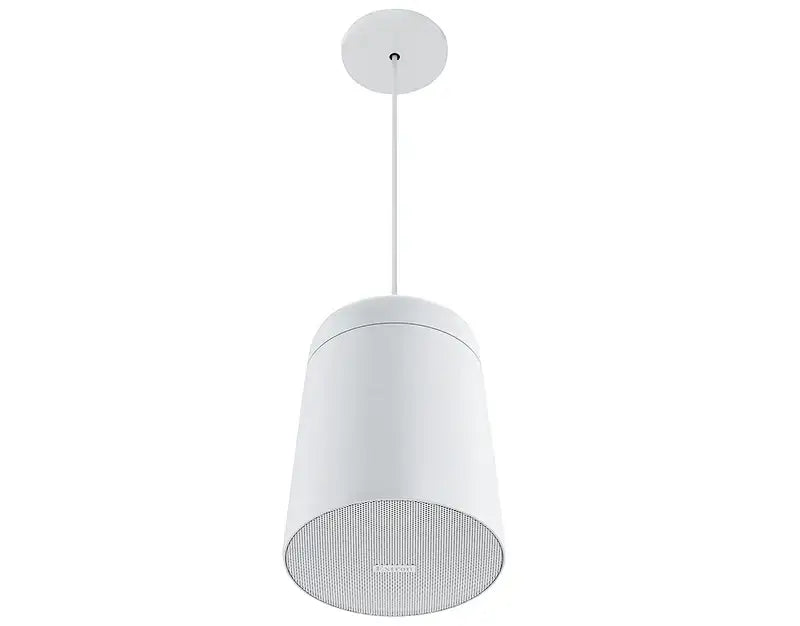

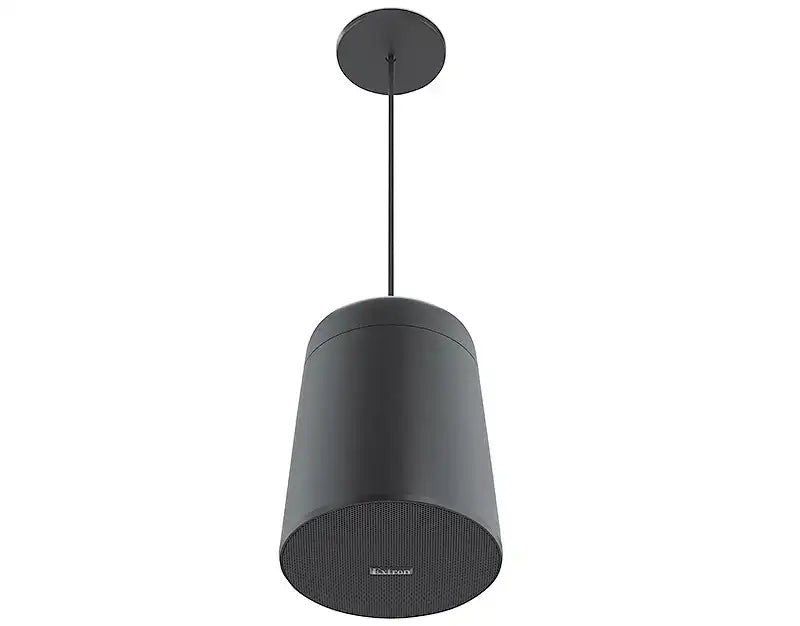

The Extron SF 26PT is a two-way pendant loudspeaker for high performance program or music playback in high-ceiling and open-ceiling applications. Taking inspiration from modern pendant lighting, the SF 26PT offers an architecturally clean, patent pending design that complements the aesthetic of contemporary interiors. The SF 26PT is available in black or white and is paintable to fit in with any décor. The included Extron-exclusive PendantConnect™ speaker cable combines the speaker wires and steel support cables within a single outer jacket, providing a finished installation that is clean and secure. The UL listed SF 26PT offers both direct 8 ohm and 70/100 volt operation and is voiced similarly to the Extron SF 26CT for consistency and installation flexibility in mixed ceiling environments.

The 6.5” (165 mm) two-way pendant loudspeaker provides a wide and smooth frequency range of 70 Hz to 20 kHz. The two-way design offers exceptional audio quality for applications where premium sonic performance is required. With a power rating of 130 watts continuous program, this speaker delivers the performance needed in larger spaces and music reproduction applications.

The Pendant Speaker That Blends In

With the introduction of the SF 26PT, Extron has taken pendant speaker design in a new direction. Offering clean lines and concealed wiring connections, the SF26PT has an elegant profile that blends into the background alongside contemporary pendant lighting fixtures.

Architects and designers will appreciate how these unobtrusive pendant speakers complement the design aesthetic in a variety of modern spaces, without requiring modifications to existing structure.

Integrator-Friendly

The SF 26PT pendant speaker comes with everything needed for a finished installation, including 30 feet (9.1 m) of PendantConnect PCC-2 speaker cable, an Extron exclusive hybrid cable design incorporating the speaker wires and two steel support cables into a single outer jacket for a clean installation with only a single visible cable. Like the speaker itself, PendantConnect speaker cable is paintable.

Voicing Consistency

The SF 26PT is voiced consistently with the Extron SF 26CT ceiling speaker to ensure smooth sonic transitions in applications when the listener moves between drop-ceiling and open-ceiling areas.

Features

• 6.5" (165 mm) long throw woofer
  3/4" (19 mm) ferrofluid-cooled dome tweeter
• Frequency range: 70 Hz to 20 kHz
• 8 ohm direct or 70/100 volt operation —
  • 8 ohm direct
  • 70 volt: 64, 32, 16, and 8 watt selectable
  • 100 volt: 64, 32, and 16 watt selectable
• 95° conical dispersion — 1 kHz to 4 kHz
• 65 watts continuous pink noise
  130 watts continuous program
• Architecturally clean, unobtrusive design using Extron exclusive PendantConnect speaker cable — Blends in well with contemporary pendant lighting fixtures for an aesthetically pleasing appearance. Includes 30' (9.1 m) length of PendantConnect PCC-2 speaker cable per pair
• Similar voicing to the Extron SF 26CT ceiling speaker — Allows smooth sonic transitions when using SF 26PT and SF 26CT speakers in mixed ceiling applications

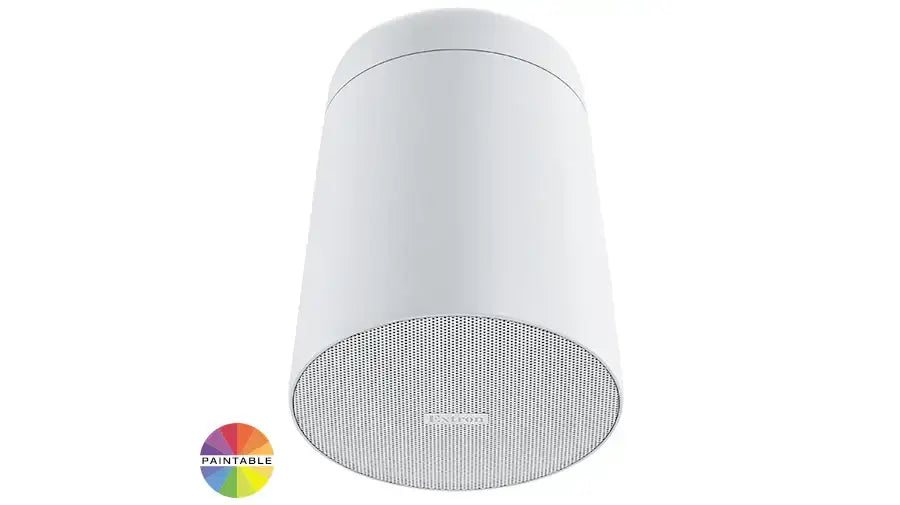

• Available in black or white and is paintable to fit in with any décor
• UL 1480A listed for safety
• Optional 30 foot (9.1 m) length of PendantConnect PCC-2 speaker cable —
  • Black: Part # 26-730-30
  • White: Part # 26-731-30
• Optional 500 foot (152 m) spool of PendantConnect PCC-2 speaker cable —
  • Black: Part # 22-274-02
  • White: Part # 22-275-02
• Optional Ceiling Surface Mount Kits — Used to surface mount an SF 26PT with a ceiling electrical box.
  • Black: Part # 70-1251-02
  • White: Part # 70-1251-03
• Optional Speaker Aircraft Cable kits — Used to reduce lateral movement, when required by local seismic codes, and when suspending the speaker between ceiling beams.
  • 2-pack: 70-1250-02
  • 4-pack: 70-1250-04
• 5-year parts and labor warranty

SF 26PT
Audio/acoustic and electrical
Speaker type	Pendant speaker with plastic back can
Frequency range	70 Hz to 20 kHz, -10 dB, full space (per IEC 80268-5)
Power capacity	65 W (rms) continuous pink noise 130 W (rms) continuous program
Rated maximum input voltage (MIV)	17.8 V (52 W at 6 ohms) (per AES2-2012)
Maximum SPL	102 dB, 1 m (based on MIV) 103 dB, 1 m (linear)
Nominal sensitivity	86 dB SPL, 1 W, 1 m, full space
Nominal impedance	8 ohms per speaker
Crossover frequency	2.5 kHz
Nominal coverage angle	95° conical coverage (1 kHz to 4 kHz)
Rotary switch taps	70V: 64 W, 32 W, 16 W, 8 W, 8 ohms direct 100V: null, 64 W, 32 W, 16 W, 8 ohms direct
Drivers
Woofer	(1) 6.5" (165 mm) polypropylene cone with moisture resistant coating
Tweeter	(1) 3/4" (19.1 mm) PEI dome
Overload protection	Full range power limiter with the 8 ohm direct input only, protecting the tweeter, woofer, and crossover
Input connector	(2) splicing connectors, 2 pole (2) splicing connectors, 3 pole, for 1 input and 1 loop-through
General
Package	2 speakers (1 pair)
Included accessories	Setup guide, 4 2-pole splicing connectors, 4 3-pole splicing connectors, 30' (9.1 m) Pendant Connect cable
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Mounting	Ceiling Mountable with included hardware
Enclosure type
Enclosure materials	Fire-resistant (UL94V-0) plastic
Enclosure design	Plastic, tapered cylindrical
Grille material	Powder-coated steel
Enclosure outer dimensions	11.6" H x 9.0" diameter (295.1 mm H x 229.1 mm diameter)
Product weight	10.4 lbs (4.7 kg) each 11.5 lbs (5.2 kg) with 15' (4.6 m) of PCC-2 cable and optional SMK C SF 26PT mounting plate
Regulatory compliance	CE, UL 1480A, RoHS, WEEE
Product warranty	5 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(6073-D3)
