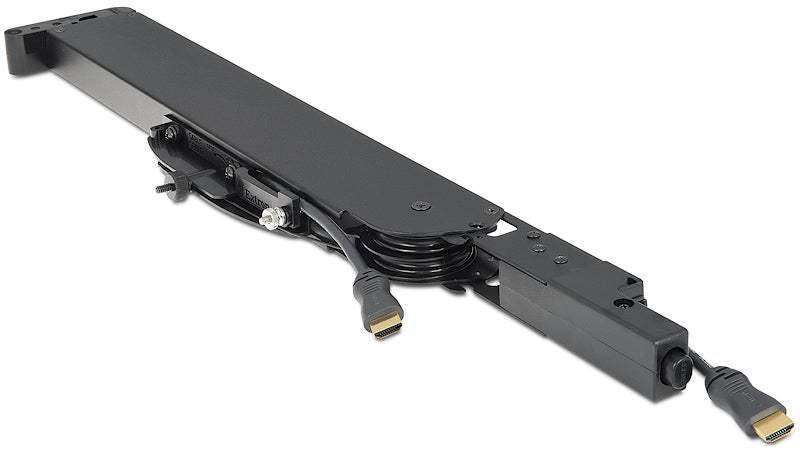

The Extron Retractor Series is a patented, variable-speed cable retraction and management system that works with AVEdge™ 100, Cable Cubby® Series, and select TouchLink® enclosures, as well as the TMK 120 R Table Mount Kit. Retractor modules support most AV and data signal types, including HDMI, DisplayPort, VGA, Network, PC Audio, USB, and USB‑C®. Retractor DC extends DC power to laptops, and is compatible with many Dell, HP, Compaq, and Lenovo PCs. Cables extend up to 3 feet (90 cm) and are held securely in place at the desired length. Cables retract at the press of a button, with integrator-adjustable retraction speed control for smooth operation in both horizontal and vertical mounting. Extron Retractor Series XL modules are also available for applications where cable extension of 5 feet (152 cm) is appropriate.
Extron offers the industry’s widest selection of USB‑C Retractor modules. The Retractor USB‑C Power module features USB‑C to USB‑C delivery of up to 100 watts of power to peripheral devices, as well as select laptops. For USB‑C sources that support DisplayPort Alt Mode, the Retractor USB‑C ‑ HDMI module provides connection to HDMI displays and peripheral devices. The Extron Retractor USB‑C ‑ DisplayPort module provides connectivity between USB‑C sources that support DisplayPort Alt Mode and a DisplayPort device. The Retractor USB‑C - HDMI and Retractor USB-C - DisplayPort modules support resolutions up to 4K/30 and pass EDID, HDCP, and audio information between source and display.
The Retractor USB-C Pro and Retractor USB-C Pro 8K modules provide connectivity between USB‑C sources that support resolutions up to 8K/30. Data rates up to 5 Gbps. EDID, HDCP, and audio information also pass between the devices. They deliver up to 60 watts of power for charging. The Retractor USB‑C Pro 8K is compatible with the USB‑C HD 101 interface.
For power, Extron offers several Retractor modules to choose from. Retractor DC and Retractor Lenovo DC extend power to compatible laptops. Laptop power supply not included; see the DC Power Compatibility Guide for details.
Extron Retractor modules are engineered for long life and reliability. They are tested to exceed 7,500 cable extension and retraction cycles. The robust mechanism is designed to withstand frequent use in schools, libraries, conference rooms, and other high-utilization environments. Each module includes a pre-loaded, continuous 12‑foot (3.6 m) cable for a single signal type, ensuring consistent, reliable performance regardless of cable extension length. A six‑foot (1.8 m) pigtail is provided on the system end of the module for ease of installation and connection to under-table AV system hardware or floor boxes.

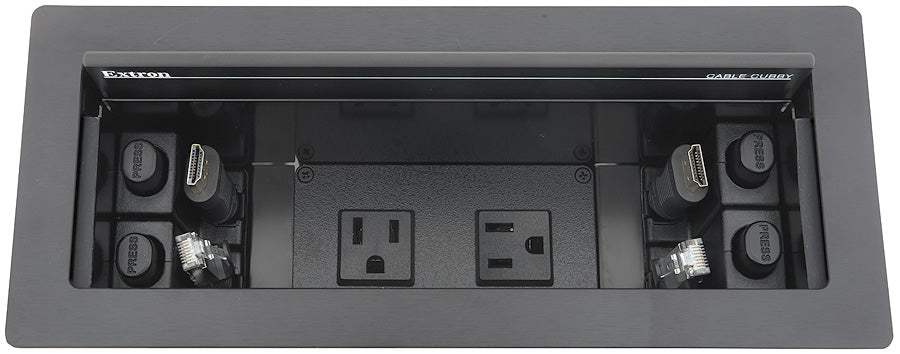

Retractor modules can be mounted vertically for ease of installation next to a table leg or desktop support. For horizontal mounting applications such as under a tabletop or other flat surface, an optional mounting bracket is available. Each horizontal bracket holds up to three Retractor modules. For semi-permanent applications, AVEdge 100 enclosures also accommodate up to three Retractor cable retraction modules. The mounting bracket is included. Cable Cubby Series and select TouchLink enclosures support from three to nine Retractor modules, depending on the size of the enclosure. Optional mounting brackets may be required. The Retractor Filler Module is available to fill unused spaces in Retractor mounts. This Filler Module includes a Blank Cover Plate as well as a Cable Pass‑through Plate that accommodates stereo audio, network, or other cables. The Extron TMK 120 R Table Mount Kit for under-table mount installations is also available for installations where cutting a tabletop surface is not desirable.
Please see chart below for details:
| Model | Retractor Capacity |
|---|---|
| AVEdge 100 | 3 with included bracket |
| Cable Cubby F55 | Incompatible |
| Cable Cubby F55 Edge | 4 with optional brackets |
| Cable Cubby F55 UT | 2 with optional brackets |
| Cable Cubby 202 | 3 with optional bracket |
| Cable Cubby 300S/C | 3 |
| Cable Cubby 500 | 3 with included bracket |
| Cable Cubby 600 | 6 total; 3 per side |
| Cable Cubby 650 UT | 3 with included brackets 4 with optional brackets |
| Cable Cubby 700 | 6 total; 3 per side with included brackets |
| Cable Cubby 800 | 6 total; 3 per side |
| Cable Cubby 1200/1202 | 3 with included bracket 4 with optional brackets |
| Cable Cubby 1252 MS | 3 with included bracket 4 with optional brackets |
| Cable Cubby 1400/1402 | 3 with included brackets 4 with optional brackets |
| EBP 1200C | 3 with included brackets 4 with optional brackets |
| TLP 350CV | 6 total; 3 per side |
| TLP 710CV | 6 total; 3 per side |
| TLE 350 | 6 total; 3 per side |
| TLE 710 | 6 total; 3 per side |
| TLP Pro 320C | 6 total; 3 per side |
| TLP Pro 525C | 3 with optional bracket |
| TLP Pro 720C | 6 total; 3 per side |
| TLP Pro 725C | 9 with optional bracket |
| TMK 120 R | 2 |
Features
- Convenient, easy-to-install cable retraction system for AVEdge 100, Cable Cubby® Series, and select TouchLink® enclosures, as well as the TMK 120 R Table Mount Kit
- Cables extend up to three feet (90 cm) — Also provides 6' (1.8 m) pigtail for connecting to other AV products located beneath the mounting surface.
- Holds cable securely in place at a user-defined length
- Simple push-button release retracts cable after use

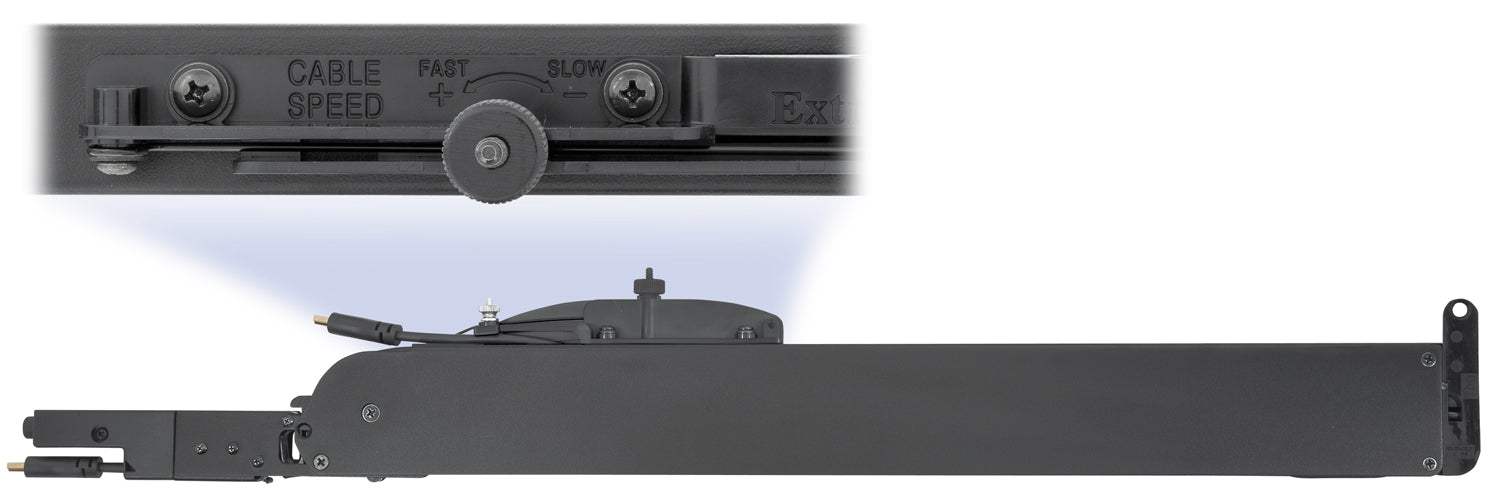

- Patented, precise variable-speed cable retraction control provides more than 50 steps of adjustment between 1.5 and 4.0 seconds — Cable extension and retraction mechanisms operate independently for greater reliability and longer cable life.
- Engineered for long life and reliability, and tested to exceed 7,500 cable extension and retraction cycles
- Flexible installation options — Retractor modules can be installed under a table or other work surface in either a vertical or horizontal position.
- Retractor modules are easily installed using a single bolt; no tools or additional hardware required — Swapping out Retractor modules takes only minutes if cable needs change.

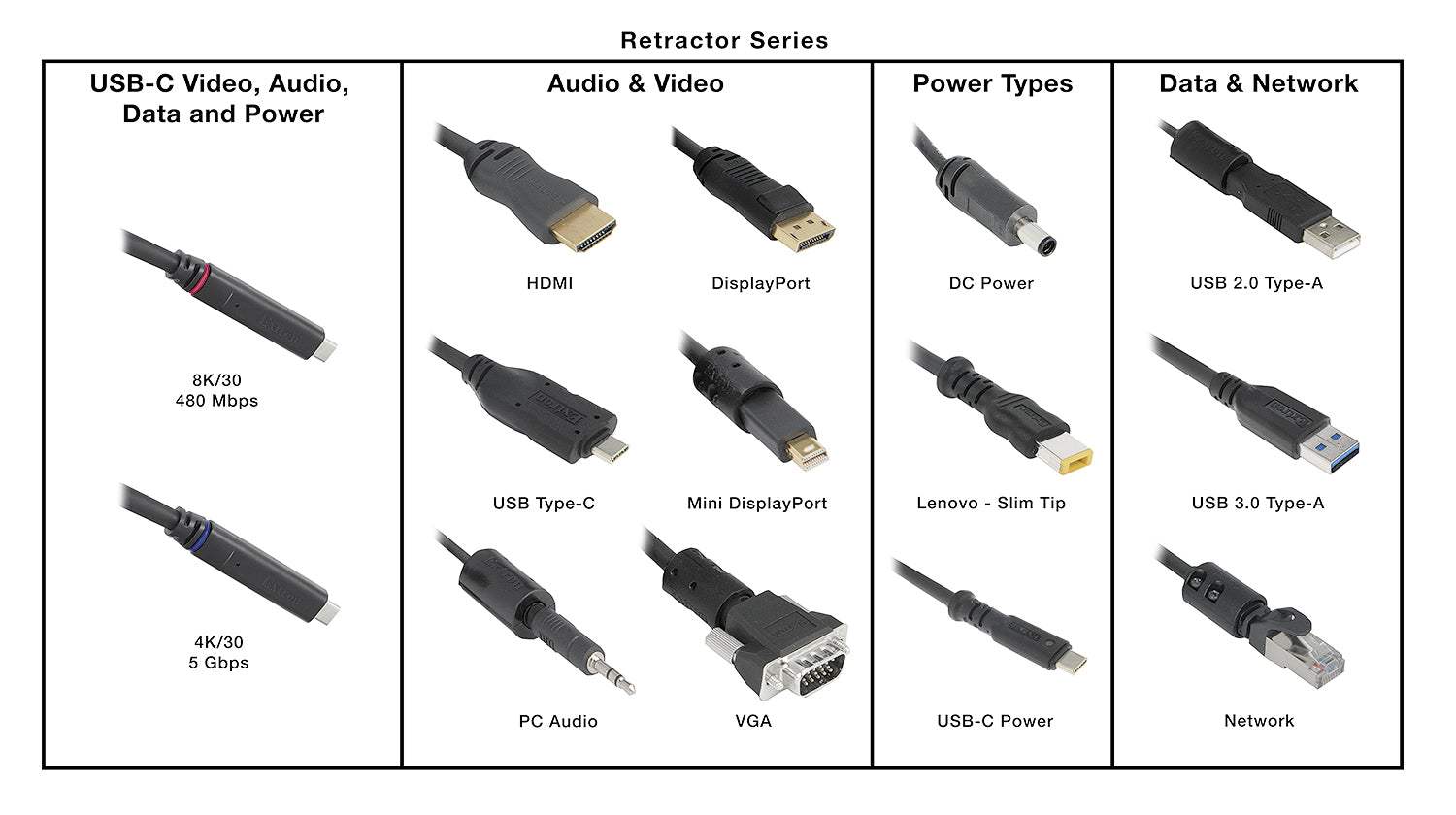

- Available with a variety of commonly used AV and data connectors, including HDMI, Mini DisplayPort, DisplayPort, VGA, PC Audio, Network, USB, and USB‑C®
- Retractor USB‑C Power module transmits up to 100 watts of power
- Retractor USB‑C - HDMI module provides connectivity between USB‑C equipped sources that support DisplayPort Alt Mode and HDMI displays and peripherals:
- Conforms to High Speed HDMI cable performance standards
- 4K verified to support resolutions up to 4K/30 @ 4:4:4
- HDCP compliant
- Passes EDID information from display to the source - Retractor USB‑C - DisplayPort module provides connectivity between USB‑C equipped devices that support DisplayPort Alt Mode and DisplayPort devices:
- 4K verified to support resolutions up to 4K/30 @ 4:4:4
- HDCP compliant
- Passes EDID information from display to the source -
New Retractor USB-C Pro; PN 70-1065-55:
- Supports two DisplayPort Lanes
- 4K/30
- 5 Gbps data rates
- USB 3.2 compliant
- Delivers up to 60 W of power
- Identifiable blue ring on the source connector -
New Retractor USB-C Pro 8K; PN 70-1065-56:
- Supports four DisplayPort Lanes
- 8K/30
- 480 Mbps data rates
- USB 2.0 compliant
- Delivers up to 60 W of power
- Identifiable red ring on the source connector

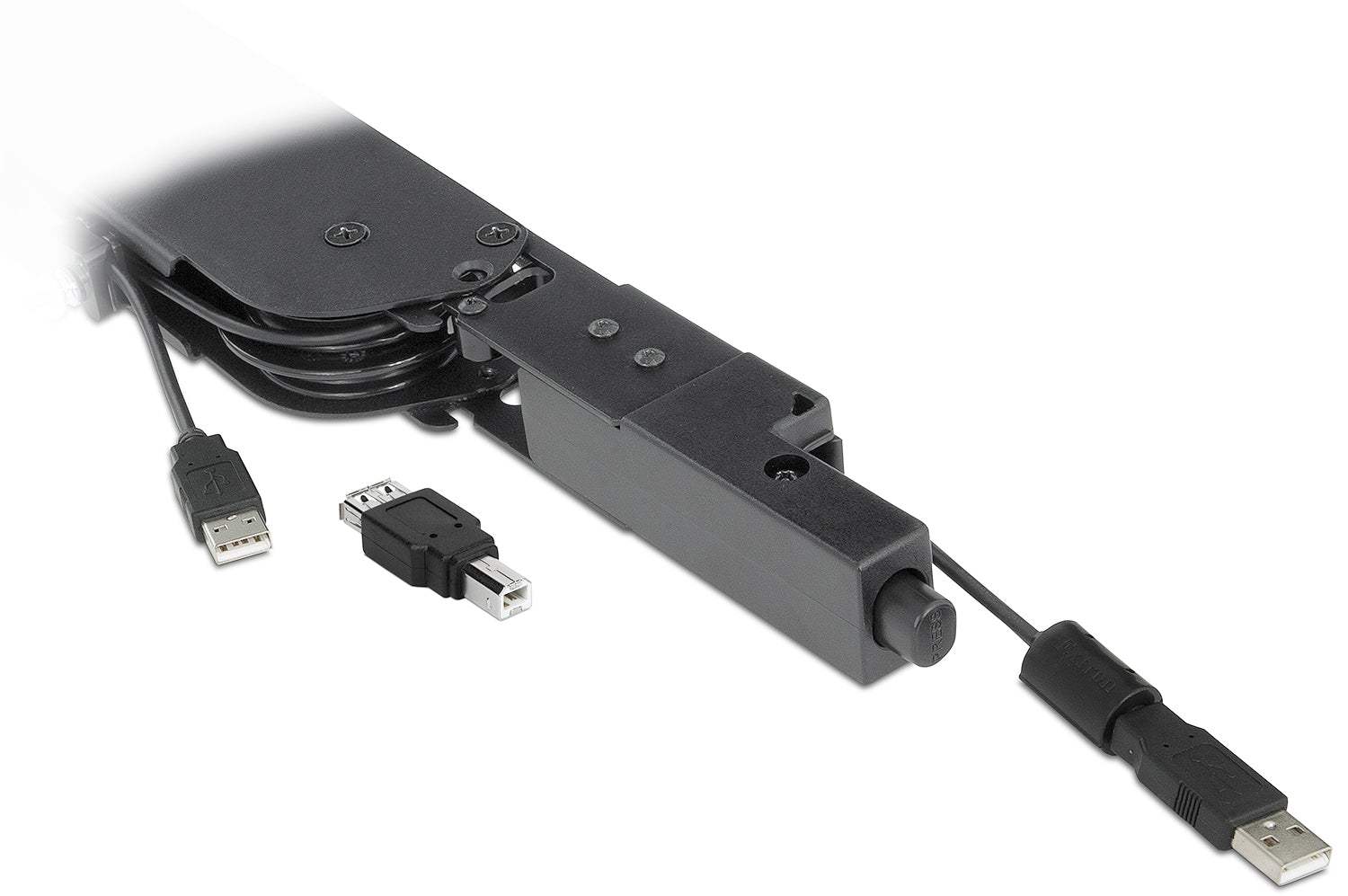

- Compatible with USB‑C HD 101 interface - New Retractor USB 2.0 features a USB Type‑A Male to USB Type‑A Male cable that supports 480 Mbps data rates — Includes Type‑A female to Type‑B male adapter for direct connection to USB switchers and extenders.
- Retractor USB 3.2 features a USB Type‑A Male to USB Type‑B Male cable that supports 5 Gbps data rates
- Retractor DC extends DC power for many Dell, HP, and Compaq PCs, while Lenovo DC is compatible with select Lenovo laptops — Laptop power supply not included; see the DC Power Compatibility Guide for details.

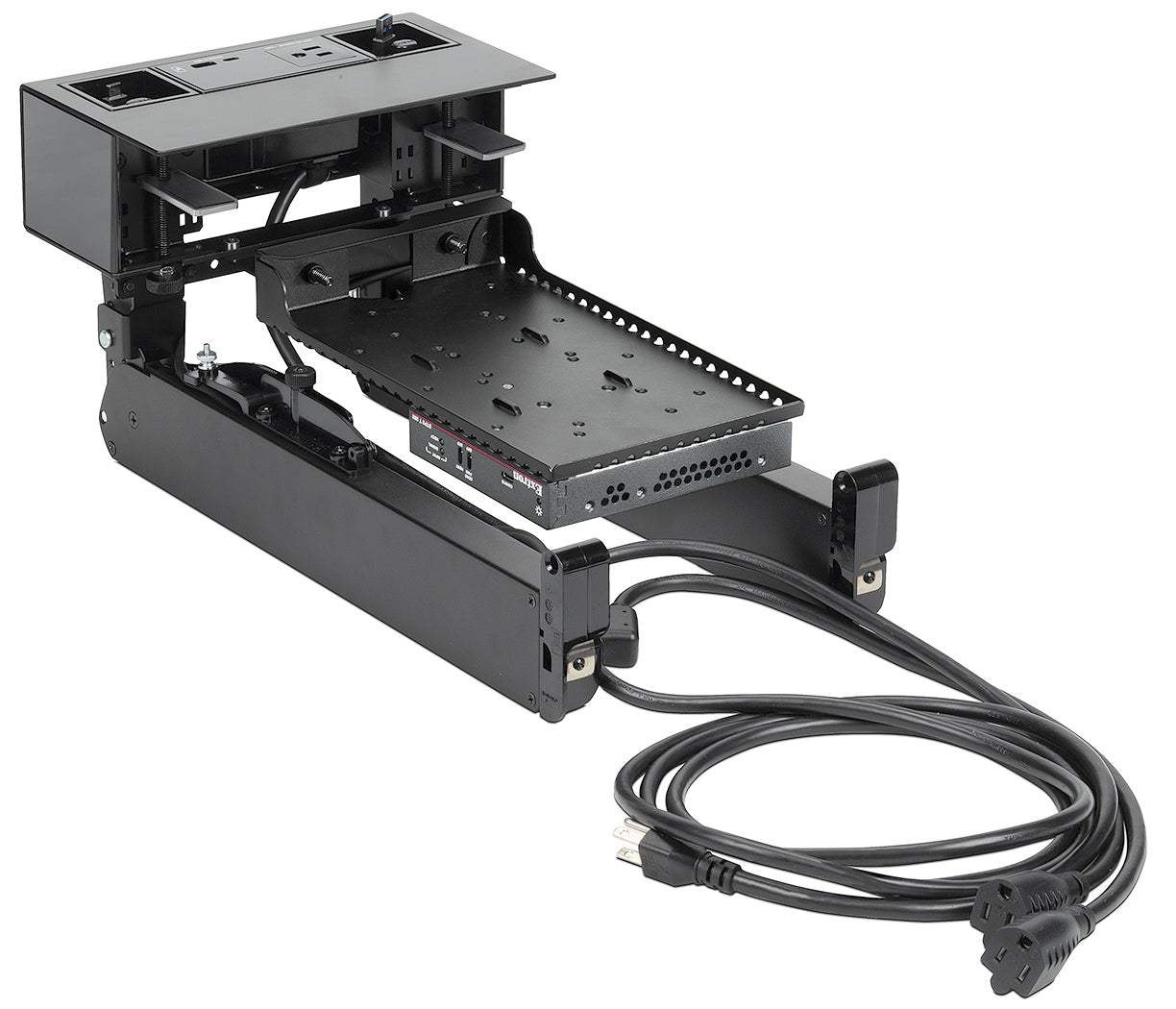

- Optional TMK 120 R Table Mount Kit available for two Retractor modules — Retractor modules mount close against the furniture surface for maximum leg room.
- Optional AVEdge 100 Edge Mount Enclosure available for up to three Retractor modules — Mounts Retractor modules onto the edge of a table surface in semi-permanent installations where cutting the surface is not desirable.
- Optional filler modules and mounting brackets available — Filler Module includes a Blank Cover Plate and Cable Pass‑through Plate that accommodates audio, network, or USB cables to support Retractor modules.
- Optional Cable Cubby Retractor Bracket Kit - Double allows two Retractor modules to be mounted in a Cable Cubby 650 UT, Cable Cubby 1200/1202, Cable Cubby 1252 MS, Cable Cubby 1400/1402, EBP 1200C, TLP Pro 525C, or TLP Pro 725C enclosure; per bracket
- Retractor Series XL Extended Length Cable Retraction Modules are also available for applications where cable extension of five feet (152 cm) is appropriate
- Optional Cable Collar units are available for use with select Retractor Series cable retraction systems — When used with Cable Cubby Series enclosures, it is not recommended for use with USB‑C Pro and USB‑C Pro 8K cable retraction modules.
Specs
Also see our Specs in PDF format
| Retractor Series | |||
| Cable — USBC Pro 8K (Red Ring) | |||
|---|---|---|---|
 specification |
|||
|
|||
| |
24, 25, 30, 50, 60, or 120 fps | ||
| |
4:4:4 or 4:2:2 | ||
| |
8, 10, or 12 bits per color | ||
| |
Up to DisplayPort 1.4 and HDCP 2.3 | ||
| |
DisplayPort Alt Mode, DP 1.4 (4 lanes), up to HBR3/8.1 Gbps per lane | ||
| |
32.4 Gbps (8.1 Gbps Per Lane) | ||
|
|||
| |
|||
| |
1 USB-C Male to 1 USB-C Male | ||
| |
|||
| |
USB 2.0 and USB 1.1 compatible | ||
| |
Up to 480 Mbps | ||
| |
0 | ||
| |
|||
| |
60 W | ||
| |
3 A | ||
| Cable — USBC Pro (Blue Ring) | |||
 specification |
|||
|
|||
| |
24, 25, or 30 fps | ||
| |
4:4:4 or 4:2:2 | ||
| |
8, 10, or 12 bits per color | ||
| |
Up to DisplayPort 1.4 and HDCP 2.3 | ||
| |
DisplayPort Alt Mode, DP 1.4 (2 lanes), up to HBR3/8.1 Gbps per lane | ||
| |
16.2 Gbps (8.1 Gbps per lane) | ||
|
|||
| |
|||
| |
1 USB-C Male to 1 USB-C Male | ||
| |
|||
| |
USB 3.2 (Gen 1), USB 2.0, USB 1.1 compatible | ||
| |
Up to 5 Gbps | ||
| |
0 | ||
| |
|||
| |
60 W | ||
| |
3 A | ||
| Cable - Digital | |||
|
Specifications |
|||
|
|||
| |
24, 25, 30, 50, or 60 fps | ||
| |
4:4:4, 4:2:2, or 4:2:0 | ||
| |
8 bits per color | ||
| |
HDMI 1.4, DisplayPort 1.1a | ||
| |
|||
| |
10.2 Gbps (3.4 Gbps per color) | ||
| |
10.8 Gbps (2.7 Gbps per lane) | ||
|
|||
| |
|||
| |
1 male HDMI type A to 1 male HDMI type A | ||
| |
|||
| |
1 male latching DisplayPort to 1 male latching DisplayPort 1 male latching DisplayPort to 1 HDMI type A |
||
| |
|||
| |
1 male Mini DisplayPort to 1 male latching DisplayPort 1 male Mini DisplayPort to 1 male HDMI type A |
||
| |
|||
| |
1 male USB-C to 1 male HDMI type A 1 male USB-C to 1 male latching DisplayPort |
||
| Cable — Analog | |||
| |
|||
| |
1 male 15-pin HD to 1 male 15-pin HD | ||
| |
|||
| |
1 male 15-pin HD with 24 inch male 3.5 mm stereo audio pigtail to 1 male 15-pin HD with 8 inch male 3.5 mm stereo audio pigtail |
||
| |
|||
| |
1 male 3.5 mm stereo audio TRS (tip, ring, sleeve) to 1 male 3.5 mm TRS | ||
| Cable | |||
| |
|||
| |
USB 2.0 | ||
| |
1 male USB 2.0 Type A to 1 male Type A | ||
| |
High speed (480 Mbps) | ||
| |
|||
| |
USB 3.2 Gen 1 | ||
| |
1 male USB 3.2 Gen 1 Type A to male Type B | ||
| |
SuperSpeed (5 Gbps) | ||
| |
|||
| |
USB power only | ||
| |
1 male USB-C to 1 female USB-C | ||
| |
100 watts (5 A) | ||
| |
|||
| |
CAT 6 | ||
| |
1 male shielded RJ-45 to 1 male shielded RJ-45 | ||
| |
|||
| |
1 male DC power connector to 1 female DC power connector | ||
| |
|||
| |
1 male DC Slim-tip to 1 female DC Slim-tip | ||
| General | |||
| |
Mountable into Extron Cable Cubby, TLP Cable Cubby TouchLink® and AVEdge 100 enclosures, and the TMK 120 R Table Mount Kit (all sold separately) | ||
|
|||
| |
Metal and plastic | ||
| |
22.7" H x 1.2" W x 4.7" D (57.7 cm H x 3.0 cm W x 11.9 cm D) See the following diagrams for additional dimensions. |
||
| |
 |
||
| |
|||
| |
 |
||
| |
 |
||
| |
2.8 lbs (1.3 kg) | ||
| |
RoHS, WEEE | ||
| |
Tested to exceed 7500 cycles | ||
| |
3 years parts and labor including preinstalled cable assembly | ||
|
|||
| (5997-D15) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 70-1065-01 | 2.75" (7.0 cm) | 6.5" (16.5 cm) | 26.0" (66.0 cm) | 4.0 lbs (1.81 kg) |
| 70-1065-02 | 2.75" (7.0 cm) | 6.25" (15.9 cm) | 25.88" (65.7 cm) | 3.71 lbs (1.68 kg) |
| 70-1065-03 | 2.75" (7.0 cm) | 6.5" (16.5 cm) | 26.0" (66.0 cm) | 3.94 lbs (1.79 kg) |
| 70-1065-04 | 3.0" (7.6 cm) | 7.0" (17.8 cm) | 26.0" (66.0 cm) | 3.94 lbs (1.79 kg) |
| 70-1065-05 | 2.75" (7.0 cm) | 6.38" (16.2 cm) | 25.88" (65.7 cm) | 3.77 lbs (1.71 kg) |
| 70-1065-06 | 2.75" (7.0 cm) | 6.5" (16.5 cm) | 25.88" (65.7 cm) | 3.92 lbs (1.78 kg) |
| 70-1065-18 | 2.76" (7.0 cm) | 25.82" (65.6 cm) | 6.42" (16.3 cm) | 3.9 lbs (1.77 kg) |
| 70-1065-44 | 2.75" (7.0 cm) | 6.5" (16.5 cm) | 26.0" (66.0 cm) | 3.93 lbs (1.78 kg) |
| 70-1065-43 | 2.75" (7.0 cm) | 6.5" (16.5 cm) | 26.0" (66.0 cm) | 3.9 lbs (1.77 kg) |
| 70-1065-07 | 2.75" (7.0 cm) | 6.5" (16.5 cm) | 26.0" (66.0 cm) | 3.97 lbs (1.8 kg) |
| 70-1065-55 | 2.75" (7.0 cm) | 25.63" (65.1 cm) | 6.44" (16.4 cm) | 4.0 lbs (1.81 kg) |
| 70-1065-56 | 2.75" (7.0 cm) | 25.63" (65.1 cm) | 6.44" (16.4 cm) | 4.0 lbs (1.81 kg) |
| 70-1065-11 | 2.75" (7.0 cm) | 6.25" (15.9 cm) | 26.0" (66.0 cm) | 4.11 lbs (1.86 kg) |
| 70-1065-50 | 2.75" (7.0 cm) | 6.5" (16.5 cm) | 26.0" (66.0 cm) | 4.12 lbs (1.87 kg) |
| 70-1065-51 | 2.75" (7.0 cm) | 6.5" (16.5 cm) | 26.0" (66.0 cm) | 3.99 lbs (1.81 kg) |
| 70-1065-52 | 2.75" (7.0 cm) | 6.5" (16.5 cm) | 26.0" (66.0 cm) | 3.97 lbs (1.8 kg) |
| 70-1065-35 | 2.0" (5.1 cm) | 3.0" (7.6 cm) | 5.0" (12.7 cm) | 0.3 lbs (0.14 kg) |
| 70-678-00 | 1.25" (3.2 cm) | 3.78" (9.6 cm) | 1.08" (2.7 cm) | 0.2 lbs (0.09 kg) |
| 70-1043-02 | 4.0" (10.2 cm) | 7.5" (19.1 cm) | 5.5" (14.0 cm) | 0.72 lbs (0.33 kg) |
