Extron PS Series Desktop Power Supplies offer high reliability, meet Level V or VI standards for energy efficiency, and provide versatile mounting options for easy integration. These energy-efficient Everlast power supplies lower power consumption, reducing operating costs and helping to meet green building requirements.
Extron was the first US‑based manufacturer to receive Energy Efficiency Certification (EEC) by UL Environment. The program allows a manufacturer to substantiate its ENERGY STAR® claims using a trusted third-party organization. Extron designs and tests products to the highest standards available for reliability and performance.
PS Series Desktop Power Supplies are engineered by Extron, ensuring increased durability and reliability. While typical power supplies last for three years, Extron's PS Series are designed to last for over 114 years of continuous use. The PS 1220 model has a calculated MTBF of over 400,000 hours, and PS 1242 has 280,000 hours to prevent power supply-related failures and disruption to system operation.
PS Series Desktop Power Supplies are available in the most popular voltages used by Extron products: 12 VDC. With the included ZipClip mounting kit, these power supplies can be quickly and securely mounted to rack rails, tables, and lecterns. They also feature a 1U enclosure with threaded inserts to mount directly onto Extron rack shelves. The unique enclosure design allows direct mounting to projector poles, table legs, and other oddly shaped structures. The PS Series Desktop Power Supplies are available in one-eighth rack width and one-quarter rack width versions, enabling them to be installed in small spaces.
One-Eighth Rack Width

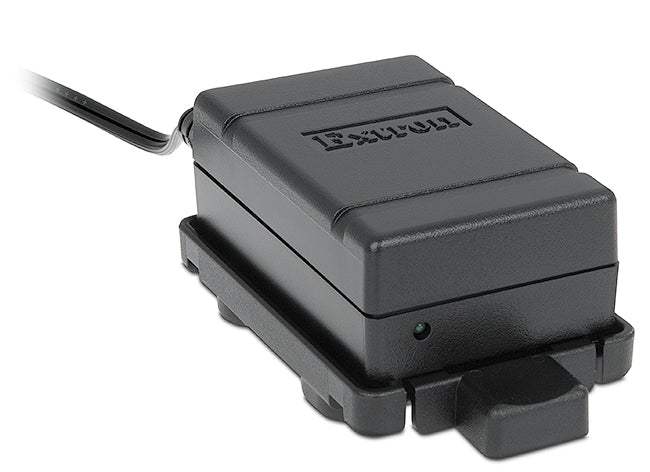

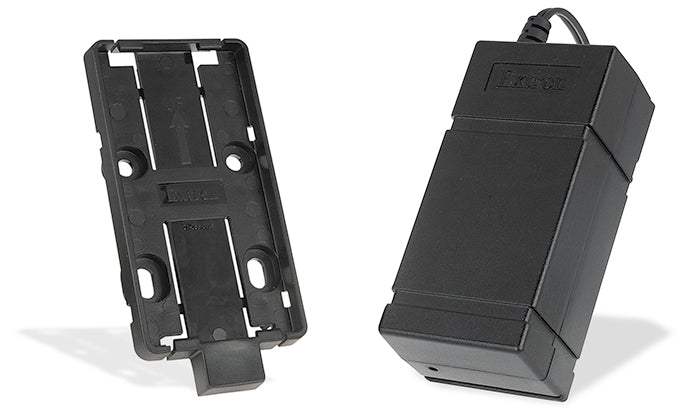

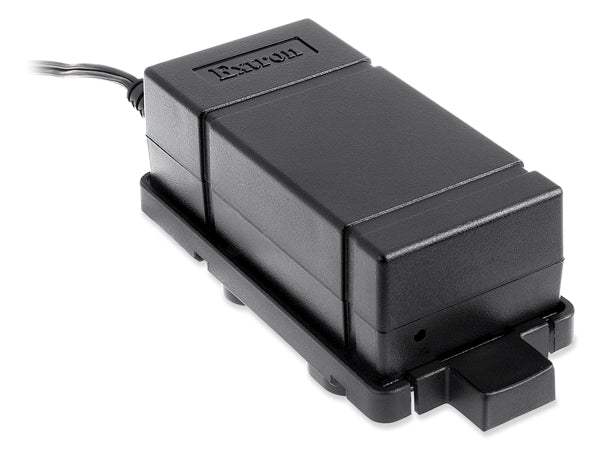

The compact one-eighth rack width by 1U models include an attached 3’ (0.94 m) DC cord terminated with a captive screw connector. They snap into the included patented ZipClip 100 mounting bracket for secure mounting to rack rails, tables, or lecterns. Models include the PS 1215 and PS 1220; while PS 1205 includes the ZipClip 50 mounting bracket.
One-Quarter Rack Width

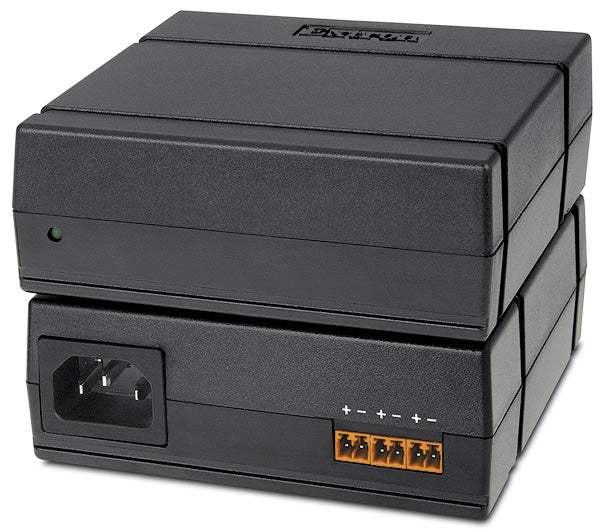

The one-quarter rack width by 1U PS 1242 power supply has three 2-pole captive screw ports and offers a total of 4.2 amps across all outputs with no per-port current limitations It snaps into the included, patented ZipClip 200 mounting bracket for secure mounting to rack rails, tables, or lecterns. The PS 1242 features one detached 6-foot DC cable with pre-sliced ends, three orange 2-pole, 3.5 mm captive screw connectors, and a DC plug for convenient DC output creation.
Power Supply Models
| Model | Power Output | Rack Width Size | ZipClip Size | DC Connector Type | MTBF | Part # |
|---|---|---|---|---|---|---|
| PS 1205 C | 12 V, 0.5 A | Eighth-Rack | 50 | Captive Screw Connector | 850,000 | 70-1175-01 |
| PS 1215 C | 12 V, 1.5 A | Eighth-Rack | 100 | Captive Screw Connector | 400,000 | 70-1174-01 |
| PS 1220 | 12 V, 2 A | Eighth-Rack | 100 | Captive Screw Connector | 600,000 | 70-1259-01 |
| PS 1242 | 12 V, 4.2 A | Quarter-Rack | 200 | 3 Captive Screw Ports | 280,000 | 70-1246-01 |
Capitive Screw Connector
Captive Screw Ports
Features
- Energy-efficient, Level V and VI rated power supplies for low power consumption and reduced operating costs
- PS 1242 features three 12‑volt DC outputs; all other models offer a single DC output
- Rack mountable — Power supplies mount directly to Extron basic and universal rack shelf products
- Patent Pending enclosure
-
Patented ZipClip mounting bracket included —
- PS 1205 C includes ZipClip 50
- PS 1220 and PS 1215 C includes ZipClip 100
- PS 1242 includes ZipClip 200
- Mounts securely on a variety of surfaces, including rack rails, tables, lecterns, projector poles, and table legs
- LED indicator for power
- Universal IEC input easily accepts international power cords
- Compact footprint requires little desktop or rack space
- US style Edison six foot (1.8 m) detachable IEC cord included
- Worldwide compatibility, 100 VAC to 240 VAC universal
- Extron seven-year parts and labor warranty
Specs
Also see our Specs in PDF format
| PS 1205, PS 1215, PS 1220, PS 1242 Series | |||
| General | |||
|---|---|---|---|
| |
|||
| |
12 VDC, 0.5 A, 6 watts | ||
| |
12 VDC, 1.5 A, 18 watts | ||
| |
12 VDC, 2 A, 24 watts | ||
| |
12 VDC, 4.2 A, 50 watts; shared between all three outputs | ||
| |
|||
| |
|||
| |
100 VAC to 240 VAC, 50-60 Hz, 0.05 watts | ||
| |
100 VAC to 240 VAC, 50-60 Hz, 0.05 watts | ||
| |
100 VAC to 240 VAC, 50-60 Hz, 0.04 watts | ||
| |
100 VAC to 240 VAC, 50-60 Hz, 0.1 watts | ||
| |
|||
| |
100 VAC to 240 VAC, 50-60 Hz, 6.9 watts, 0.25 A maximum | ||
| |
100 VAC to 240 VAC, 50-60 Hz, 20.2 watts, 0.5 A maximum | ||
| |
100 VAC to 240 VAC, 50-60 Hz, 27.5 watts, 0.6 A maximum | ||
| |
100 VAC to 240 VAC, 50-60 Hz, 56 watts, 1.5 A maximum | ||
| |
|||
| |
|||
| |
77.21% | ||
| |
82.87% | ||
| |
85.8% | ||
| |
88.48% | ||
| |
|||
| |
83.7% | ||
| |
87.7% | ||
| |
91.11% | ||
| |
90.75% | ||
| |
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
||
| |
Convection, no vents | ||
| |
|||
| |
|||
| |
0.18 BTU/hr | ||
| |
0.18 BTU/hr | ||
| |
0.20 BTU/hr | ||
| |
0.50 BTU/hr | ||
| |
|||
| |
3.8 BTU/hr | ||
| |
11.4 BTU/hr | ||
| |
11.1 BTU/hr | ||
| |
23.1 BTU/hr | ||
| |
|||
| |
Yes, with optional 1U rack shelf, with the included ZipClip® 50 mounting clip (for the PS 1205 C), ZipClip 100 mounting clip (for one eighth rack models) or ZipClip 200 mounting clip (for quarter rack models), or by securing to rack rails with tie wraps | ||
| |
Yes, with the included ZipClip 50, ZipClip 100, or ZipClip 200 mounting clip | ||
| |
Yes, using tie wraps | ||
| |
High impact, high temperature plastic | ||
| |
|||
| |
1.5" H x 2.2" W x 3.4" D (one eighth rack wide) (37 mm H x 55 mm W x 86 mm D) (Excludes power cord.) |
||
| |
1.7" H x 2.2" W x 4.5" D (1U high, one eighth rack wide) (42 mm H x 55 mm W x 114 mm D) (Excludes power cords.) |
||
| |
1.7" H x 4.3" W x 4.5" D (1U high, quarter rack wide) (42 mm H x 109 mm W x 114 mm D) |
||
| |
|||
| |
0.3 lb (0.2 kg) | ||
| |
0.5 lb (0.3 kg) | ||
| |
0.8 lb (0.4 kg) | ||
| |
Operating: 10-250 Hz, 0.25 Gp-p, 3 axes, 15 min. sweep | ||
| |
BIS, CE, C-Tick, c-UL, CISPR 23 Class B, CISPR 24, FCC Class B, KC, NEC Class 2, PSE, UL Complies with the appropriate requirements of RoHS, WEEE. These power supplies are energy efficient and are marked with the UL Environment Energy Efficiency Certification (EEC) Mark. These power supplies meet energy efficiency level VI. |
||
| |
|||
| |
1,000,000 hours | ||
| |
850,000 hours | ||
| |
400,000 hours | ||
| |
385,000 hours | ||
| |
280,000 hours | ||
| |
7 years parts and labor | ||
|
|||
| (6298-D19) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 70-1175-01 | 2.08" (5.3 cm) | 9.08" (23.1 cm) | 4.08" (10.4 cm) | 1.05 lbs (0.48 kg) |
| 70-1174-01 | 2.88" (7.3 cm) | 7.5" (19.1 cm) | 10.5" (26.7 cm) | 1.37 lbs (0.62 kg) |
| 70-1259-01 | 3.0" (7.6 cm) | 10.5" (26.7 cm) | 7.5" (19.1 cm) | 1.8 lbs (0.82 kg) |
| 70-1246-01 | 2.75" (7.0 cm) | 7.5" (19.1 cm) | 10.5" (26.7 cm) | 1.99 lbs (0.9 kg) |
