Extron PI 130 High Power Injector for XTP and Pro Series Control Systems
Extron PI 130 High Power Injector for XTP and Pro Series Control Systems is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron PI 130 High Power Injector for XTP and Pro Series Control Sy...

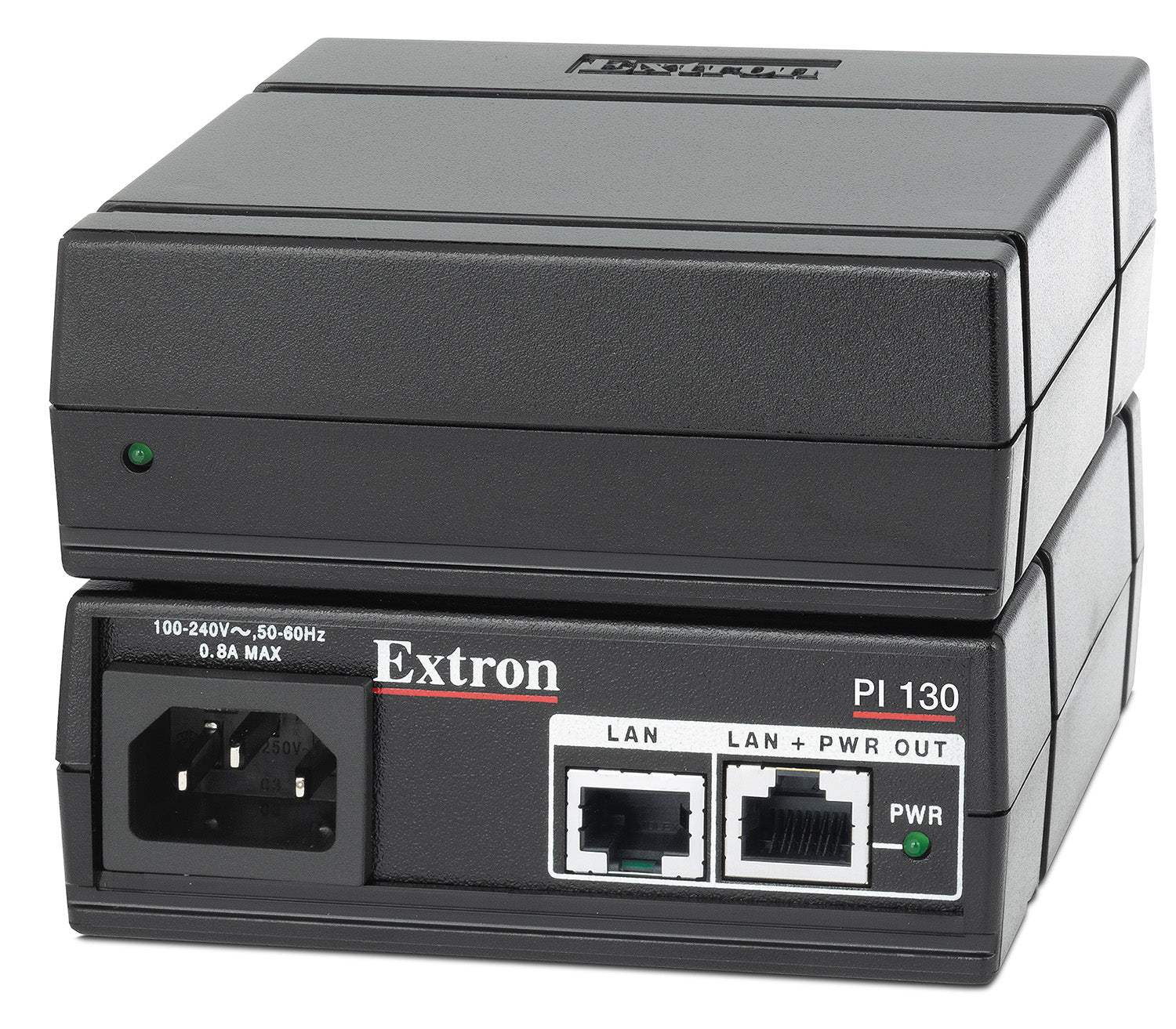

The Extron PI 130 is a single port high power injector that provides power to any PoE+ 802.3at compatible device, eliminating the need for a local power supply. Designed specifically for the high data rates of XTP Systems®, signal quality is unaffected when using the high power injector. For design flexibility, it can be installed anywhere within a signal path as well as in point-to-point applications. The compact enclosure of the power injector enables it to be installed in small spaces and the included Extron ZipClip® 200 mounting kit provides installation flexibility.
The unique 1U, quarter rack width enclosure features threaded inserts and recessed grooves for zip ties, allowing for easy mounting onto Extron rack shelves or oddly shaped supports, such as projector poles and rack rails. In addition, the patented Extron ZipClip 200 mounting kit offers further versatility to quickly and securely mount the PI 130 within lecterns, beneath tables, or into many other tight spaces.
Features
- Supplies the required power to compatible PoE+ 802.3at devices and select XTP devices — Provides power for XTP transmitters and receivers, and Extron control systems, as well as any other PoE+ compatible product, eliminating the need for a local power supply.
- Designed specifically for the high data rates of XTP Systems
- No impact on signal quality — Utilization of the power injector does not impact video, audio, bidirectional RS-232 and IR, and Ethernet signal quality.
- Patented ZipClip® 200 mounting kit included:
- Mounts securely on a variety of surfaces, including rack rails, tables, lecterns, projector poles, and table legs
- Wire tie slots for proper strain relief and dressing of excess cable
- Quick release tab allows for easy installation and removal - Real-time status LEDs for troubleshooting and monitoring — The front LED is for status of AC power input. The rear LED indicates if power is delivered to the device.
- UL/c-UL listed and CE compliant
- 1U, quarter rack width enclosure
- Extron Everlast™ power supply — Provides worldwide power compatibility, with high-demonstrated reliability and low power consumption for reduced operating cost.
- Extron Everlast™ Power Supply is covered by a 7 year parts and labor warranty
Specs
Also see our Specs in PDF format
| PI 130 | |||
| General | |||
|---|---|---|---|
| |
1 RJ-45 female connector for pass-through input 1 RJ-45 female connector for pass-through and power output |
||
| |
10/100/1000Base-T | ||
| |
Internal Input: 100-240 VAC, 50-60 Hz |
||
| |
|||
| |
100 VAC to 240 VAC, 50-60 Hz, 0.8 watts | ||
| |
100 VAC to 240 VAC, 50-60 Hz, 34.2 watts, 0.6 A maximum | ||
| |
56 VDC, 0.5 A, 30 watts Compatible with 802.3at PoE+ devices |
||
| |
|||
| |
89.30% | ||
| |
87.70% | ||
| |
|||
| |
100 VAC to 240 VAC, 50-60 Hz, 0.86 watts | ||
| |
100 VAC to 240 VAC, 50-60 Hz, 30 watts | ||
| |
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
||
| |
Convection, no vents | ||
| |
|||
| |
Yes, with optional 1U rack shelf with the included ZipClip 200 mounting clip or by securing to rack rails with tie wraps | ||
| |
Yes, with the included ZipClip 200 mounting clip | ||
| |
Yes, using tie wraps | ||
| |
High impact, high temperature plastic | ||
| |
1.7" H x 4.3" W x 4.5" D (1U high, quarter rack wide) (4.2 cm H x 11.0 cm W x 11.4 cm D) |
||
| |
0.6 lb (0.3 kg) | ||
| |
|||
| |
CE, C-tick, c-UL, UL, CISPR 32, CISPR 35, FCC Class B, NEC Class 2 | ||
| |
Complies with the appropriate requirements of RoHS, WEEE. | ||
| |
7 years parts and labor | ||
|
|||
| (6017-D2) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 60-1361-02 | 2.88" (7.3 cm) | 10.38" (26.4 cm) | 7.5" (19.1 cm) | 1.6 lbs (0.73 kg) |
